Interchangeable Core Shear Tool (Kit #431-7)
Open the original PDF document
View PDFINTERCHANGEABLE CORE SHEAR TOOL KIT #431-7 WHEN INSTALLING XC, 11-7P-7300B CORE IN
TO ITS EXISTING 70-43 SERIES MORTISE HOUSING:
- REMOVE ORIGINAL CORE AND POSITION THE DRIVE PINS ON THE BACK OF THE HOUSING TO THE HORIZONTAL POSITION.

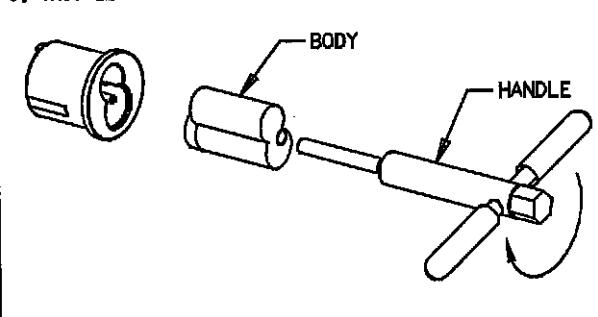

- 2. INSERT THE BODY OF THE SHEAR TOOL SO THAT THE HOLES IN THE BODY ALIGN WITH THE DRIVE PINS. *
- 4. WHILE PUSHING FIRMLY ON THE SHEAR TOOL TURN THE HANDLE CLOCKWISE.
3. INSERT THE HANDLE ASSEMBLY INTO THE HOLE.
- 5. REMOVE THE SHEAR TOOL SLOWLY AND DISCARD THE BRASS PIN THAT HAS JUST BEEN SHEARED OFF.
- 6. INSTALL PERMANENT CORE WITH THE CONTROL KEY.
