Instructions for installing 7 & 10 Line Bored Locks (30- prefix)

7 & 10 LINE LOCKS INSTALLATION INSTRUCTIONS (CYLINDERS BY OTHERS) 30- PREFIX

SARGENT

ASSA ABLOY

1

FOLLOW DIRECTIONS A - G AND I ON INSTRUCTION SHEETS A7133 10 LINE STANDARD & A7240 7 LINE STANDARD.

2

INSTALLING LEVERS

• 1. LOCKSET SHOULD BE ASSEMBLED AND SECURED TO DOOR AS PER INSTRUCTION SHEET SHOWN ABOVE.
• 2. PLACE SCALP COVER ON INSIDE ROSE (SIDE WITH EXPOSED SCREWS) ALIGNING DIMPLES WITH RECESSES IN THE INSIDE ROSE AND TURN CLOCKWISE TO LOCK.
• 3. ASSEMBLE INSIDE LEVER (USUALLY BLANK OR PUSH BUTTON LEVER) ON LOCKSET BY SLIDING LEVER ONTO TUBE. MAKE CERTAIN LEVER CATCH ON TUBE IN ENGAGED IN LEVER.

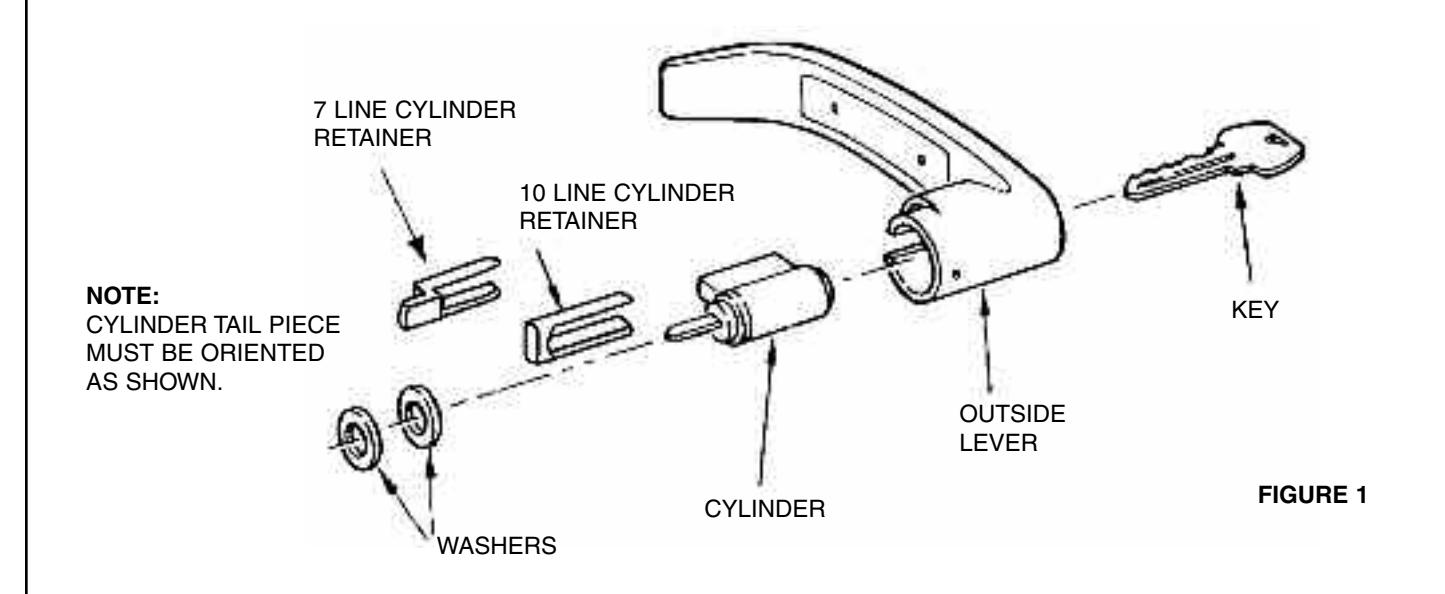

• 4. ASSEMBLE OUTSIDE LEVER AS FOLLOWS: INSERT CYLINDER INTO OUTSIDE LEVER. PRESS RETAINER INTO LEVER. SLIDE ONE WASHER OR TWO, AS NEEDED, ONTO TAILPIECE OF CYLINDER. (SEE FIGURE 1)
• 5. SLIDE OUTSIDE LEVER ASSEMBLY ONTO TUBE AS FAR AS IT WILL GO. TURN KEY 45° CLOCKWISE. PUSH LEVER AGAIN, UNTIL LEVER CATCH IS ENGAGED, SECURING THE LEVER.

NOTE: SEE SPECIAL INSTRUCTIONS FOR 16, 30, 37 AND 54 FUNCTIONS ON INSTRUCTION SHEET A7133 AND A7240.
