1431 DOOR CLOSER WITH P10/PH10 ARM INSTALLATION INSTRUCTIONS

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE. FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477

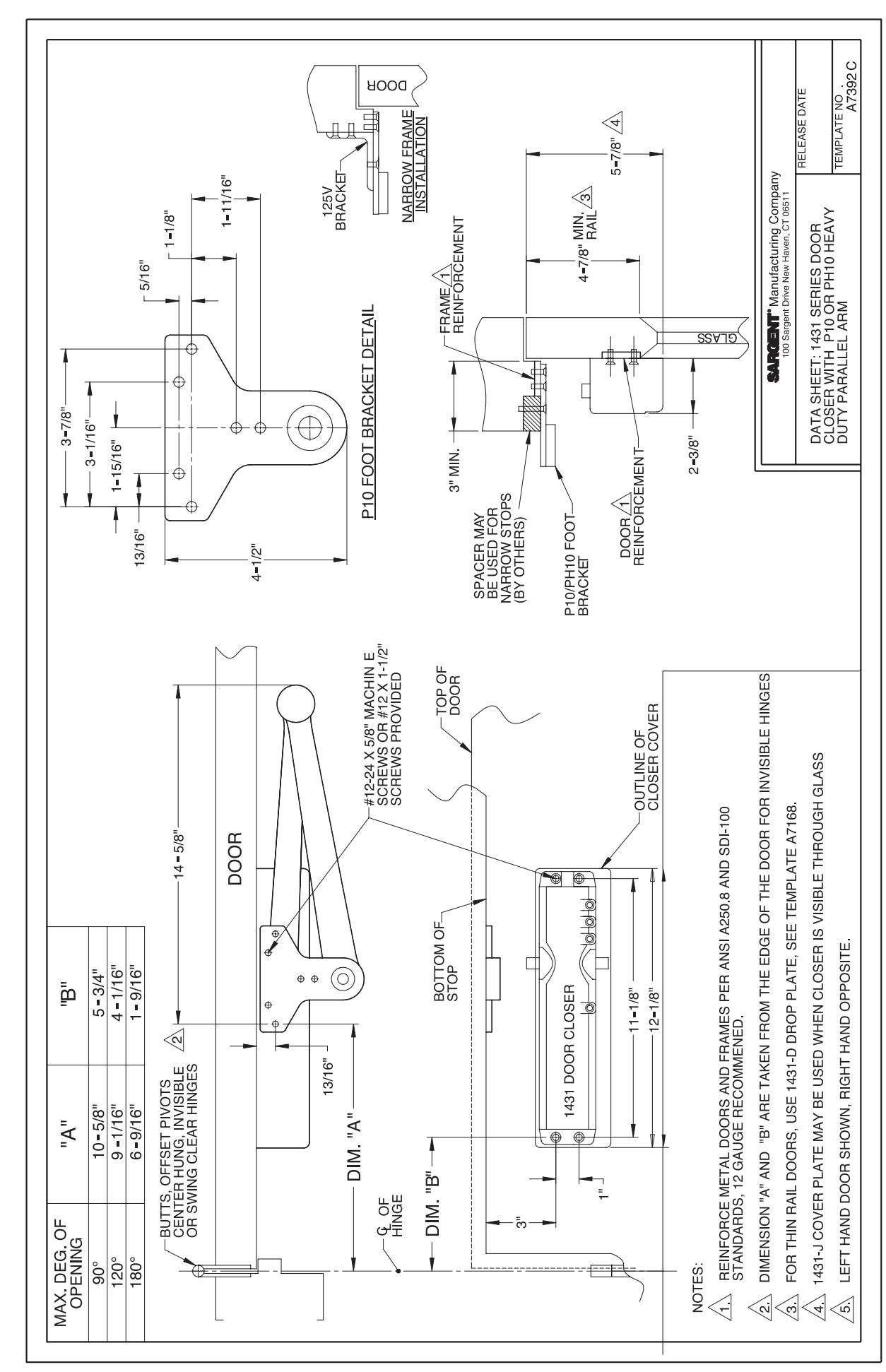

1 LOCATE AND MARK HOLES USING FULL SIZE TEMPLATE OR MEASURE AS SHOWN BELOW RIGHT HAND SHOWN, LEFT HAND OPPOSITE. PULL SIDE PULL SIDE PUSH SIDE PUSH SIDE LEFT HAND DOOR RIGHT HAND DOOR 1431 CLOSER AND P10 ARM ARE NON-HANDED ONLY THE PH10 ARM IS HANDED * NOTE: FOR MAXIMUM POWER, INSTALL FOR 90° OPENING.

+ or 2

PRE-DRILL 3/32" HOLES FOR SELF TAPPING SCREWS OR USE #16 DRILL (DIA.177) AND TAP #12-24 FOR MACHINE SCREWS

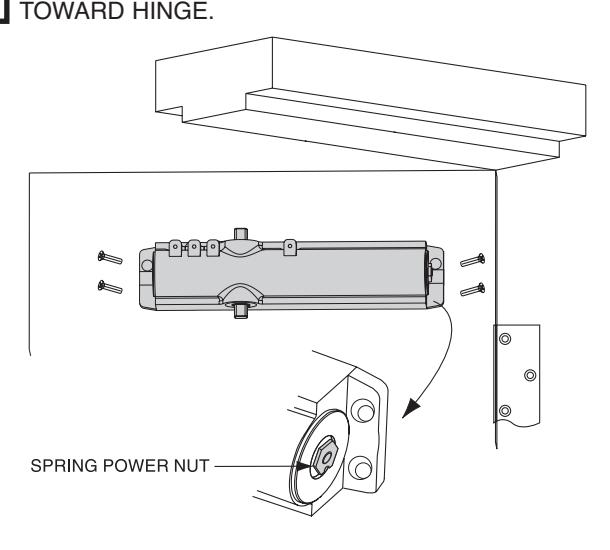

3 ATTACH DOOR CLOSER TO DOOR WITH SPRING POWER NUT

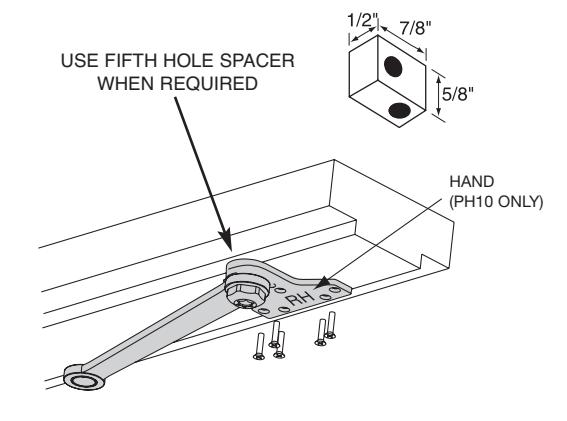

ATTACH FOOT BRACKET TO DOOR STOP.

IMPORTANT: USE A MINIMUM OF 5 SCREWS

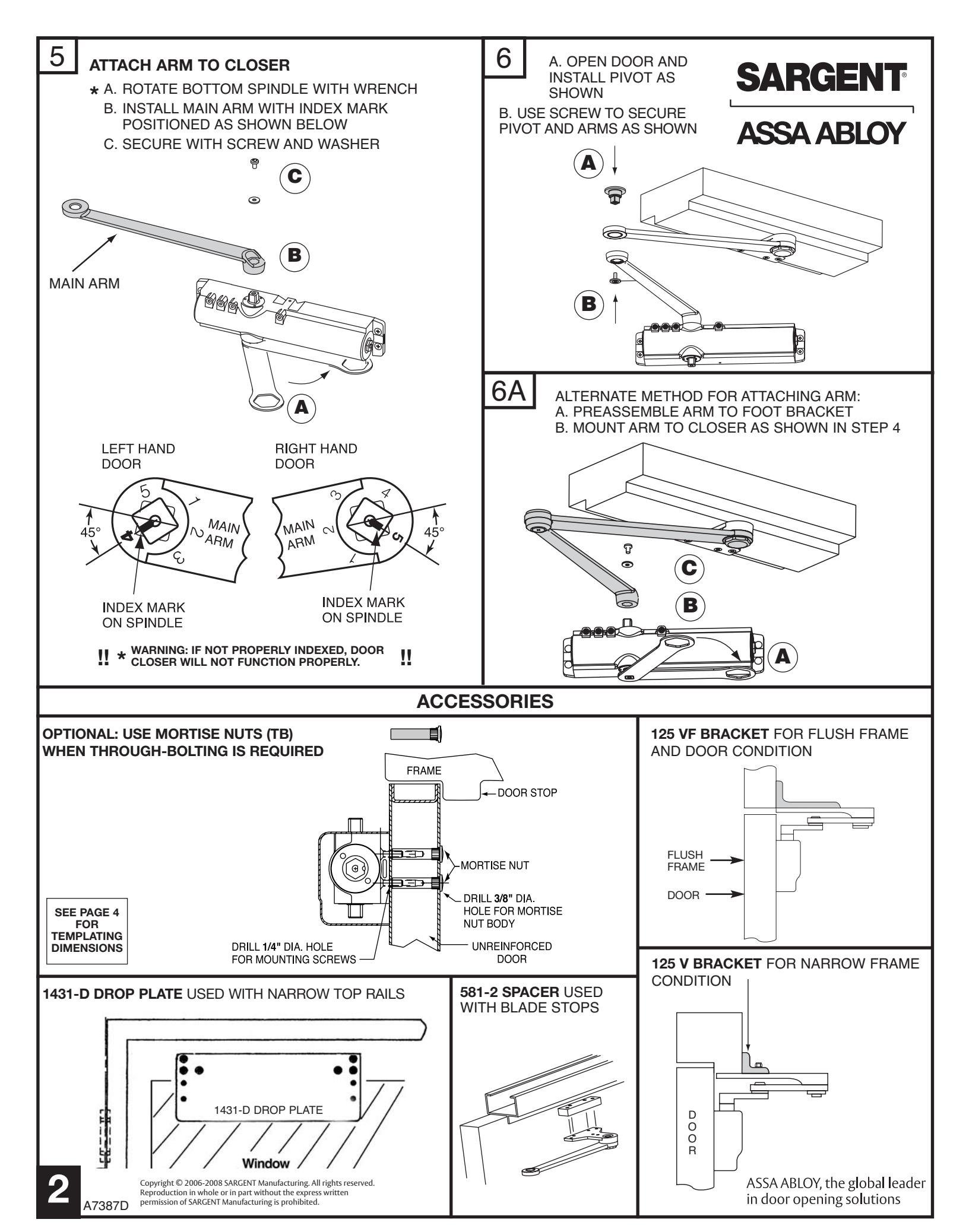

ALTERNATE: PREASSEMBLE ARM PRIOR TO ATTACHING TO STOP 4A

A7387D 1

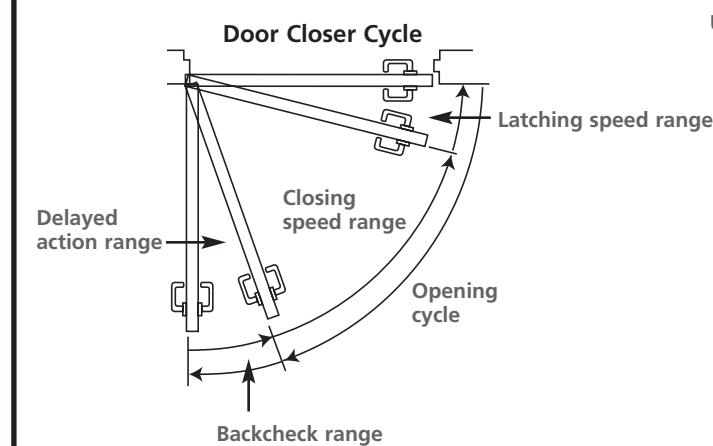

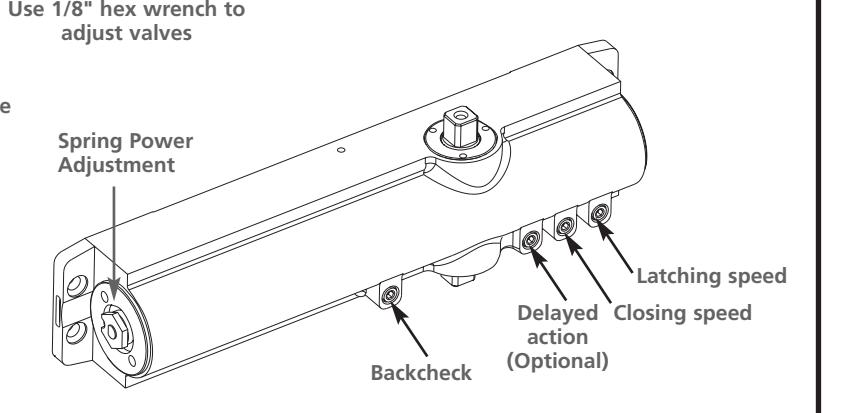

FINAL ADJUSTMENT AND REGULATING PROCEDURES

Adjust Door speed, and Latching speed valves to achieve the desired closing time. Recommend 6 seconds minimum from 90° to the closed position.
If Backcheck is required, adjust valve to achieve a slight cushioning effect. Auxiliary stop required.
If closer is equipped with Delayed Action, regulate valve to achieve the desired delay.

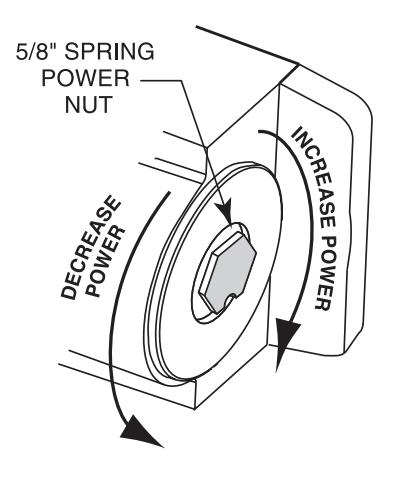

8 ADJUST CLOSING POWER TO THE MINIMUM REQUIRED TO RELIABLY CLOSE AND LATCH DOOR

If door is hard to open, decrease power slightly
If door does not latch, increase power as required
Use the chart as a starting point
Doors adjusted with high closing power to overcome strong draft conditions may exceed ADA standards.

SPRING POWER ADJUSTMENT GUIDELINES
DOOR WIDTH (INCHES)	1431 DOOR CLOSER
24-30	TURN nut 1-3
30-36	FACTORY SET
36-42	TURN nut 1-3

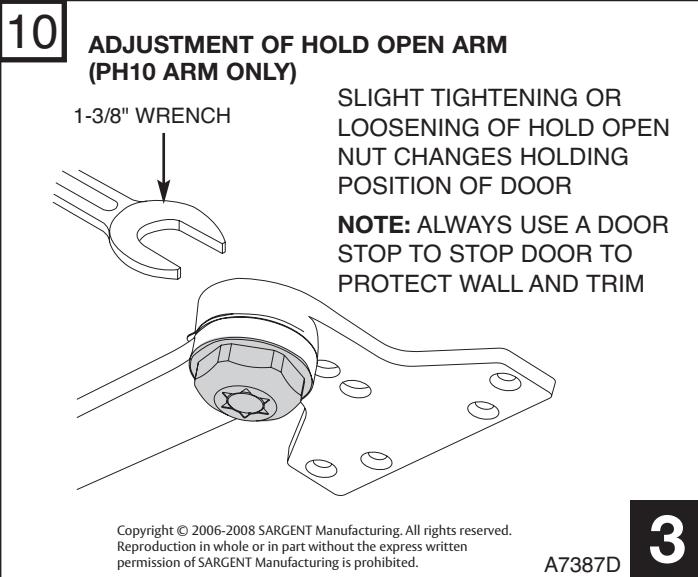

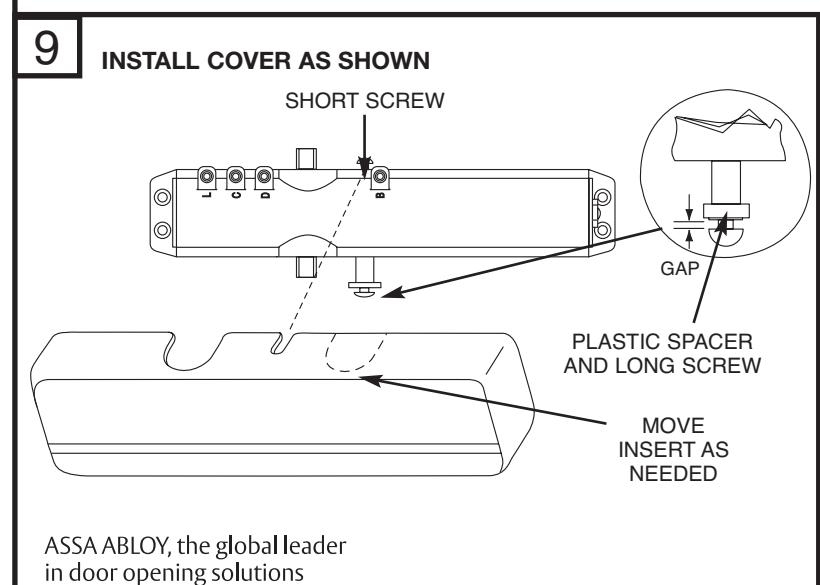

42-48	TURN nut 7-9
