INSTALLATION INSTRUCTIONS 1431 Door Closers with CPS/CPSH Arms

SARGENT

ASSA ABLOY

1431 ADJUSTABLE FROM SIZE 1 THRU 6

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

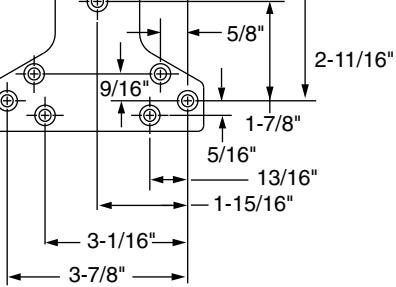

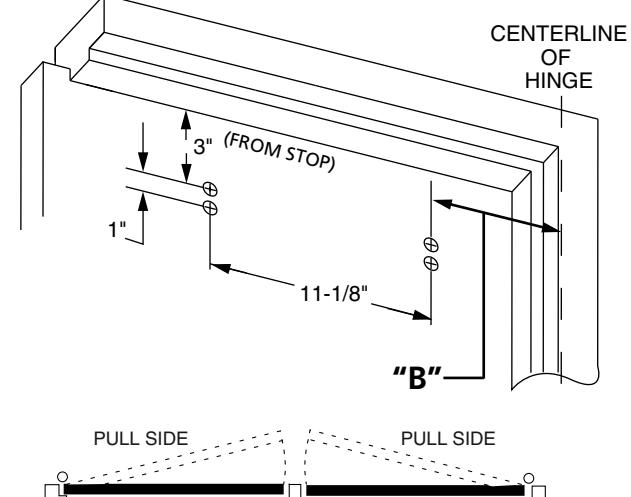

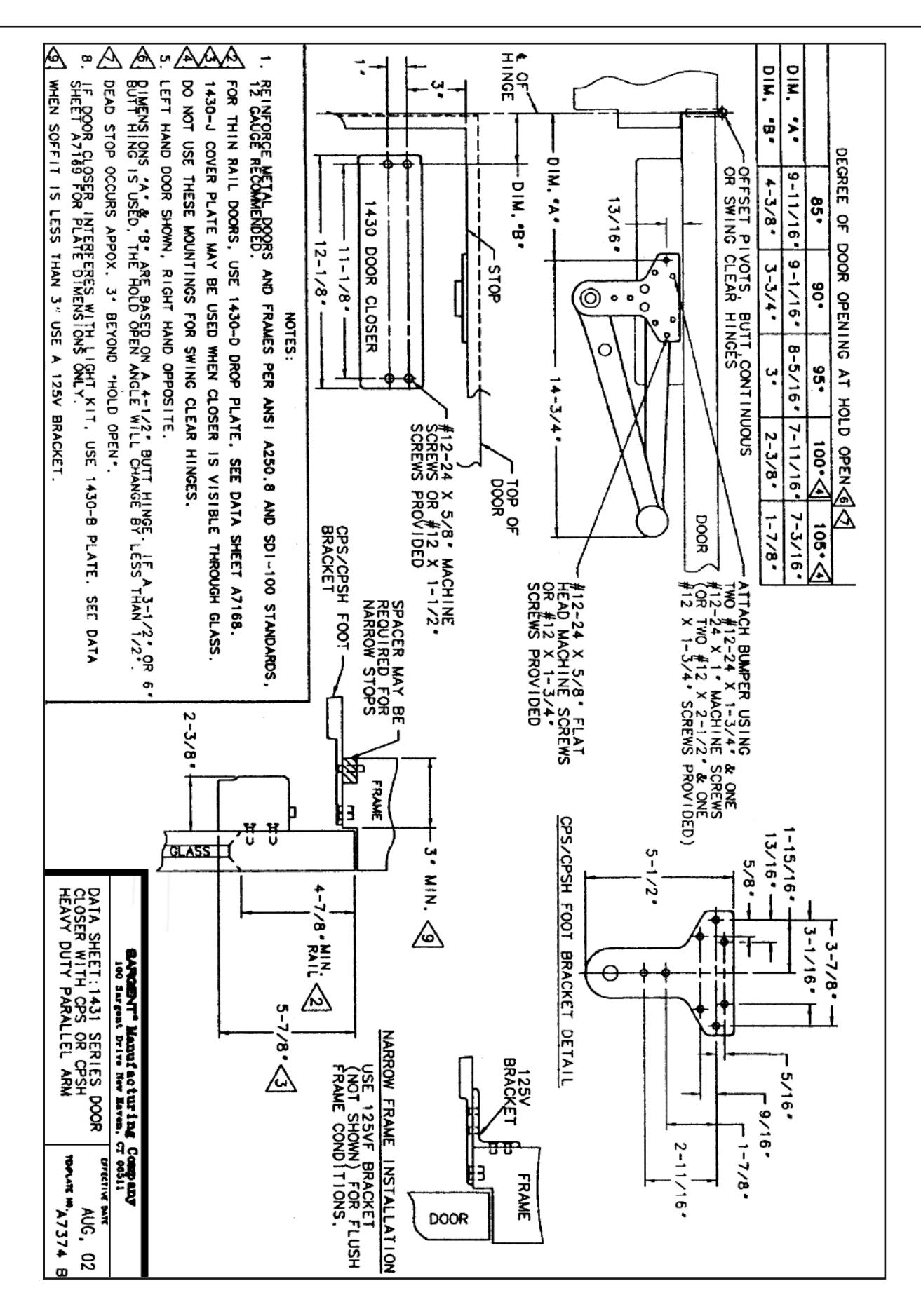

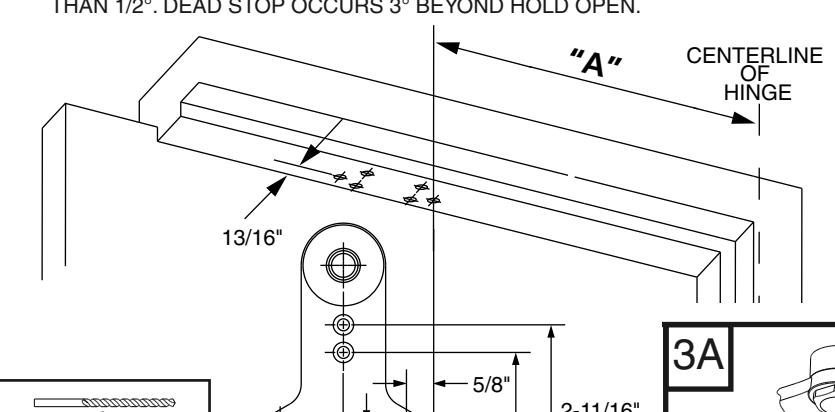

DETERMINE MAXIMUM DEGREE OF OPENING OR HOLD OPEN (CPSH) REQUIRED. DRILL AND TAP DOOR AND FRAME FOR #12-24 MACHINE SCREWS. WHEN USING SELF TAPPING SCREWS PROVIDED, PREDRILL WITH A 3/32" DRILL.

DEGREE OF DOOR OPENING AT "HOLD OPEN" ■
	85°	90°	95°	100°●	105°●
DIM. "A"	9-11/16"	9-1/16"	8-5/16"	7-11/16"	7-3/16"
DIM. "B"	4-3/8"	3-3/4"	3"	2-3/8"	1-7/8"

DO NOT USE SWING CLEAR HINGES FOR DOOR OPENINGS GREATER THAN 95°. USE ALTERNATE TYPE HINGES.
DIMENSIONS FOR GIVEN DEGREE BASED ON 4-1/2" HINGE. WHEN 3-1/2" TO 6" HINGES ARE USED, HOLD OPEN ANGLE WILL CHANGE BY LESS THAN 1/2°. DEAD STOP OCCURS 3° BEYOND HOLD OPEN.

IMPORTANT NOTICE PRE-DRILL 3/32" HOLES FOR SELFTAPPING SCREWS OR TAP #12-24 FOR MACHINE SCREWS

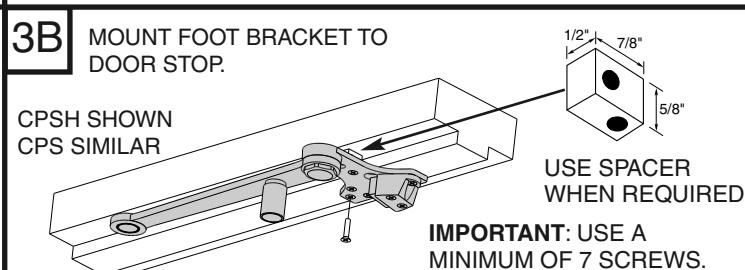

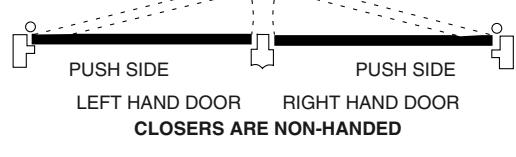

ARM MUST BE THE SAME HAND AS THE DOOR. ASSEMBLE THE HOLDER WITH BUMPER & INSERT (CPSH ONLY) TO FOOT 4 #12-24 x 5/8" MS BRACKET AS LOCATION OF or #12 x 1-3/4" THESE PARTS DETERMINES THE "HAND". RH CPSH SHOWN BUMPER & HOLDER - 12-24 x 1" MS or #12 x 1-3/4" INSERT "CPSH" - 12-24 x 1-3/4" MS ONLY or #12 x 2-1/21

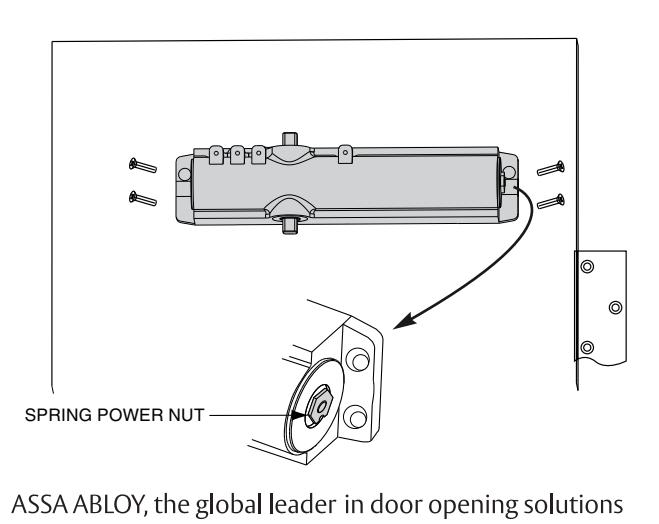

2 ATTACH DOOR CLOSER TO DOOR WITH SPRING POWER NUT TOWARDS HINGE.

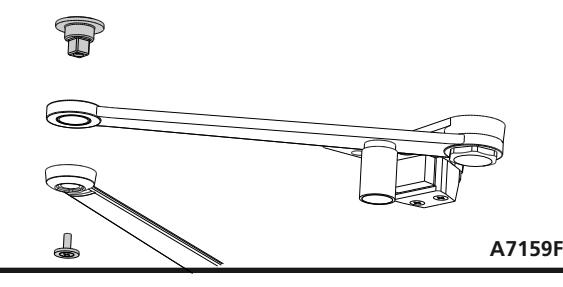

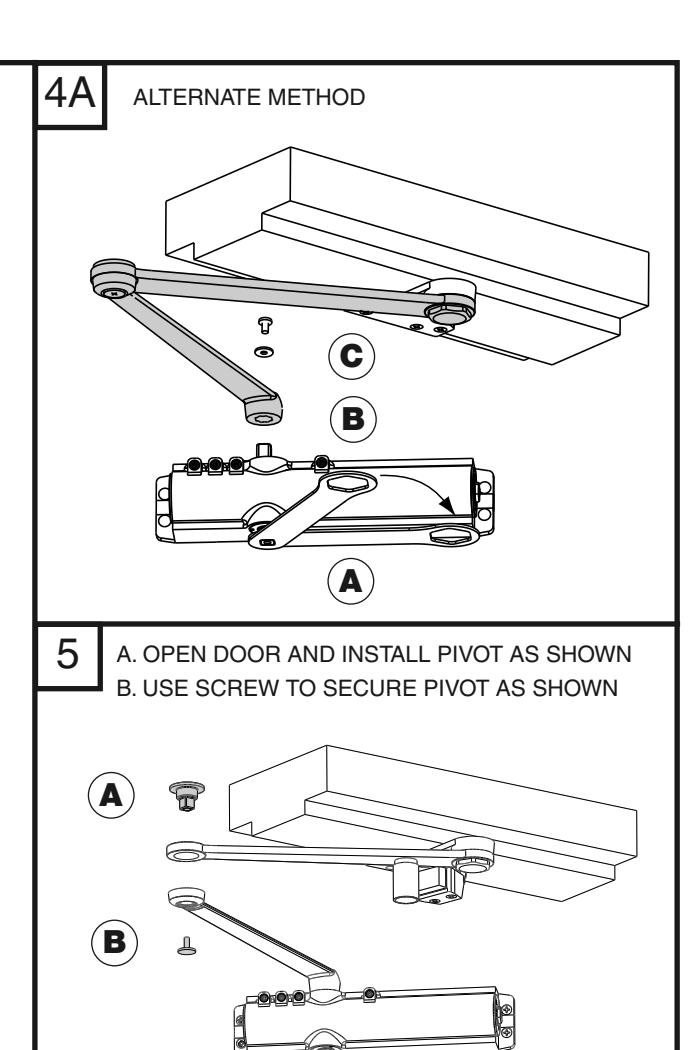

3C ALTERNATE: PREASSEMBLE ARMS PRIOR TO ATTACHING TO STOP.

Copyright © 2009, 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

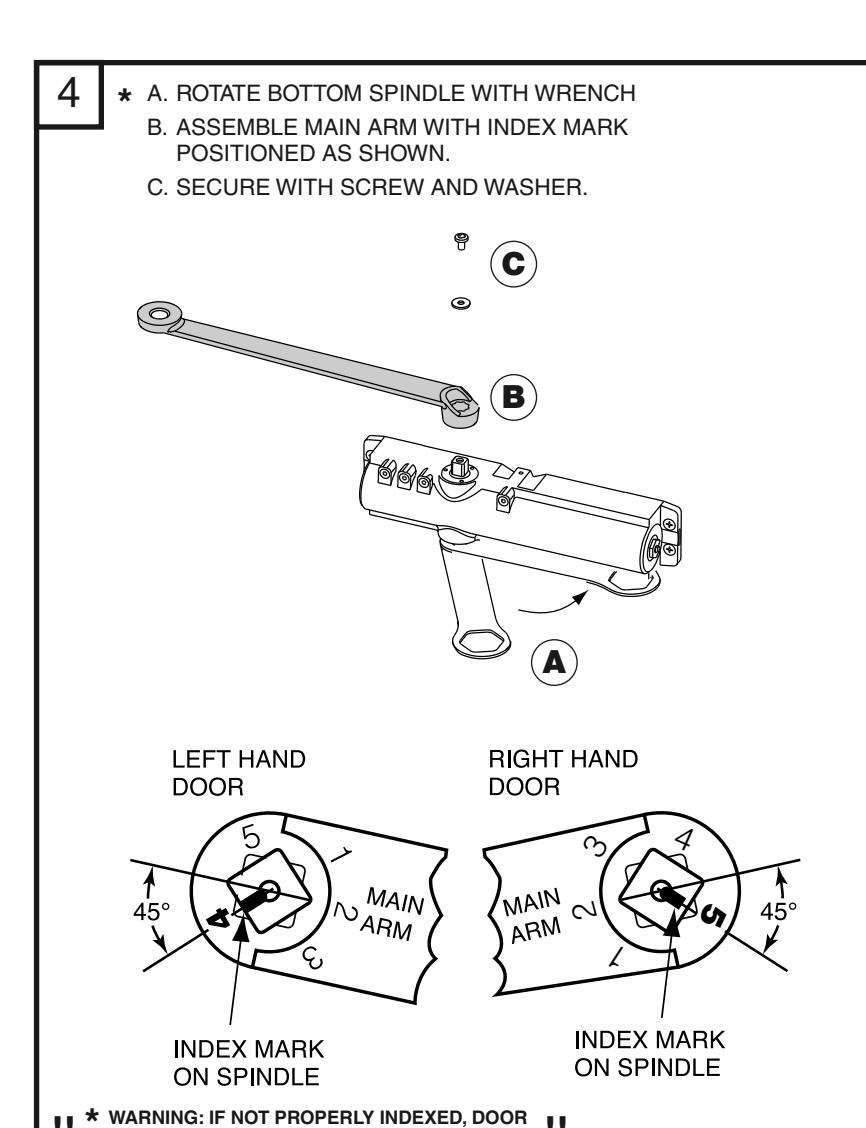

CLOSER WILL NOT FUNCTION PROPERLY.

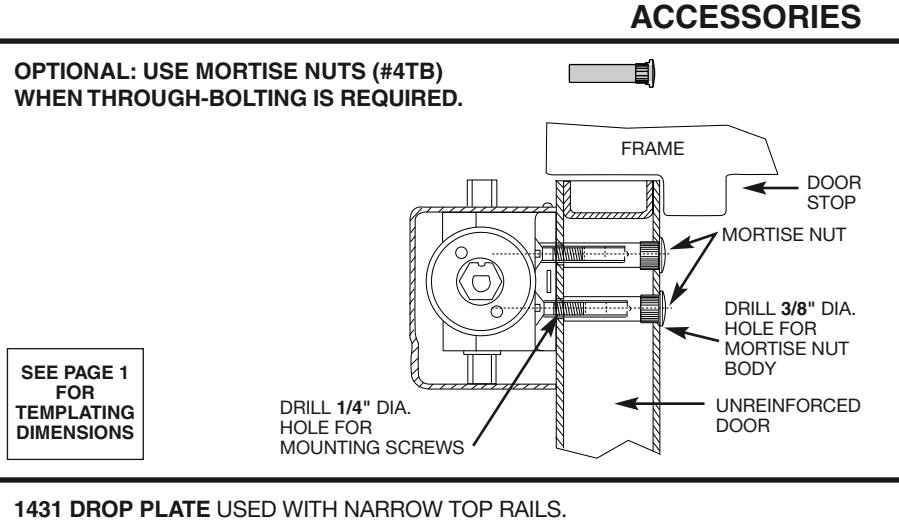

1431-D DROP DROP PLATE

WINDOW

A7159F

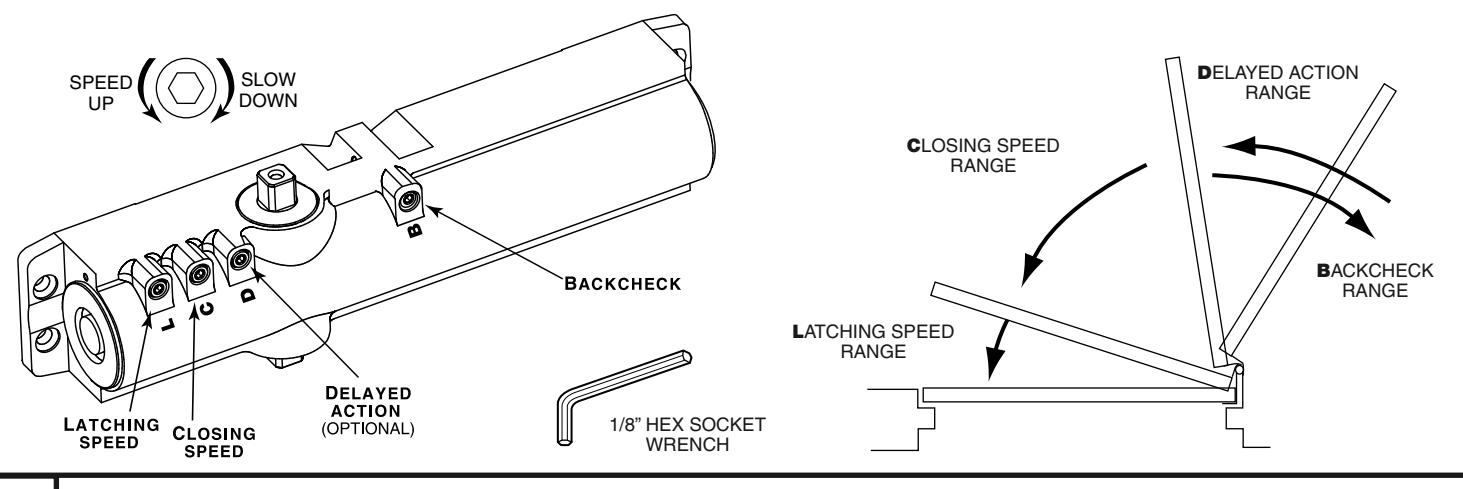

FINAL ADJUSTMENT AND REGULATING PROCEDURES

MINIMUM RECOMMENDED DOOR CLOSING TIME IS 6 SECONDS FOR DOORS OPENED TO 90°.

USE 1/8" HEX (ALLEN) WRENCH TO ADJUST VALVES AS NEEDED.

CLOSING AND LATCHING SPEEDS:

TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTERCLOCKWISE TO SPEED UP DOOR MOVEMENT.

BACKCHECK:

TO REGULATE THE INTENSITY OF BACKCHECK ACTION TURN VALVE CLOCKWISE TO INCREASE OR COUNTERCLOCKWISE TO DECREASE CHECKING.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT; CLOSER CAN BE DAMAGED IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE THE BACKCHECK AS A DOOR STOP. ALWAYS USE A DOOR STOP TO STOP THE DOOR.

DELAYED ACTION FEATURE (OPTIONAL FEATURE ON SOME MODELS):

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH THE DELAYED ACTION RANGE. TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTERCLOCKWISE TO SPEED UP DOOR MOVEMENT.

ADJUST POWER TO ALLOW DOOR TO CLOSE AND LATCH.

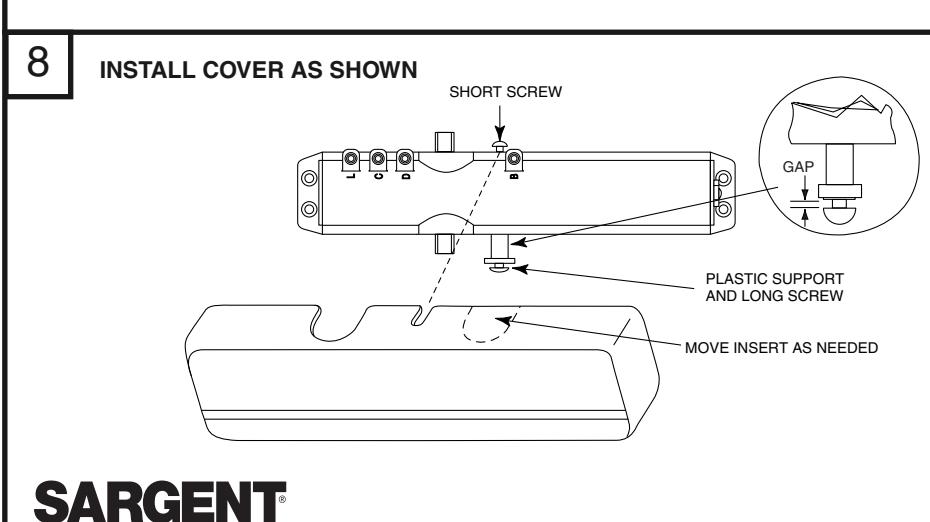

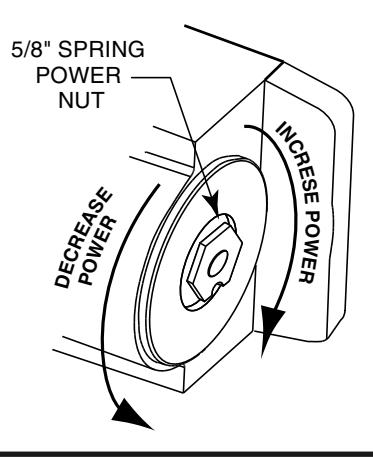

SPRING POWER ADJUSTMENT GUIDELINES
DOOR WIDTH (INCHES)	لط 1431 DOOR CLOSER
24-30	TURN nut 1-3
30-36	FACTORY SET
36-42	TURN nut 1-3 )
42-48	TURN nut 7-9

ADJUSTING DOOR TO CLOSE DUE TO HIGH DRAFT CONDITIONS MAY EXCEED ADA STANDARDS. CONSULT LOCAL ORDINANCES WHEN FIRE DOORS ARE INVOLVED.

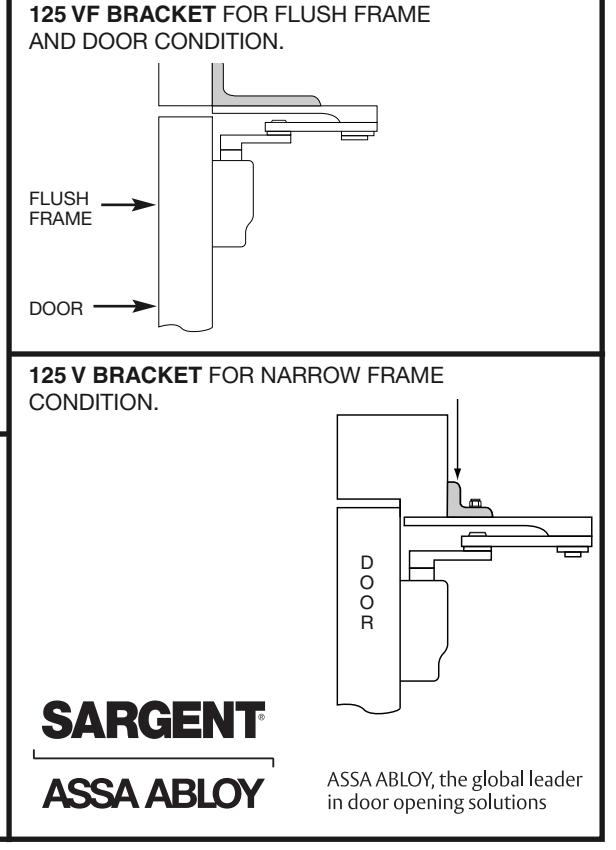

ASSA ABLOY, the global leader

in door opening solutions

ASSA ABLOY

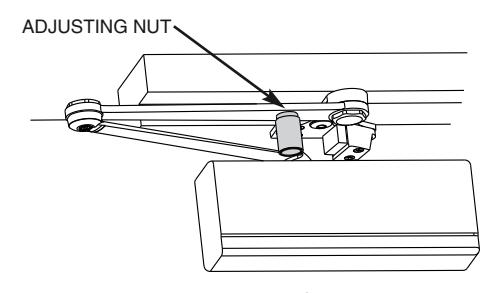

TO ADJUST HOLDER ARM (CPSH ONLY) ALL CPSH ARMS ARE SHIPPED IN NON-HOLD OPEN FROM THE FACTORY. TO SET IN HOLD OPEN, TURN THE ADJUSTING NUT APPROXIMATELY 1-1/2 TURNS CLOCKWISE.
