INSTRUCTIONS FOR

PUSH / PULL Markers for ALP Paddle Trim

U.S. Patent No. US D646,549S

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com

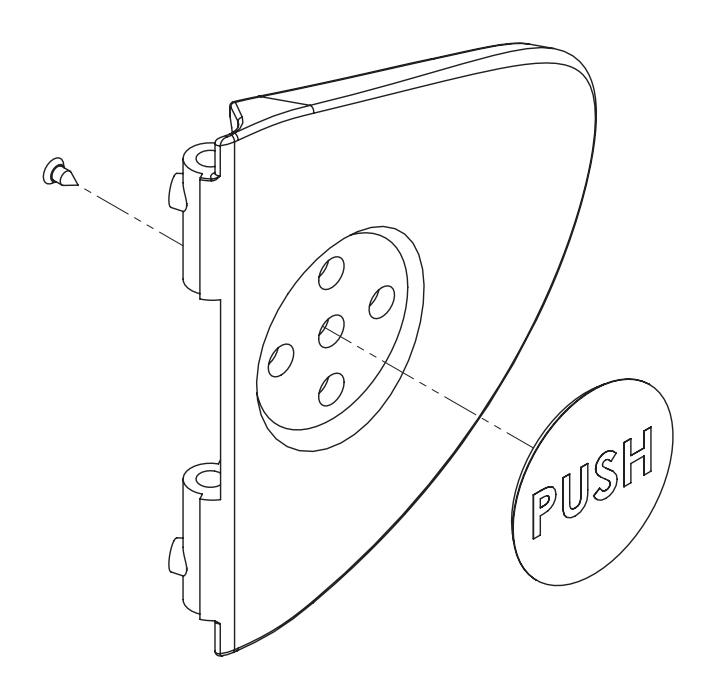

Install markers before mounting paddles to door

  • • Secure "PUSH" marker on the push side of the door using screw supplied.
  • • Secure "PULL" marker on the pull side of the door using screw supplied.

Markers can be installed in any of the four available paddle orientations:

Right Left Down Up
