Instructions for Installing SARGENT 700, 700-4, 700-6, and 700-8 Lever Handle Control

ATTENTION:

To prepare door, use instruction sheets and templates packed with exit device and outside trim.

For installation assistance, contact SARGENT at 800-727-5477.

SARGENT

ASSA ABLOY

700 SERIES CONTROL USED WITH 8700 AND 9700 SURFACE MOUNTED VERTICAL ROD EXIT DEVICES

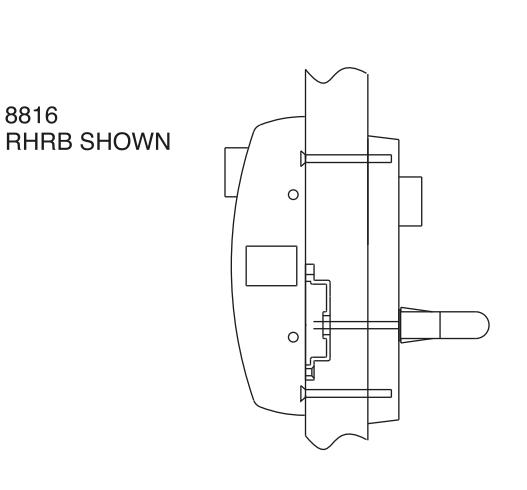

700 SERIES CONTROL USED WITH 8816 AND 9800 RIM EXIT DEVICES

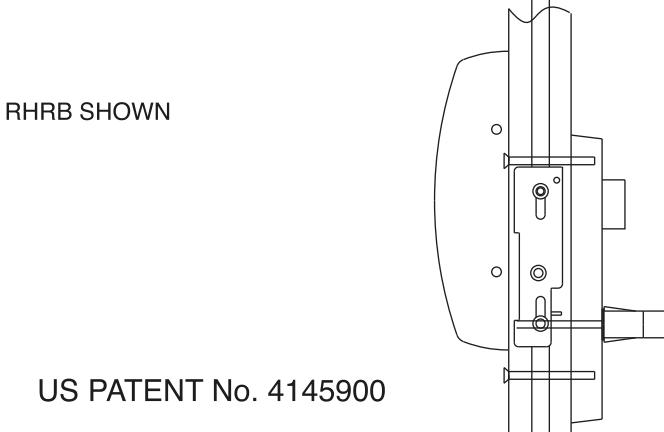

700 SERIES CONTROL USED WITH 8900 AND 9900 MORTISE LOCK EXIT DEVICES

8900 RHRB SHOWN

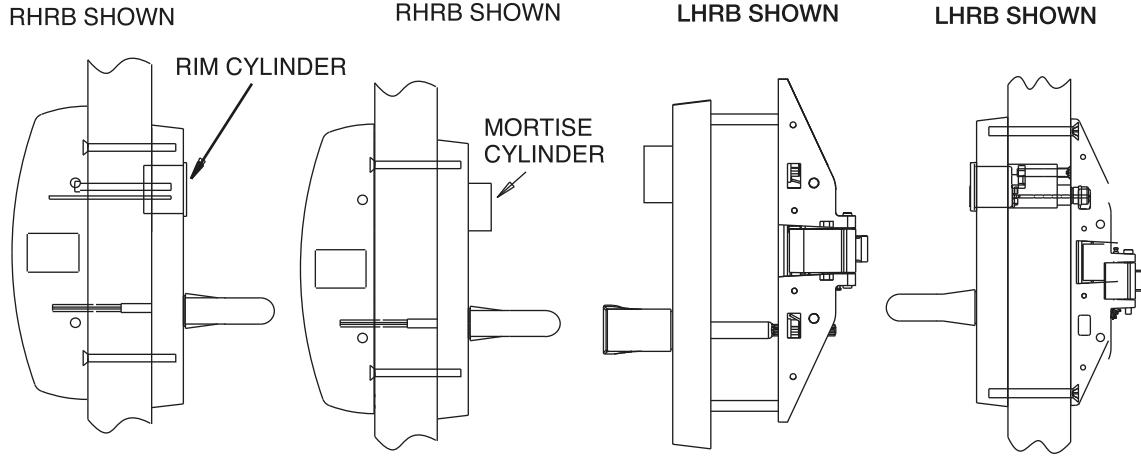

700 8 SERIES CONTROL USED WITH 8500. 8800, 12-8800, 8888, 12-8888, HC8800 AND 12-HC8800 RIM TYPE EXIT DEVICES

8800 x 713 RHRB SHOWN

8500 x 713, 715 LHRB SHOWN

8500 x 704

LHRB SHOWN

IMPORTANT:

8800 x 775

SEE INSTRUCTION SHEET A6770 FOR (12-)8888, AND (12-)HC8800 EXIT DEVICE MOUNTING, OR A6699 FOR 8500 EXIT DEVICE MOUNTING.

700-4 SERIES CONTROL USED WITH 8400,12-MD8400, MD8600, 12-MD8600, WD8600 AND 12-WD8600 CONCEALED VERTICAL ROD EXIT DEVICES

IMPORTANT:

SEE PROPER INSTRUCTION SHEET FOR EXIT DEVICE MOUNTING:

A6697 - FOR 8400 EXIT DEVICE: A7012 - FOR 12-MD8400 EXIT DEVICE;

A7002 - FOR MD8600 AND 12-MD8600 A3937 - FOR WD8600 AND 12-WD8600

EXIT DEVICES.

ASSA ABLOY, the global leader in door opening solutions

700-8 SERIES CONTROL USED WITH PR8700, PP8700, SP8700 AND NB8700 CENTER AND TOP LATCH SURFACE VERTICAL ROD EXIT DEVICES

IMPORTANT:

PP8700

RHRB SHOWN

SEE INSTRUCTION SHEET A7212 FOR SP8700, 12-SP8700, PP8700, 12-PP8700, PR8700 AND 12-PR8700 EXIT DEVICE MOUNTING. SEE INSTRUCTION SHEET A7617 FOR NB8700 EXIT DEVICE MOUNTING.

700-6 SERIES CONTROL USED WITH PR8600, PP8600 AND SP8600 CENTER AND TOP LATCH CONCEALED VERTICAL ROD EXIT DEVICES

IMPORTANT:

SEE INSTRUCTION SHEET A7330 FOR SP8600, 12-SP8600, PP8600, 12-PP8600, PR8600 AND 12-PR8600 EXIT DEVICE MOUNTING.

700-6 SERIES CONTROL USED WITH LR8600, LP8600 AND LS8600 PROFILE SERIES EXIT DEVICES

IMPORTANT:

LP8600

RHRB SHOWN

SEE INSTRUCTION SHEET A7393 FOR LP8600, 12-LP8600, LS8600, 12-LS8600, LR8600 AND 12-LR8600 EXIT DEVICE MOUNTING.

A6374AF • 800-810-WIRE (9473) • www.sargentlock.com

Instructions for Installing SARGENT 700, 700-4, 700-6, and 700-8 Lever Handle Control

SARGENT

ASSA ABLOY

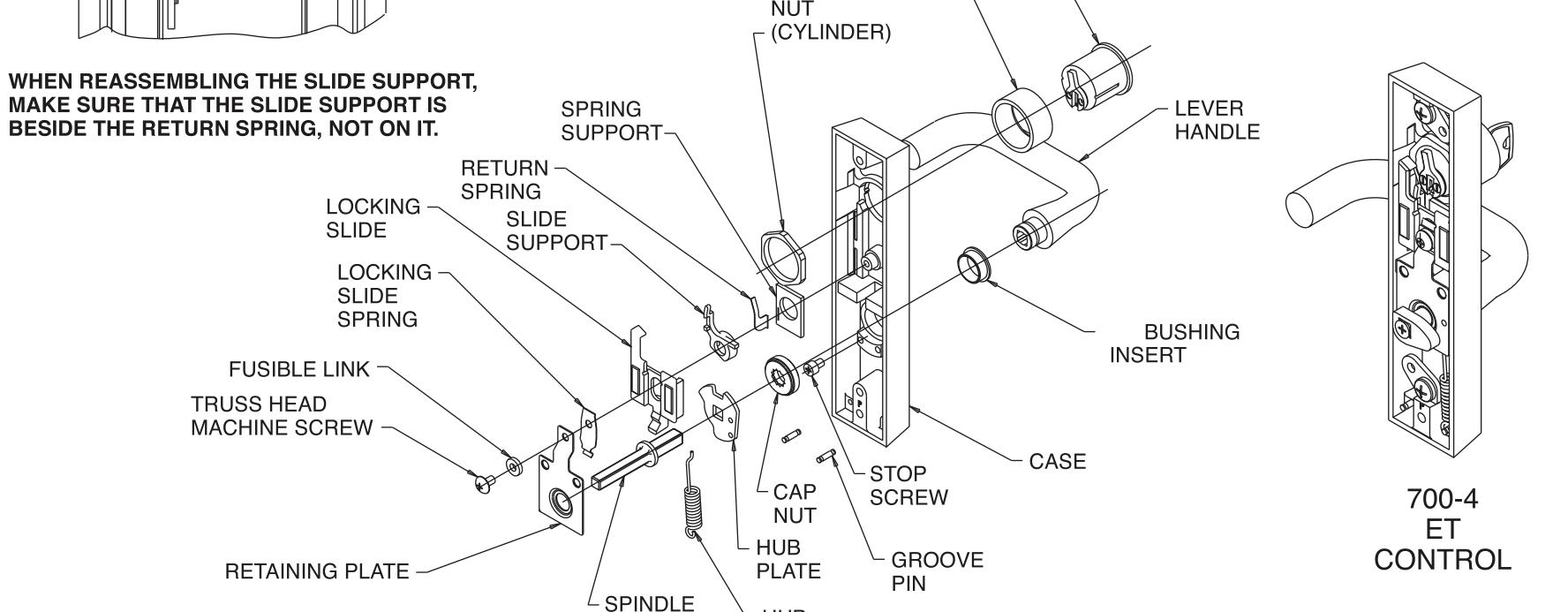

METHOD FOR CHANGING HAND OF LEVER

DISASSEMBLE:

• REMOVE TRUSS HEAD MACHINE SCREW, FUSIBLE LINK AND RETAINING PLATE.
• REMOVE HUB SPRING FROM THE GROOVE PIN AND PULL THE SPINDLE, HUB PLATE AND HUB SPRING OUT OF THE LEVER HANDLE.

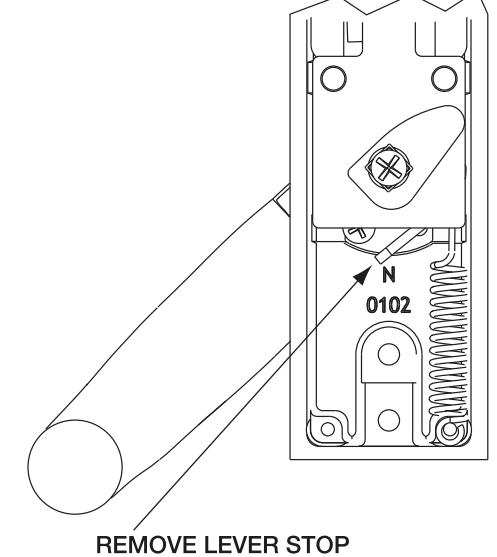

• REMOVE THE STOP SCREW AND SECURE IN THE OTHER HOLE.
• SEPARATE THE SPINDLE FROM THE HUB PLATE AND PLACE THE SPINDLE INTO THE LEVER HANDLE THRU THE CAP NUT.
• ROTATE THE LEVER HANDLE 180 DEGREES AND REMOVE THE SPINDLE.

REASSEMBLE:

RETURN

SPRING

• 1. FLIP THE HUB PLATE OVER SO THAT THE HUB SPRING MOUNTING HOLE IS ON THE OTHER SIDE AND SLIDE THE LOWER END OF THE SPINDLE THRU THE SQUARE HOLE IN THE HUB PLATE.
• SLIDE THE SPINDLE AND HUB PLATE INTO THE LEVER HANDLE THRU THE CAP NUT, MAKING SURE THAT THEY ARE PARALLEL TO EACH OTHER.
• SLIDE THE HUB SPRING INTO THE LOWER MOUNTING HOLE OF THE HUB PLATE AND SLIDE THE OTHER END OVER THE GROOVE PIN.
• SLIDE THE RETAINING PLATE OVER THE SPINDLE AND SECURE WITH THE FUSIBLE LINK AND TRUSS HEAD MACHINE SCREW.

SLIDE SUPPORT

BEFORE ASSEMBLY

MORTISE

- CYLINDER

SPRING

(1-3/4")

BLOCKING

RING -

METHOD FOR REPLACING CYLINDER

• 1. WITH LOCKING SLIDE IN THE DOWN POSITION, UNSCREW CYLINDER NUT AND REMOVE THE CYLINDER AND BLOCKING RING. REMOVE THE CYLINDER NUT IF NEEDED.
• 2. REPLACE CYLINDER BY REVERSING ABOVE PROCEDURE, MAKING SURE THAT THE CYLINDER NUT IS IN PLACE AND THE CAM IS POINTING UP. BE SURE BLOCKING RING IS THE CORRECT LENGTH.

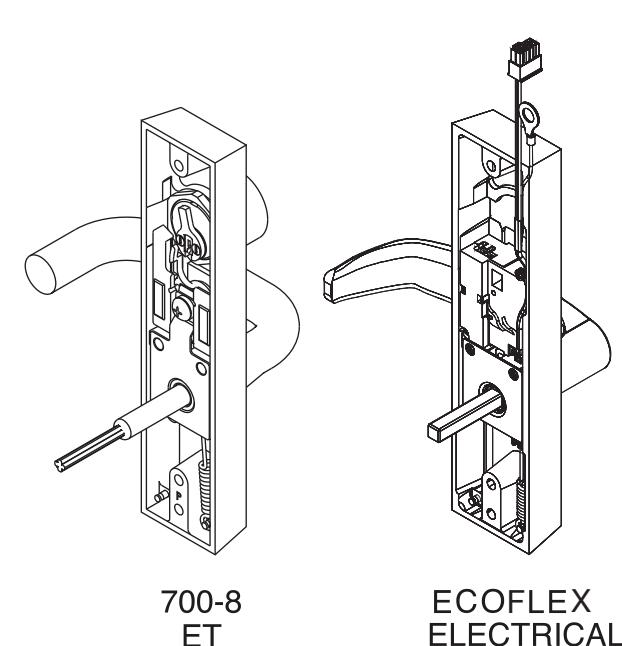

ELECTRO-MECHANICAL LEVER HANDLE CONTROL

• 1. 773/775 POWER-ON LOCKS LEVER
• 2. 774/776 POWER-ON UNLOCKS LEVER

POWER REQUIREMENTS: 24 VDC 1/4 AMP

• 1. THE ELECTRO-MECHANICAL CASE IS SIMILAR TO THE STANDARD CASE, EXCEPT THAT THE LOCKING SLIDE AND SPRING ASSEMBLY IS REPLACED WITH MOTOR ASSEMBLY.
• 2. THE METHOD FOR CHANGING THE LEVER HAND IS THE SAME AS THE STANDARD, LOCKING TRIM, EXCEPT THE RETAINING PLATE IS HELD ON BY (2) SCREWS IN THE CASE.

ATTENTION:

• 1. 54-700 CONTROLS IS NOT REVERSIBLE.
• 2. "A" LEVER DESIGN IS NOT REVERSIBLE.
• 3. 773 AND 774 LEVER HANDLE CONTROL DO NOT HAVE CYLINDERS.

700-6

ET

CONTROL

CONTROL

ET CONTROL

713 RHRB ETJ SHOWN

Instructions for Installing SARGENT 700, 700-4, 700-6, and 700-8 Lever Handle Control

SARGENT

ASSA ABLOY

METHOD FOR SETTING FAIL SAFE / FAIL SECURE FUNCTION

ONLY 73,74,75, AND 76 FUNCTIONS

• INSERT THE PLASTIC TOOL (INCLUDED IN THE BOX) INSIDE THE SWITCH CASE (DETAIL A) ON THE ECOFLEX MOTOR, ALIGN THE TOOL NOTCH WITH THE MOTOR SWITCH.
• 2. MOVE SWITCH TO THE CORRECT POSITION (SEE GRAPHICS)
• 3. REMOVE TOOL AND SAVE IT FOR FUTURE USE.

USE PLASTIC TOOL TO SET FAIL SAFE OR FAIL SECURE FUNCTION IN MOTOR PLASTIC TOOL FAIL SAFE POSITION む FAIL SECURE POSITION

DETAIL A

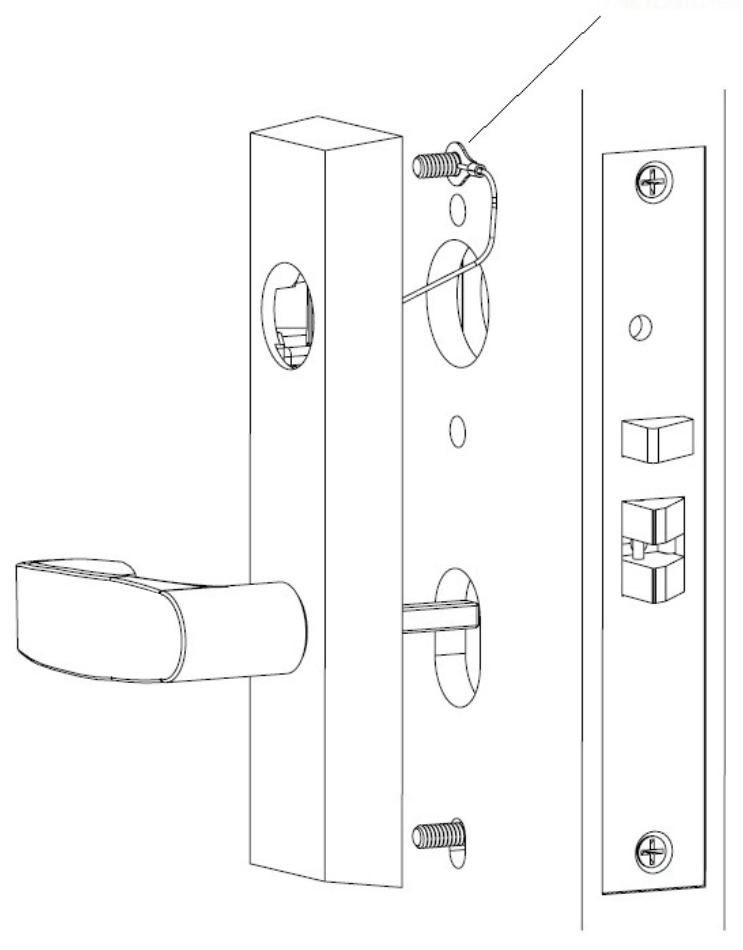

METHOD FOR INSTALLING THE TRIM WITH GROUND LUG

ONLY 73,74,75, AND 76 FUNCTIONS

• 1. INSERT THRU BOLTS (INCLUDED IN THE BOX) THROUGH THE HOLES IN THE DOOR.
• 2. ALIGN TRIM TO THE THRU BOLTS.
• 3. SLIDE GROUND LUG OVER THE UPPER THRU BOLT.
• 4. SCREW THE THRU BOLTS TO THE TRIM, LEAVING THE GROUND LUG BETWEEN THE DOOR.

PUT GROUND LUG THROUGH THRU BOLT BEFORE INSTALLING THE TRIM
