占 351 Door Closers with PS/PSH Arms Installation Instructions

ASSA ABLOY

351 SERIES ADJUSTABLE FROM SIZE 1 THRU 6

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE

For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

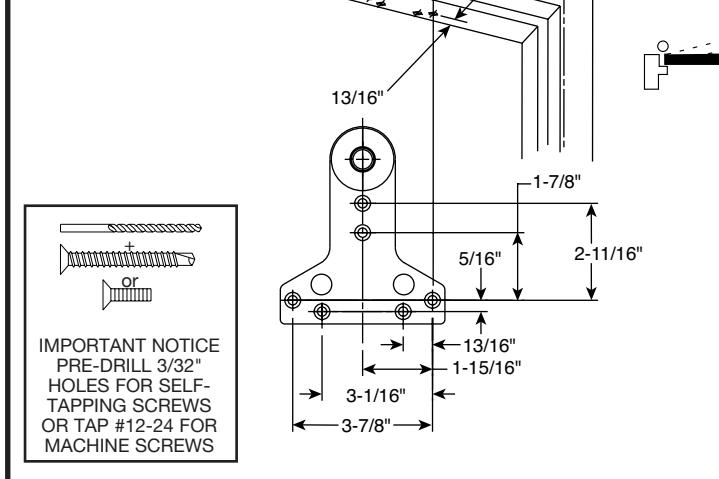

Determine maximum degree of door opening or hold open (PSH) required. Drill and tap door and frame for #12-24 machine screws. When using self-tapping screws provided, predrill with 3/32" drill.

₽ OF HINGE

DEGREE OF DOOR OPENING AT "HOLD OPEN" ■
	85°	90°	95°	100°	105°	110°

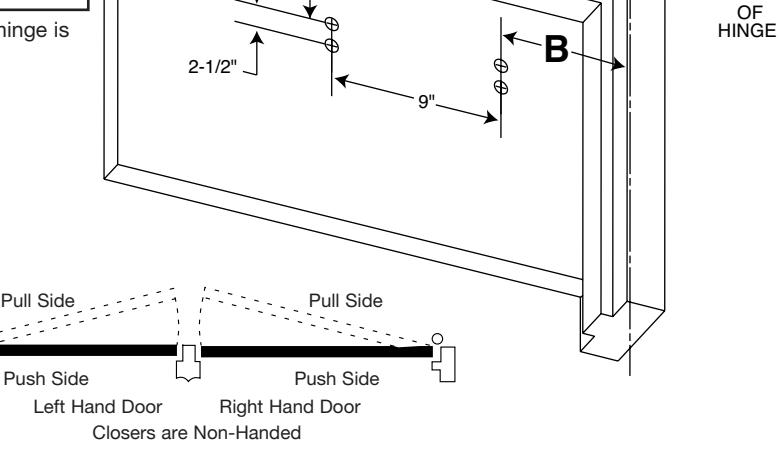

DIM. "A"	10-9/16"	9-7/8"	9-3/16"	8-5/8"	8-1/8"	7-5/8"
DIM. "B"	11-5/16"	10-5/8"	9-15/16"	9-3/8"	8-7/8"	8-3/8"

■ Dimensions for given degree based on 4-1/2" butts. If 3-1/2" or 6" hinge is used, hold open angle will change by less than 1/2°.

Dead stop occurs 3° beyond hold open.

2-5/8"(From stop)

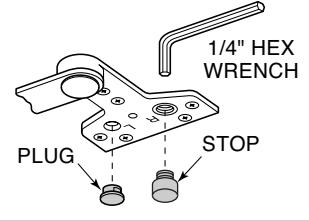

Install stop with 1/4" hex wrench to match hand of door. Turn stop counterclockwise until seated very tight.

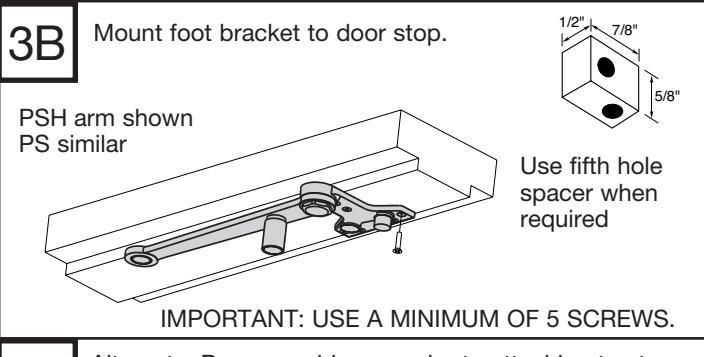

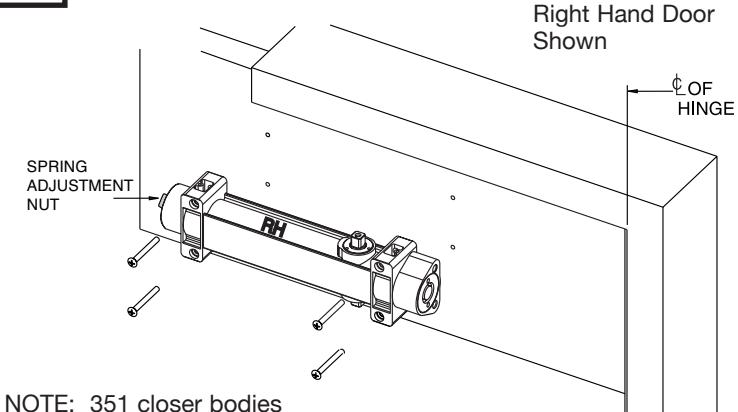

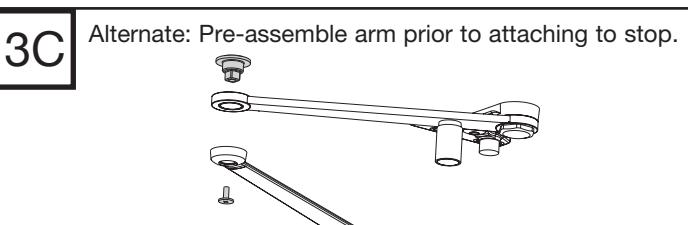

Install door closer to door with spring adjustment nut away from hinge.

are non-handed. It is important that the closer body is installed with "RH" symbol at top for right hand doors, "LH" symbol at top for left hand doors.

ASSA ABLOY, the global leader in door opening solutions

Copyright © SARGENT Manufacturing. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.

2

A7343G

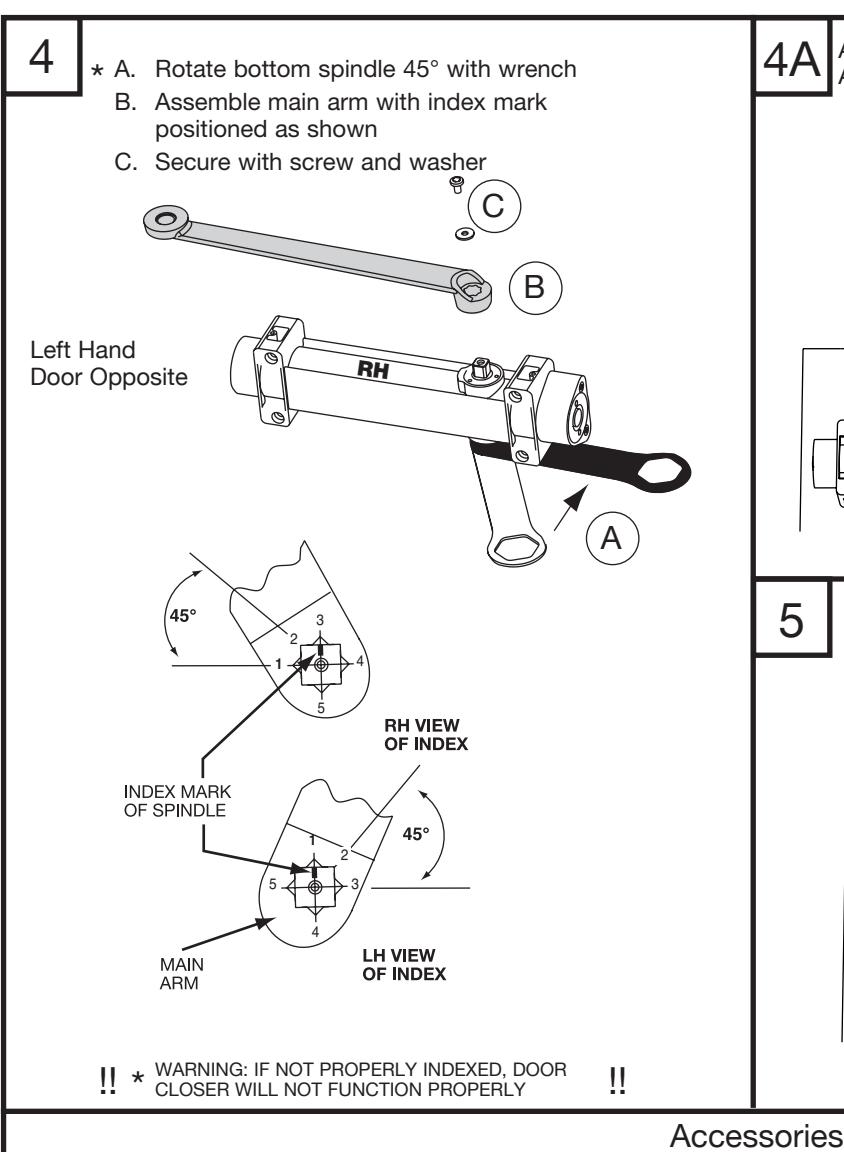

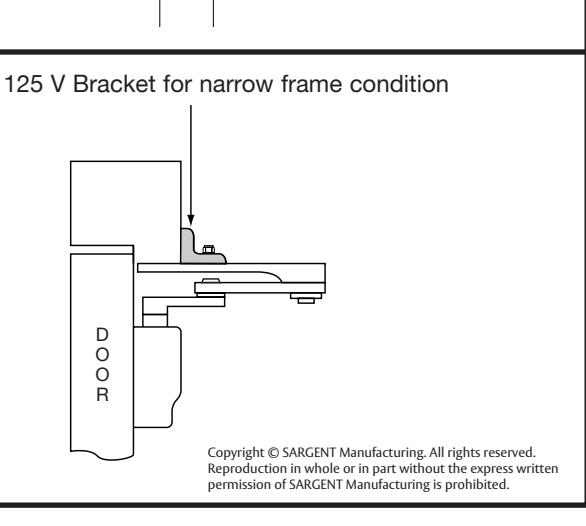

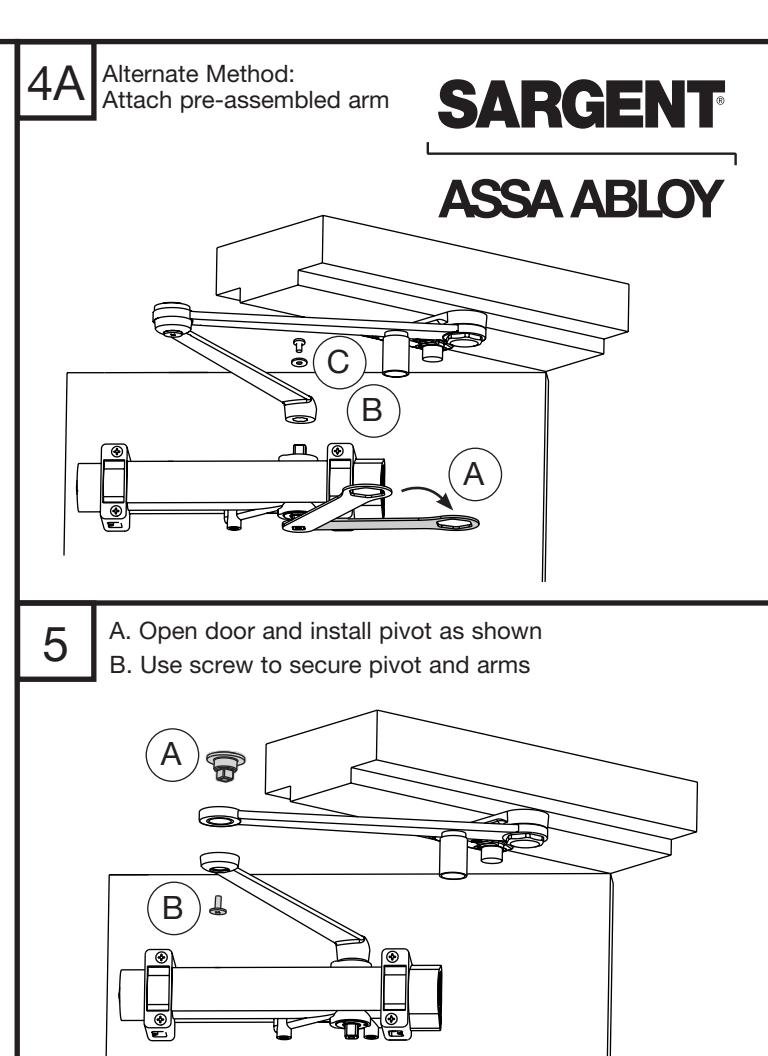

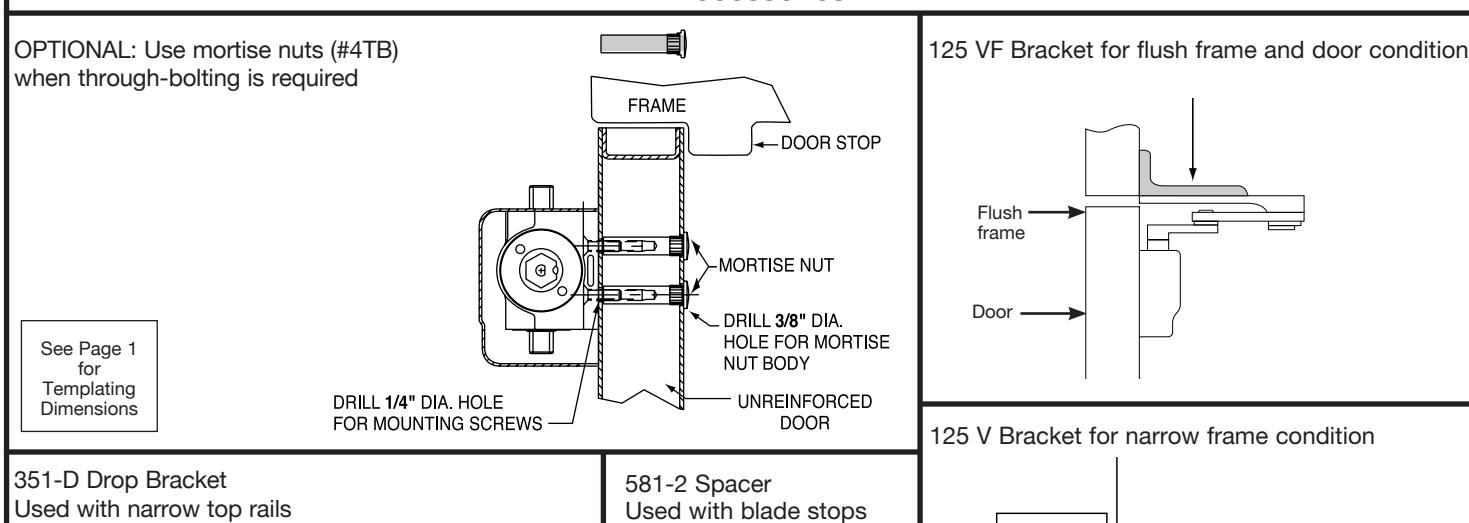

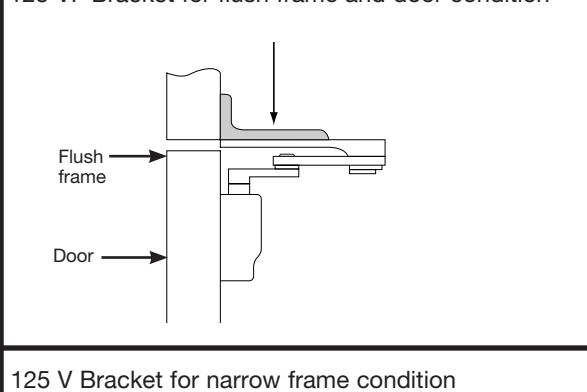

351-D Drop Bracket

Final Adjustment and Regulating Procedures

6

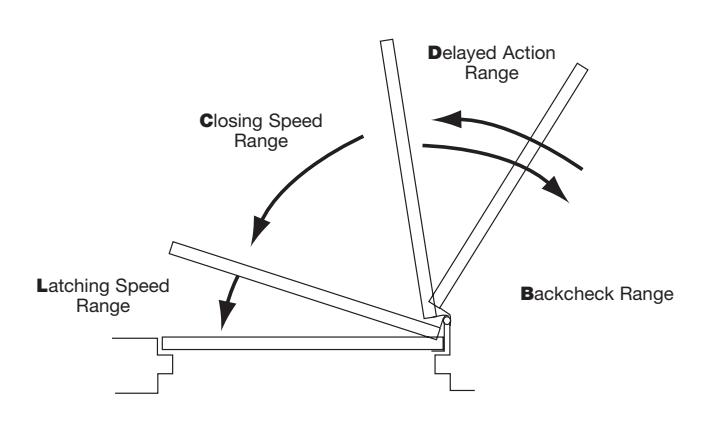

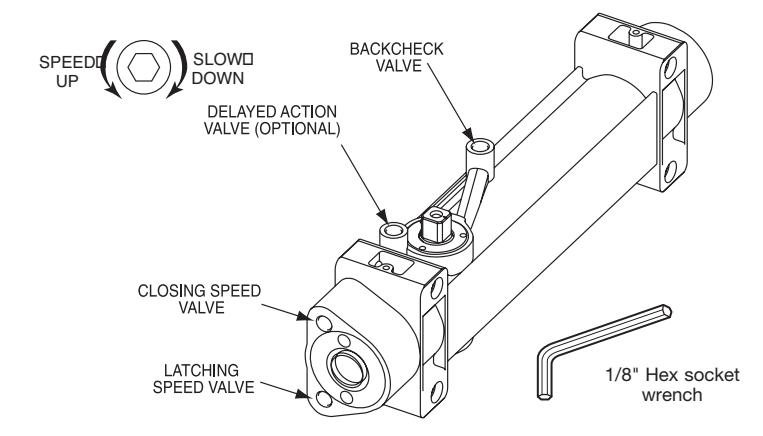

Minimum recommended door closing time is 6 seconds for doors opened to 90 degrees. Use 1/8" Hex (Allen) wrench to adjust valves as needed.*

Closing and latching speeds:

Turn valves clockwise to slow down or counterclockwise to speed up door movement.

Backcheck:

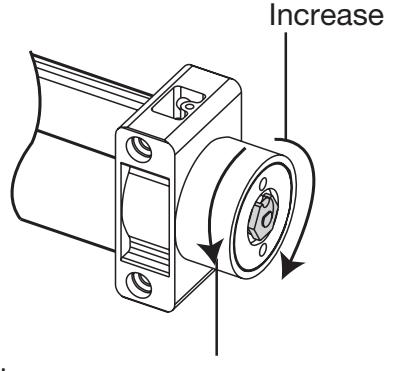

To regulate the intensity of backcheck action turn valve clockwise to increase or counterclockwise to decrease checking.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT. CLOSER CAN BE DAMAGED IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE THE BACKCHECK AS A DOOR STOP. ALWAYS USE A DOOR STOP TO STOP THE DOOR.

Delayed Action Feature (optional feature on some models):

"Delayed Action" provides slow door closing through the delayed action range. Turn valve clockwise to slow down or counterclockwise to speed up door movement.

* If adjustments are ineffective, check indexing from step 4.

7 Adjust power to allow door to close and latch.

NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT
DOOR WIDTH (INCHES)	EXTERIOR DOORS	INTERIOR DOORS
24-30	TURN nut 1-3	TURN nut 1-3
30-36	FACTORY SET	FACTORY SET
36-42	TURN nut 1-4	TURN nut 1-3
42-48	TURN nut 7-9	TURN nut 4-6

Adjusting door to close due to high draft conditions may exceed ADA standards. Consult local ordinances when fire doors are involved.

Decrease

8 Install cover as shown. INSERT IS REMOVABLE. PLACE IN UNUSED OPENING. Copyright © SARGENT Manufacturing. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.

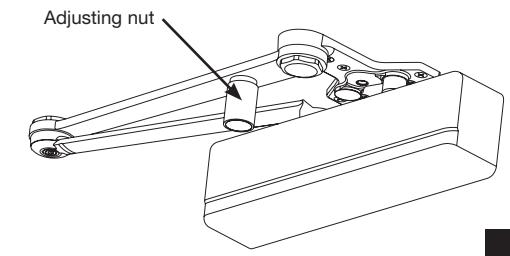

To adjust holder arm (PSH only) All PSH arms are set in hold open at the factory. To inactivate, turn the adjusting nut approximately 1-1/2 turns counter-clockwise.

3 A7343G

9
