MODEL 351 POWERGLIDE SERIES INSTRUCTIONS FOR INSTALLING SARGENT DOOR CLOSERS WITH REGULAR ARMS (WITHOUT HOLDER)

351 SERIES NON SIZED ADJUSTABLE SIZES 1 THRU 6 CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE. FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477.

PARALLEL APPLICATION ONLY

DOOR WIDTH (INCHES)	NUMBER OF TURNS OF SPRING FROM FACTORY SETTING (US APPROXIMATE DOOR WEIGHT (POUNDS)		INTERIOR DOORS
24	80	2-6 CW
30	110	2-0 GVV
32	115	6-8 CW	1-5 CCW
36	130	0-0-000	1-5 CCVV
40	150		FACTORY SET
42	155	8-11 CW	TACTORT SET
44	165
46	170	11-13 CW	1-7 CW
48	180	11-13 GW	1-7 CVV
OVER 48		UP TO 18 CW AS REQ.	8 CW AND UP AS REQ.

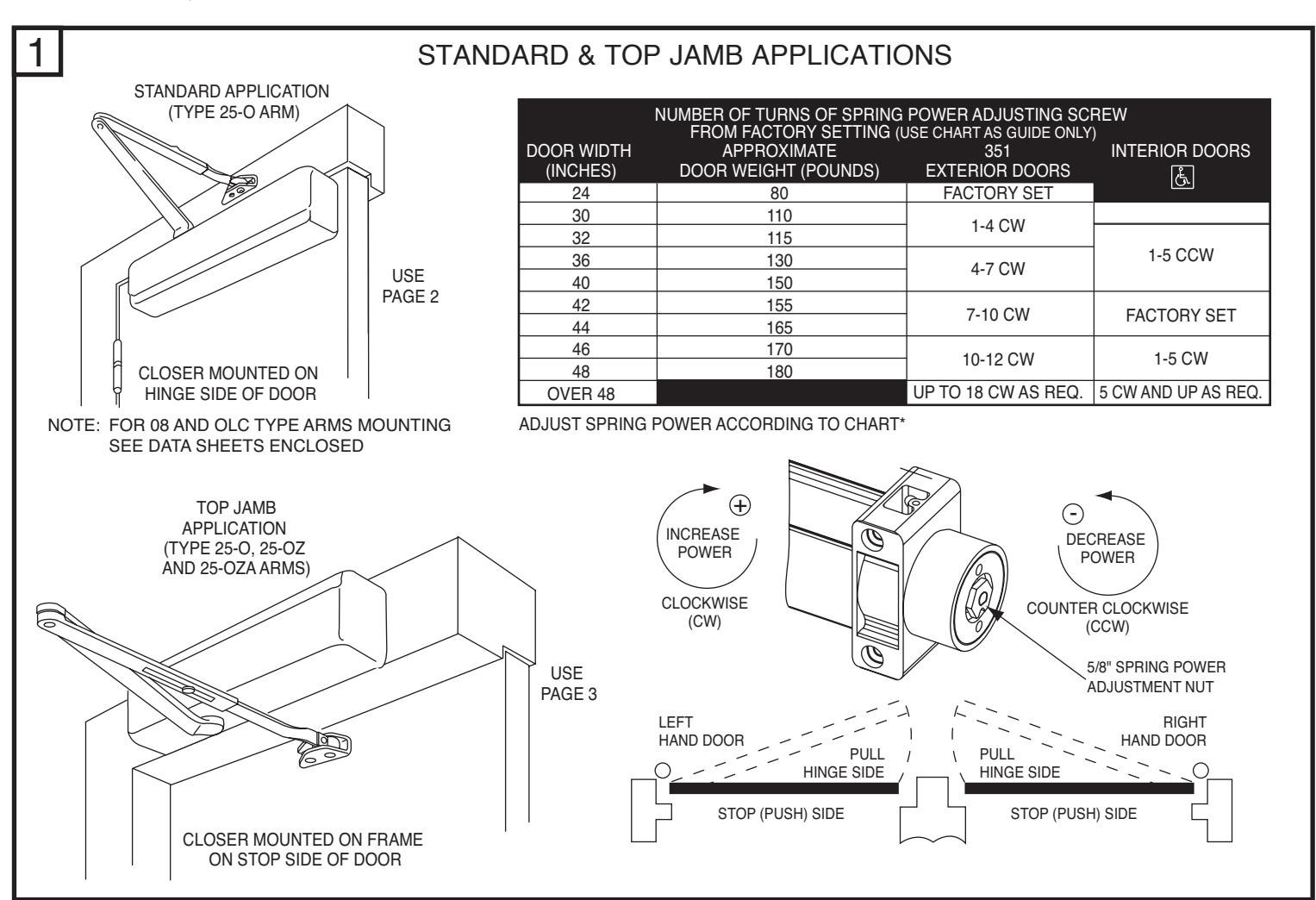

ADJUST SPRING POWER ACCORDING TO CHART?

*IF INTERIOR DOORS DO NOT HAVE TO COMPLY WITH ADA & REQUIREMENTS, EXTERIOR DOOR SETTINGS ARE RECOMMENDED. WHERE STRONG DRAFTS EXIST, INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTMENT SCREW CLOCKWISE. IF NECESSARY, REDUCE SPRING POWER BY TURNING SCREW COUNTERCLOCKWISE.

351 STANDARD ARM APPLICATION INSTRUCTIONS

SARGENT ASSA ABLOY

IMPORTANT: USE ALTERNATE MOUNTING IF DOOR CAN OPEN BEYOND LIMITS SHOWN FOR STANDARD MOUNTING

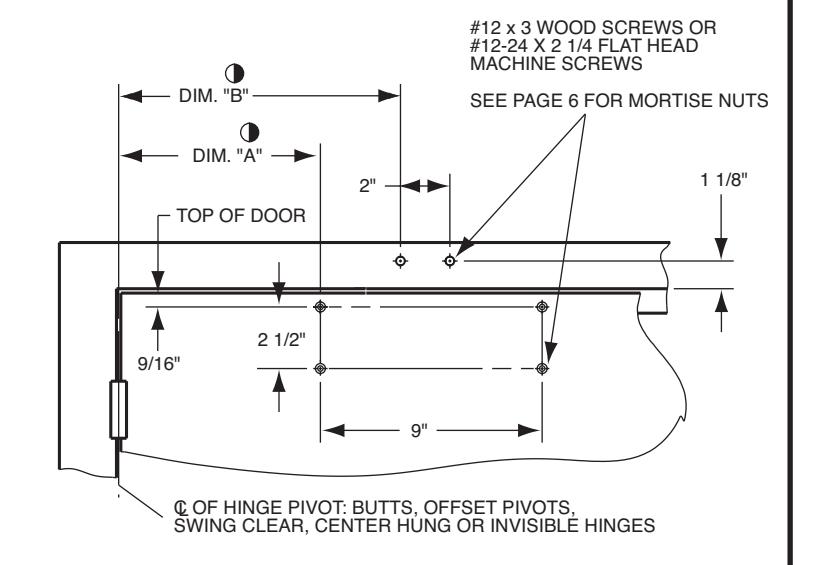

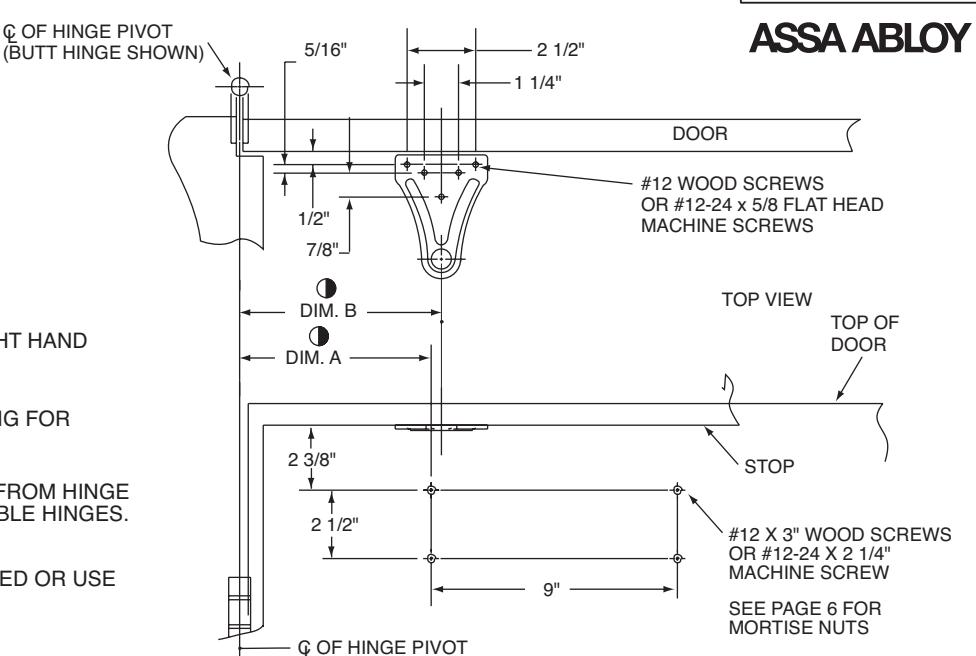

ARM TYPE	MOUNTING	MAX. DOOR OPENING	DIM. A	DIM. B
REGULAR ARM NO HOLDER	STANDARD	120∞	8 3/16"	11 7/16"
	ALTERNATE	160∞ 🗨	6 13/16"	10 1/16"

F BUTT, FRAME AND WALL CONDITIONS PERMIT DOOR WILL OPEN 180°

1)—RIGHT HAND DOOR SHOWN. LEFT HAND DOOR OPPOSITE.

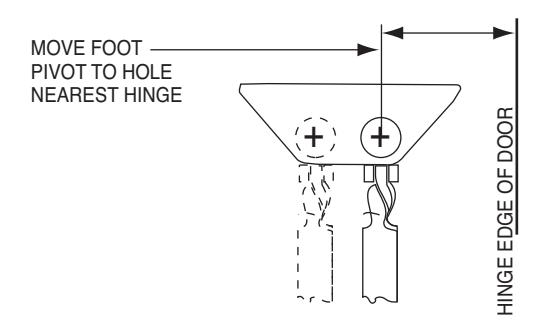

2 THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

$\backslash mbox\{\backslash rm\; DRILL\}$ & TAP AND USE SCREWS PROVIDED OR USE MORTISE NUTS WHEN REQUIRED.

USE TEMPLATE A6753 FOR 25-OLC ARM (LOW PROFILE)

A

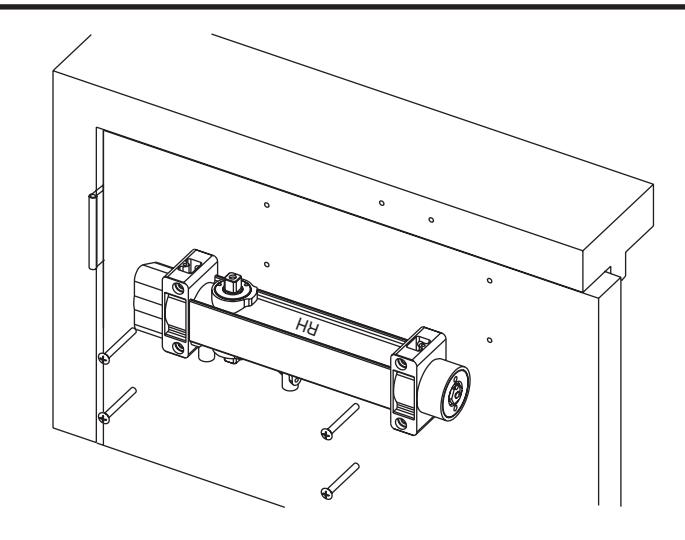

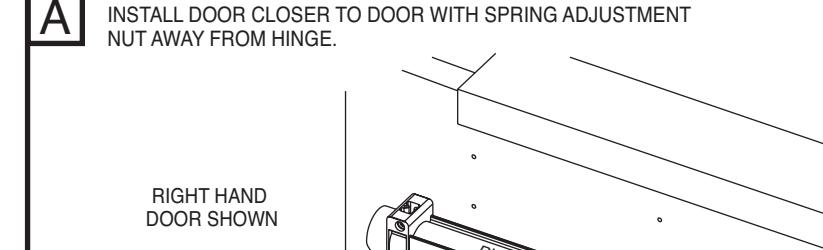

INSTALL DOOR CLOSER TO DOOR WITH SPRING ADJUSTMENT NUT AWAY FROM HINGE.

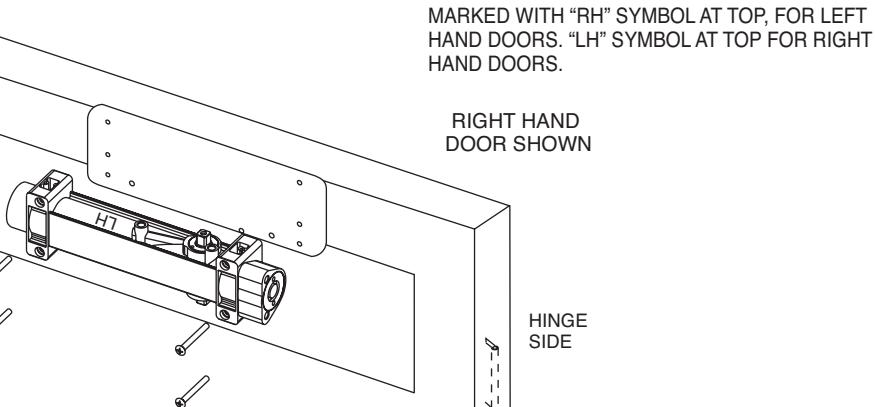

NOTE: 351 CLOSER BODIES ARE NON HANDED. IT IS IMPORTANT THAT THE CLOSER BODY BE MARKED WITH "RH" SYMBOL AT TOP, FOR RIGHT HAND DOORS. "LH" SYMBOL AT TOP FOR LEFT HAND DOORS.

RIGHT HAND DOOR SHOWN

В

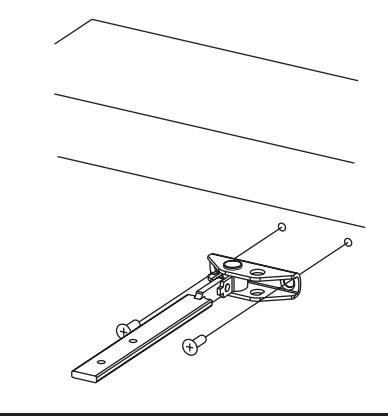

ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE.

ASSA ABLOY, the global leader in door opening solutions

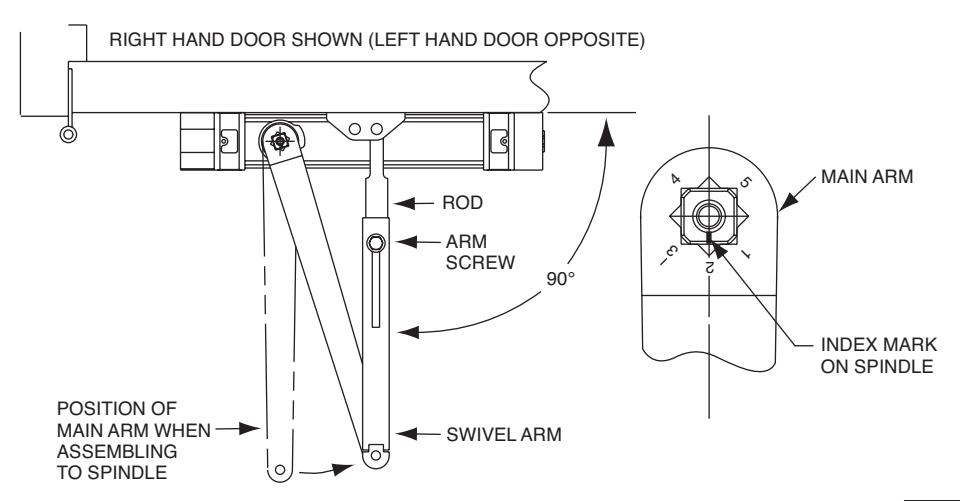

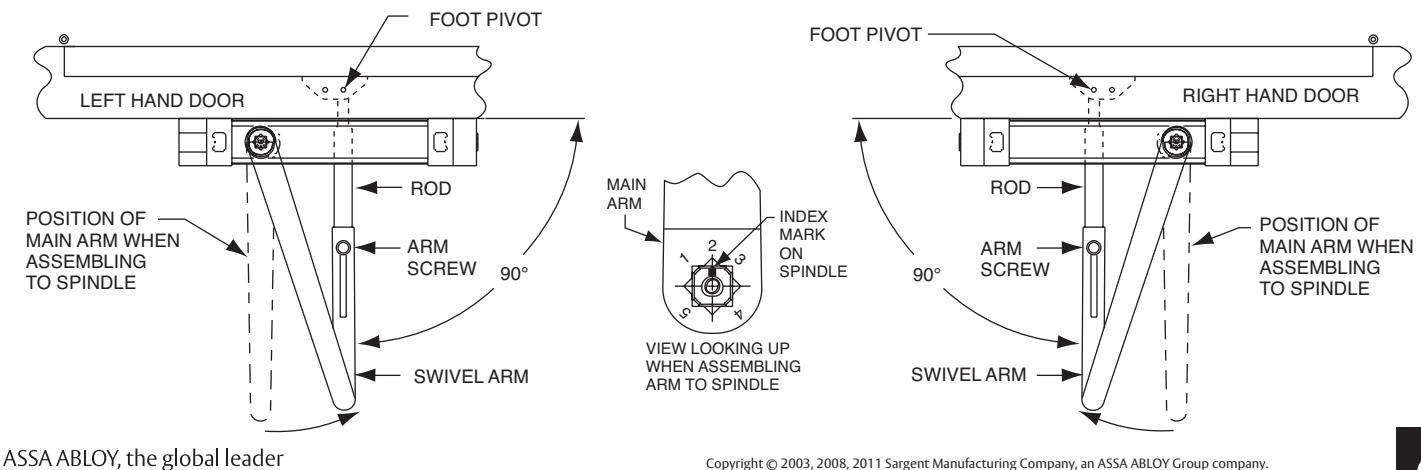

ATTACH ARM WITH INDEX MARK ON SPINDLE ALIGNED AS SHOWN. SECURE WITH SCREW AND WASHER. INSERT ROD END INTO SWIVEL ARM AND TIGHTEN ARM SCREW AS SHOWN BELOW.

Copyright © 2003, 2008, 2011 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

351 TOP JAMB APPLICATION INSTRUCTIONS

SARGENT

ASSA ABLOY

ARM TYPE	REVEAL DEPTH	DOOR OPENING
"O" ARM	0" TO 2"	140°
"OZ" ARM	2 1/8" TO 5"	140°
"OZA" ARM	5 1/8" TO 8"	140°

DIM. A	MAX. DOOR OPENING
8 5/8"	110°
5 3/8"	140° 🚱

• 1 RIGHT HAND DOOR SHOWN, LEFT HAND DOOR OPPOSITE.
• 2 THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
• DOOR OPENING TO 1800 IS POSSIBLE IF DEPTH OF REVEAL IS NOT GREATER THAN 2"

DRILL & TAP AND USE SCREWS PROVIDED OR USE MORTISE NUTS WHEN REQUIRED.

NOTE: 351 CLOSER BODIES ARE NON HANDED.

IT IS IMPORTANT THAT THE CLOSER BODY BE

A INSTALL DOOR CLOSER TO FRAME WITH SPRING ADJUSTMENT NUT AWAY FROM HINGE.

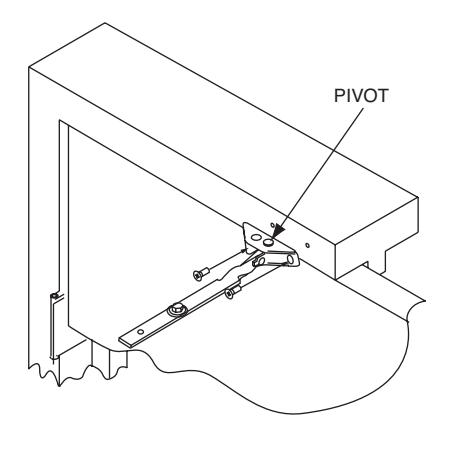

B ATTACH FOOT TO DOOR WITH PIVOT AWAY FROM HINGE.

INSTALL MAIN ARM TO SPINDLE AND SECURE WITH SCREW AND WASHER AS SHOWN. OPEN DOOR INSERT RETANGULAR ROD INTO SWIVEL ARM THEN CLOSE THE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN SWIVEL ARM IS AT RIGHT ANGLE TO DOOR.

in door opening solutions

Copyright © 2003, 2008, 2011 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

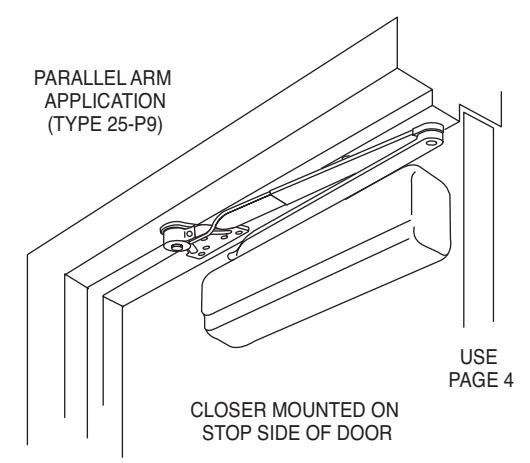

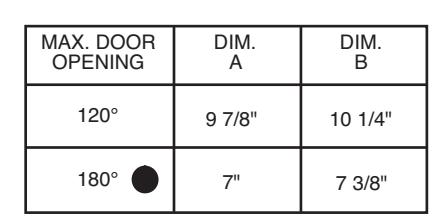

351 PARALLEL ARM APPLICATION INSTRUCTIONS

SARGENT

1 LEFT HAND DOOR SHOWN. RIGHT HAND DOOR DIMENSION OPPOSITE.

2 DO NOT USE THIS MOUNTING FOR "SWING CLEAR" HINGES.

3 — THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

DRILL & TAP AND USE SCREWS PROVIDED OR USE MORTISE NUTS WHEN REQUIRED.

NOTE: 351 CLOSER BODIES ARE NON HANDED. IT IS IMPORTANT THAT THE CLOSER BODY BE MARKED WITH "RH" SYMBOL AT TOP. FOR RIGHT

HAND DOORS. "LH" SYMBOL AT TOP FOR LEFT HAND DOORS.

ASSA ABLOY, the global leader

in door opening solutions

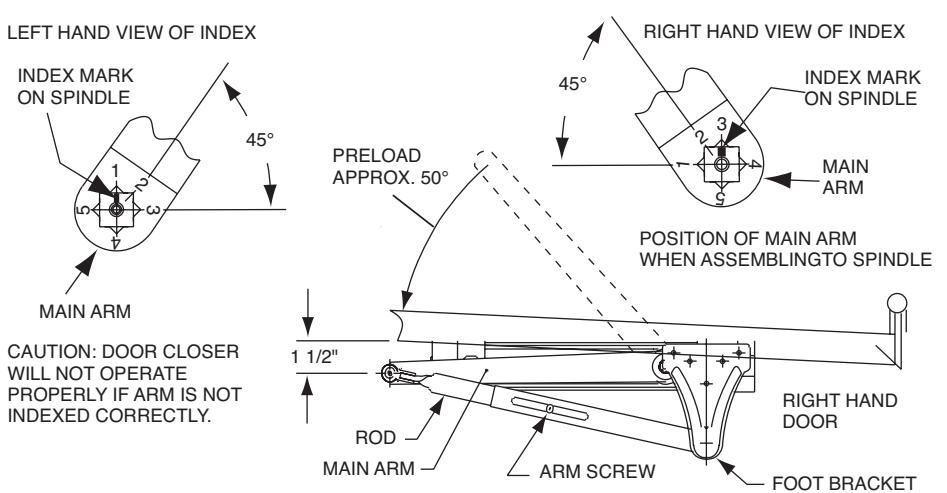

USING WRENCH ON BOTTOM END OF SPINDLE, ROTATE SPINDLE 45\infty AND ASSEMBLE MAIN ARM TO CLOSER AS SHOWN, AND THEN INSERT ROD END INTO SWIVEL ARM AND TIGHTEN ARM SCREW POSITIONING ARM 1 1/2" AWAY FROM DOOR.

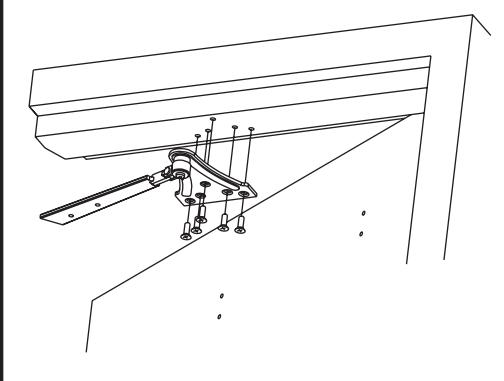

B ATTACH FOOT BRACKET TO FRAME STOP.

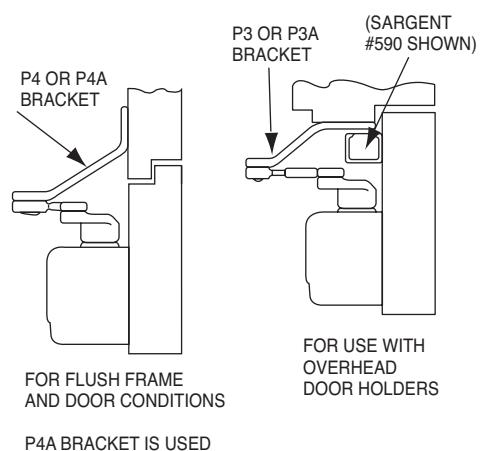

OPTIONAL ARMS FOR MOUNTING. SEE DATA SHEET ENCLOSED.

Copyright © 2003, 2008, 2011 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of

WITH OVERHEAD HOLDERS

Sargent Manufacturing Company is prohibited.

FINAL ADJUSTMENT AND REGULATING PROCEDURE

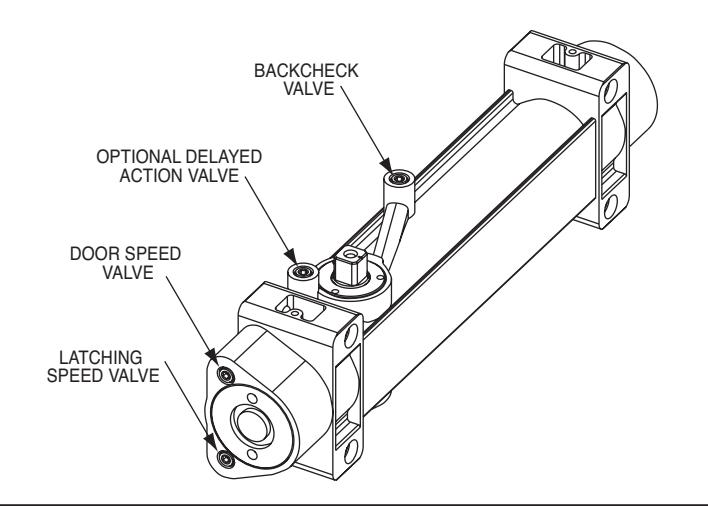

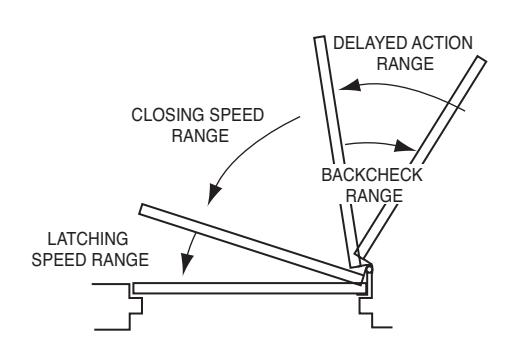

A B REGULATING DOOR SPEED AND LATCHING SPEED AS NEEDED.

USE HEX SOCKET (1/8" ALLEN) WRENCH AND TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.

FASTER (+) SLOWER (–)

REGULATING BACKCHECK

TO REGULATE THE INTENSITY OF BACKCHECK ACTION TURN VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE CHECKING.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE BACKCHECK AS A DOOR STOP. ALWAYS USE A DOOR STOP TO STOP THE DOOR.

C FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE

TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT

D ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER (FOR STANDARD AND TOP JAMB APPLICATIONS ONLY)

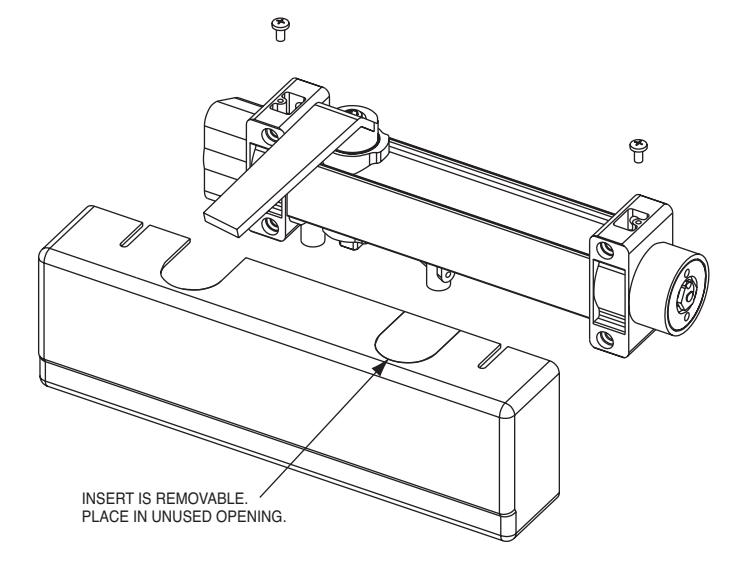

E INSTALL COVER WITH TWO SCREWS AS SHOWN.

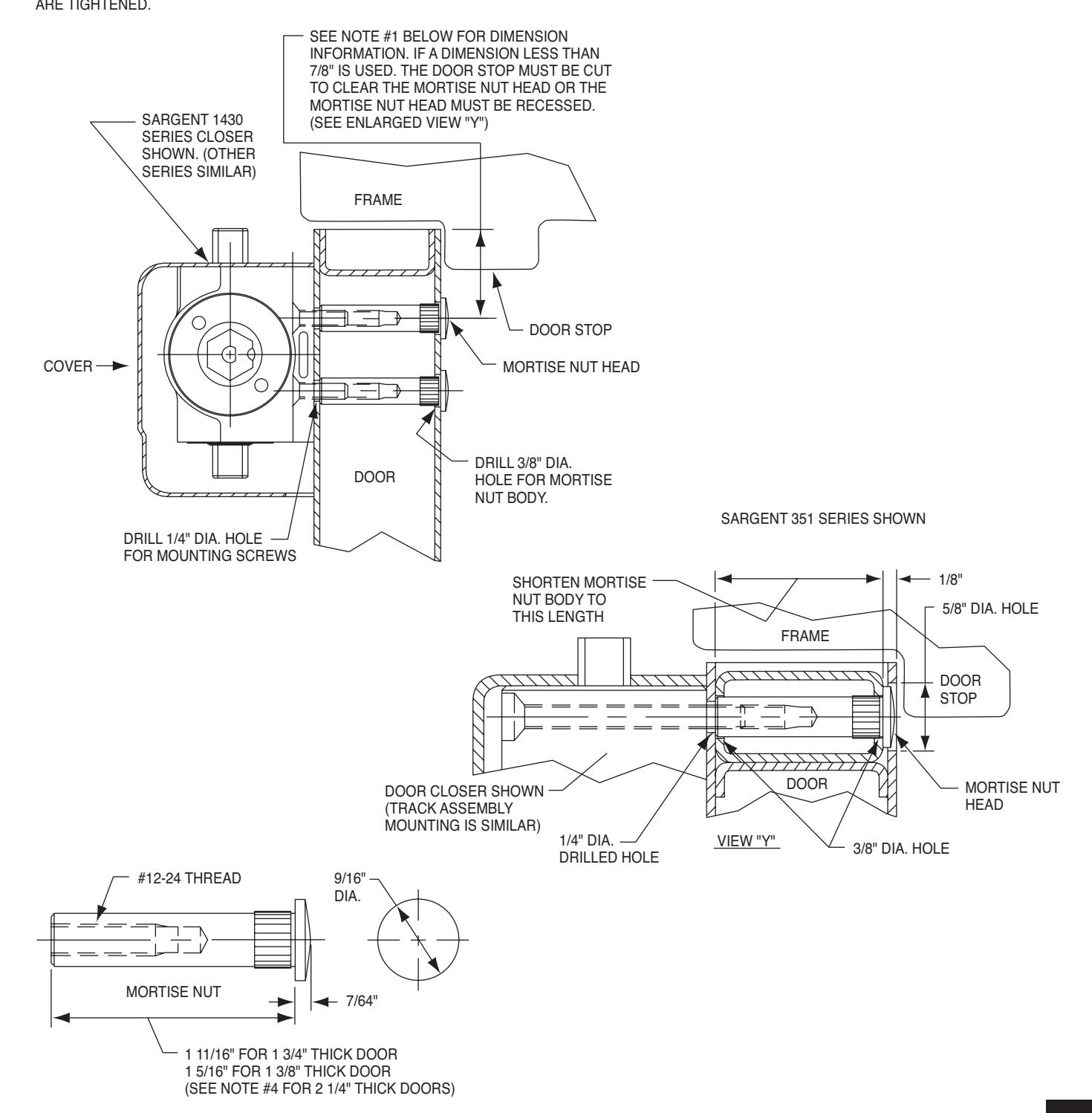

USING MORTISE NUTS WITH SARGENT DOOR CLOSER

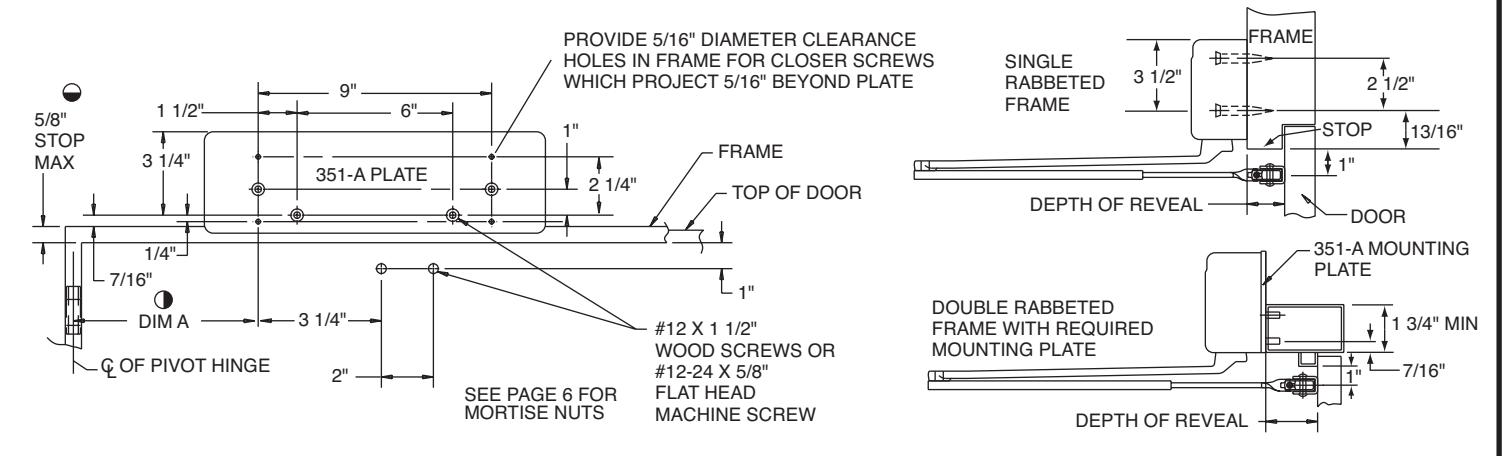

• 1. SEE INSTRUCTIONS OR DATA SHEET PACKED WITH DOOR CLOSER FOR DIMENSIONS LOCATING THE CLOSER BODY AND FOOT ON DOOR AND FRAME.
• 2. MORTISE NUT SHOWN IS DESIGNED FOR AN UNREINFORCED METAL DOOR.
• 3. FOR TOP JAMB AND CORNER BRACKET APPLICATIONS: THE DOOR CLOSER FOOT WILL BE ATTACHED TO THE DOOR IN A MANNER SIMILAR TO THAT SHOWN FOR MOUNTING THE CLOSER BODY.
• 4. FOR DOORS 2 1/4" THICK: MORTISE NUT SHOWN FOR 1 3/4" THICK DOORS WILL BE FURNISHED ALONG WITH APPORPRIATE LENGTH THRU-BOLTS. DOOR CONSTRUCTION MUST PROVIDE A BRIDGE TYPE REINFORCEMENT TO PREVENT THE DOOR RAIL FROM COLLAPSING WHEN THRU-BOLTS
