Instructions for Installing 351 Series Door Closers with CPS & CPSH Holder Arms

Open the original PDF document

SARGENT 351 🕹 DOOR CLOSERS WITH CPS/CPSH ARMS INSTALLATION INSTRUCTIONS

SARGENT

ASSA ABLO

351 ADJUSTABLE FROM SIZE 1 THRU 6

INSTALLED WITH "RH" SYMBOL AT TOP FOR RIGHT HAND DOORS, "LH" SYMBOL AT TOP

FOR LEFT HAND DOORS.

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE. FOR ASSISTANCE CALL SARGENT AT 1-800-727-5477.

ASSA ABLOY, the global leader in door opening solutions

A7345B

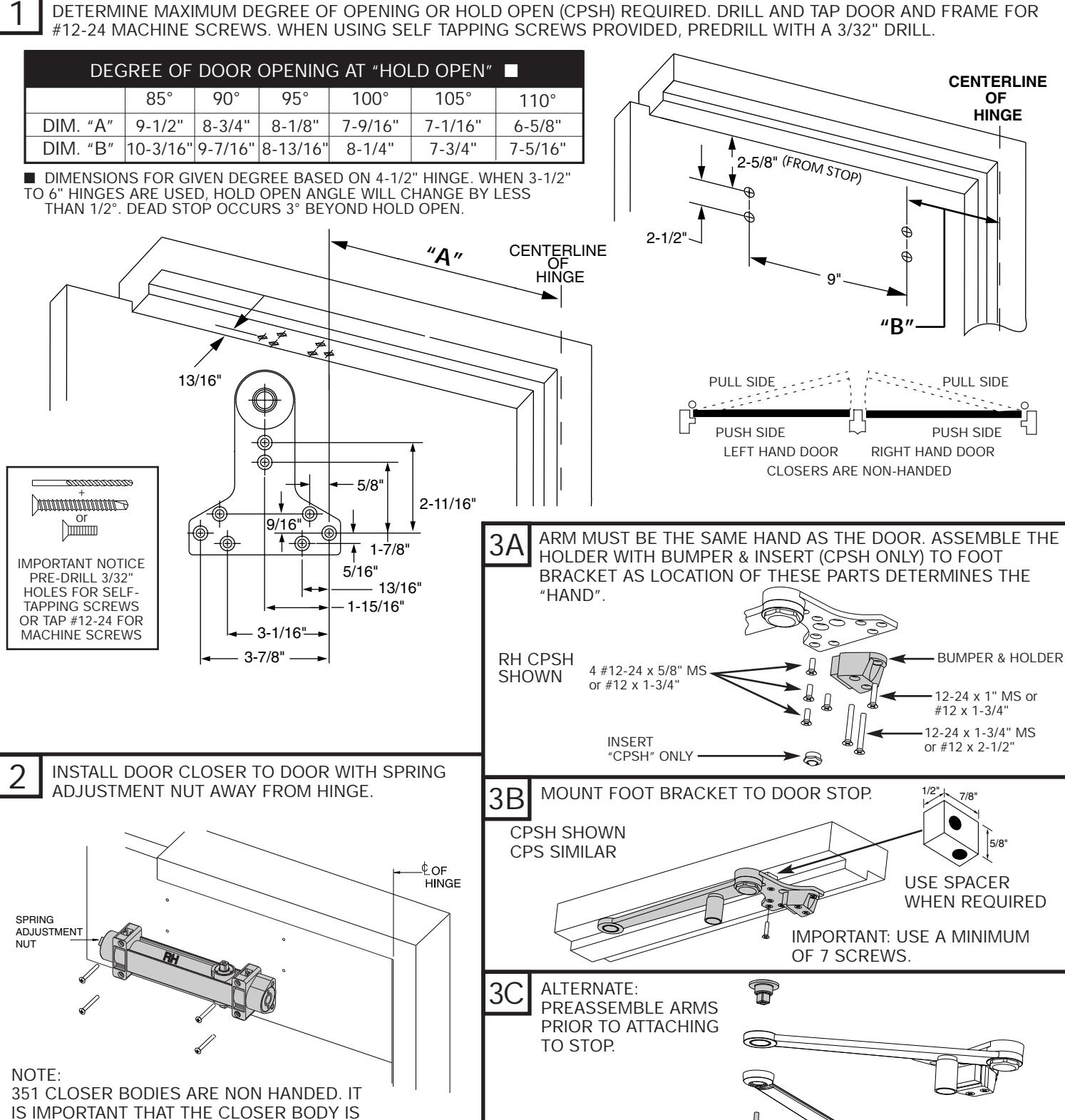

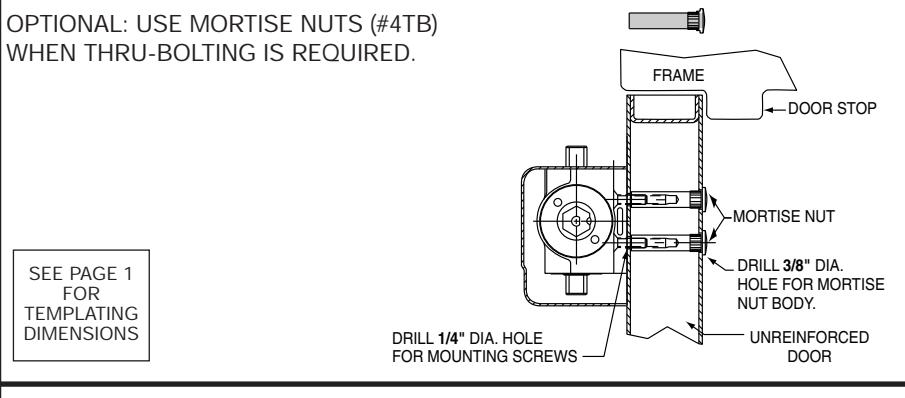

DETERMINE MAXIMUM DEGREE OF OPENING OR HOLD OPEN (CPSH) REQUIRED. DRILL AND TAP DOOR AND FRAME FOR #12-24 MACHINE SCREWS. WHEN USING SELF TAPPING SCREWS PROVIDED, PREDRILL WITH A 3/32" DRILL.

express written permission of Sargent Manufacturing Company is prohibited.

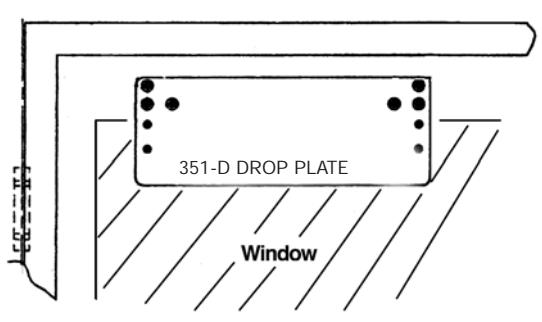

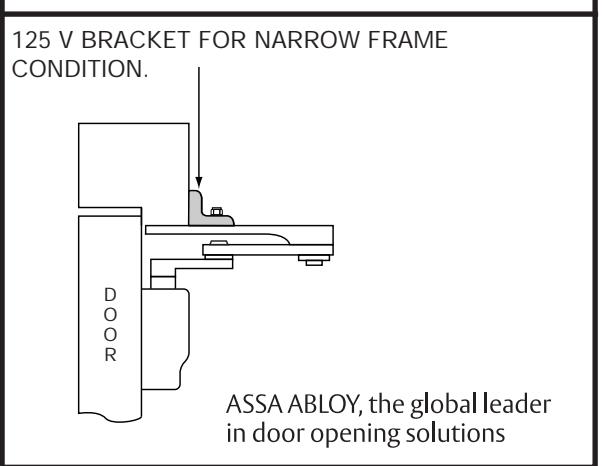

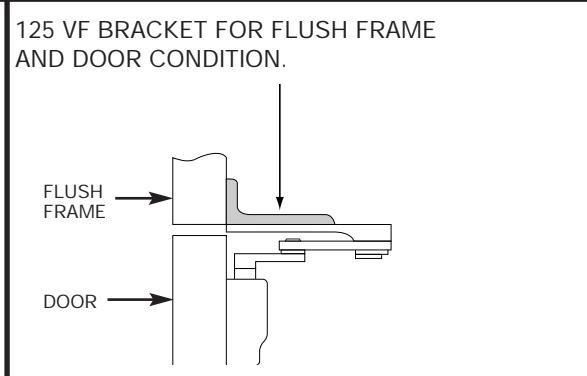

351-D DROP PLATE USED WITH NARROW TOP RAILS.

Copyright © 2005, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7345B

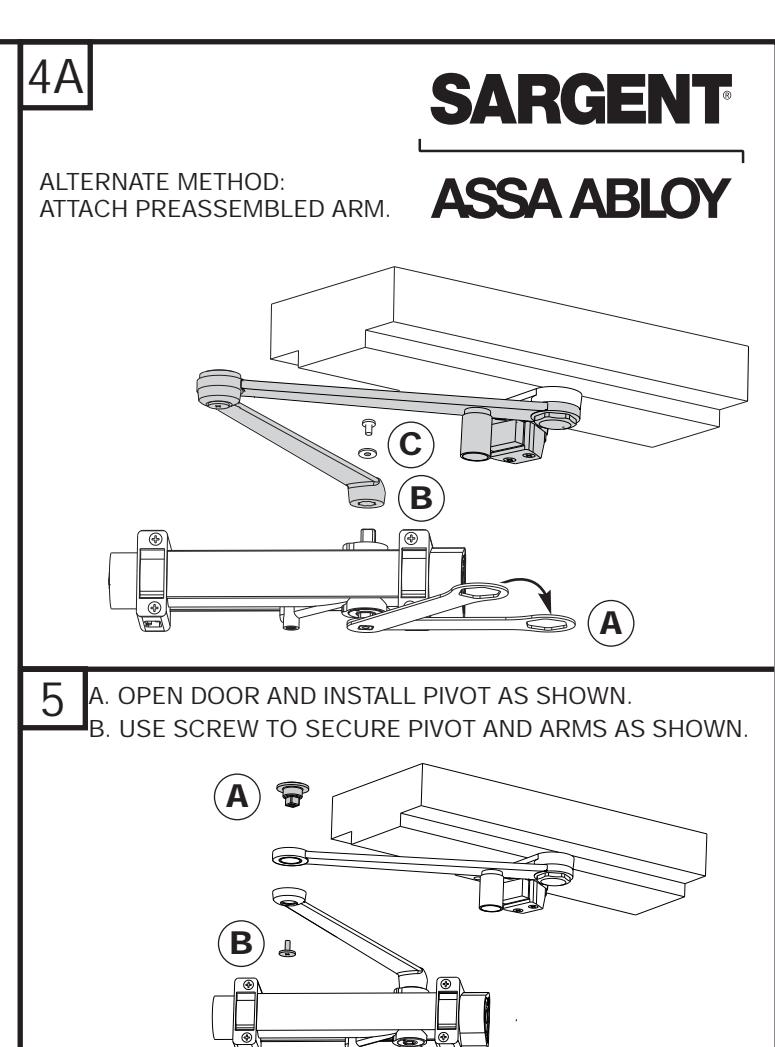

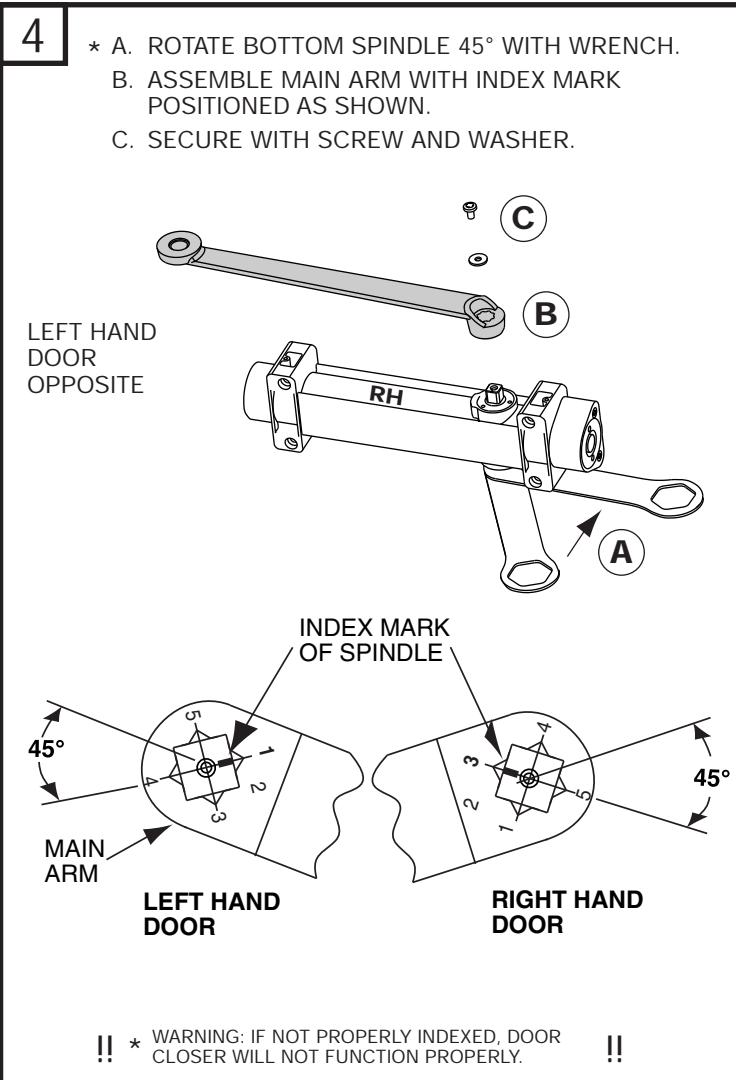

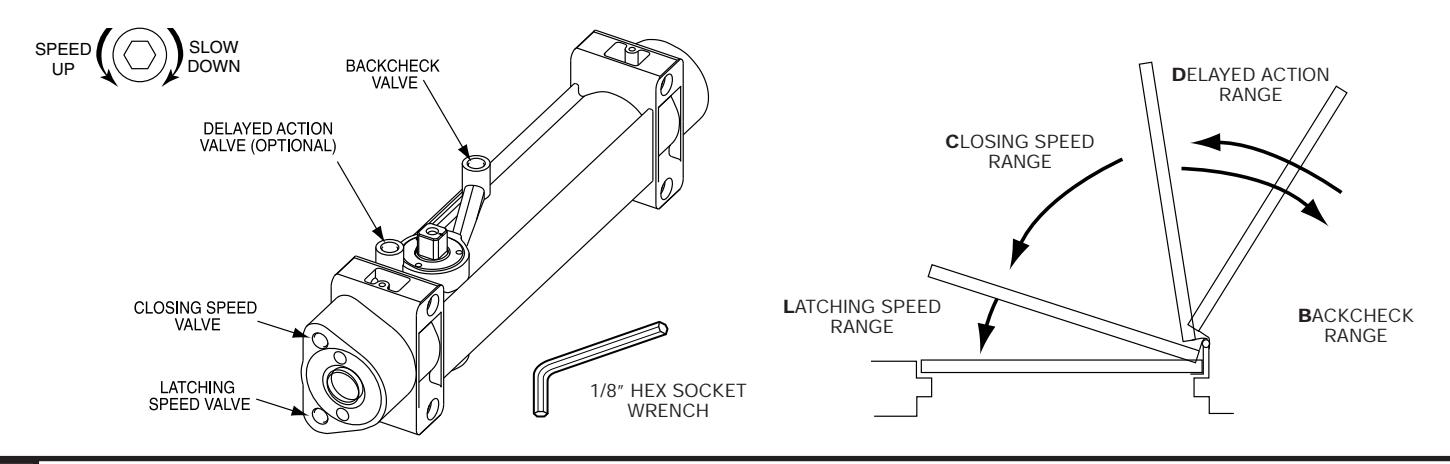

6 FINAL ADJUSTMENT AND REGULATING PROCEDURES

MINIMUM RECOMMENDED DOOR CLOSING TIME IS 6 SECONDS FOR DOORS OPENED TO 90 DEGREES. USE 1/8" HEX (ALLEN) WRENCH TO ADJUST VALVES AS NEEDED.

CLOSING AND LATCHING SPEEDS:

TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTERCLOCKWISE TO SPEED UP DOOR MOVEMENT

BACKCHECK:

TO REGULATE THE INTENSITY OF BACKCHECK ACTION TURN VALVE CLOCKWISE TO INCREASE OR COUNTERCLOCKWISE TO DECREASE CHECKING.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT; CLOSER CAN BE DAMAGED IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE THE BACKCHECK AS A DOOR STOP. ALWAYS USE A DOOR STOP TO STOP THE DOOR.

DELAYED ACTION FEATURE (OPTIONAL FEATURE ON SOME MODELS):

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH THE DELAYED ACTION RANGE. TURN VALVE CLOCK-WISE TO SLOW DOWN OR COUNTERCLOCKWISE TO SPEED UP DOOR MOVEMENT.

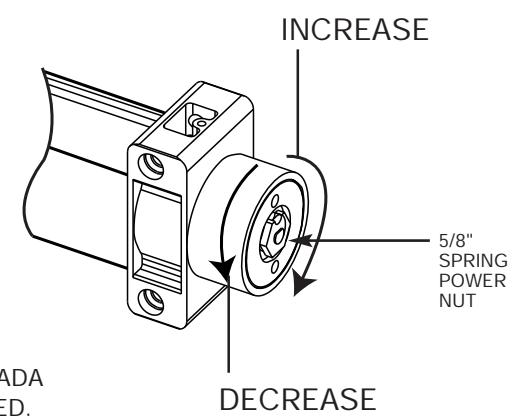

7 ADJUST POWER TO ALLOW DOOR TO CLOSE AND LATCH.

NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT
DOOR WIDTH (INCHES)	EXTERIOR DOORS	INTERIOR DOORS
24-30	TURN nut 1-3	TURN nut 1-3
30-36	FACTORY SET	FACTORY SET
36-42	TURN nut 1-4	TURN nut 1-3
42-48	TURN nut 7-9	TURN nut 4-6

ADJUSTING DOOR TO CLOSE DUE TO HIGH DRAFT CONDITIONS MAY EXCEED ADA STANDARDS. CONSULT LOCAL ORDINANCES WHEN FIRE DOORS ARE INVOLVED.

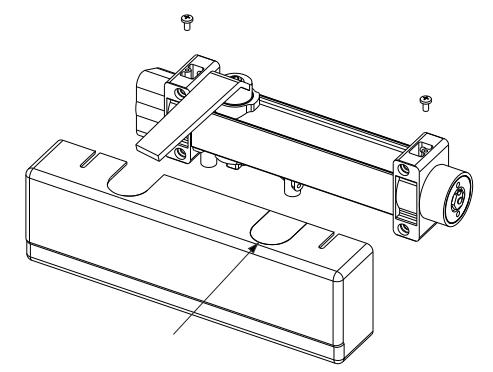

8 INSTALL COVER AS SHOWN.

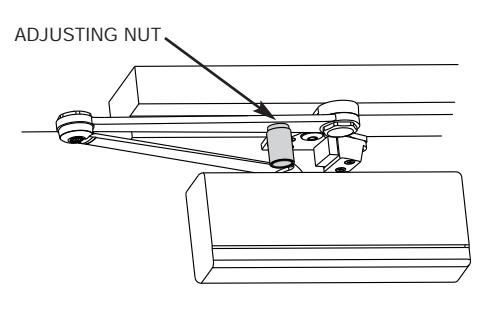

TO ADJUST HOLDER ARM (CPSH ONLY) 9

ALL CPSH ARMS ARE SHIPPED NON-HOLD OPEN FROM THE FACTORY. TO SET IN HOLD OPEN, TURN THE ADJUSTING NUT APPROXIMATELY 1-1/2 TURNS CLOCKWISE.

DOOR
