H & UH ARMS FRICTION HOLD OPEN ADJUSTMENT

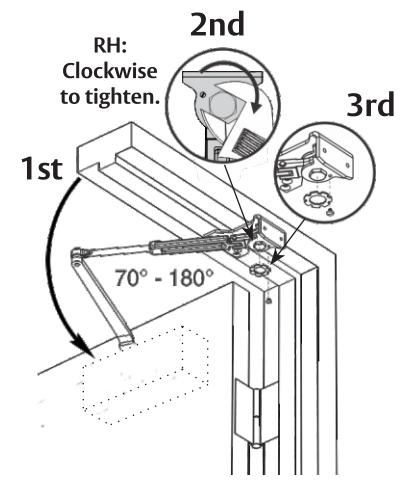

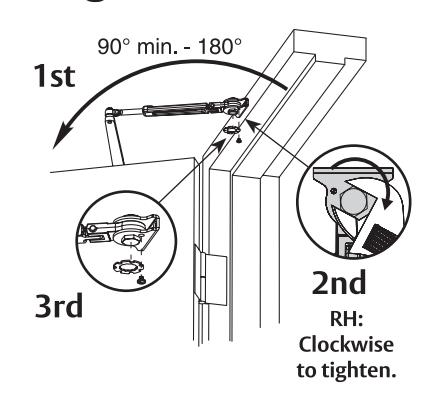

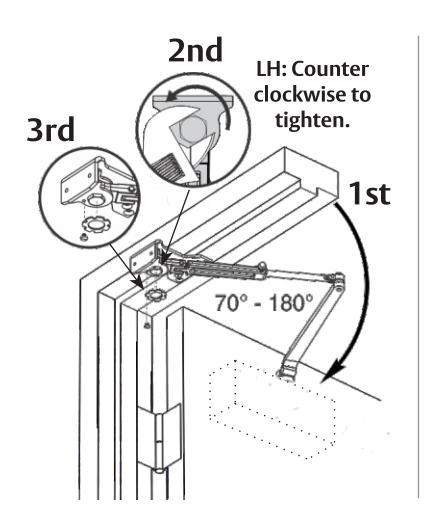

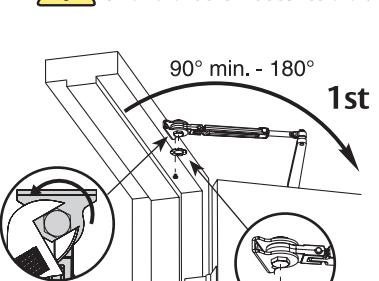

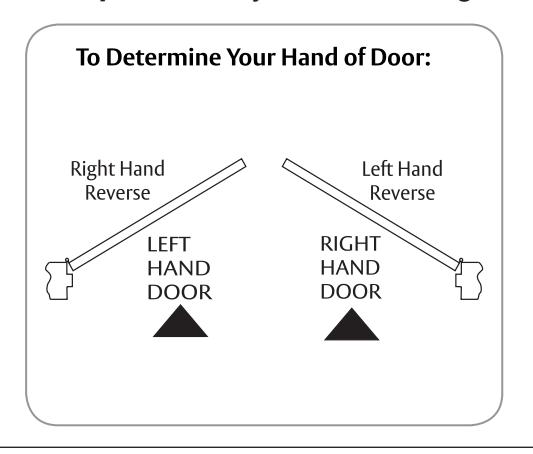

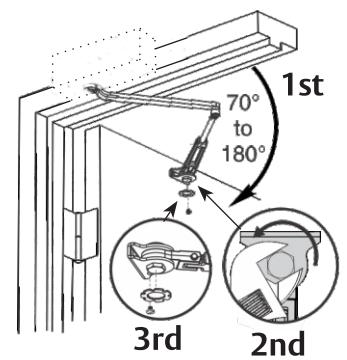

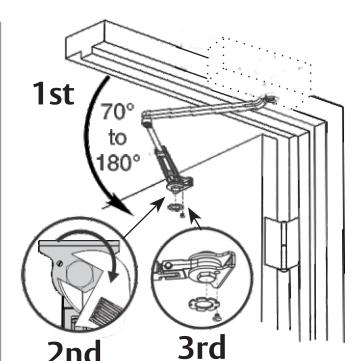

Step 1: Identify Door Handing Step 3: Set Hold Open Angle

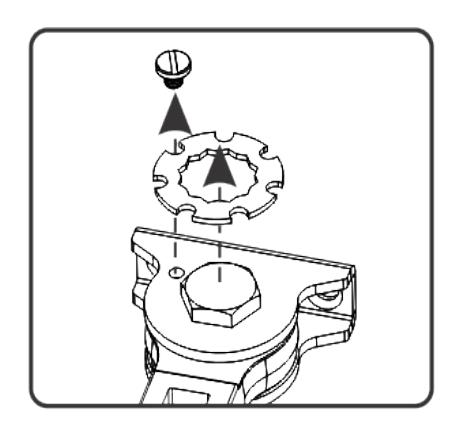

Step 2: Remove Dial and Screw

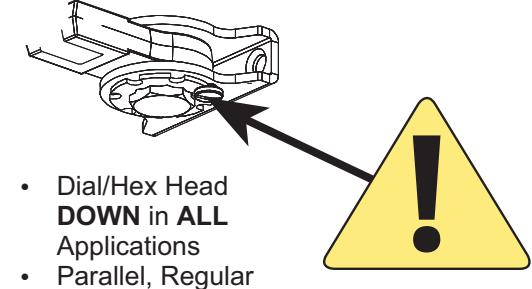

IMPORTANT!!: Install Hex Facing Down in ALL Applications

• Ÿ Parallel, Regular and Top Jamb
• Ÿ Right Hand and Left Hand Doors

Regular Arm

Top Jamb Arm

Parallel Arm

A8291A
