281 DOOR CLOSER WITH P10/PH10 ARM INSTALLATION INSTRUCTIONS

SARGENT

ASSA ABLO

281 SERIES ADJUSTABLE FROM SIZE 1 THRU 6 CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY

REQUIRED

Copyright © 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of

Sargent Manufacturing Company is prohibited.

IMPORTANT: USE A MINIMUM OF 5 SCREWS

ASSA ABLOY, the global leader in door opening solutions

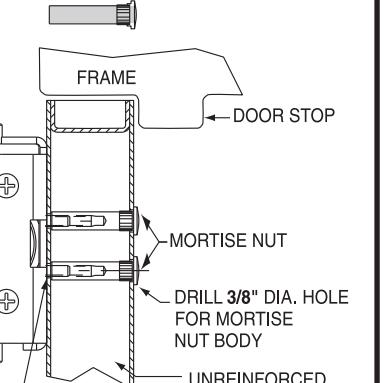

OPTIONAL: USE MORTISE NUTS (#4TB) WHEN THRU-BOLTING IS REQUIRED

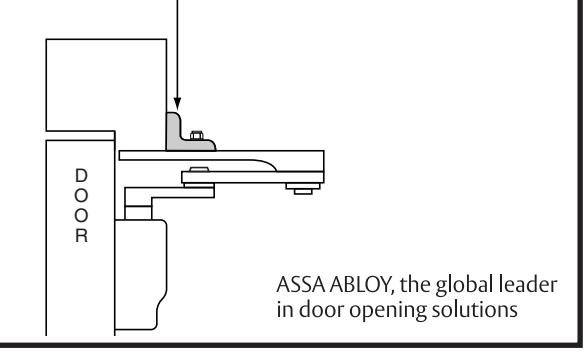

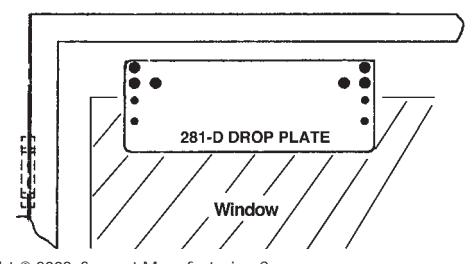

CONDITION 281 DROP PLATE USED WITH NARROW TOP RAILS

Copyright © 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7314L

125 VF BRACKET FOR FLUSH FRAME AND DOOR CONDITION FLUSH FRAME DOOR

125 V BRACKET FOR NARROW FRAME

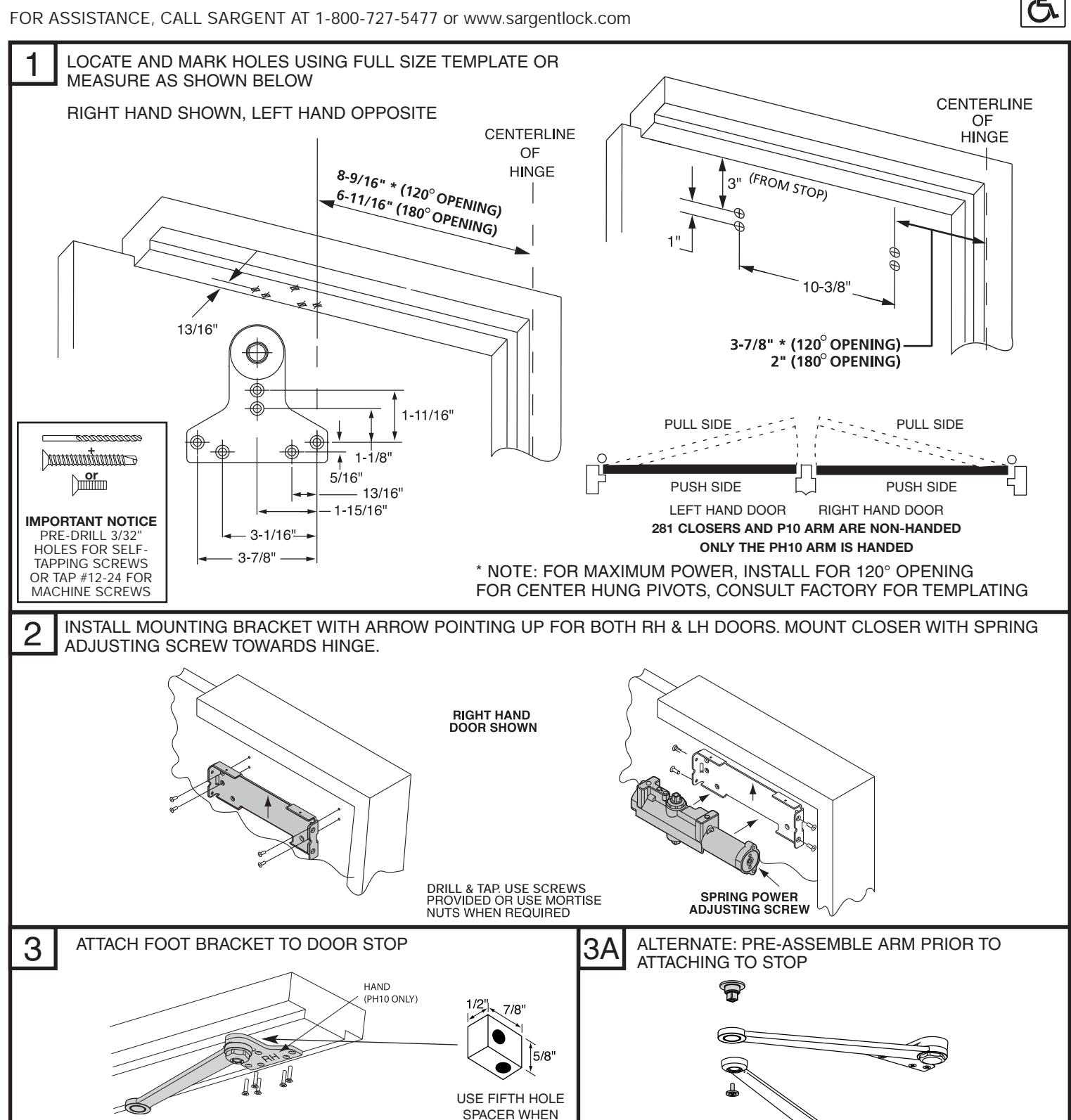

SEE PAGES 1 AND 4 FOR TEMPLATING DIMENSIONS

6

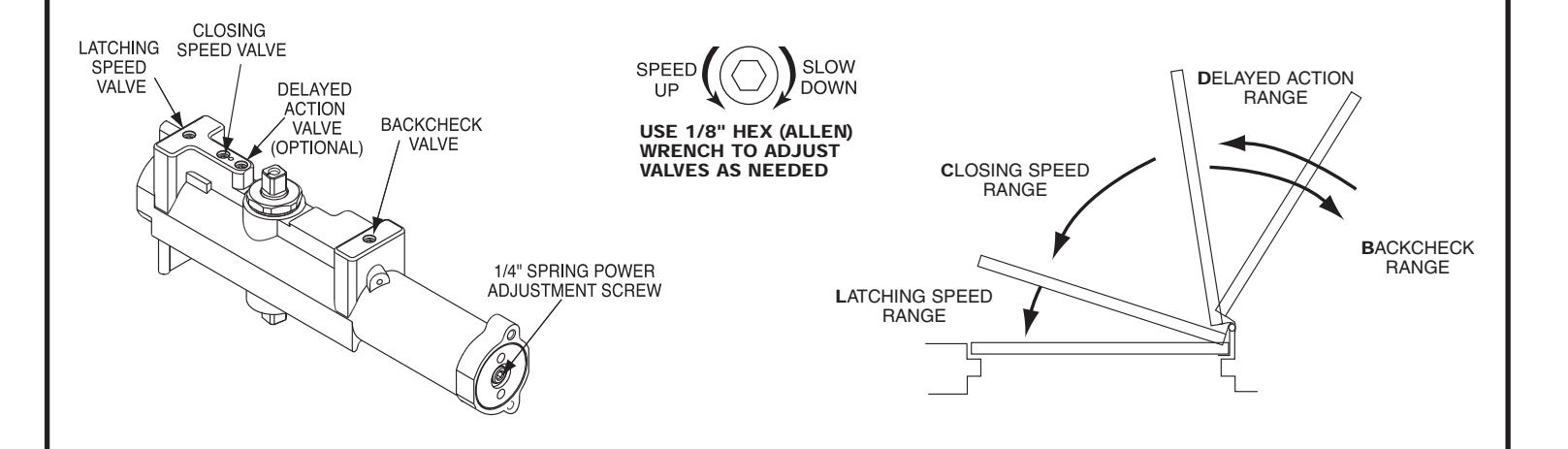

FINAL ADJUSTMENTS

  • Adjust door speed and latching speed valves to achieve the desired closing time
  • Recommend 6 seconds minimum from 90° to the closed position
  • If backcheck is required, adjust valve to achieve a slight cushioning effect. Auxiliary stop required
  • If closer is equipped with delayed action, regulate valve to achieve the desired delay

7 Adjust closing power to the minimum force required to reliably close and latch door

  • If door is hard to open, decrease power slightly
  • If door does not latch, increase power as required
  • Use the chart as a starting point
  • Doors adjusted with high closing power to overcome strong draft conditions may exceed ADA standards

DO
O
R
W
ID
TH
(IN
CH
ES
) 		EX
TE
RI
O
R
DO
O
RS 		IN
TE
RI
O
R
DO
O
RS
24
-3
0 		T
U
R
N
N
U
T
2-
7 		—
30
-3
6 		T
U
R
N
N
U
T
7-
11 		T
U
R
N
N
U
T
1-
5
36
-4
4 		T
U
R
N
N
U
T
11
-1
5 		FA
C
TO
RY
S
ET
8
44
-4 		T
U
R
N
N
U
T
15
-1
7 		T
U
R
N
N
U
T
8
1-
O
48
ve
r 		U
to
1
9
R
p
as
eq 		8
d
R
an
up
a
s
eq

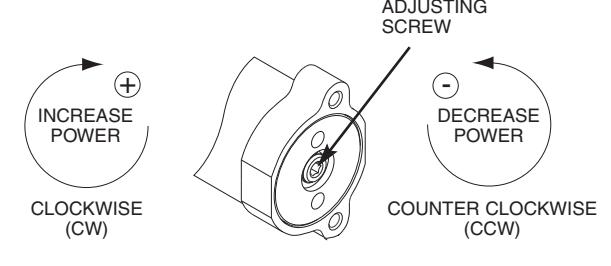

1/4" ALLEN SPRING POWER

ADJUSTING DOOR TO CLOSE DUE TO HIGH DRAFT CONDITIONS MAY EXCEED ADA STANDARDS. CONSULT LOCAL ORDINANCES WHEN FIRE DOORS ARE INVOLVED.
