Instructions for Installation of 1431 Series Door Closers Friction Hold Open Adjustment H & UH Arms-A8292

H & UH ARMS FRICTION HOLD OPEN ADJUSTMENT

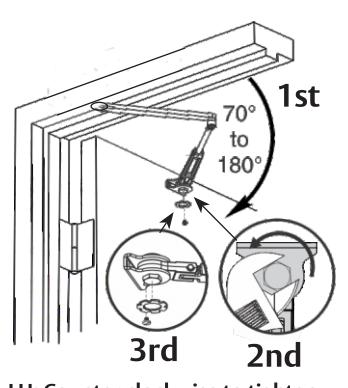

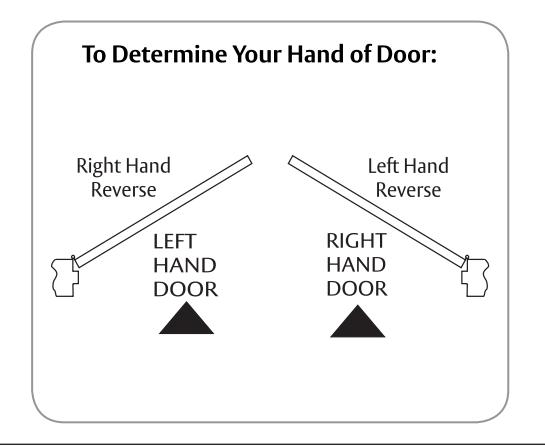

Step 1: Identify Door Handing Step 3: Set Hold Open Angle

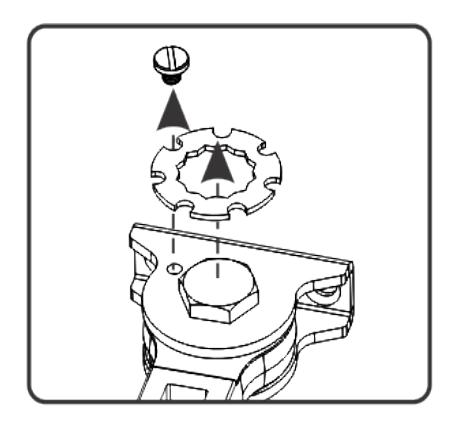

Step 2: Remove Dial and Screw

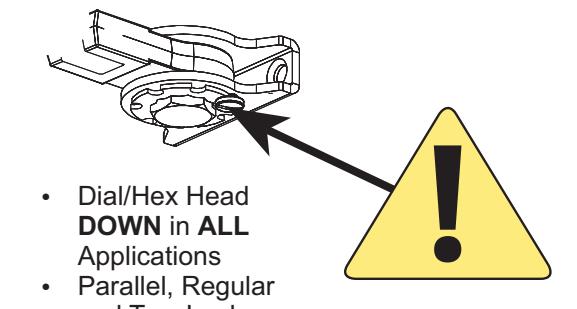

IMPORTANT!!: Install Hex Facing Down in ALL Applications

and Top Jamb Ÿ Right Hand and Left Hand Doors

Double Lever Arm
