Instructions for 7893-8293 and 7894-8294 Mortise Lock Dummy Trim

Open the original PDF document

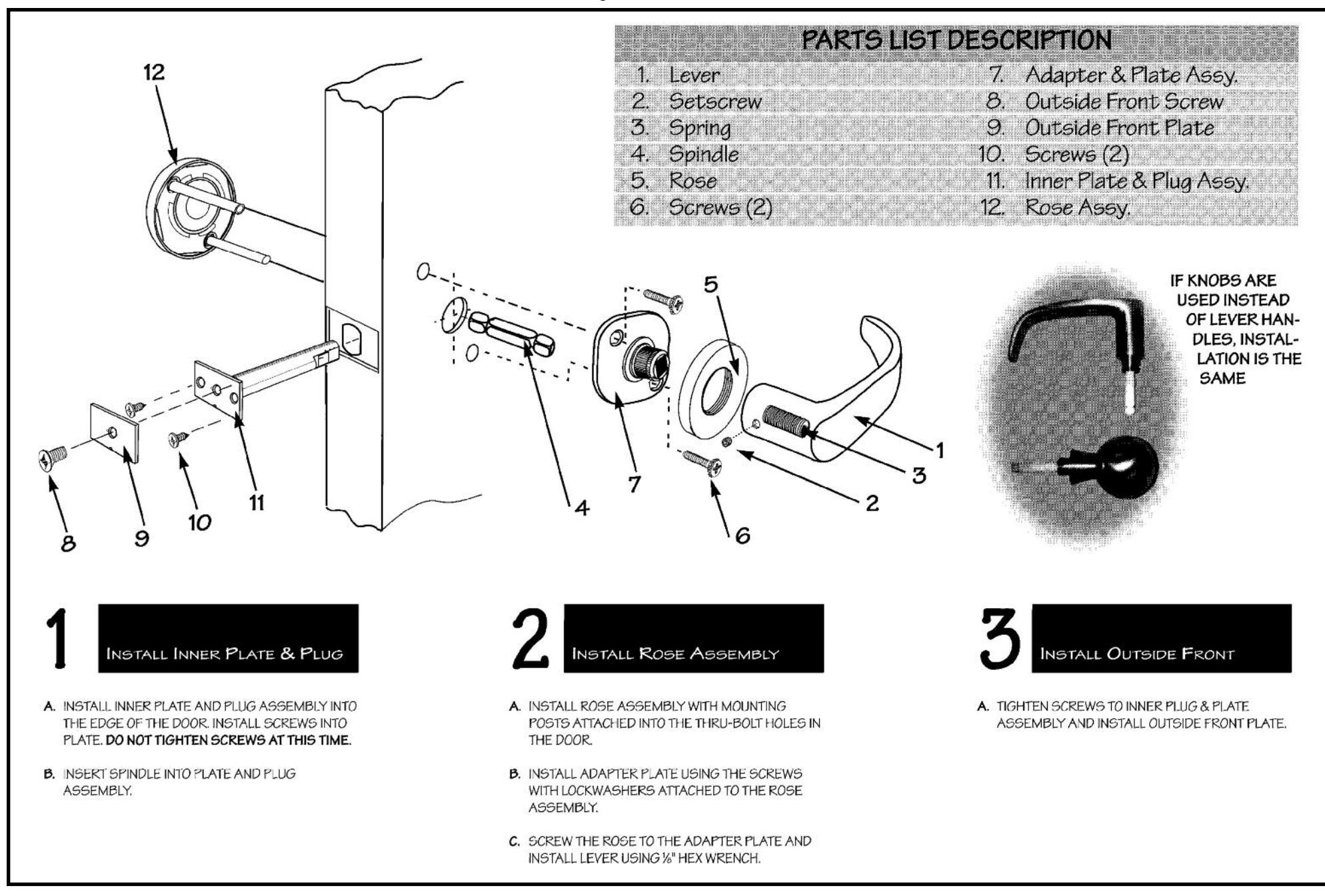

INSTALLATION INSTRUCTIONS 7893 & 8293 Dummy Trim (One Side)

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com
