Instructions for #3285 Surface Door-#3287 Concealed Door Status Switch

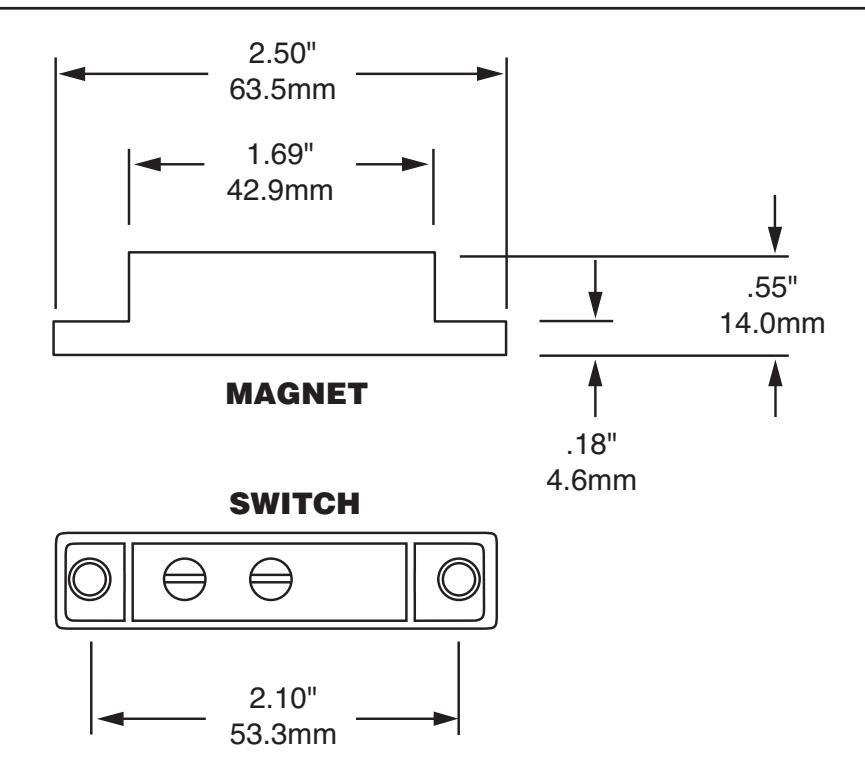

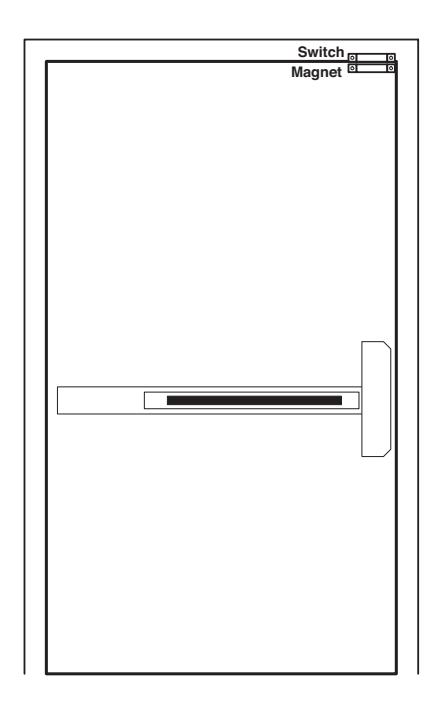

The SARGENT® 3285 Surface Mount Door Status Switch provides a SPST Normally Open switch to monitor the position (open or closed) of the door.

Electrical Specifications:

1/4 Amp@24VDC Contact Rating Two screw terminals provided for Common and Normally Open Use supplied shim for switch when mounting to metal frame.

ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. Copyright © 2009, 2014, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7448B

ASSA ABLOY

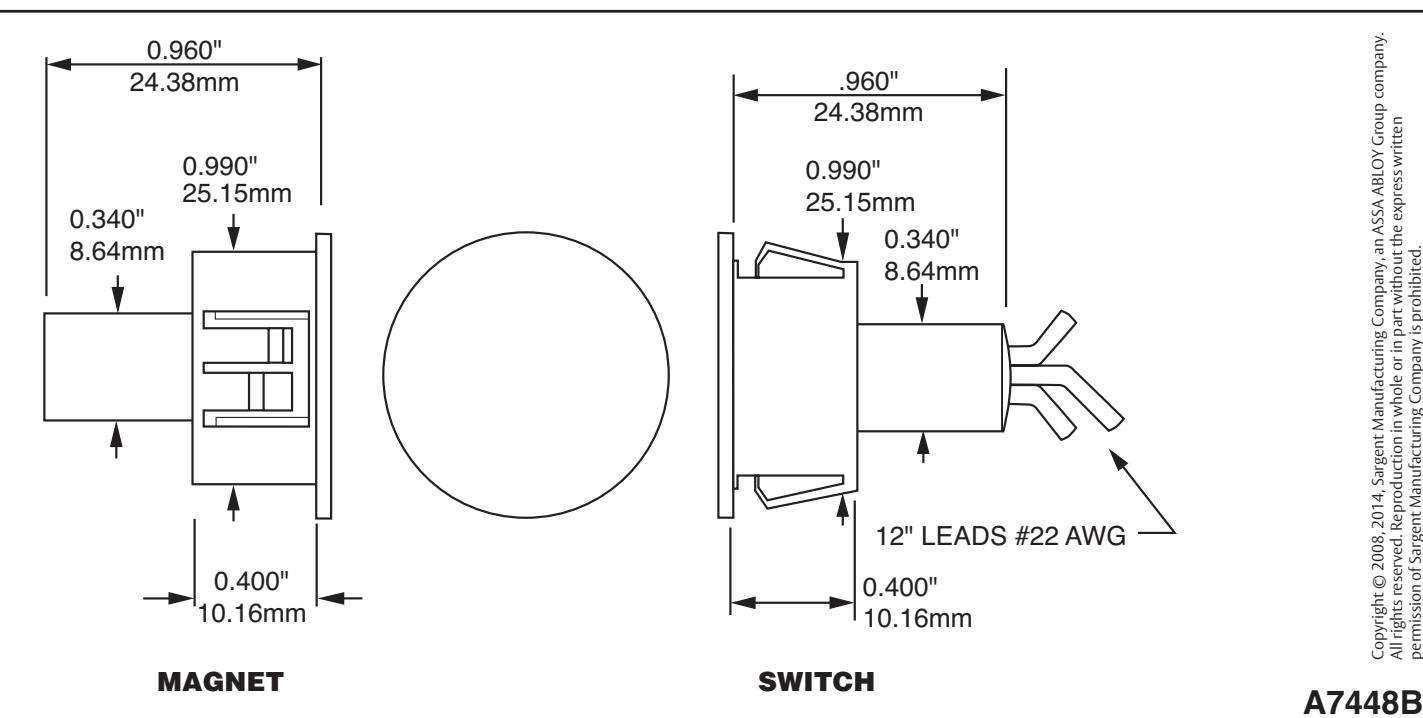

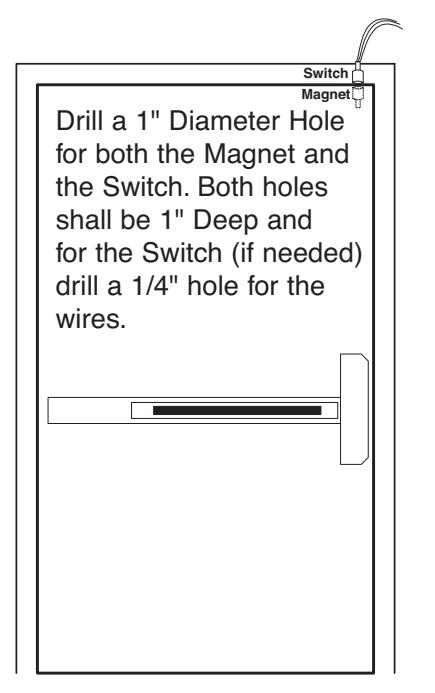

The SARGENT® 3287 Concealed Door Status Switch provides an SPST switch to monitor the position (open or closed) of the door.

Electrical Specifications:

1/4 Amp @ 24VDC Contact Rating Common - White Normally Open - Red Normally Closed - Green

(wire colors are shown when the door is closed and magnet is in proximity of the switch)
