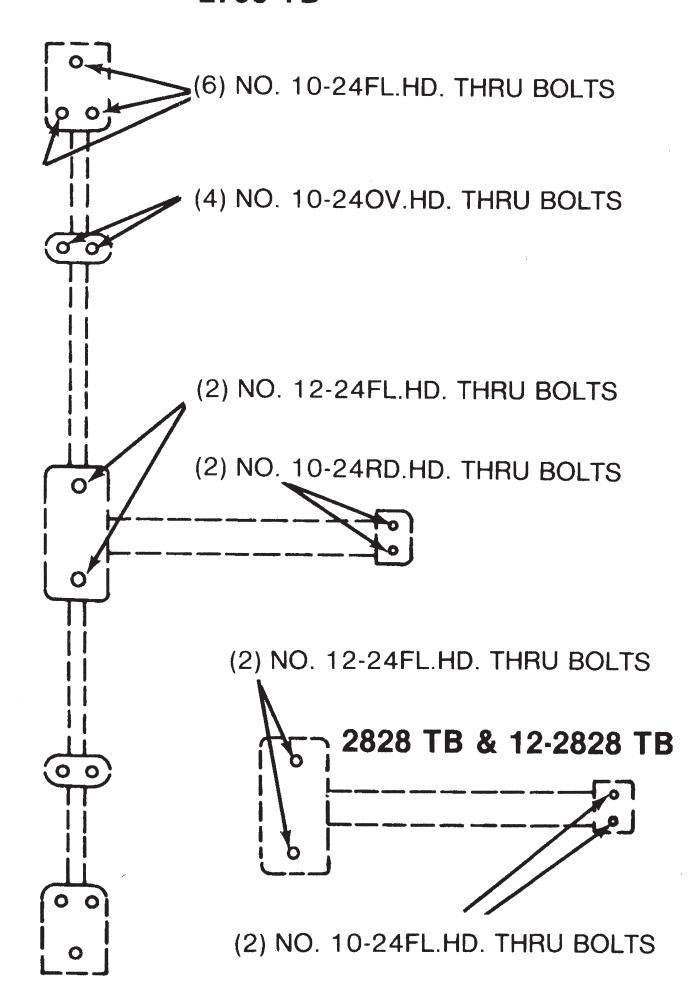

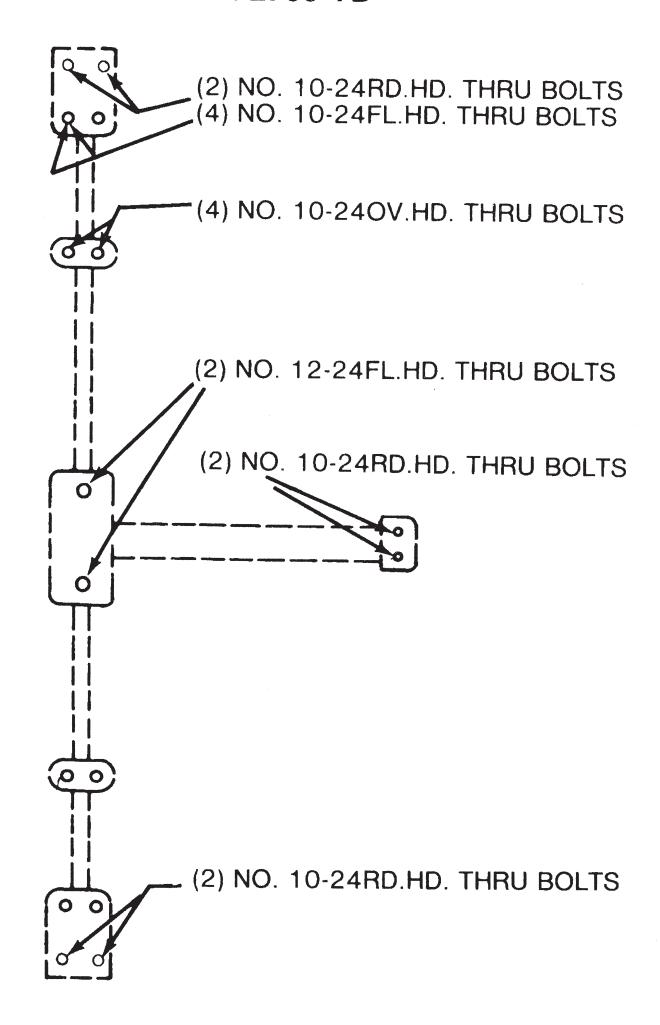

20 SERIES EXIT DEVICE THRU BOLT APPLICATION

FOR ASSISTANCE, CALL SARGENT AT 1-800-810-WIRE (9473)

NOTE:

WHEN 28-GTB OUTSIDE TRIM IS USED SEE EXIT DEVICE INSTRUCTION SHEET FOR THRU BOLT REQUIREMENTS.
