INSTALLATION INSTRUCTIONS MODEL 351 POWERGLIDE DOOR CLOSERS HOLD OPEN ARMS WITH FUSIBLE LINK 351 NON SIZED ADJUSTABLE SIZES 1 THROUGH 6 COMPLIES WITH ADA REQUIREMENTS

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

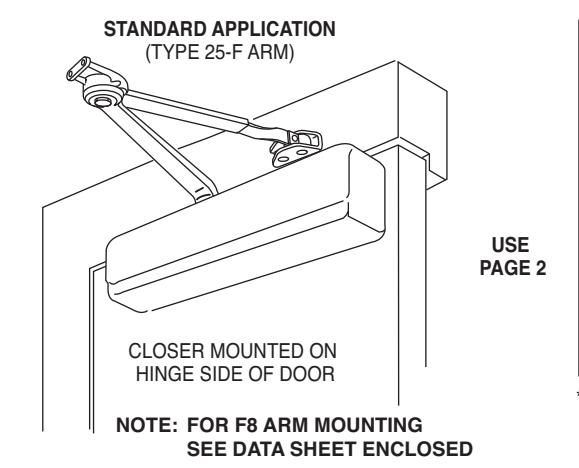

STANDARD & TOP JAMB APPLICATIONS

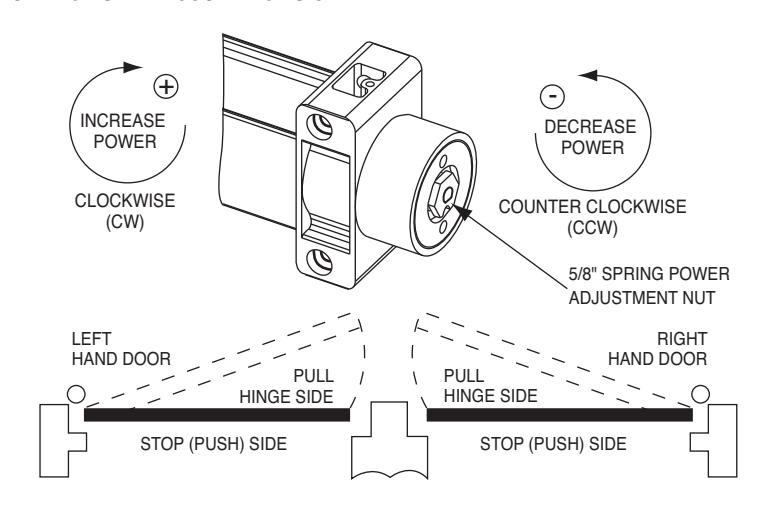

NUMBER OF TURNS OF SPRING POWER ADJUSTING SCREW FROM FACTORY SETTING (USE CHART AS GUIDE ONLY)
DOOR WIDTH	APPROXIMATE		INTERIOR DOORS
(INCHES)	DOOR WEIGHT (POUNDS)	EXTERIOR DOORS
24	80	FACTORY SET
30	110
32	115	1-4 CW
36	130		1-5 CCW
40	150	4-7 CW
42	155
44	165	7-10 CW	FACTORY SET
46	170
48	180	10-12 CW	1-5 CW
OVER 48		UP TO 18 CW AS REQ.	5 CW AND UP AS REQ.

*ADJUST SPRING POWER ACCORDING TO CHART*

PARALLEL APPLICATION ONLY

NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT FROM FACTORY SETTING (USE CHART AS GUIDE ONLY)
DOOR WIDTH (INCHES)	APPROXIMATE DOOR WEIGHT (POUNDS)	EXTERIOR DOORS	INTERIOR DOORS
24	80
30	110	2-6 CW
32	115
36	130	6-8 CW	1-5 CCW
40	150
42	155	8-11 CW	FACTORY SET
44	165
46	170
48	180	11-13 CW	1-7 CW
OVER 48		UP TO 18 CW AS REQ.	8 CW AND UP AS REQ.

ADJUST SPRING POWER ACCORDING TO CHART*

*IF INTERIOR DOORS DO NOT HAVE TO COMPLY WITH ADA REQUIREMENTS, EXTERIOR DOOR SETTINGS ARE RECOMMENDED. WHERE STRONG DRAFTS EXIST, INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTMENT SCREW CLOCKWISE. IF NECESSARY, REDUCE SPRING POWER BY TURNING SCREW COUNTERCLOCKWISE.

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

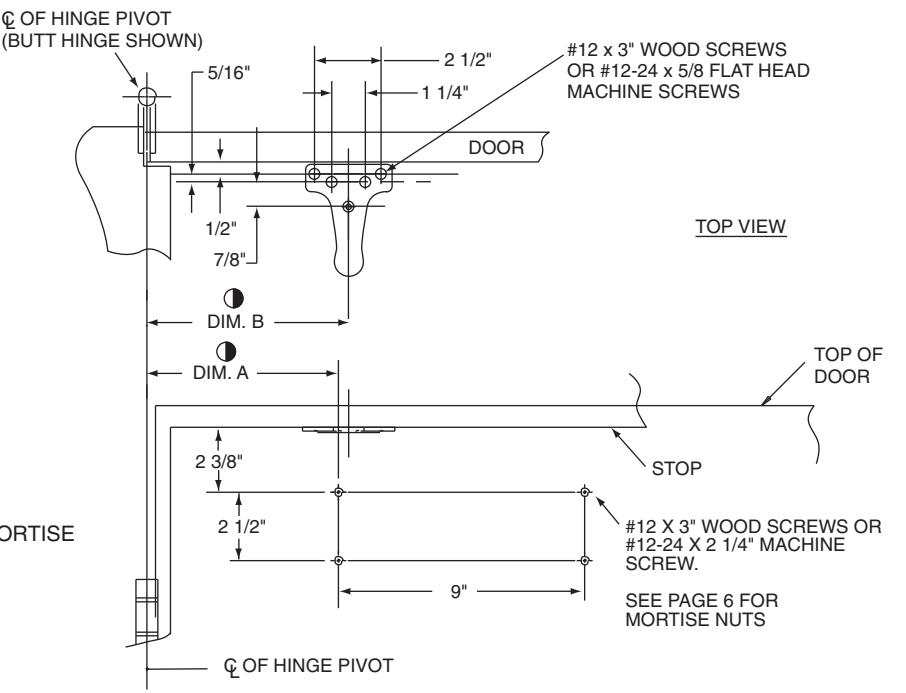

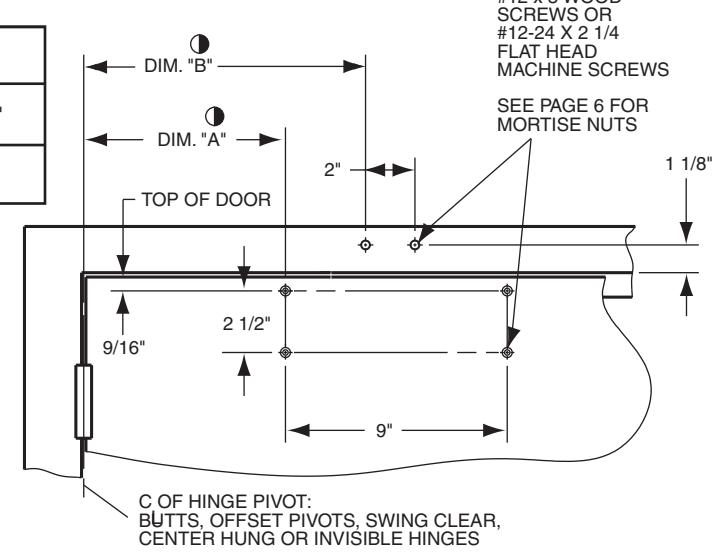

351 STANDARD APPLICATION INSTRUCTIONS WITH FUSIBLE LINK

IMPORTANT: USE ALTERNATE MOUNTING IF DOOR CAN OPEN BEYOND LIMITS SHOWN FOR STANDARD MOUNTING

ARM TYPE	MOUNTING	MAX. DOOR OPENING	DIM. A	DIM. B
HOLD OPEN ARM WITH	STANDARD	110°	8 3/16"	11 7/16"
FUSIBLE LINK	ALTERNATE	135° 🕣	6 13/16"	10 1/6"

F BUTT, FRAME AND WALL CONDITIONS PERMIT DOOR WILL OPEN 180°

1 RIGHT HAND DOOR SHOWN. LEFT HAND DOOR OPPOSITE.

2— THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

DRILL & TAP AND USE SCREWS PROVIDED OR USE MORTISE NUTS WHEN REQUIRED. SEE PAGE 6 FOR MORTISE NUTS.

USE TEMPLATE A6753 FOR 25-OLC ARM (LOW PROFILE)

#12 x 3 WOOD

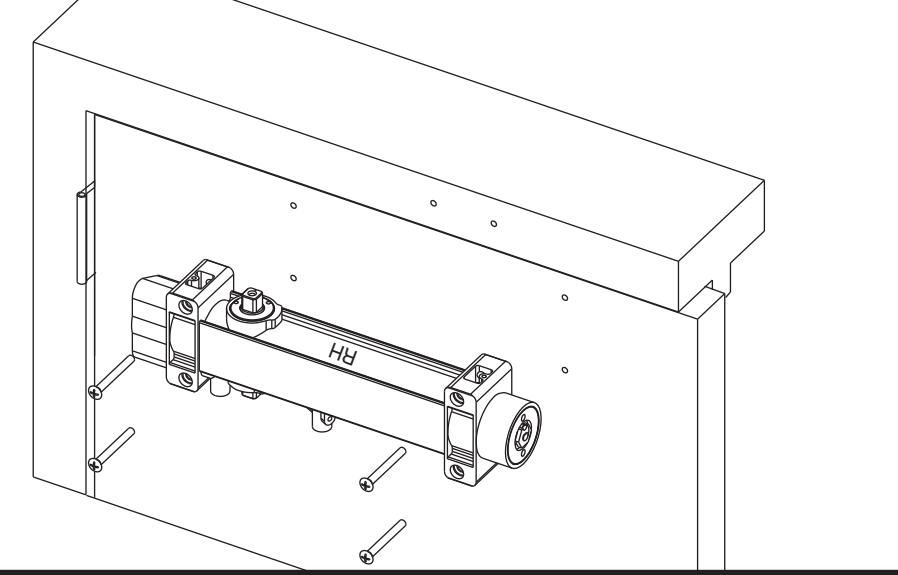

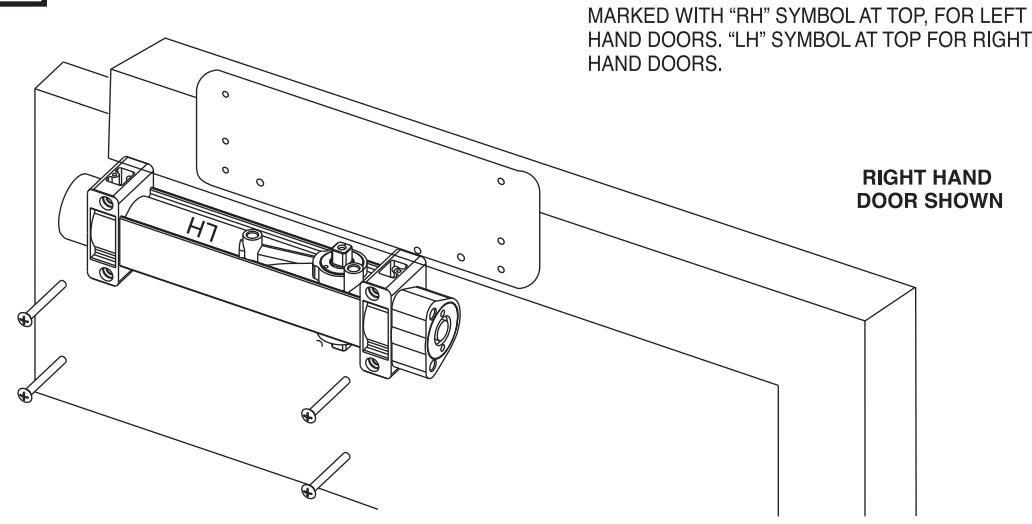

A INSTALL DOOR CLOSER TO DOOR WITH SPRING ADJUSTMENT NUT AWAY FROM HINGE.

NOTE: 351 CLOSER BODIES ARE NON HANDED. IT IS IMPORTANT THAT THE CLOSER BODY BE MARKED WITH "RH" SYMBOL AT TOP, FOR RIGHT HAND DOORS. "LH" SYMBOL AT TOP FOR LEFT HAND DOORS.

RIGHT HAND DOOR SHOWN

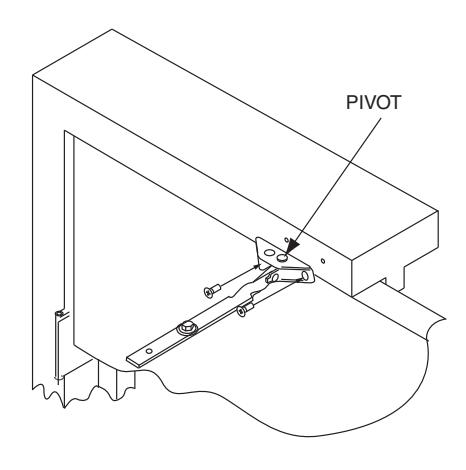

B ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE.

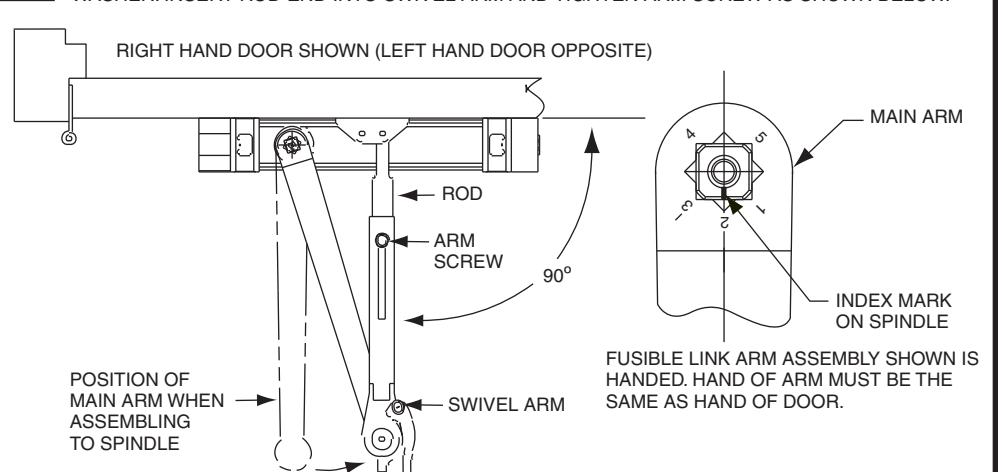

ATTACH ARM WITH INDEX MARK ON SPINDLE ALIGNED AS SHOWN. SECURE WITH SCREW AND WASHER. INSERT ROD END INTO SWIVEL ARM AND TIGHTEN ARM SCREW AS SHOWN BELOW.

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

ASSA ABLOY

SARGENT

ASSA ABLOY, the global leader in door opening solutions

A7342A

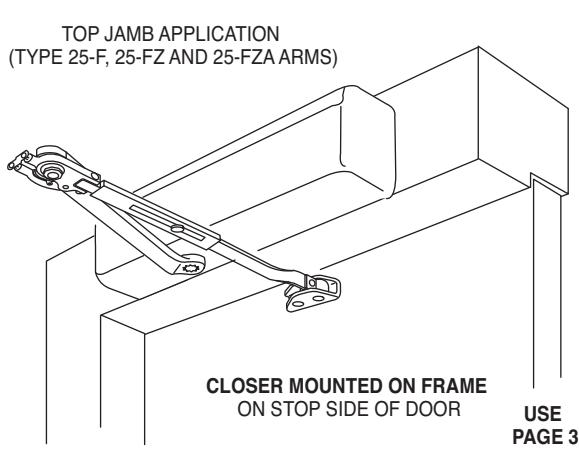

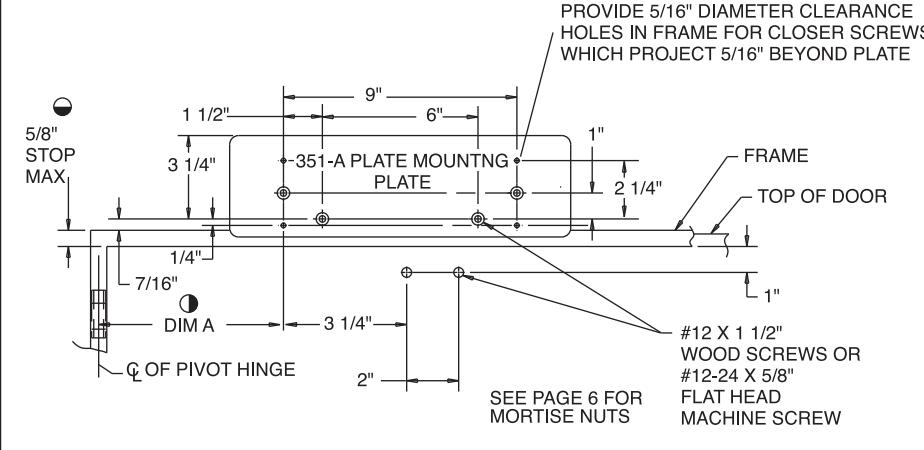

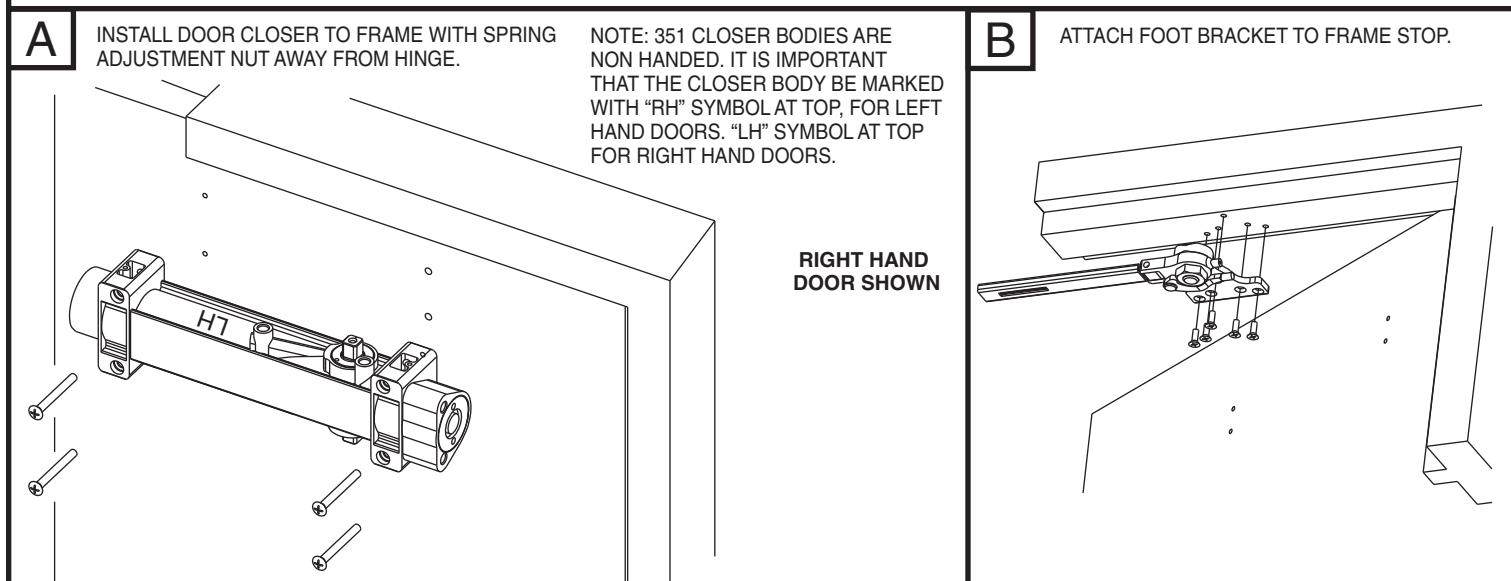

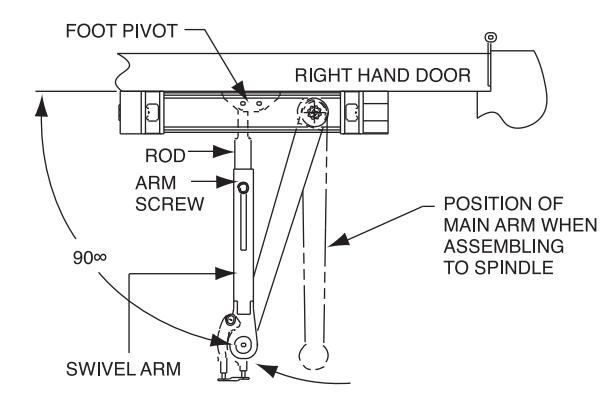

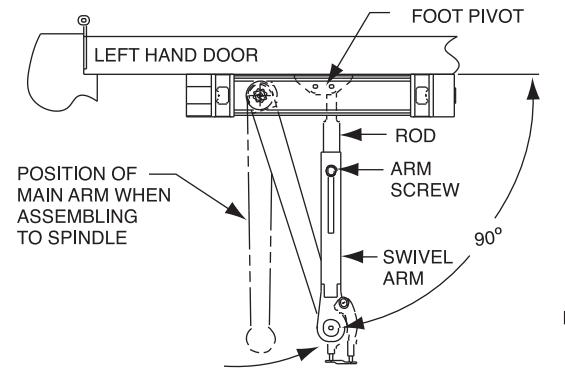

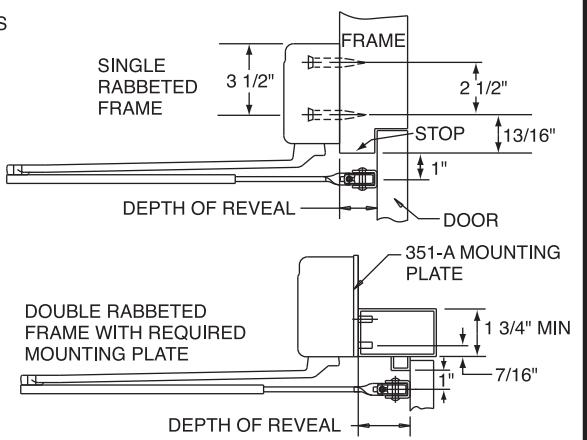

351 TOP JAMB APPLICATIONS INSTRUCTIONS


ARM TYPE	REVEAL DEPTH	DOOR OPENING
"F" ARM	0" TO 2"	140°
"FZ" ARM	2 1/8" TO 5"	140°
"FZA" ARM	5 1/8" TO 8"	140°

DIM. A	MAX. DOOR OPENING
8 5/8"	110°
5 3/8".	140° 🕞

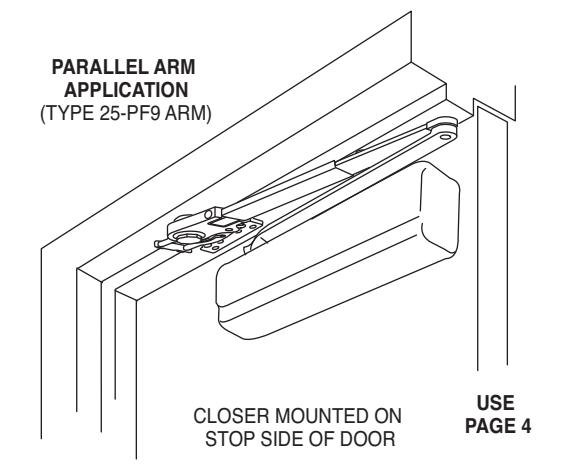

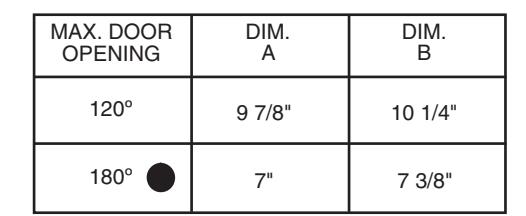

351 FUSIBLE LINK PARALLEL ARM APPLICATION INSTRUCTION

1 LEFT HAND DOOR SHOWN. RIGHT HAND DOOR DIMENSION OPPOSITE.

2 DO NOT USE THIS MOUNTING FOR "SWING CLEAR" HINGES.

3— THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

DRILL & TAP AND USE SCREWS PROVIDED OR USE MORTISE NUTS WHEN REQUIRED.

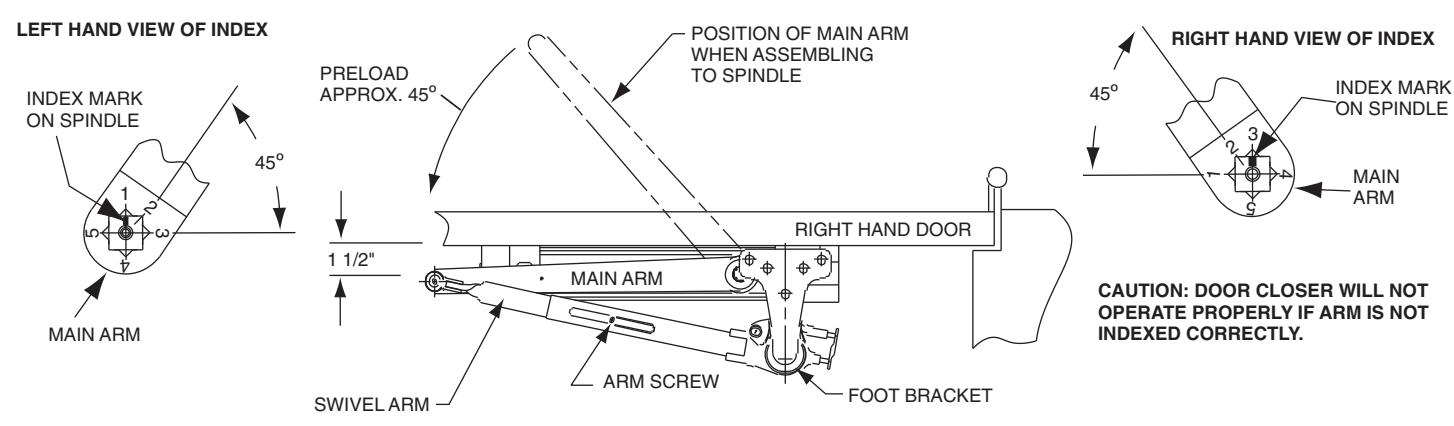

USING WRENCH ON BOTTOM END OF SPINDLE, ROTATE 45° AND ASSEMBLE MAIN ARM TO CLOSER AS SHOWN, AND THEN INSERT ROD END INTO SWIVEL ARM AND TIGHTEN ARM SCREW POSITIONING ARM 1 1/2" AWAY FROM DOOR.

ASSA ABLOY

SARGENT

ASSA ABLOY, the global leader in door opening solutions

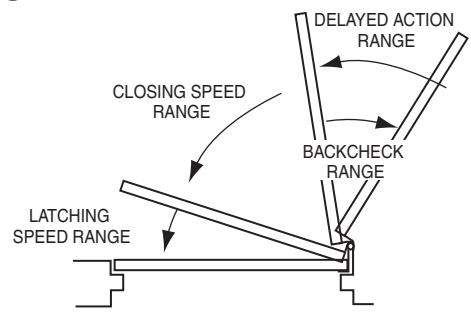

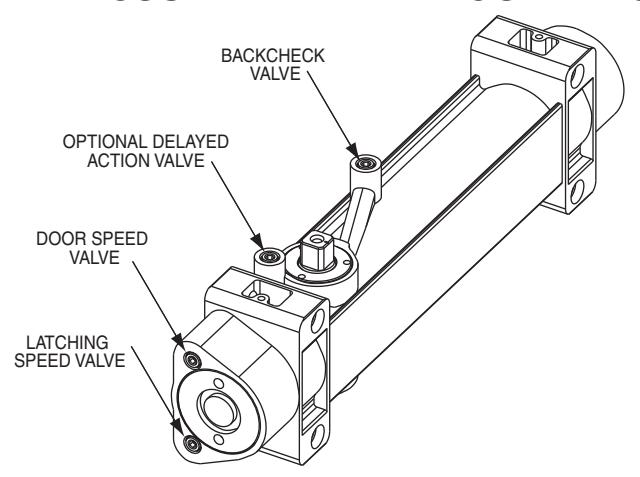

FINAL ADJUSTMENT AND REGULATING PROCEDURE

REGULATING DOOR SPEED AND LATCHING SPEED AS NEEDED. A

USE HEX SOCKET (1/8" ALLEN) WRENCH AND TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.

FASTER (+) SLOWER (–)

REGULATING BACKCHECK

TO REGULATE THE INTENSITY OF BACKCHECK ACTION TURN VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE CHECKING.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE BACKCHECK AS A DOOR STOP.

ALWAYS USE A DOOR STOP TO STOP THE DOOR.

FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE C

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE

TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT

ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER (FOR STANDARD AND TOP JAMB APPLICATIONS ONLY) + + HINGE EDGE OF DO OR MOVE FOOT PIVOT TO HOLE NEAREST HINGE D

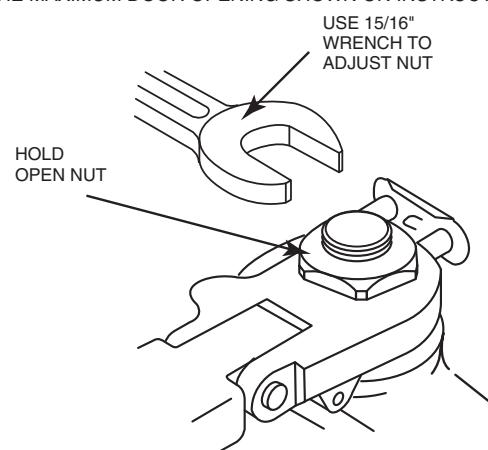

ADJUSTMENT OF HOLD OPEN ARM E F

SLIGHT TIGHTENING OR LOOSENING OF HOLD OPEN NUT CHANGES HOLDING POSITION OF DOOR.

NOTE: TO PROTECT WALL, TRIM AND CLOSER, USE A DOOR STOP LOCATED 10∞ BEYOND HOLD OPEN POSITIONS BUT NOT BEYOND THE MAXIMUM DOOR OPENING SHOWN ON INSTRUCTIONS.

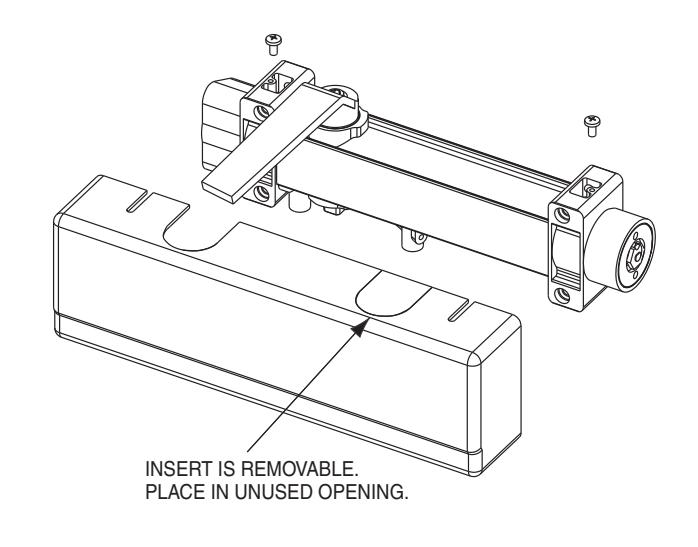

INSTALL COVER WITH TWO SCREWS AS SHOWN.

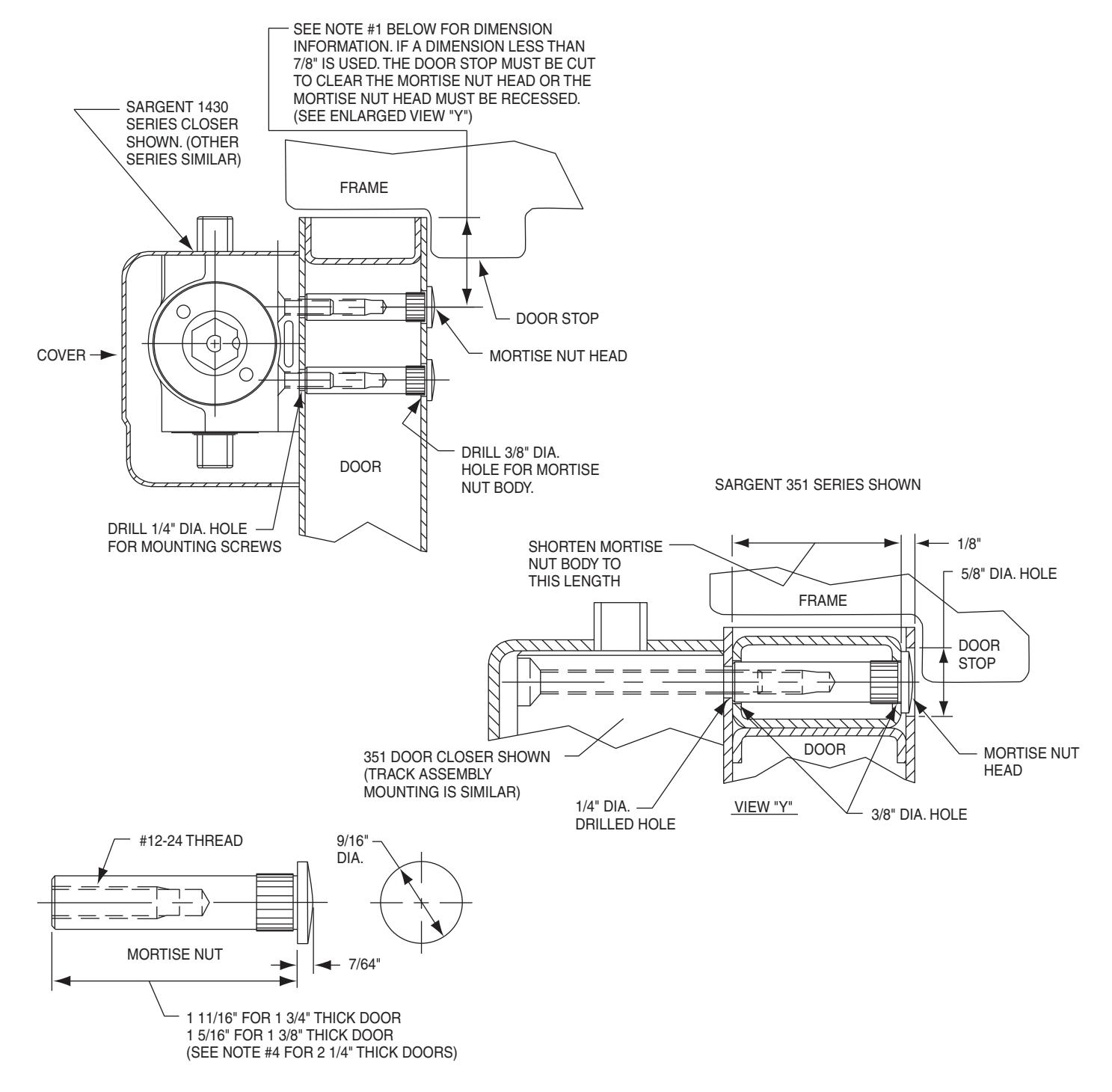

USING MORTISE NUTS WITH SARGENT DOOR CLOSER

1. SEE INSTRUCTIONS OR DATA SHEET PACKED WITH DOOR CLOSER FOR DIMENSIONS LOCATING THE CLOSER BODY AND FOOT ON DOOR AND FRAME.
2. MORTISE NUT SHOWN IS DESIGNED FOR AN UNREINFORCED METAL DOOR.
3. FOR TOP JAMB AND CORNER BRACKET APPLICATIONS: THE DOOR CLOSER FOOT WILL BE ATTACHED TO THE DOOR IN A MANNER SIMILAR TO THAT SHOWN FOR MOUNTING THE CLOSER BODY.
4. FOR DOORS 2 1/4" THICK: MORTISE NUT SHOWN FOR 1 3/4" THICK DOORS WILL BE FURNISHED ALONG WITH APPORPRIATE LENGTH THRU-BOLTS. DOOR CONSTRUCTION MUST PROVIDE A BRIDGE TYPE REINFORCEMENT TO PREVENT THE DOOR RAIL FROM COLLAPSING WHEN THRU-BOLTS ARE TIGHTENED.
