NB306 & NB313 Auxiliary Control

(used with the NB8700 Exit Device)

INSTALLATION INSTRUCTIONS

FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477 or www.sargentlock.com.

Inside Face of the Door

INSTRUCTIONS:

• 1. Prepare the door for the exit device.

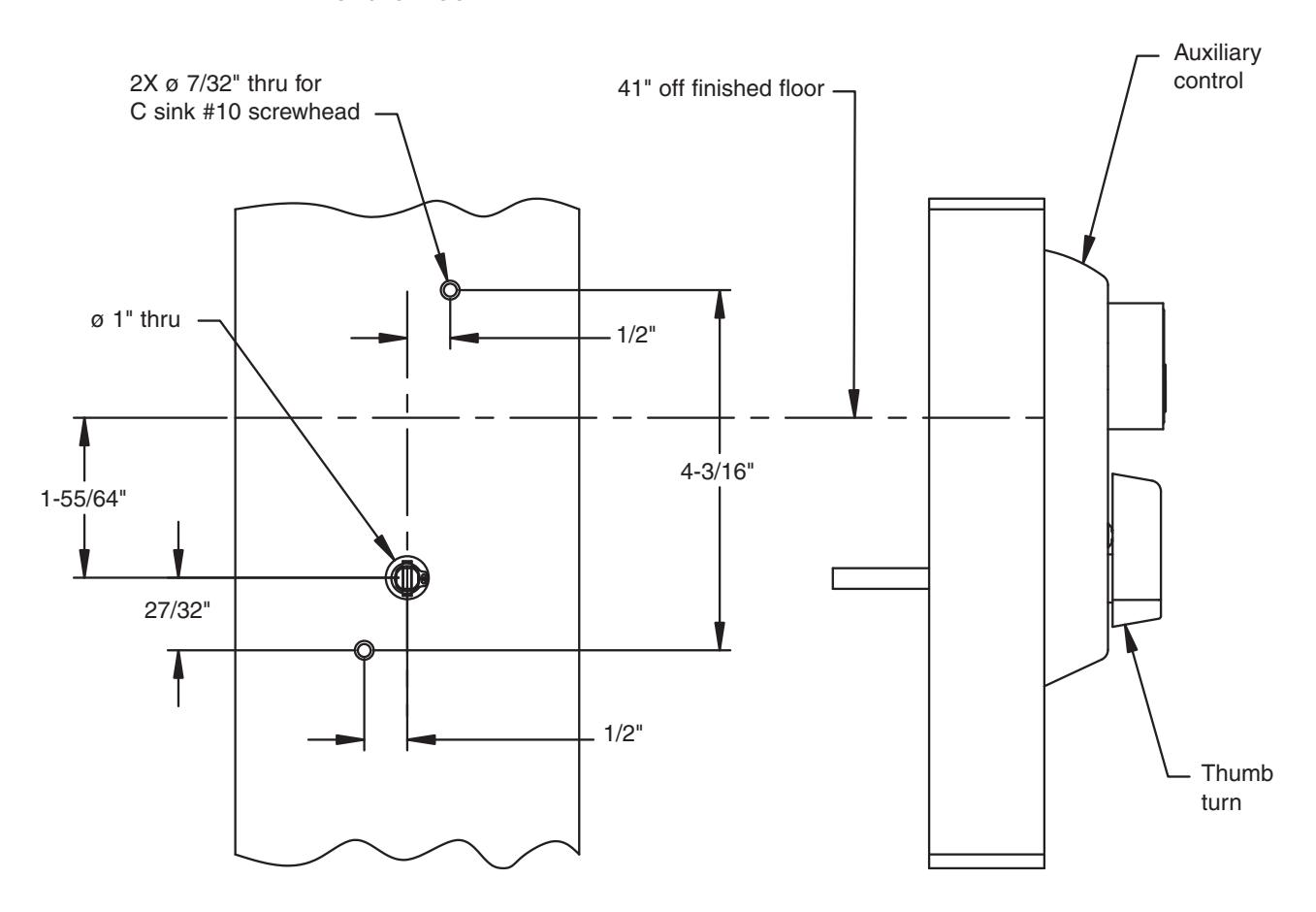

• 2. Using template A7616 prepare the door for the auxiliary control. Be sure to countersink screwheads for chassis clearance.
• 3. Install auxiliary control.
• 4. Install exit device.

OPERATION:

• The 306 auxiliary control is operative only when the key is in the cylinder and turned
• The 313 auxiliary control can be made operative or inoperative by turning the key

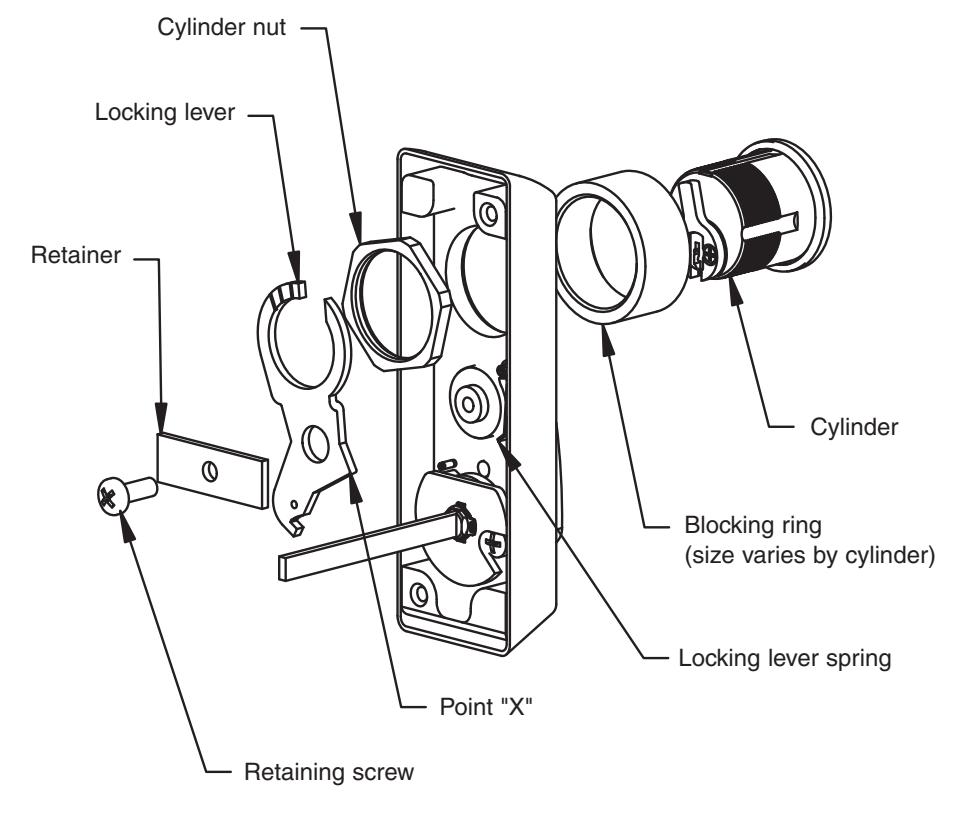

METHOD FOR REMOVING AND REPLACING THE CYLINDER

• A) Unscrew the retainer screw. Remove the retainer and locking lever.
• B) Unscrew the cylinder nut. Remove the blocking ring and cylinder.
• C) Replace the cylinder by reversing procedures above. Make sure that the locking lever spring engages the locking lever Point "X".

ATTENTION THIS IS FIELD REVERSIBLE!

Handing (from view shown)

• 1. LHRB Handing screw on the left side.
• 2. RHRB Handing screw on the right side (shown).

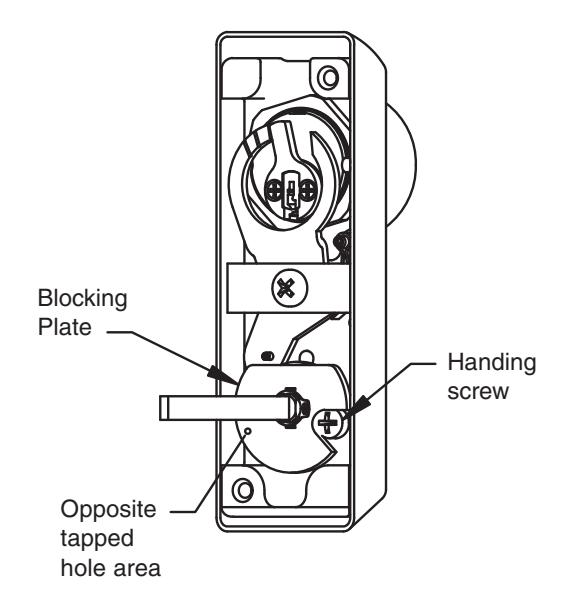

METHOD FOR REVERSING THE HANDING IN THE FIELD

• A) Be sure device is in the unlocked position.
• B) Locate the handing screw through the relief in blocking plate.
• C) Remove the handing screw then rotate the blocking plate to expose the opposite tapped hole.
• D) Install the handing screw. Be sure the thumb is in the upright position.
