SARGENT® 55-56 PREFIX REMOTE LATCH RETRACTION 80 SERIES EXIT DEVICE

I GENERAL INFORMATION

WHEN THE 55-56 SERIES EXIT DEVICE IS ENERGIZED, THE PUSH RAIL AND LATCH BOLT WILL RETRACT AND REMAIN IN AN UNLOCKED POSITION. WHEN THE DEVICE IS DE-ENERGIZED (OR POWER IS INTERRUPTED) THE LATCH BOLT WILL EXTEND. THE 55 PREFIX PROVIDES A SWITCH TO MONITOR THE PUSH RAIL. WHEN THE RAIL IS DEPRESSED OR DOGGED THE SWITCH IS ACTIVATED.

MOUNTING INSTRUCTIONS

A. IMPORTANT

• 1. CAUTION: DISCONNECT ALL INPUT POWER BEFORE BEGINNING INSTALLATION
  • TO PREVENT ELECTRICAL SHOCK AND EQUIPMENT DAMAGE. 2 INSTALLER MUST BE A TRAINED, EXPERIENCED SERVICE PERSON.
  • ALL WIRING MUST COMPLY WITH APPLICABLE LOCAL ELECTRICAL CODES, ORDINANCES AND REGULATIONS.

B. INSTALLATION

• 1. MOUNT EXIT DEVICE PER INSTRUCTION SHEET PROVIDED
• PROVIDE A 1/4" DIAMETER MINIMUM RACEWAY TO ALLOW PASSAGE OF ELECTRICAL WIRES BETWEEN EXIT DEVICE AND ELECTRICAL HINGE.

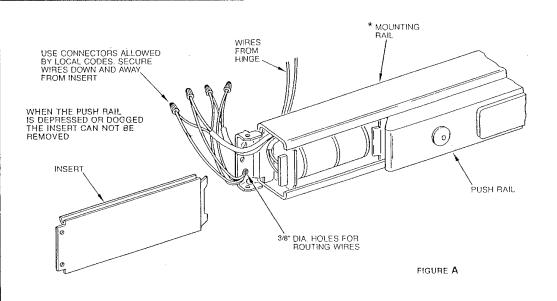

• 3. WIRE CONNECTIONS TO EXIT DEVICE AS SHOWN IN FIGURE A.

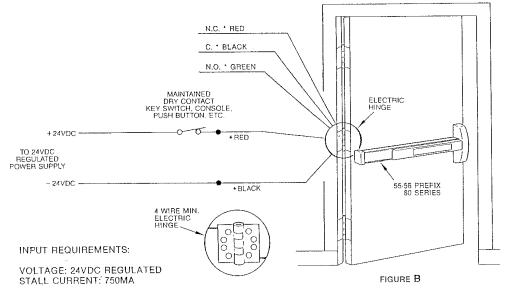

• 4. FIGURE B SHOWS EXTERNAL COMPONENTS NECESSARY FOR OPERATION.
• FIGURE C SHOWS TYPICAL WIRING AND OPERATION WHEN USING SARGENT ELECTRIFIED EXIT DEVICE WITH ACCESSORIES.

^* NO FIELD CUT OFF ALLOWED. EXIT DEVICE MUST BE ORDERED FOR SPECIFIC DOOR WIDTH.

WIRING DIAGRAM

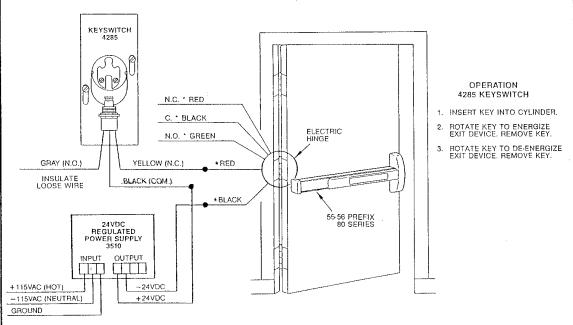

TYPICAL WIRING & OPERATION FOR NON-FIRE DOORS USING 4285 KEYSWITCH AND 3510 (24 VDC REGULATED) POWER SUPPLY

FIGURE C

NOTE:

1. WIRES MUST BE PROTECTED FROM ABRASION

• 2. FOR USE WITH CLASS II CIRCUITRY
• 3. INDICATES WIRE CONNECTION
• 4 COLORS OF WIRES SHOWN ARE OF LEADS FROM THE EXIT DEVICE ONLY, NOT ELECTRIC HINGE
