Timing Instructions: Sargent 10G26 & 10G38 Locks

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com

How to Time Sargent 10G26/Store or Storeroom or 10G38 Classroom Security Locks

• 1. Install lock in door per instruction.
• 2. Remove outside and inside levers.

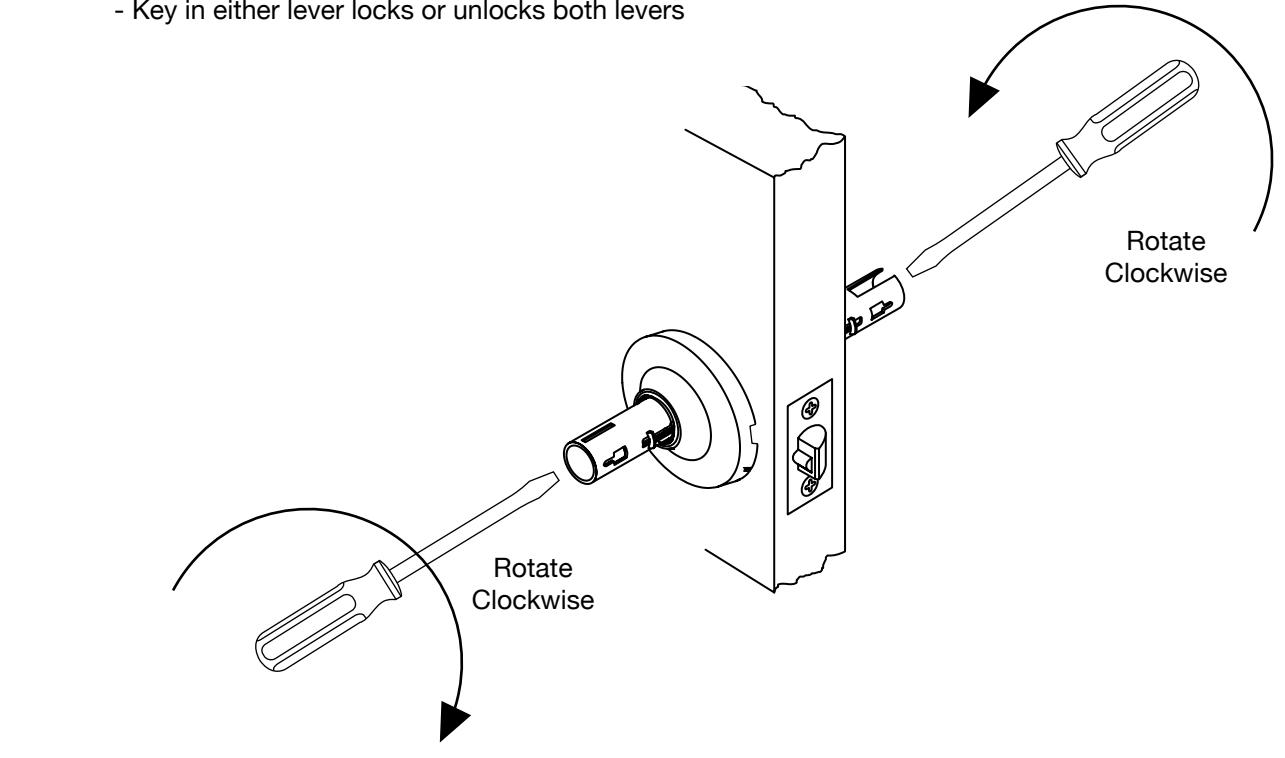

• 3. Position two flat tipped screwdrivers (as shown below).
• 4. Rotate both screwdrivers clockwise until resistance is felt in both screwdrivers.
• 5. Align outside cam (slot) to horizontal position (for std cyl) & vertical position (for interchangeable cores).
• 6. Install outside lever with cylinder first.
• 7. Remove key from outside lever and install inside lever with cylinder.
• 8. Test both cylinders with key before closing the door.

FOR 10G38 LOCKS:

• Key in outside lever locks/unlocks the outside lever
• Key in inside lever locks/unlocks the outside lever
• Inside lever always retracts latch

FOR 10G26 LOCKS:

• Latch by either lever
