ADDITIONAL INFORMATION

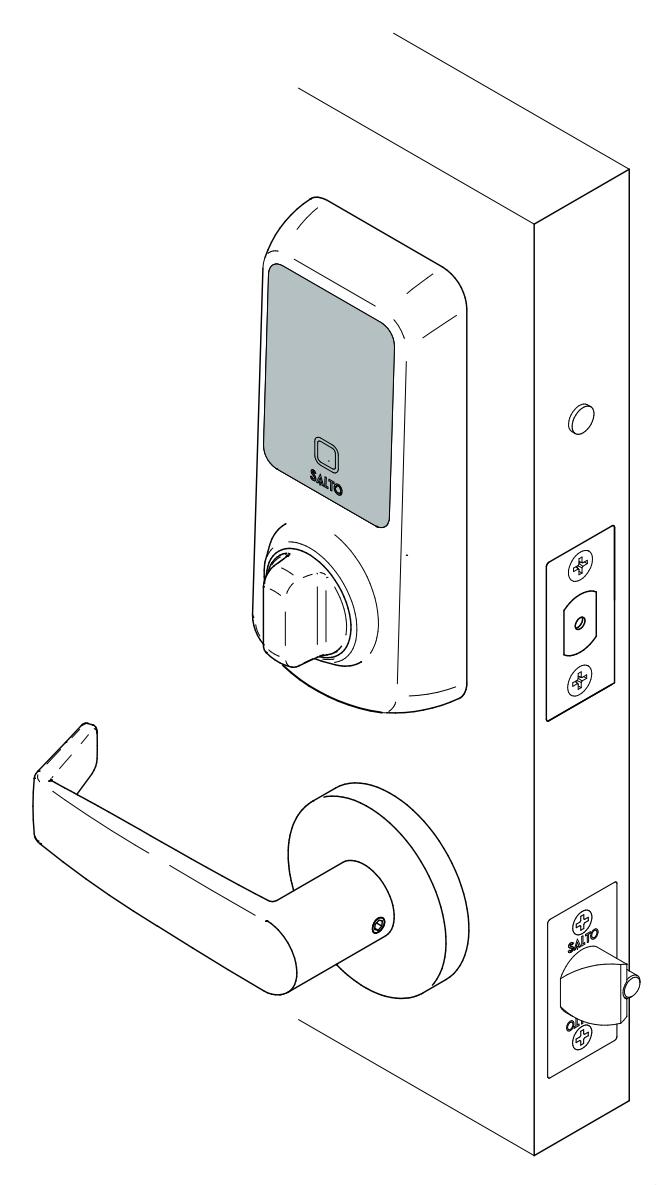

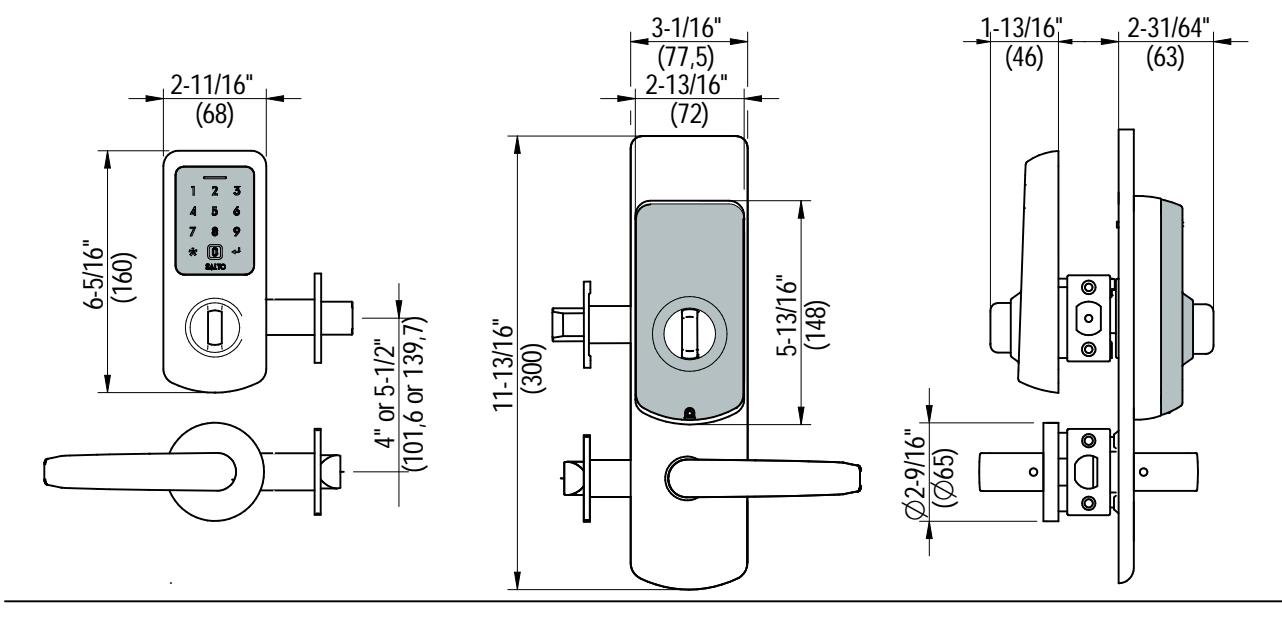

SALTO DBolt Touch IC
The SALTO DBolt Touch IC is a brand new electronic lock that implements the latest technology and the top level of functionality for multi-family housing and residential markets. The SALTO DBolt Touch offers a retrofit and smart locking solution for upgrading deadbolt mechanical locks in the residential market.
DMM14xx.. series DMM15xx.. series

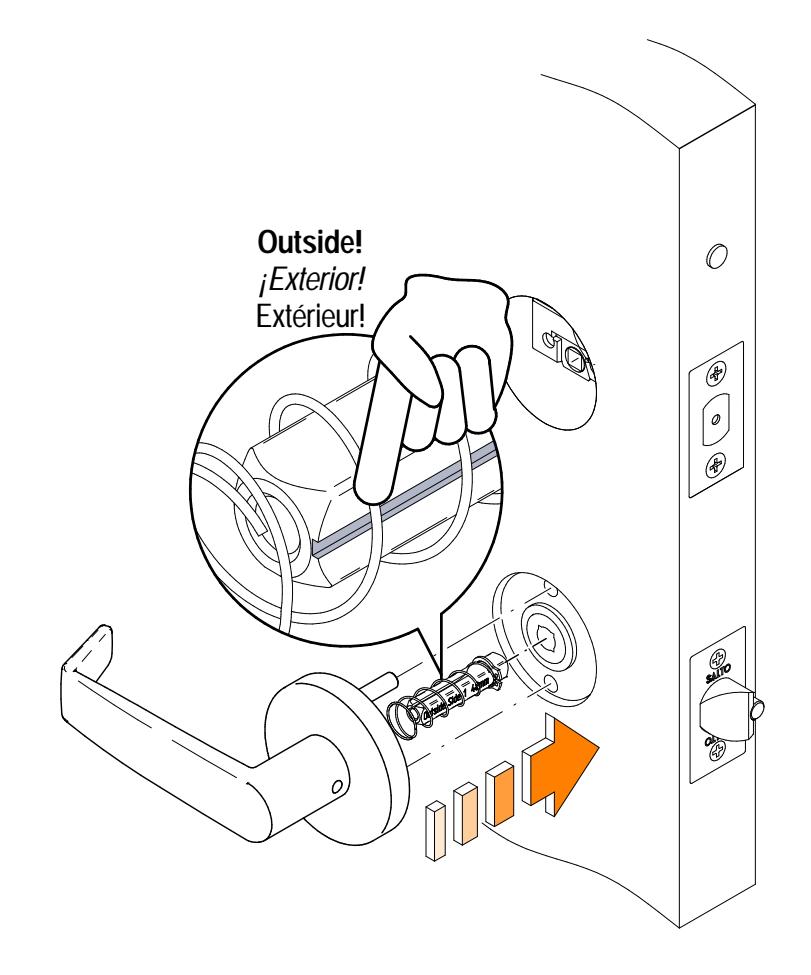

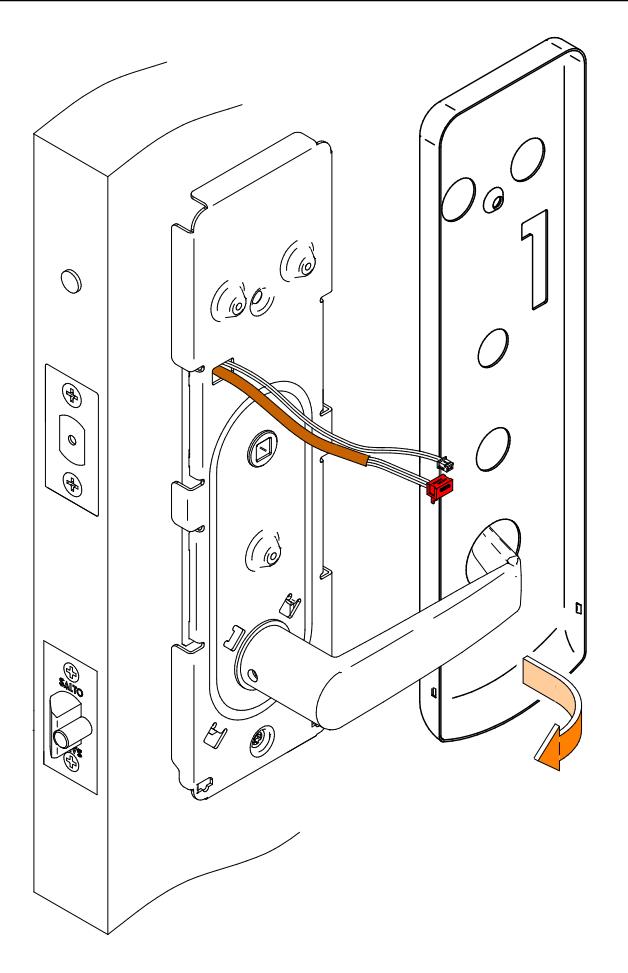

The inside and outside esutcheons are paired, and will not work if you switch it in a different inside or outside escutcheon.
Les ensembles plaque-béquilles intérieurs et extérierurs sont appariés et ne fonctionneront pas si jamais ils sont connectés à d'autres ensembles différents.
Los esudos interior y exterior están emparejados, y no funcionarán si los conecta a un escudo interior o exterior diferente.
|
t
Door thickness |
L |
|---|---|
|
1-9/16" - 1-3/4"
(40 - 45 mm) 1-3/4"- 1-31/32" (45 - 50 mm) 1-31/32" - 2-3/16" (50 - 55 mm) |
1-9/16"
(40 mm) |
|
2-3/16"- 2-3/8"
(55 - 60 mm) 2-3/8" - 2-9/16" (60 - 65 mm) |
1-31/32"
(50 mm) |
|
2-9/16"- 2-3/4"
(65 - 70 mm) 2-3/4" - 2-15/16" (70 - 75 mm) |
2-3/8"
(60 mm) |
|
2-15/16"- 3-5/32"
(75 - 80 mm) 3-5/32" - 3-11/32" (80 - 85 mm) |
2-15/16"
(75 mm) |

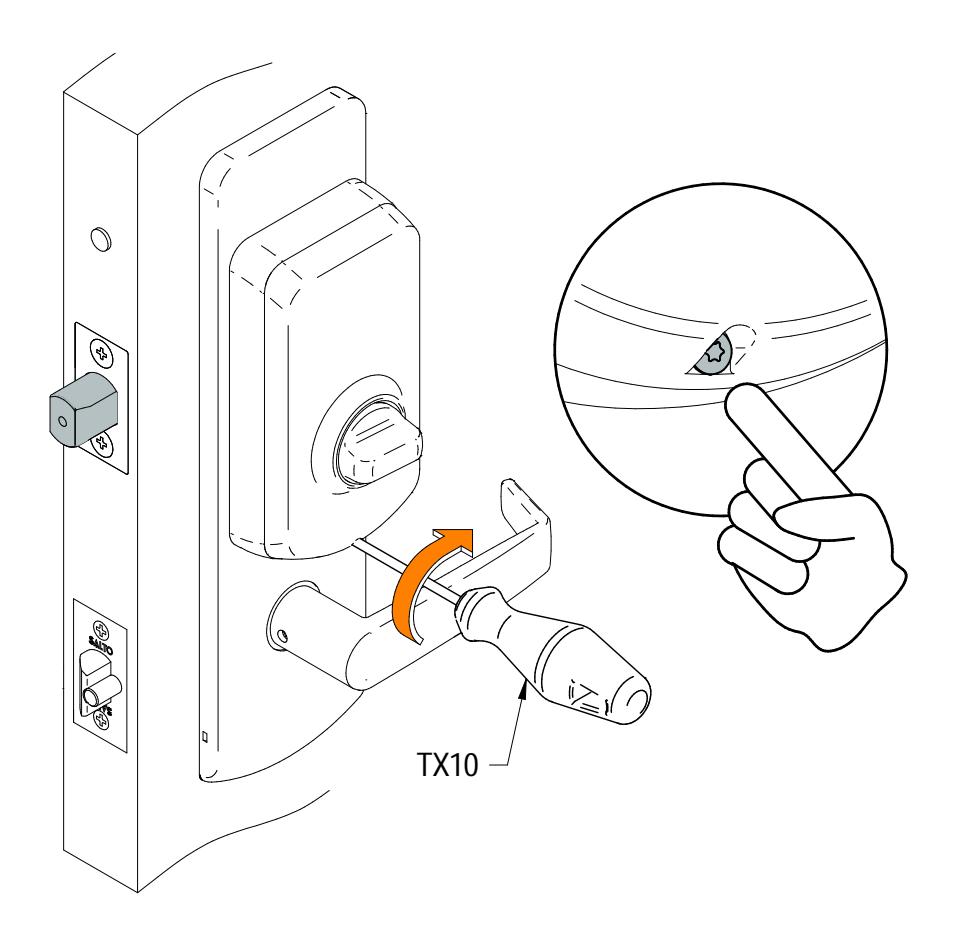

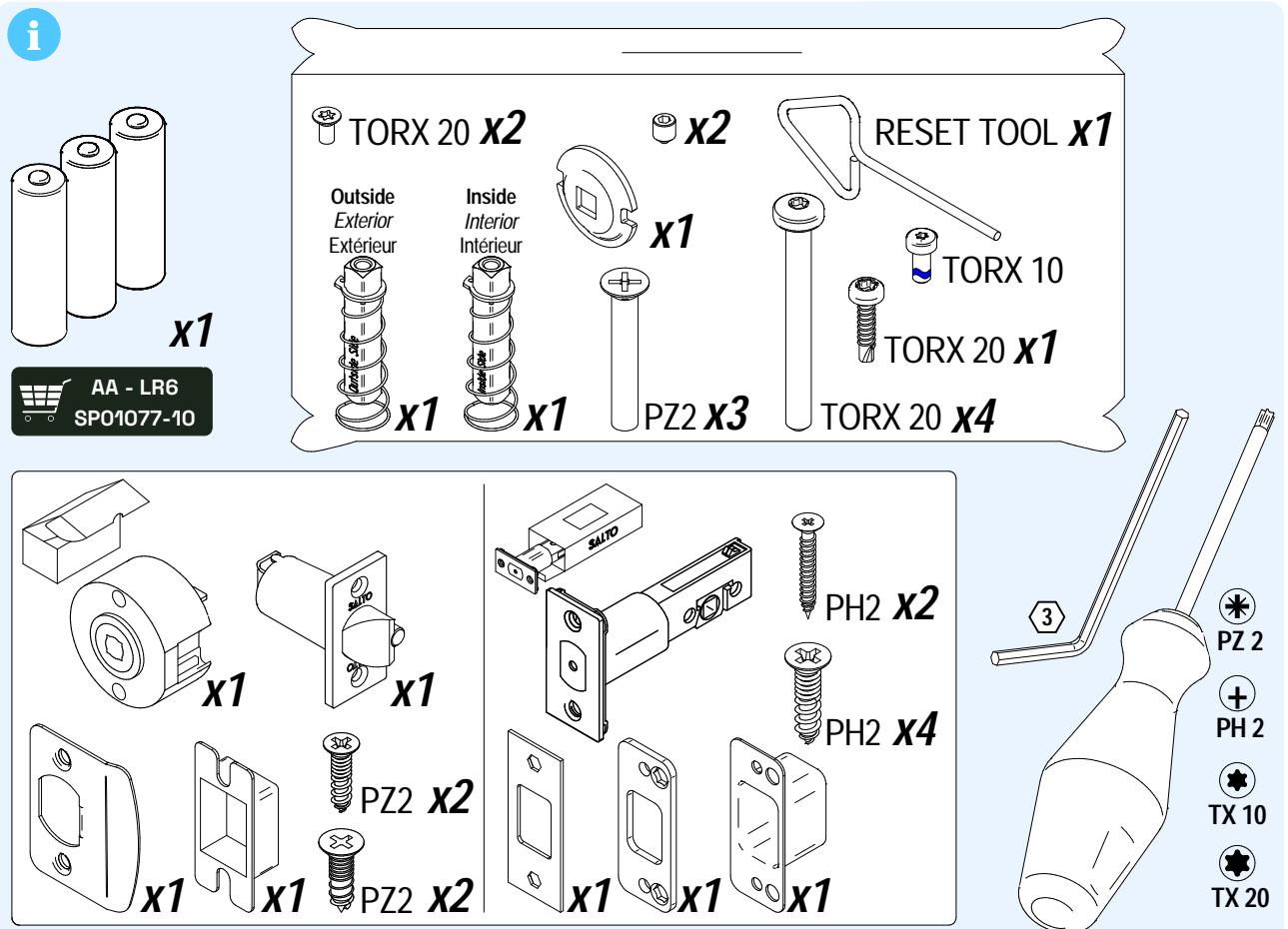

TORX 10 REAL SIZE

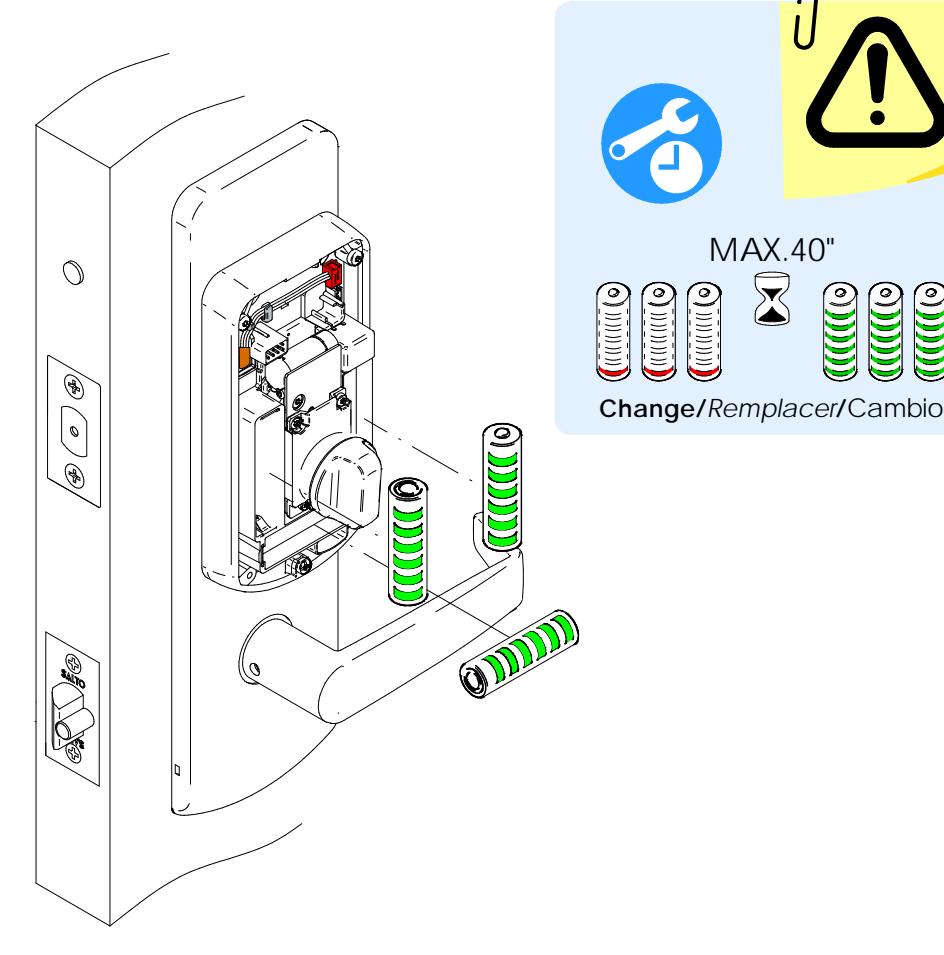

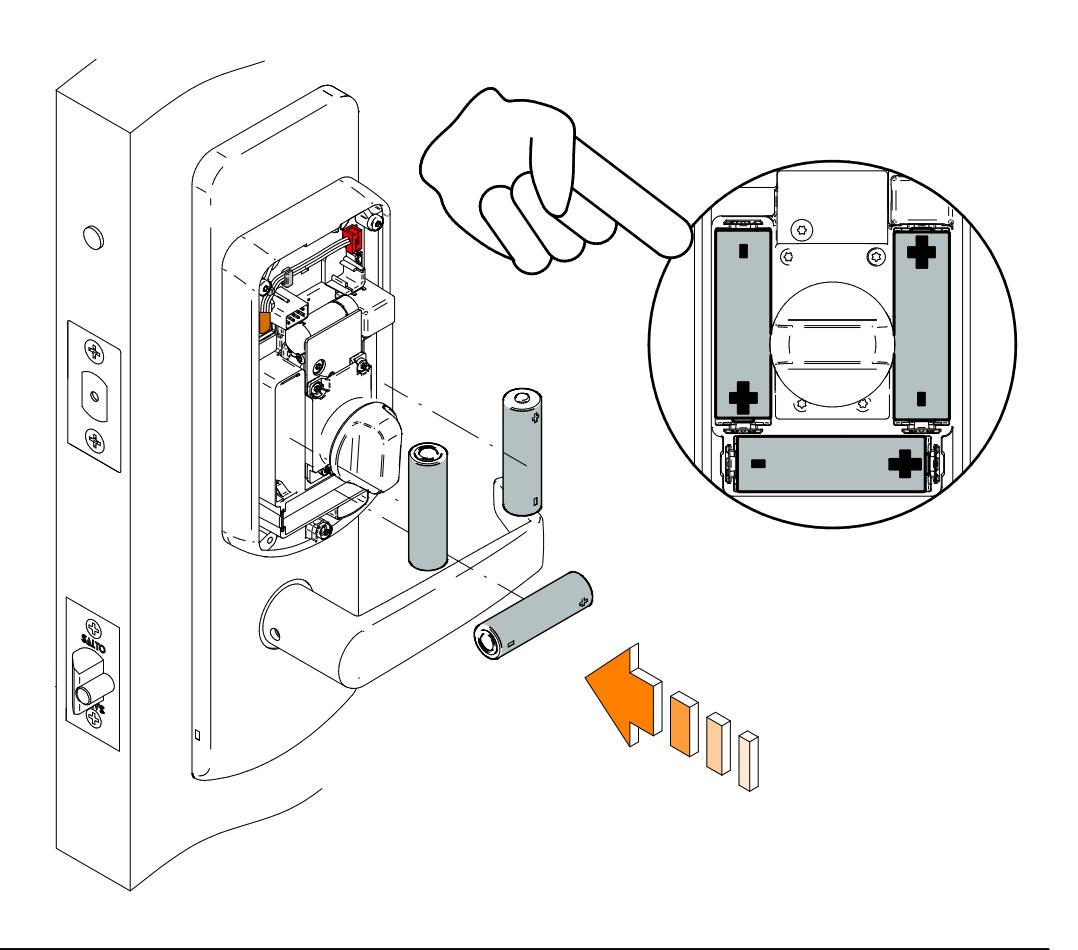

Battery remplacement Remp Eng E lacer les piles Sustitución de pilas F
1
