Installation Instructions for Security SideLite Latch

INSTALLATION INSTRUCTIONS FOR SECURITY SIDELITE LATCH

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

Tools #2 Phillips Head Screwdriver Center Punch 1" Bore 1/2" Drill Bit

Door Preparation

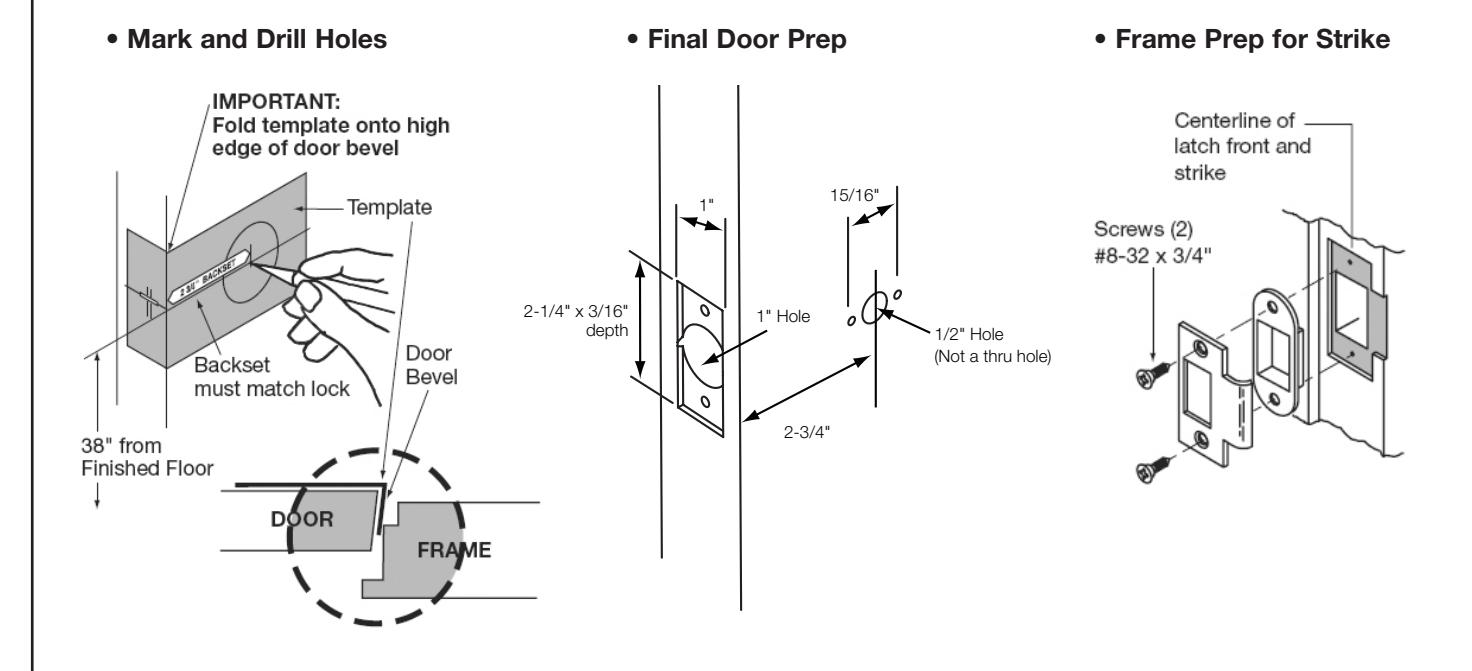

Hollow Metal Doors should be properly reinforced for lock support. If support is not provided, contact door manufacturer. For all metal door preparations, use Template No. 4623

1. Latch Assembly 2. Face Plate 3. Tailpiece

6. Strike

4. Thumbturn Assembly 5. Combo Screws (6)

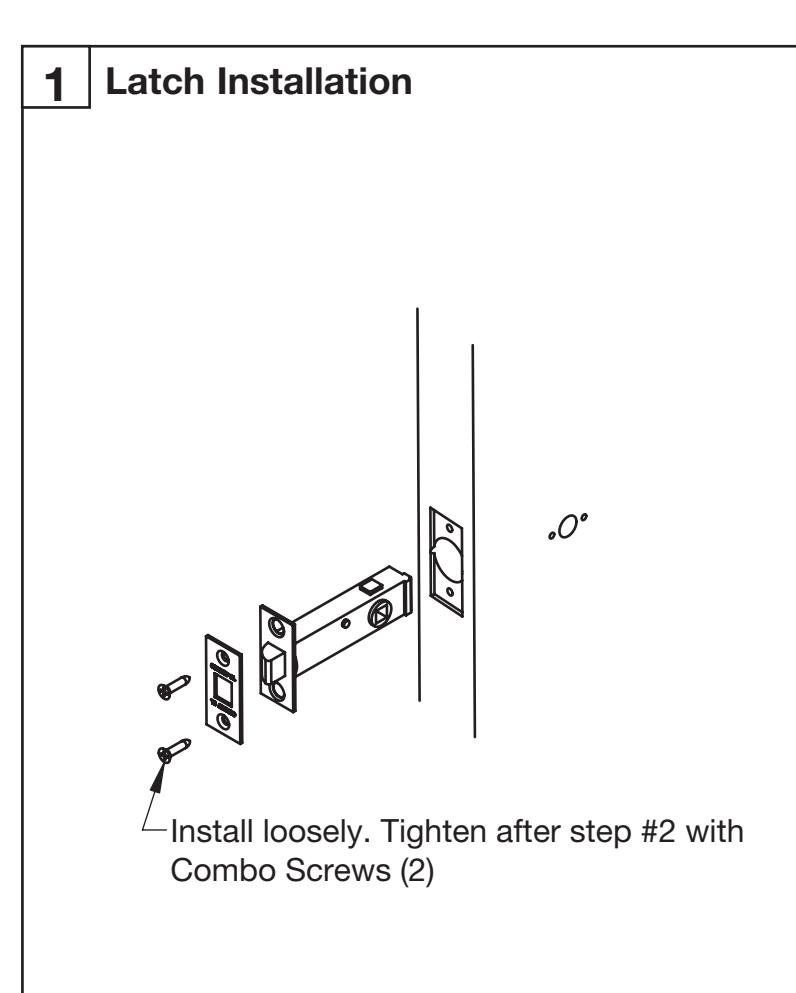

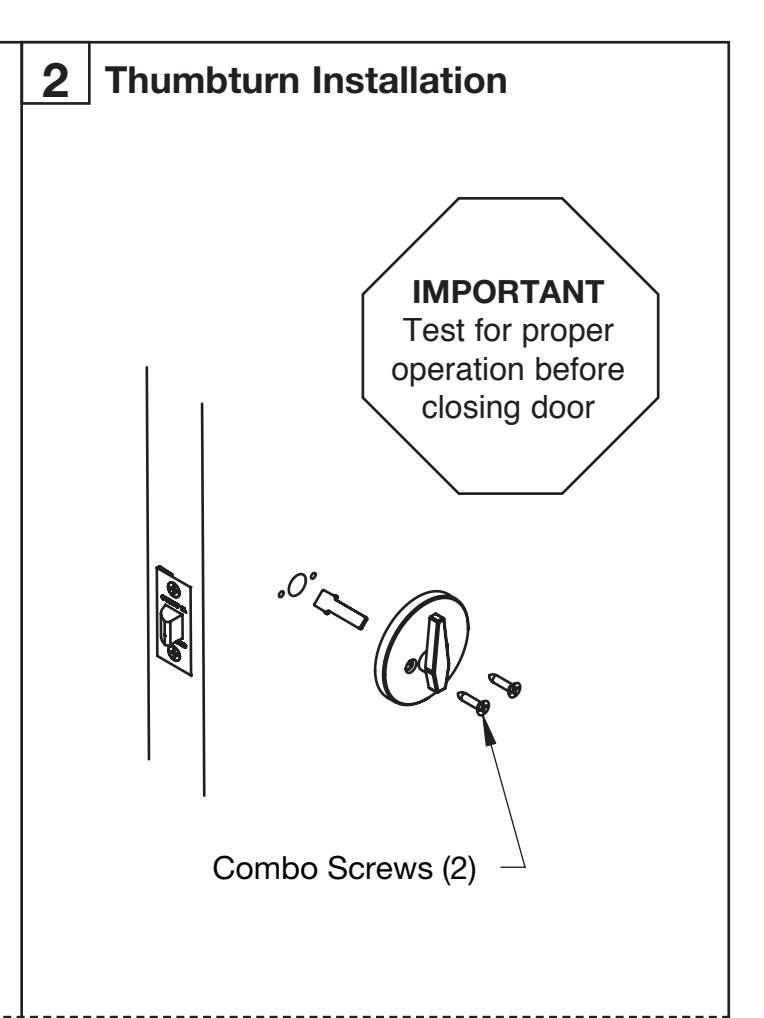

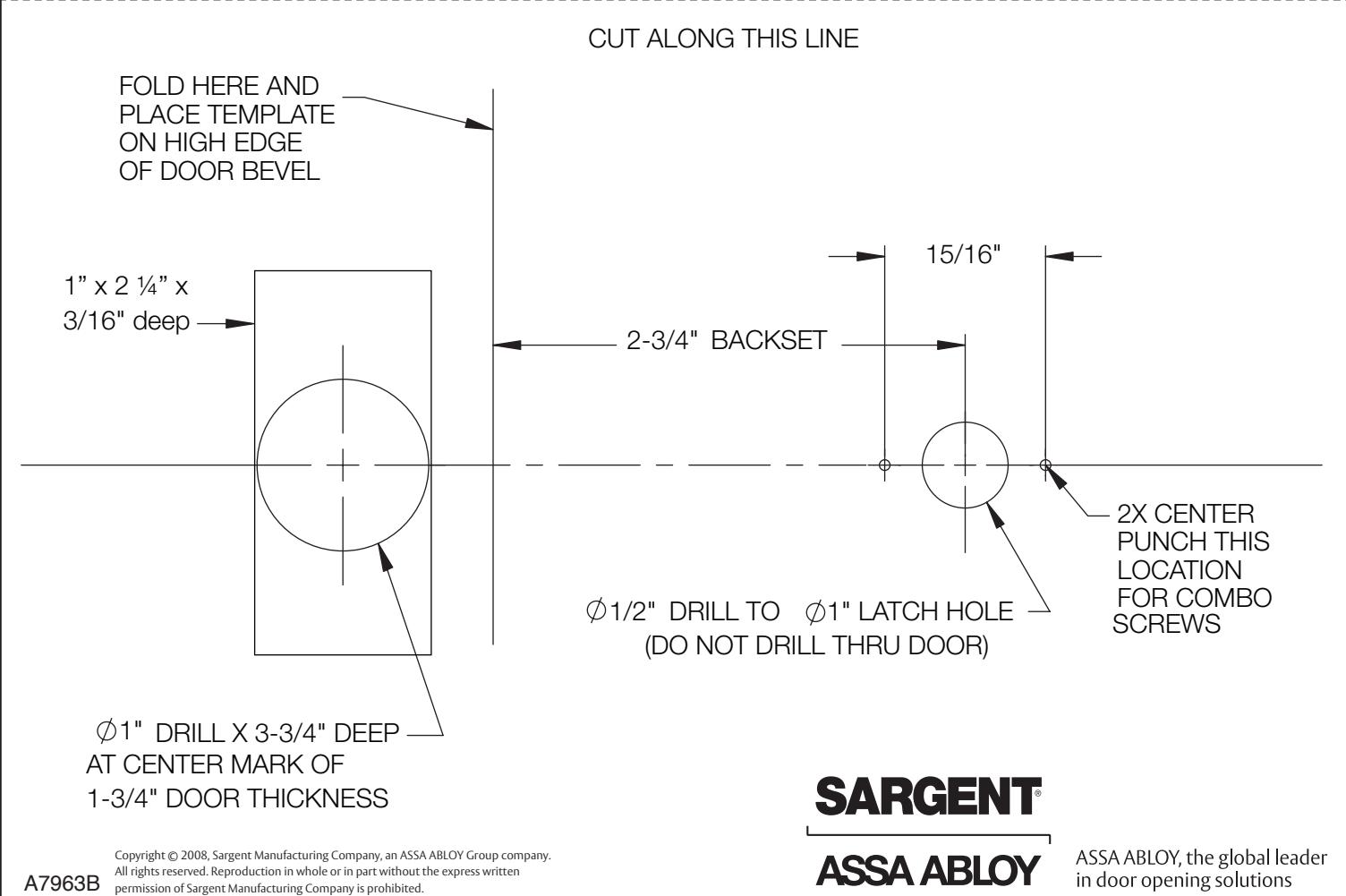

For all wood door preparations, use Template at bottom of page 2
