Installation Instructions for NEO Deadbolt Cylinder – 225784-ED

Open the original PDF document

View PDF

SALTO Neo Deadbolt

  • Eng Installation guide
  • F Guide d'installation (E) Guía de instalación

N x B3 1x.. series N x B4 1x..

© 2019 SALTO Systems S.L.

225784-ED.- 24/04/2019

All contents current at time of publication. SALTO Systems S.L. reserves the right to change availability of any item in this catalog, its design, construction, and/or materials.

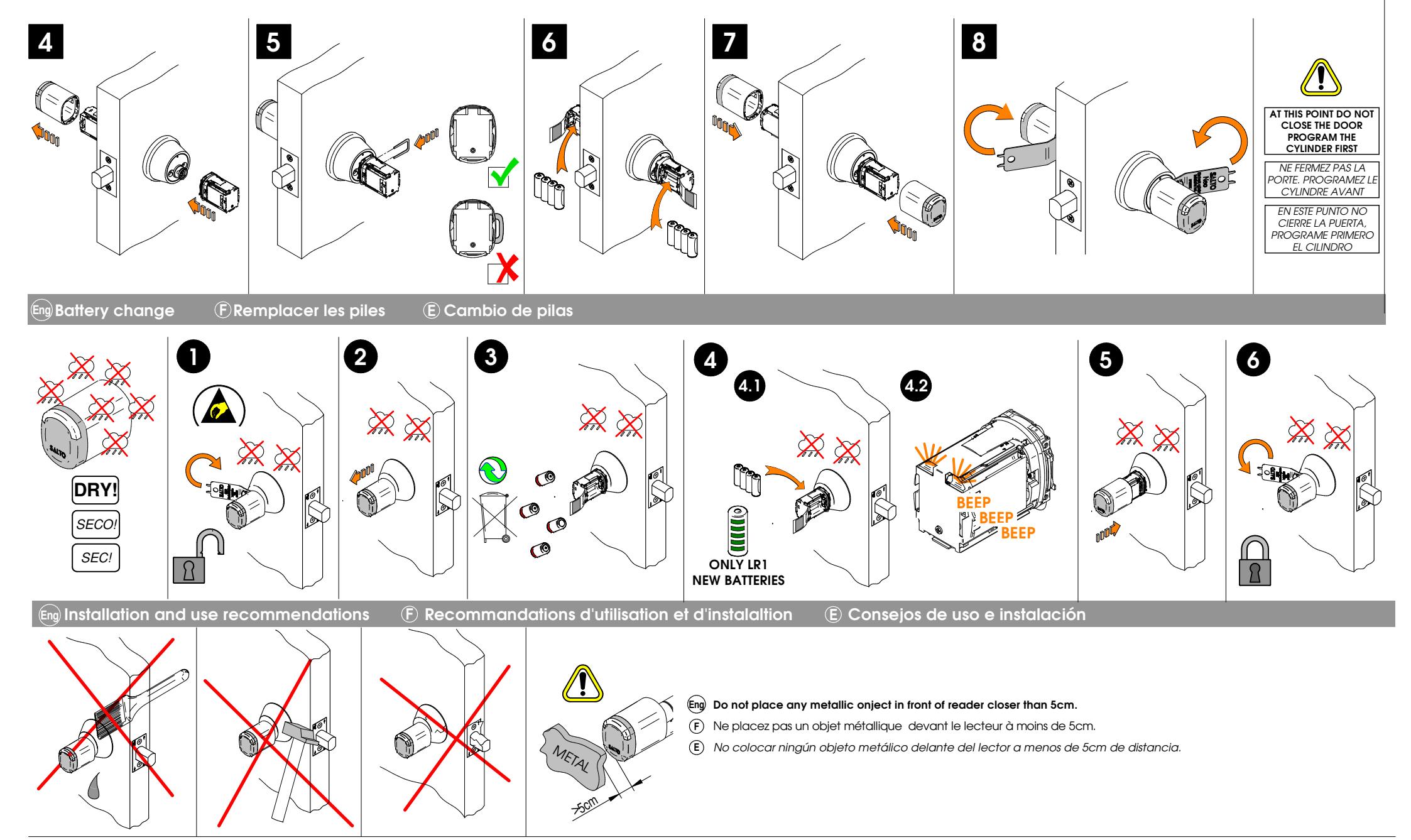

Eng The knob is uniquely paired to the cylinder, and will not work if you switch in a different SALTO cylinder.

Paired!

  • 🖹 Le bouton du lecteur SALTO est appairer au cylindre. Le cylindre ne fonctionnera pas si vous l'inversé avec un autre cylindre SALTO.
  • (E) El pomo está emparejado unicamente al cilindro, no funcionará si lo conecta a otro cilindro SALTO diferente.
