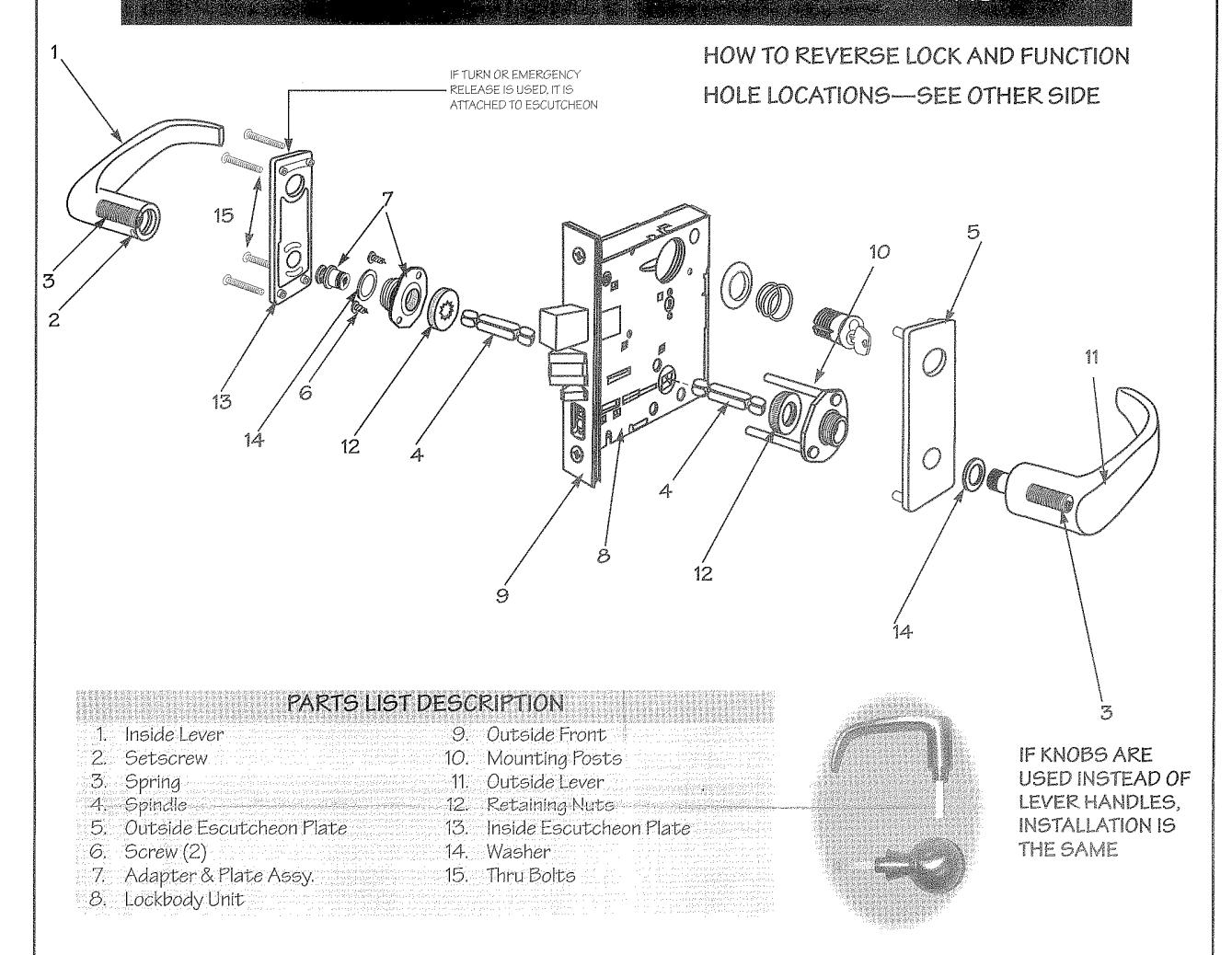

INSTRUCTIONS FOR INSTALLING SARGENT 9200 LEVER WITH SECURITY ESCUTCHEON TRIM LS 9100 KNOB WITH SECURITY ESCUTCHEON TRIM KS

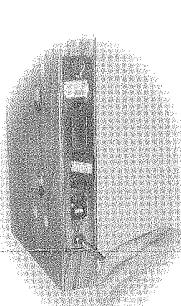

A. INSERT LOCKBODY INTO MORTISE CUTOUT, HOLD LOOSELY IN PLACE WITH (2) LOCKBODY SCREWS. DO NOT TIGHTEN SCREWS

AT THIS TIME. B. INSTALL CYLINDER. CYLINDER IS MOUNTED UNDER ESCUTCHEON. TIGHTEN CYLINDER CLAMP.

INSTALL OUTSIDE LEVER ASSEMBLY

A. INSERT SPINDLE INTO OUTSIDE LEVER ASSEMBLY

B. WITH OUTSIDE LEVER HORIZONTAL CAREFULLY INSERT THE MOUNTING POSTS THROUGH THE DOOR AND LOCKBODY, MAKE SURE THE SPINDLE IS PROPERLY ENGAGED IN THE LOCK, CYLINDER

C. INSERT SPINDLE INTO INSIDE OF DOOR

D. SECURE THE ADAPTER AND PLATE ASSEMBLY TO THE INSIDE OF THE DOOR, THREAD THE SCREWS WITH THE LOCK WASHERS INTO THE MOUNTING POSTS OF THE OUTSIDE LEVER ASSEMBLY.

INSTALL CYLINDER

IF CYLINDER IS NOT INCLUDED IN THIS FUNCTION.

• PROCEED TO STEP 35. A. SCREW CYLINDER ALONG WITH CYLINDER SPRING AND COLLAR INTO LOCKBODY UNIT. B. AFTER CYLINDER IS SCREWED INTO THE LOCK BODY UNIT, FLUSH WITH THE CYLINDER COLLAR MAKE CERTAIN THE CYLINDER RETAINER IS LINED UP WITH THE NOTCH ON THE CYLINDER AND THE KEYWAY IS VERTICAL.
• C. TIGHTEN THE CYLINDER RETAINER TO PREVENT UNSCREWING OF THE CYLINDER D. TURN THE KEY IN THE CYLINDER TO MAKE CER-
• TAIN THAT THE LOCKING OR LATCHING MECHA-NISM FUNCTIONS CORRECTLY.

• LOCKBODY SCREWS. SECURE THE OUTSIDE FRONT PLATE TO THE LOCKBODY

E. TIGHTEN THE

• INSTALL INSIDE LEVER
• FIRMLY TIGHTEN TWO SCREWS ON THE INSIDE ADAPTER AND PLATE ASSEMBLY. B. TIGHTLY SCREW THE ESCUTCHEON TO THE OUTSIDE ESCUTCHEON USING SPANNER. THRU BOLTS PROVIDED.

C. PLACE INSIDE LEVER HORIZONTALLY ONTO SPINDLE, TIGHTEN SET SCREW SECURELY WITH SIX LOBE SECURITY

HOW TO REVERSE LOCK

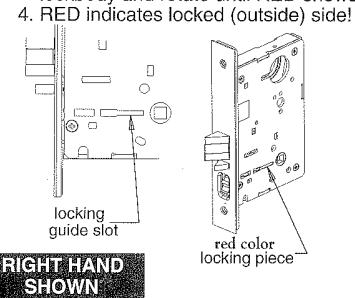

If It Is Necessary To Change Hand of Locking Piece

• Turn lockbody to side NOT marked with RED locking piece.
• Insert blade screwdriver into locking piece slot.
• Push locking piece toward front of lockbody and rotate until RED shows.

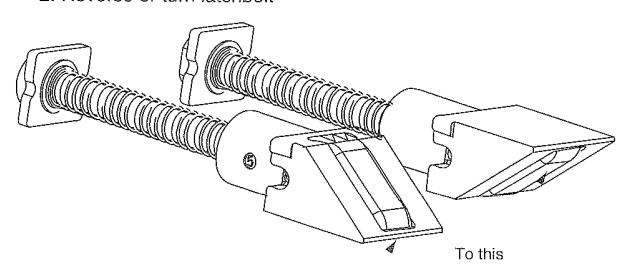

If it is Necessary To Change Hand of the Latchbolt:

• 1. Remove cap from lock
• 2. Reverse or turn latchbolt

From this

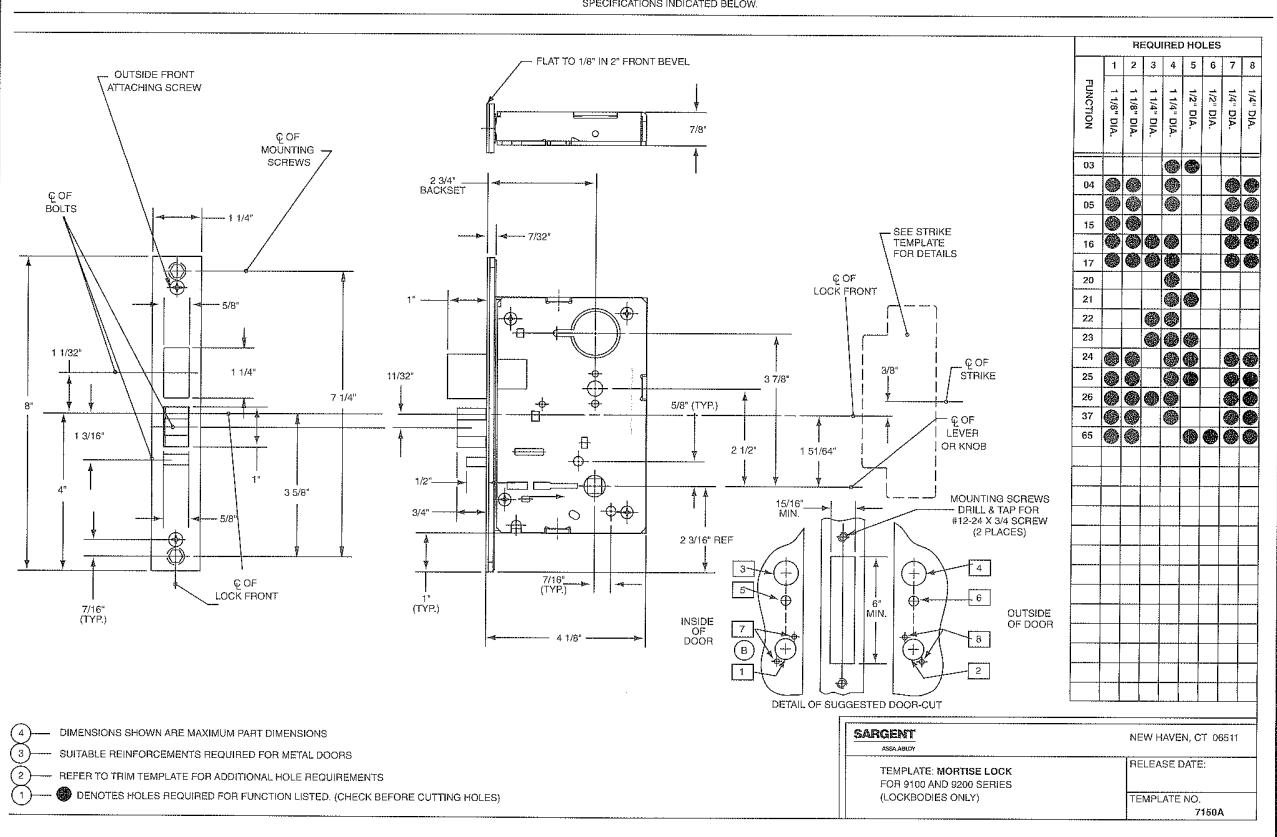

9100/9200 TEMPLATE

THIS TEMPLATE COVERS THE 9100 & 9200 SERIES LOCKSETS IN ACCORDANCE WITH THE SPECIFICATIONS INDICATED BELOW.
