INSTALLATION INSTRUCTIONS Trim Mounting Kit on 8200 Lever Mortise Locksets

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

STANDARD 8200 MORTISE LOCKSET SHOWN PARTS LIST DESCRIPTION 2 12* 3 4 6 7 5 9 10 11 1 Shape of this mounting plate will vary depending on the trim design used Shape of this mounting plate will vary depending on the trim design used 7 8 Please Note: Refer to the following instruction sheets for complete lock installation. · LN or L Trim - A7035 · LE or LW Trim - A7031 · LS Trim - A7029 · WT Trim - A7034

• A.) Inside Trim Pack consisting of:
  • 1. Lever set screws (2) [1 long, 1 short]
  • 2. Lever Adapter
  • 3. Machine screws #8-32 x 5/8" (2)
  • 4. Adapter and plate assembly (2)
  • 5. Washers (2)
  • 6. Cap Nut
  • 7. Spindles (2)

NOTE: Items 2, 4, 5 and 6 are pre-assembled when shipped.

• B.) Outside Trim Pack consisting of:
  • 8. Cap Nut
  • 9. Washers (2)
  • 10. Adapter and plate assembly
  • 11. Mounting Posts (2)
  • 12. Spindle Springs (2)
• C.) Complete trim pack consisting of: Both inside trim pack (A) and outside trim pack (B) together

* Insert (2) springs, large end first, into spindle hole in levers.

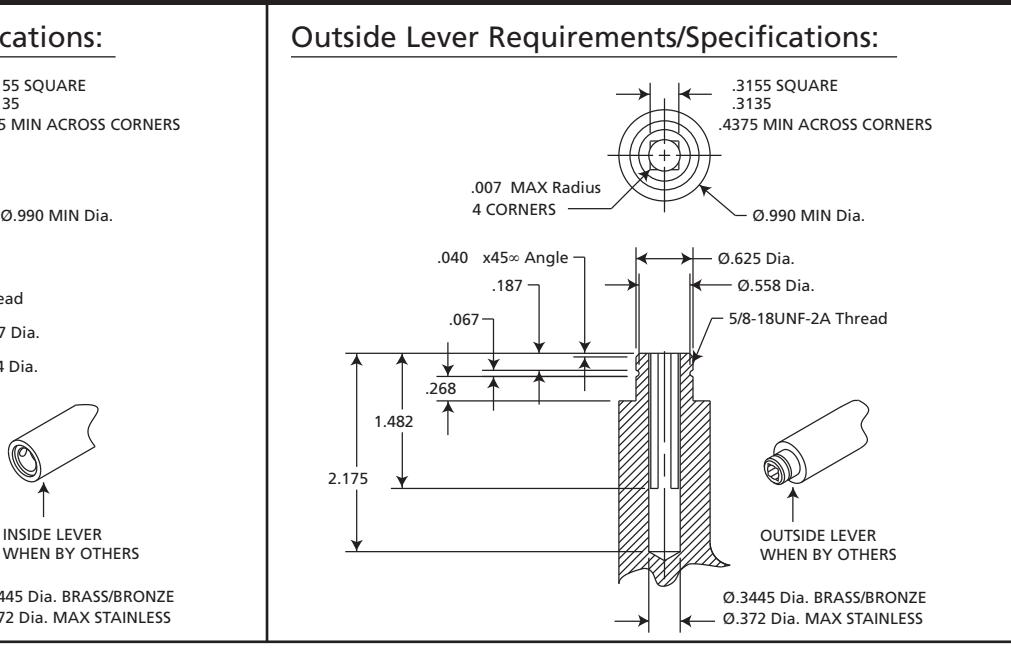

IF USING NON SARGENT LEVERS THEY MUST BE MANUFACTURED TO MEET THE FOLLOWING SPECIFICATIONS

.4375 MIN ACROSS CORNERS .3155 SQUARE .3135 4 CORNERS 4 CORNERS .007 MAX Radius .075 .236 .435 .960 1.735 Ø.3445 Dia. BRASS/BRONZE Ø.372 Dia. MAX STAINLESS Ø.564 Dia. Ø.757 Dia. 1/4-28 UNF-2B Thread INSIDE LEVER WHEN BY OTHERS Inside Lever Requirements/Specifications: Outside Lever Requirements/Specifications:

IMPORTANT NOTE: UNLESS OTHERWISE SPECIFIED ALL TOLERANCE TO BE + OR - .005 LEVER WEIGHT AND CONFIGURATION (center of gravity - cg) MUST NOT APPLY A MAXIMUM LEVER TORQUE THAT EXCEEDS 1.4 in-lbs.
