Installation Instructions for 7800-8200 Mortise Lock 50-Prefix 185S Kit (Secured Indicator Rose)
Open the original PDF document
View PDFInstallation Instructions for 7800/8200 Mortise Lock 50- Prefix/185S Kit Secured Indicator Rose
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com
Patent pending and/or patent www.assaabloydss.com/patents
Installation Instructions for 7800/8200 Mortise Lock 50- Prefix/185S Kit Secured Indicator Rose
SARGENT
ASSA ABLOY
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com
Patent pending and/or patent www.assaabloydss.com/patents
ASSA ABLOY, the global leader in door opening solutions
82-0539
01-1421

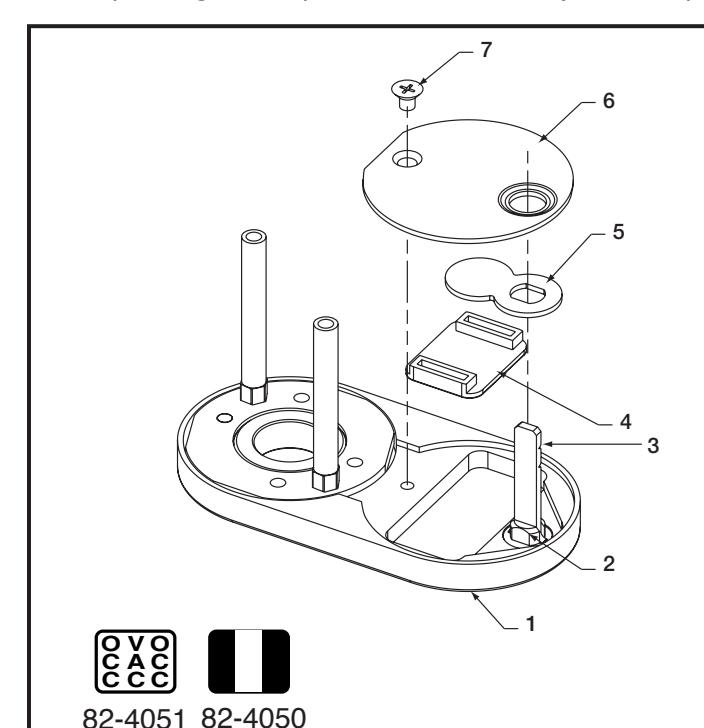

INSTRUCTIONS FOR CHANGING INDICATOR SLIDES
- 1. REMOVE PHILIPS SCREW.
- 2. REMOVE BACK PLATE, HUB PLATE AND SLIDE.
- 3. REPLACE WITH ALTERNATE SLIDE. NOTE: CHECK FOR PROPER ORIENTATION OF VAC/OCC SLIDE TEXT.
- 4. REASSEMBLE HUB PLATE AND BACK PLATE, SECURE WITH PHILIPS SCREW.
| 10 | 0 | ||
|---|---|---|---|
| Item | Description | Qty. |
Part
Number |
| 1 | Indicator Housing | 1 | 82-0604 |
| 2 | Spindle Hub | 1 | 82-0605 |
| 3 | Spindle | 1 | 77-1195 |
| 4 | Red/White Slide | 1 | 82-4050 |
| VAC/OCC Slide | 1 | 82-4051 | |
| 5 | Hub Plate | 1 | 82-0590 |
| 6 | Back Plate | 1 | 82-0606 |
| 7 | #6-32 x 3/16" MS | 1 | 01-4553 |
| 8 | Mounting Adapter | 1 | 91-2151 |
| 9 | Mounting Post, 185S-1, 1-3/8" Door | 2 | 81-0017 |
| Mounting Post, 185S-2, 1-3/4" Door | 2 | 81-0723 | |
| Mounting Post, 185S-3, 2" Door | 2 | 92-0069 |
Mounting Post, 185S-4, 2-1/4" Door
TORX Screw

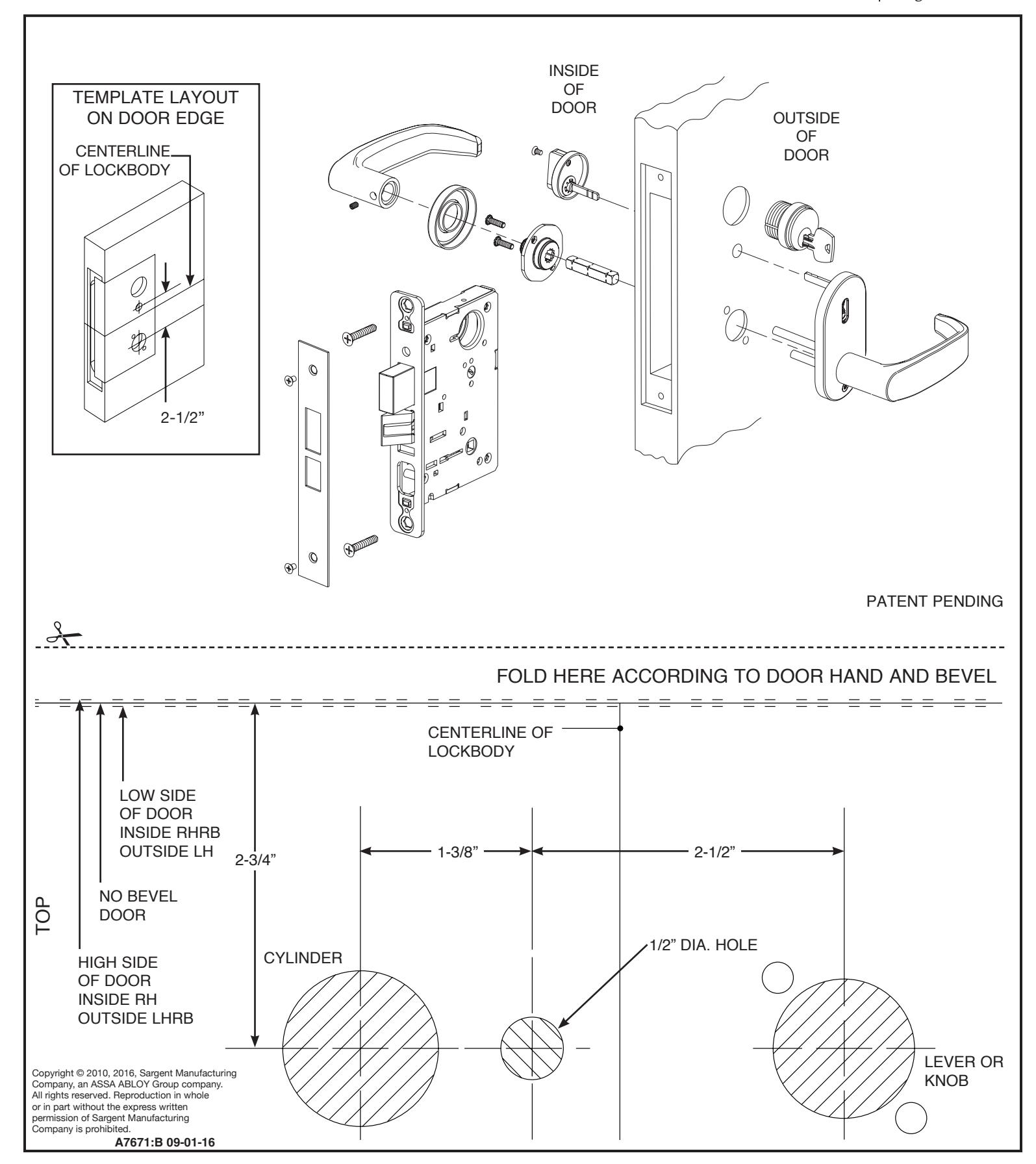

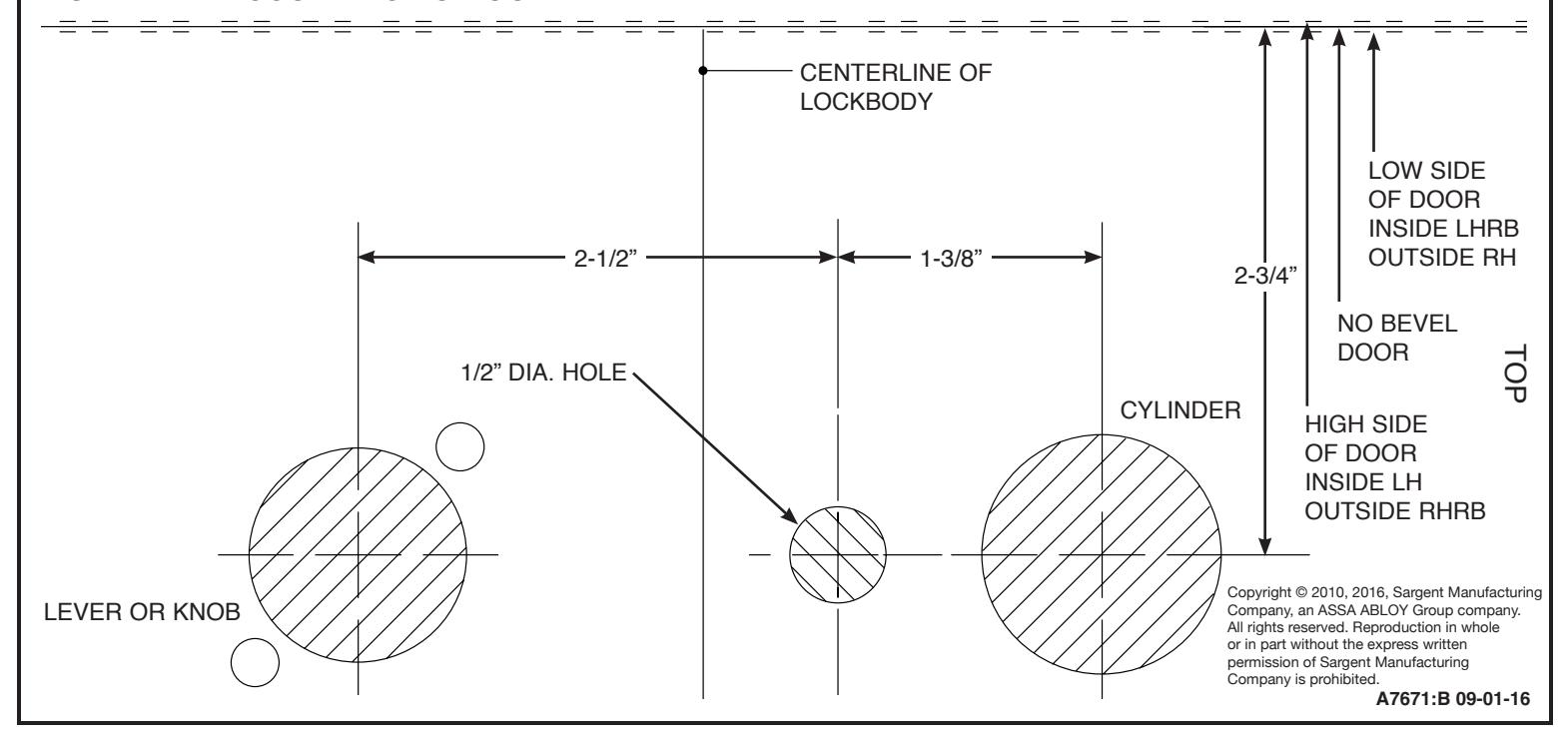

FOLD HERE ACCORDING TO DOOR HAND AND BEVEL
10
