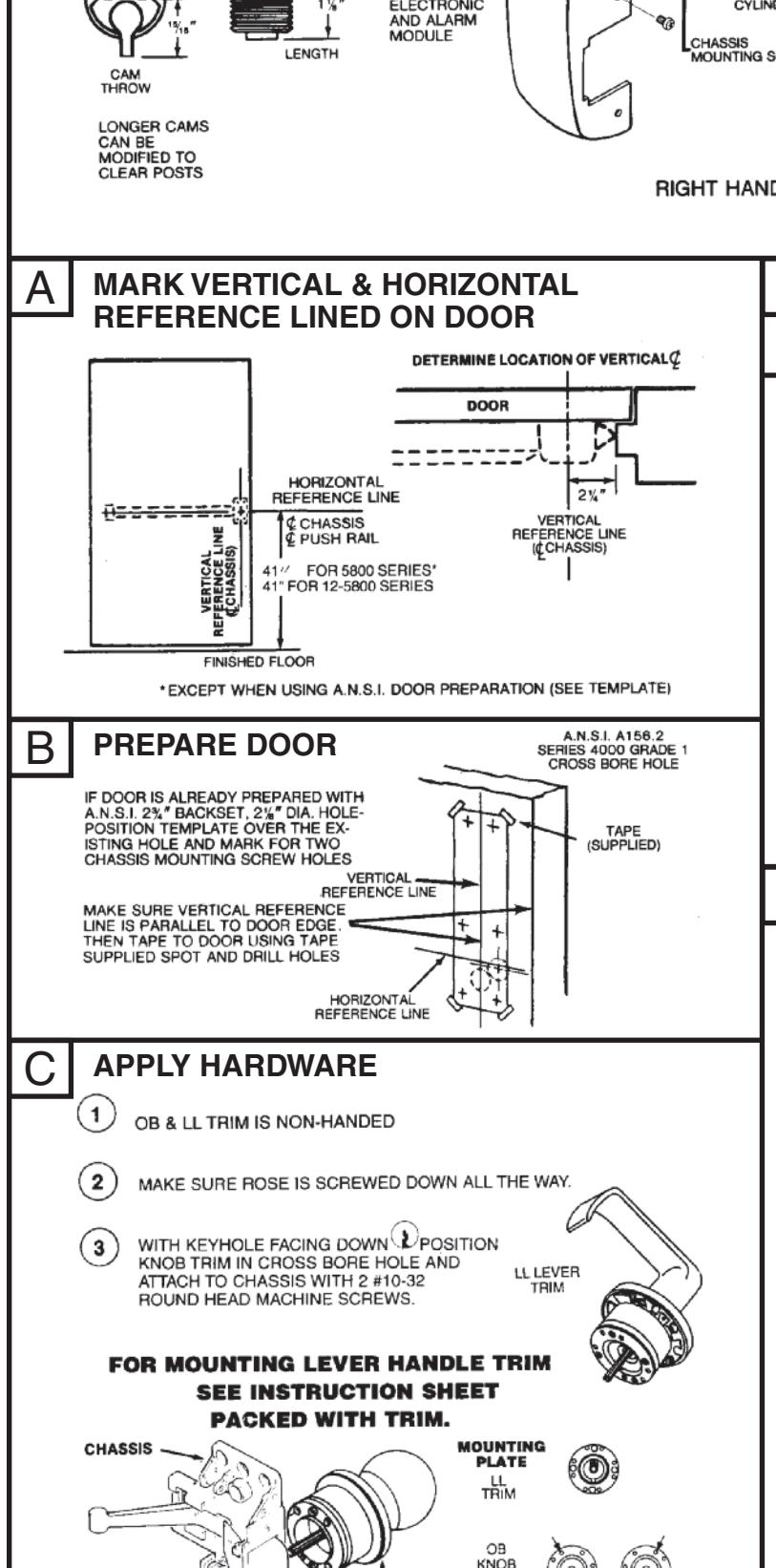

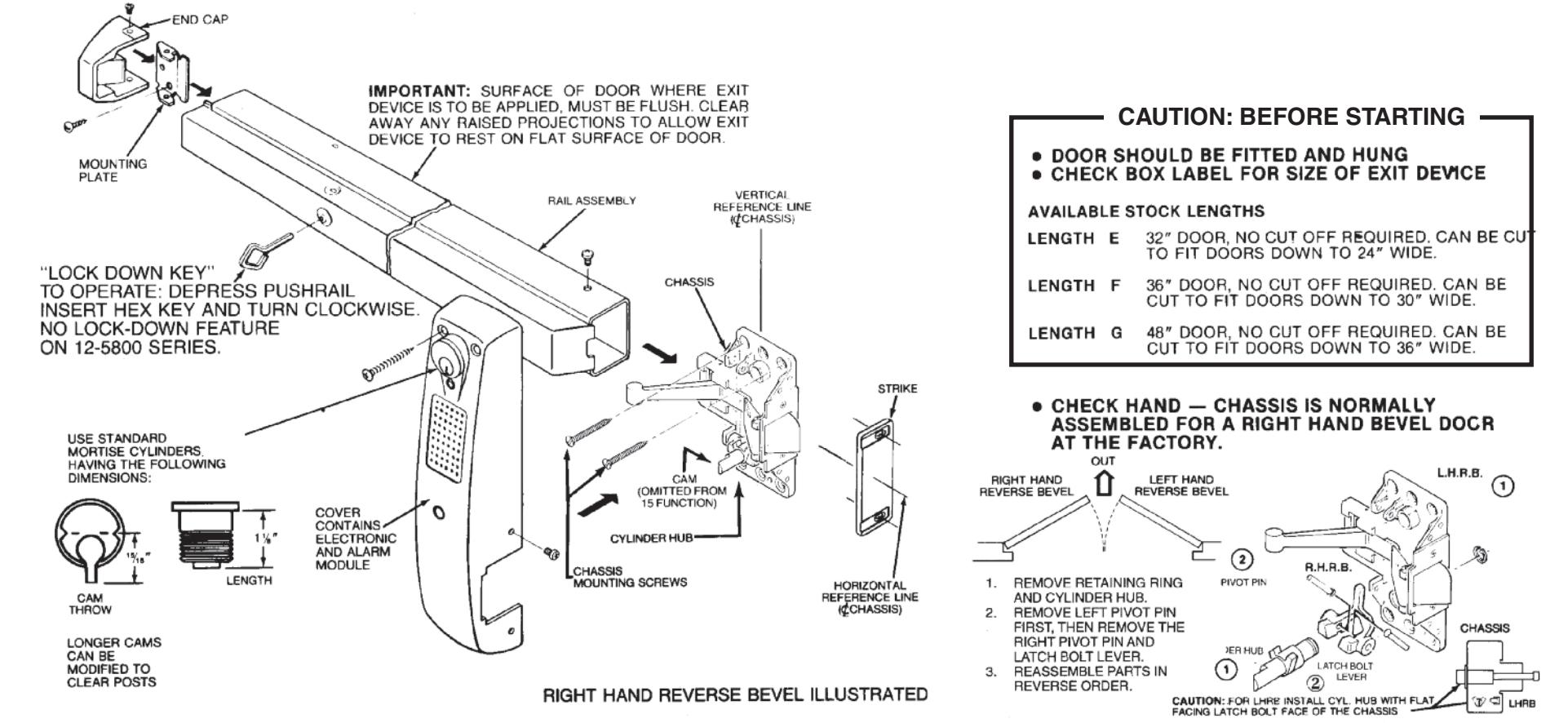

INSTALLATION INSTRUCTIONS 5800 & 12-5800 Series Alarmed Exit Devices Using OB Knob Outside Trim and LL Lever Handle Trim

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

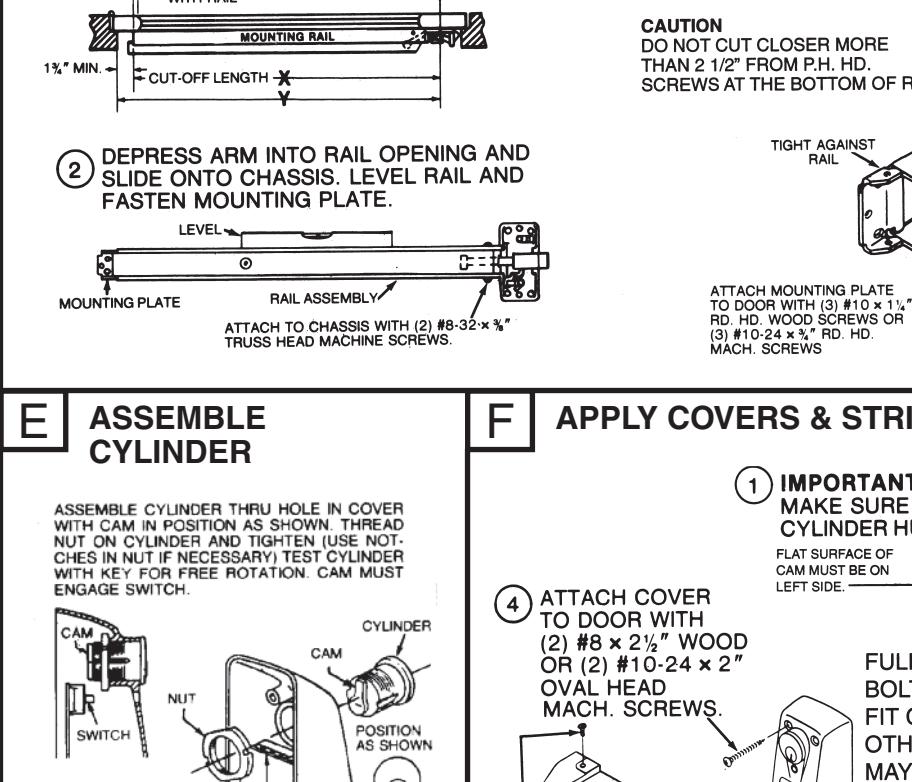

D APPLY RAIL ASSEMBLY
