INSTRUCTIONS FOR INSTALLING SARGENT REPLACEMENT SPINDLE KIT 578

For assistance contact SARGENT at 800-727-5477 or www.sargentlock.com

SARGENT

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

TOOLS REQUIRED

• 1. 3/32" PUNCH
• 2. 1/4 " PUNCH
• 3. BALL PIEN HAMMER

STEP

PLACE OLD LEVER ASSEMBLY ON SOLID SURFACE. USE RAG OR PAD TO PREVENT MARRING FINISH.

STEP

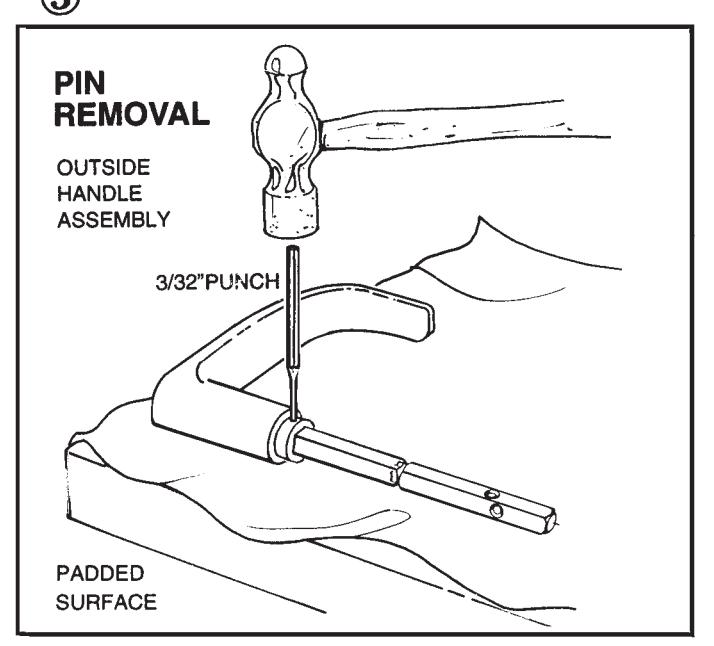

② DRIVE OUT ROLL PIN USING 3/32" PUNCH . DISCARD PIN.

STEP

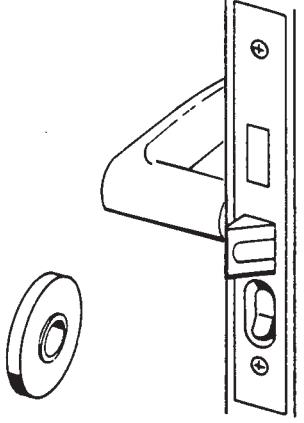

(3) REMOVE OLD SPINDLE AND BUSHING.

STEP

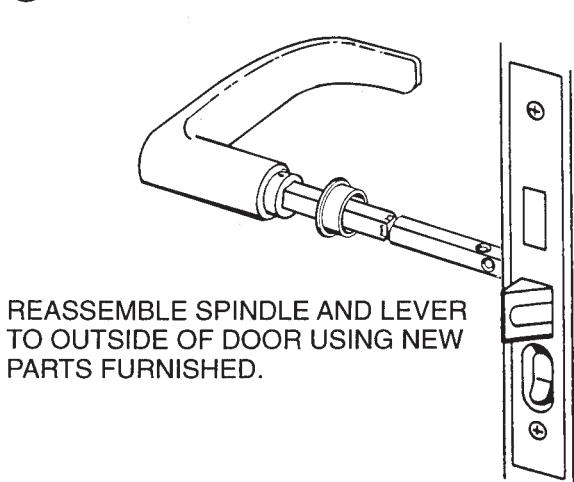

INSTALL NEW SPINDLE ASSEMBLY INTO LEVER OPENING...ALIGN PIN HOLE IN LEVER SHANK.

STEP

PLACE NEW ROLL PIN IN HOLE OF LEVER.

STEP

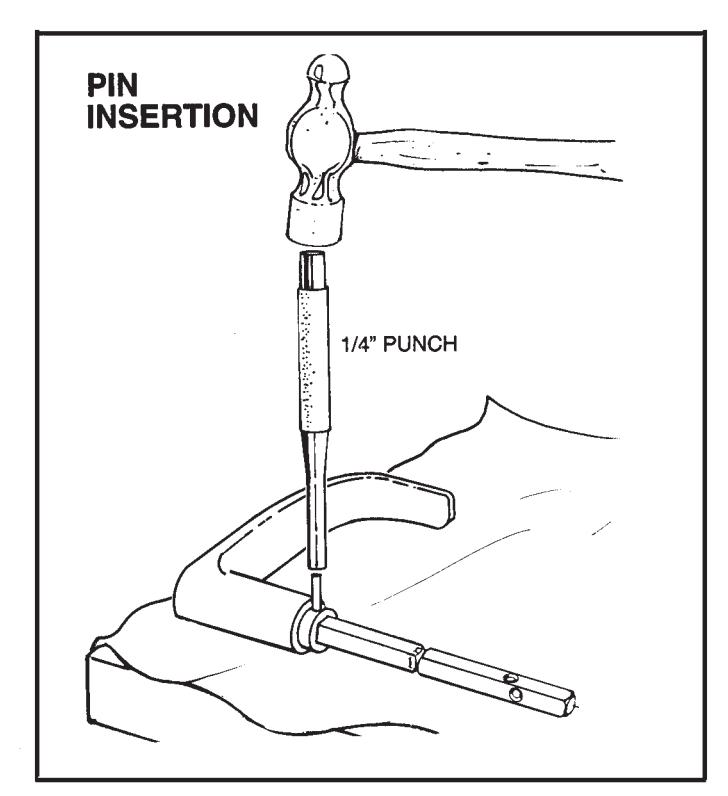

DRIVE PIN FLUSH WITH LEVER USING 1/4" PUNCH.

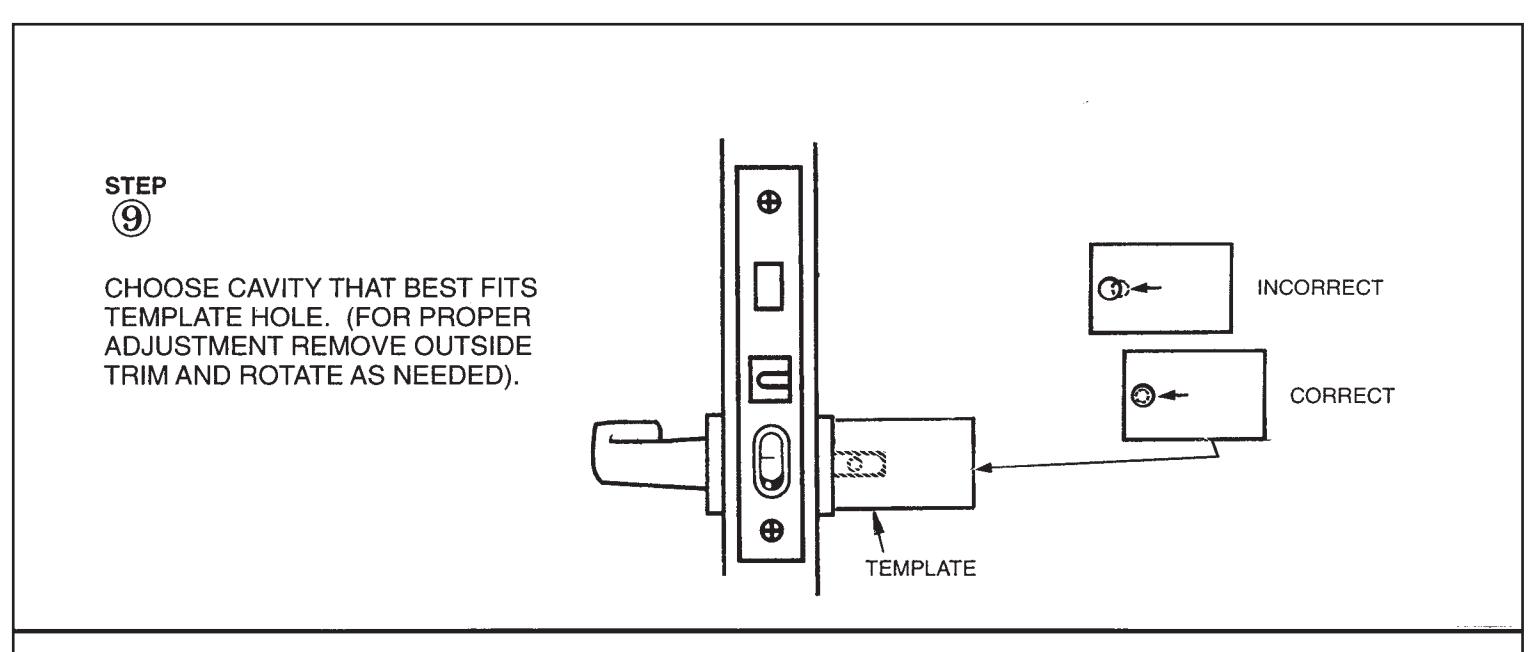

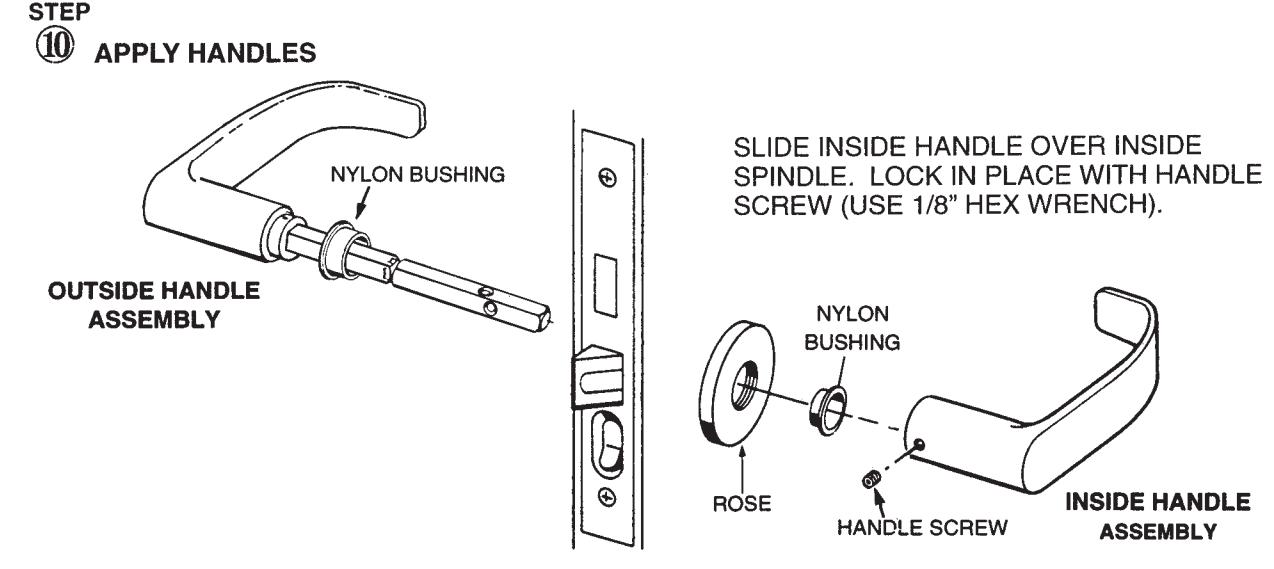

STEP (8) APPLYING TEMPLATE

PLACE TEMPLATE EDGE AGAINST NYLON INSERT. ALIGN TEMPLATE PARALLEL WITH EDGE OF DOOR.
