Installation Instructions for 565 & 665 Metal End Cap Kit

Installation Instructions

565 /665 Metal End Cap Kits

Contents Include:

• (1) Hardware finished metal end cap
• (1) Mounting plate
• (2) Wood screws (to attach mounting plate)
• (2) Machine screws which match end camp finish (to attach end cap)

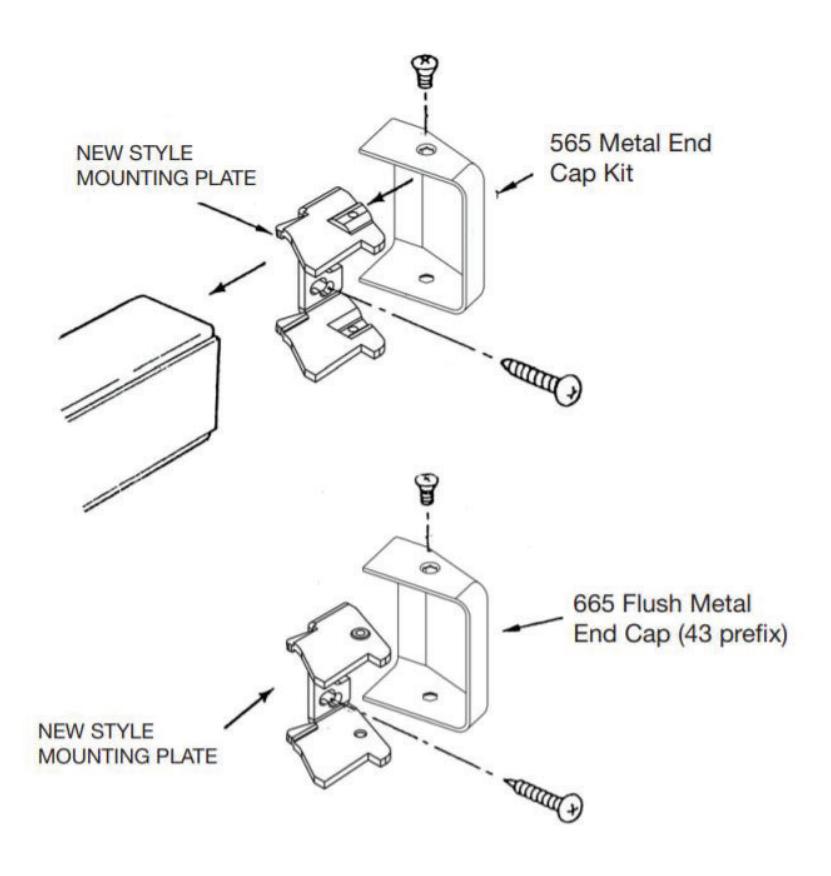

Instructions:

• 1. Remove existing end cap by removing cover screws.
• 2. Remove mounting plate by removing mounting plate screws.
• 3. Install new mounting plate using same holes in door. Mounting plate screws in back are same size and thread as old screws.
• 4. Install hardware finished metal end cap using two end cap screws.

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

A6924C 4/21
