Installation Instructions for #3274Narrow stile Mounting Plate

5100 SERIES EXIT ALARMS INSTALLATION INSTRUCTIONS FOR 3274 NARROW STILE MOUNTING PLATE

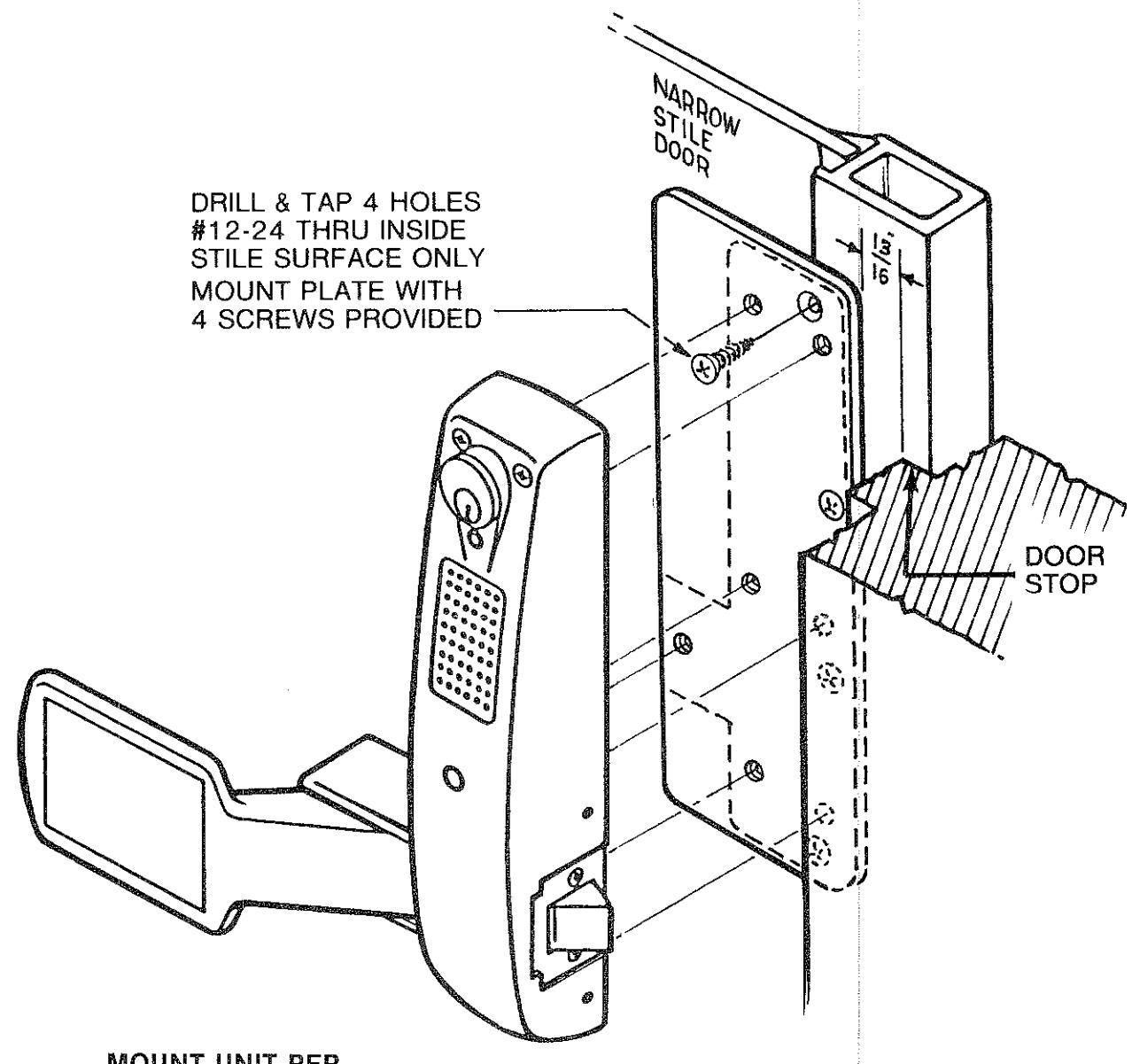

MOUNT UNIT PER 5100 SERIES INSTRUCTION SHEET

FOR OUT-SWINGING DOORS: locate plate 13/16" back from the door stop surface or locate the plate to maintain proper spacing between alarm and surface of strike. (See instructions packed with 5100 alarm).

NEW HAVEN, CT 06511
