INSTALLATION INSTRUCTIONS Door Closer Security Track (SSPT)

SARGENT

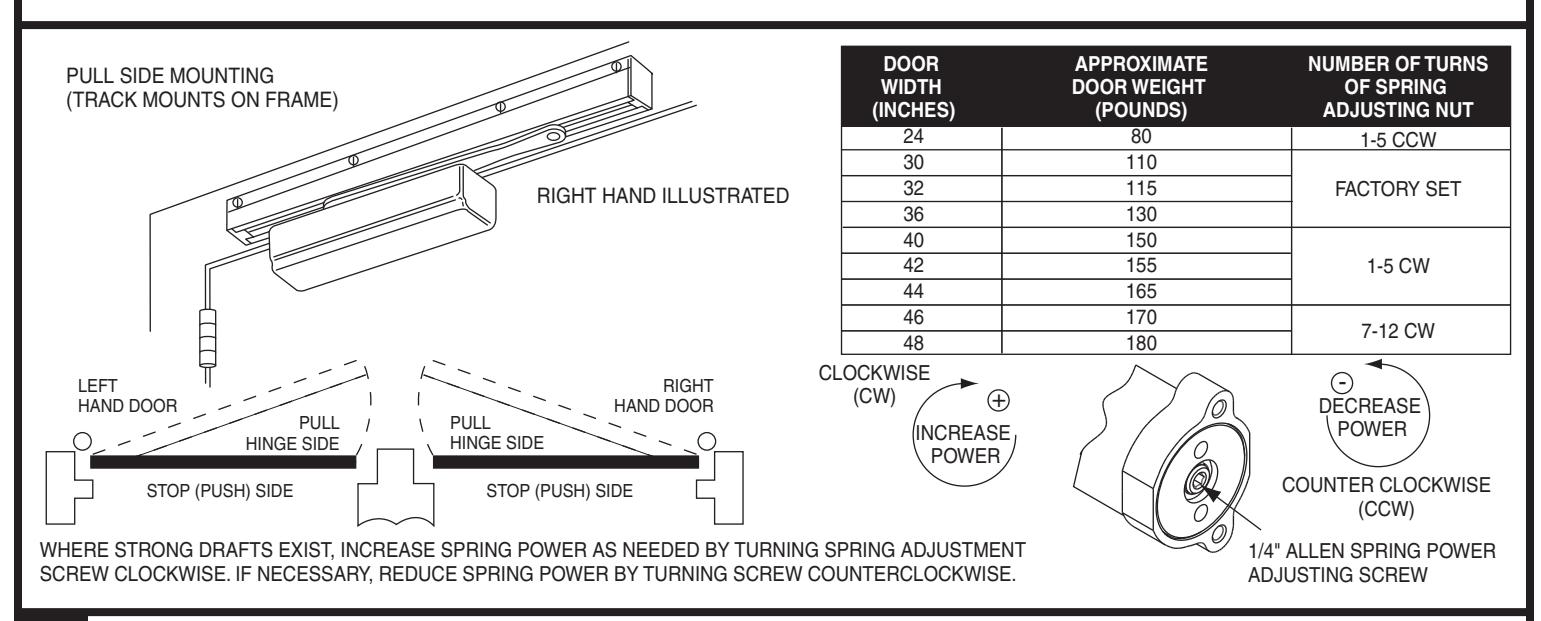

281 SERIES NON SIZED ADJUSTABLE FROM SIZES 2 THRU 5

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE. FOR ASSISTANCE CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

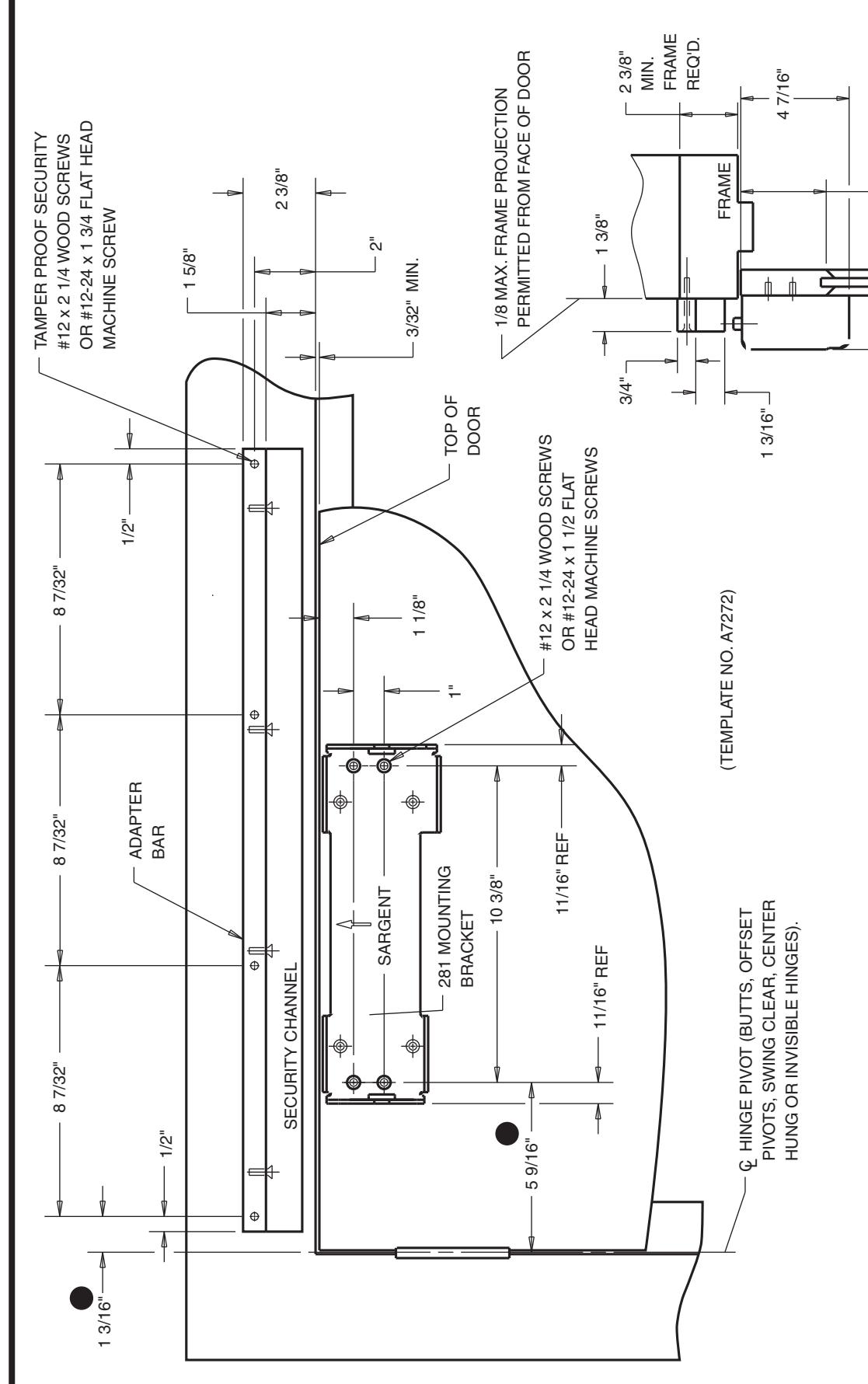

USE DIMENSION SHOWN ON DATA SHEET A7272 ON PAGE 4 TO LOCATE AND PREPARE FOR MOUNTING SCREWS.

INSTALL MOUNTING BRACKET WITH ARROW POINTING UP FOR BOTH RH & LH DOORS AND INSTALL REMOVE BACKING FROM CLOSER WITH SPRING ADJUSTING SCREW TOWARDS HINGE. (USE TEMPLATE ENCLOSED TO LOCATE SELF ADHESIVE TAPE AND USE BRACKET AS DRILL THRU TEMPLATE LEFT HAND

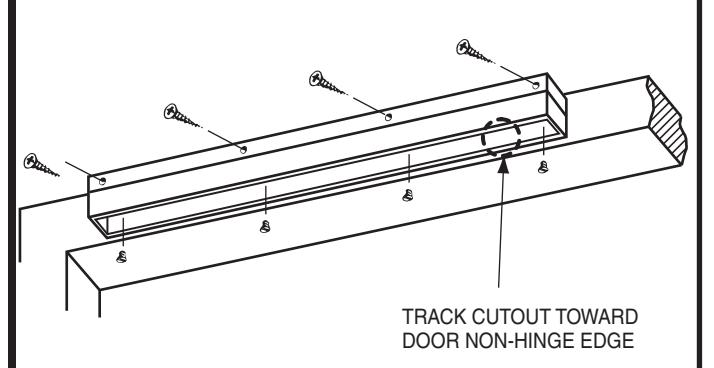

ATTACH PREASSEMBLED ADAPTER BAR AND TRACK TO FRAME AT LOCATION DETERMINED FROM DATA SHEET PROVIDED, USE TAMPER-PROOF SECURITY SCREWS.

AND DRILL HOLES).

1. INSERT ARM ROLLER INTO TRACK THRU CUTOUT AND TEMPORARILY LET ARM HANG ON TRACK.

DOOR SHOWN

2. ASSEMBLE ARM TO DOOR CLOSER SPINDLE. WITH 1/8" ALLEN WRENCH TURN LATCHING SPEED AND DOOR SPEED VALVES CLOCKWISE UNTIL THEY STOP. DO NOT FORCE VALVES.

3. USING ADJUSTABLE WRENCH, ROTATE DOOR CLOSER SPINDLE 90° CLOCKWISE FOR LEFT HAND DOOR -RIGHT HAND OPPOSITE.

4. WITH THE DOOR CLOSER SPINDLE NOW STATIONARY. MOVE THE END OF THE ARM TO THE SPINDLE END UNTIL SQUARE HOLE LINES UP WITH THE SPINDLE END OF SQUARE APPROXIMATELY 20° OF DOOR OPENING. PUSH ARM DOWN INTO POSITION ON THE SPINDLE AND SECURE WITH SECURITY SCREW AND WASHER.

INDEX MARK MAIN HAND DOOR

INDEX MARK ON SPINDLE MAIN ARM Q RIGHT HAND DOOR

5. MAKE SURE THAT INDEX MARK ON SPINDLE IS ALIGNED AS SHOWN.

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

PAGE

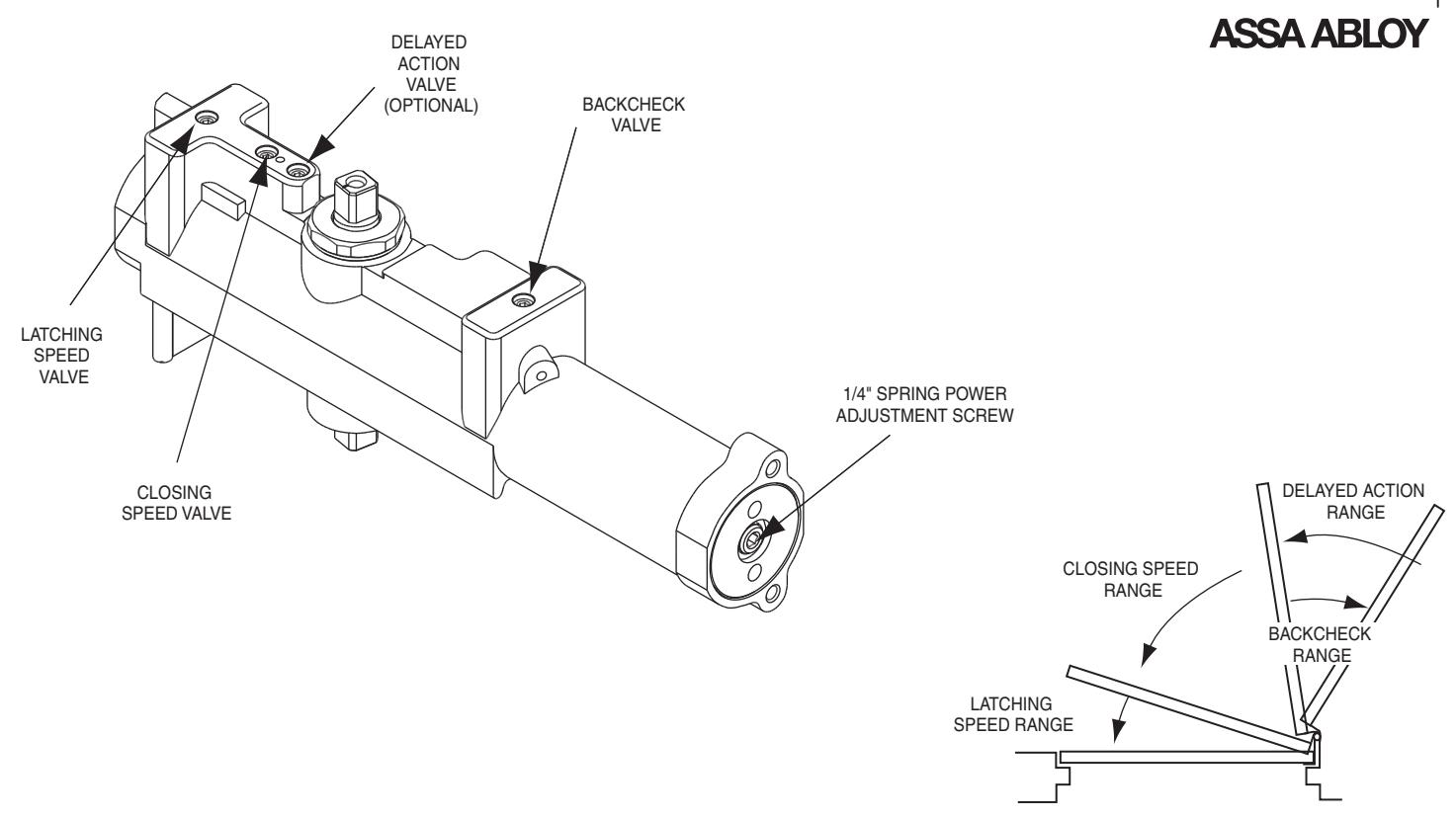

FINAL ADJUSTMENT AND REGULATING PROCEDURE

SARGENT

A

REGULATING DOOR SPEED AND LATCHING SPEED AS NEEDED.

USE HEX SOCKET (1/8" ALLEN) WRENCH AND TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.

FASTER (+)

SLOWER

■ REGULATING BACKCHECK

TO REGULATE THE INTENSITY OF BACKCHECK ACTION TURN VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE CHECKING.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE BACKCHECK AS A DOOR STOP.

ALWAYS USE A DOOR STOP TO STOP THE DOOR

C

FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE

TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT

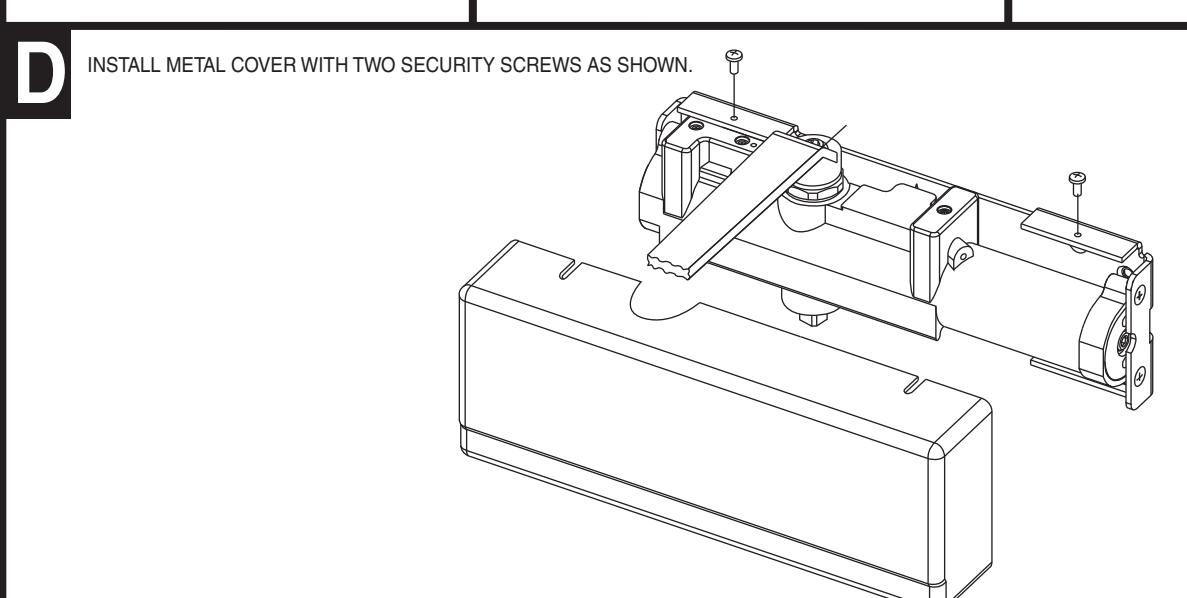

PAGE

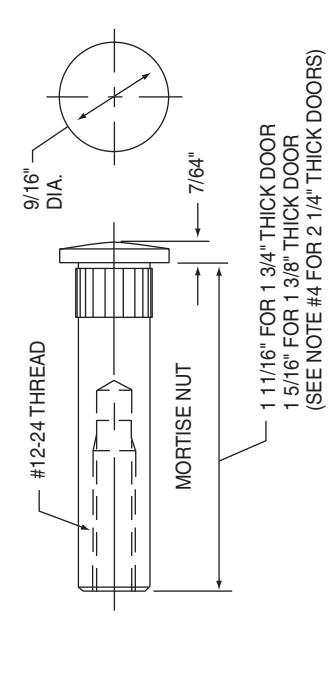

USING MORTISE NUTS WITH SARGENT DOOR CLOSER

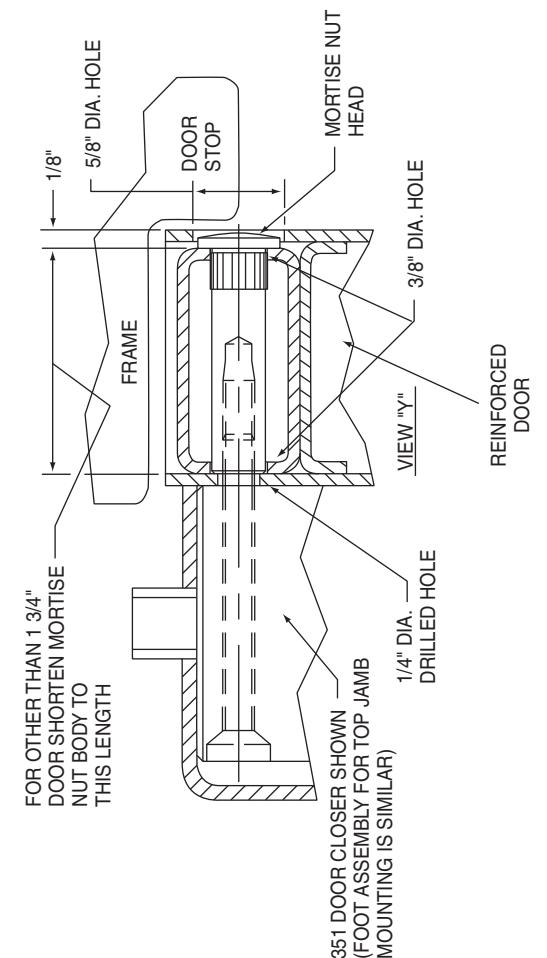

SEE NOTE #1 BELOW FOR DIMENSION INFORMATION. SEE ENLARGED VIEW "Y")

IF A DIMENSION LESS THAN 7/8" IS USED. THE DOOR STOP MUST BE CUT TO CLEAR THE MORTISE NUT HEAD OR THE MORTISE NUT HEAD MUST BE RECESSED. DOOR STOP MORTISE NUT HEAD DRILL 3/8" DIA. HOLE FOR MORTISE NUT BODY. JNREINFORCED FRAME DOOR DRILL 1/4" DIA. HOLE __/ FOR MOUNTING SCREWS - SARGENT 1430 SERIES CLOSER SHOWN. (OTHER SERIES SIMILAR)

COVER

SARGENT 351 SERIES SHOWN

• SEE INSTRUCTIONS OR DATA SHEET PACKED WITH DOOR CLOSER FOR DIMENSIONS LOCATING THE CLOSER BODY AND FOOT ON DOOR AND FRAME.
• 2. MORTISE NUT SHOWN IS DESIGNED FOR AN UNREINFORCED METAL DOOR.
• BE ATTACHED TO THE DOOR IN A MANNER SIMILAR TO THAT SHOWN FOR MOUNTING THE CLOSER BODY. FOR TOP JAMB AND CORNER BRACKET APPLICATIONS: THE DOOR CLOSER FOOT WILL
• ALONG WITH APPROPRIATE LENGTH THRU-BOLTS. DOOR CONSTRUCTION MUST PROVIDE A BRIDGE FOR DOORS 2 1/4" THICK: MORTISE NUT SHOWN FOR 1 3/4" THICK DOORS WILL BE FURNISHED TYPE REINFORCEMENT TO PREVENT THE DOOR RAIL FROM COLLAPSING WHEN THRU-BOLTS ARE TIGHTENED

SARGENT

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

SARGENT

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

TOP RAIL REQUIRED

DOOR

3 1/2"

2 3/16"

| FBUTT, FRAME AND WALL CONDITIONS PERMIT, CLOSER WILL ALLOW DOOR TO OPEN 180°.

THIS DIMENSION IS TAKEN FROM HINGE BOOR FOR INVISIBLE HINGES.

2 T 2 GAUGE MIN. REINFORCEMENT REQUIRED POR METAL DOORS & FRAMES.

1 RIGHT HAND DOOR SHOWN, LEFT HAND DOOR OPPOSITE.
