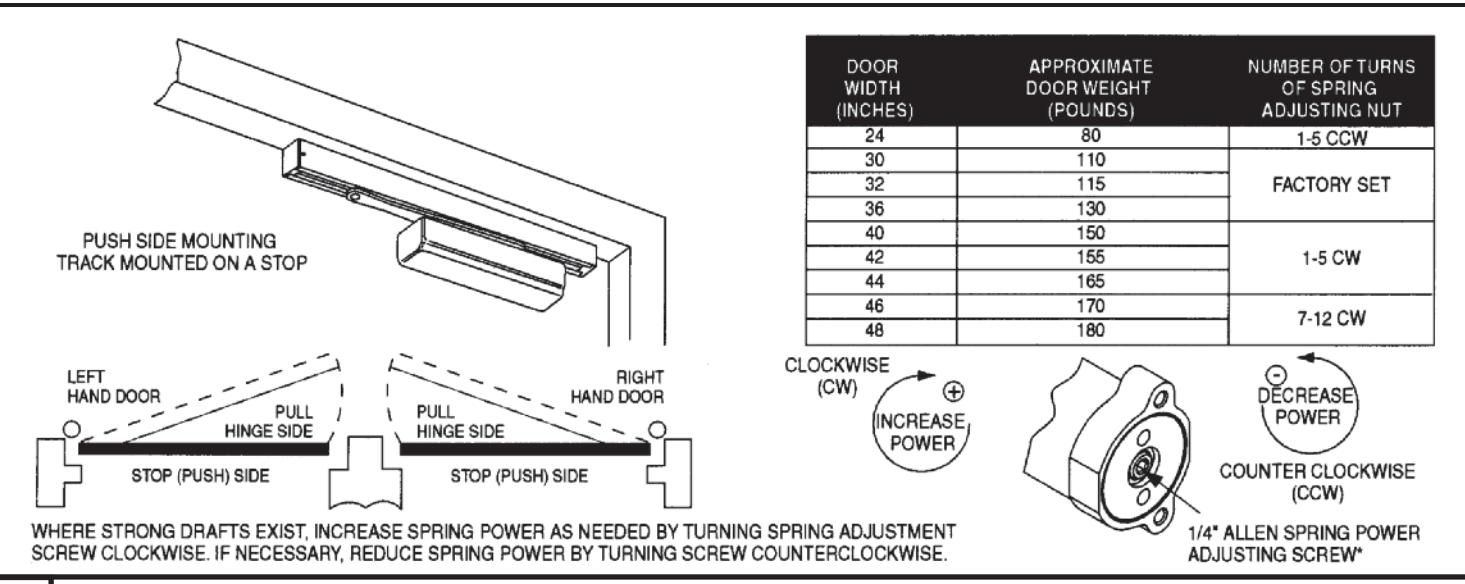

INSTALLATION INSTRUCTIONS MODEL 281 POWERGLIDE SERIES DOOR CLOSERS SECURITY TRACK APPLICATION (PSSPT) 281 NON SIZED ADJUSTABLE SIZES 2 THROUGH 5

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

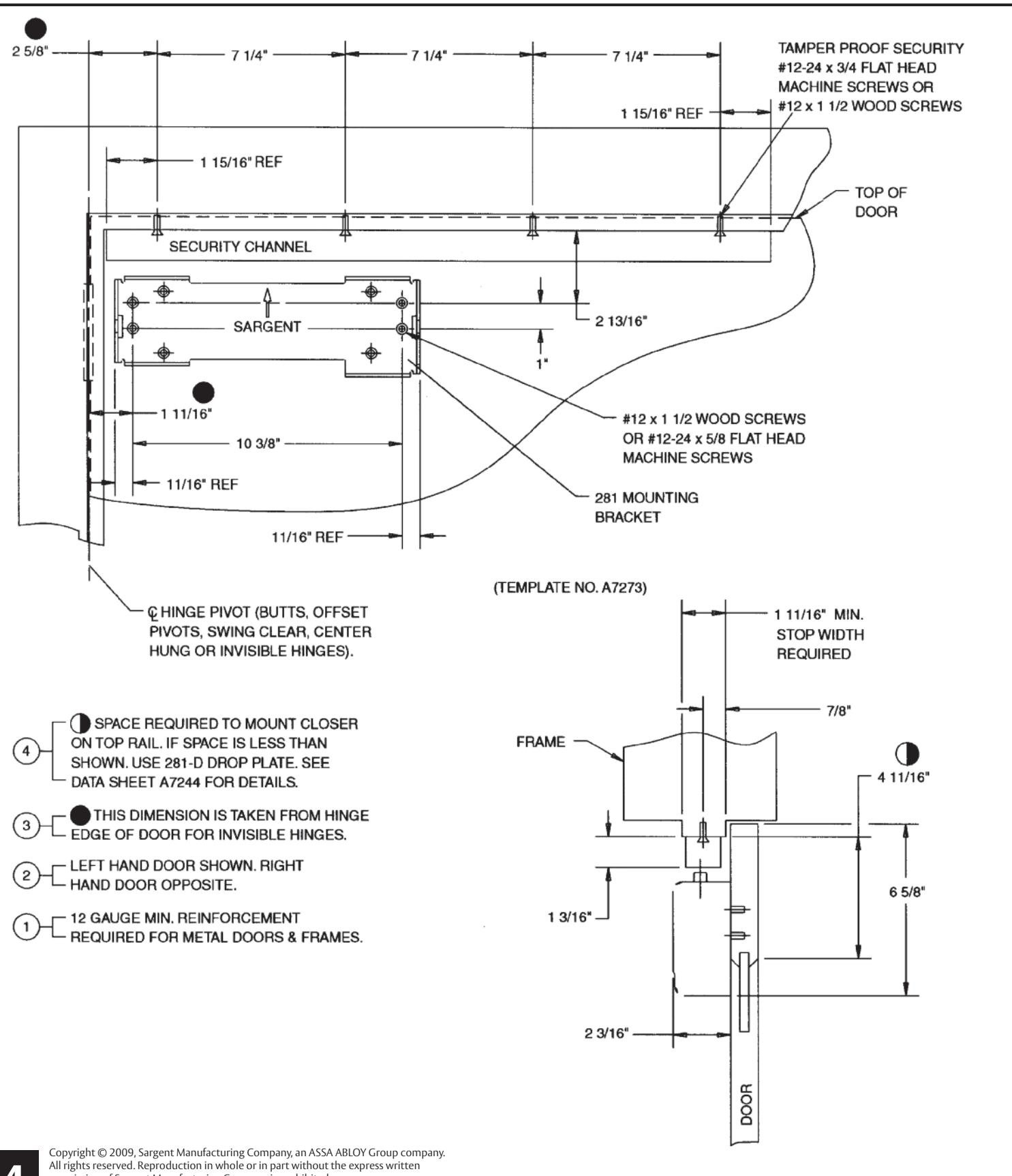

USE DIMENSION SHOWN ON DATA SHEET A7273 ON PAGE 4 TO LOCATE AND PREPARE FOR MOUNTING SCREWS.

В

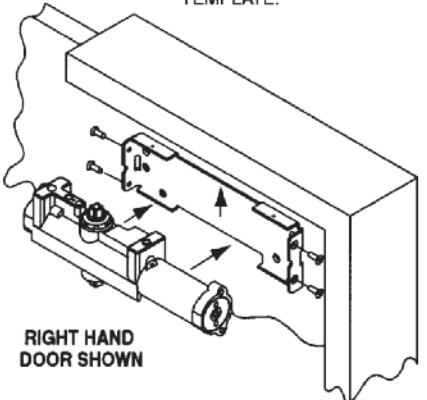

INSTALL MOUNTING BRACKET WITH ARROW POINTING UP FOR BOTH RH & LH DOORS. INSTALL CLOSER WITH SPRING ADJUSTING SCREW TOWARDS HINGE. (USE TEMPLATE ENCLOSED TO LOCATE AND DRILL HOLES)

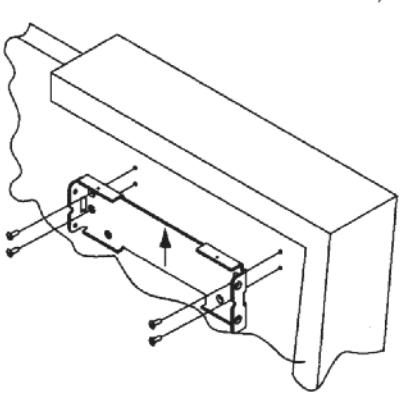

USE MOUNTING BRACKET AS DRILL THRU TEMPLATE.

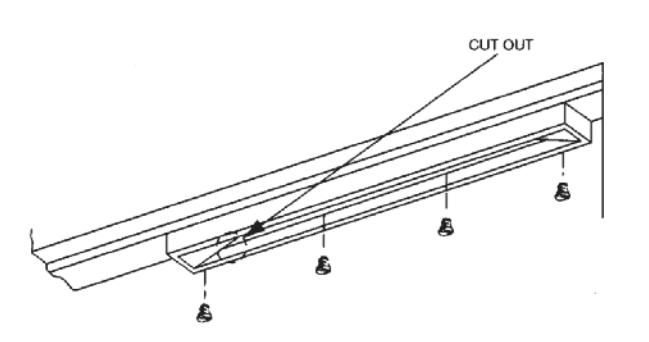

ATTACH TRACK TO STOP AT LOCATION DETERMINED FROM TEMPLATE. CUT OUT TOWARD NON-HINGE EDGE OF DOOR, USING FOUR TAMPER PROOF SECURITY SCREWS.

ASSA ABLOY, the global leader in door opening solutions

• INSERT ARM ROLLER INTO TRACK THRU CUTOUT AND TEMPORARILY LET ARM HANG ON A TRACK.
• 2. ASSEMBLE ARM TO DOOR CLOSER SPINDLE. WITH 1/8" ALLEN WRENCH, TURN LATCHING SPEED AND DOOR SPEED VALVES CLOCKWISE UNTIL THEY STOP. DO NOT FORCE VALVES.
• 3. USING ADJUSTABLE WRENCH, ROTATE DOOR CLOSER SPINDLE 90° CLOCKWISE FOR LEFT HAND DOOR -RIGHT HAND OPPOSITE.
• 4. WITH THE DOOR CLOSER SPINDLE NOW STATIONARY, MOVE THE END OF THE ARM TO THE SPINDLE END UNTIL SQUARE HOLE LINES UP WITH THE SPINDLE END OF SQUARE APPROXIMATELY 20° OF DOOR OPENING. PUSH ARM DOWN INTO POSITION ON THE SPINDLE AND SECURE WITH SECURITY SCREW AND WASHER.

INDEX MARK ON SPINDLE MAIN ARM RIGHT HAND

INDEX MARK ON SPINDLE

MAIN ARM

HAND

MAKE SURE THAT INDEX MARK ON SPINDLE IS ALIGNED AS SHOWN.

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

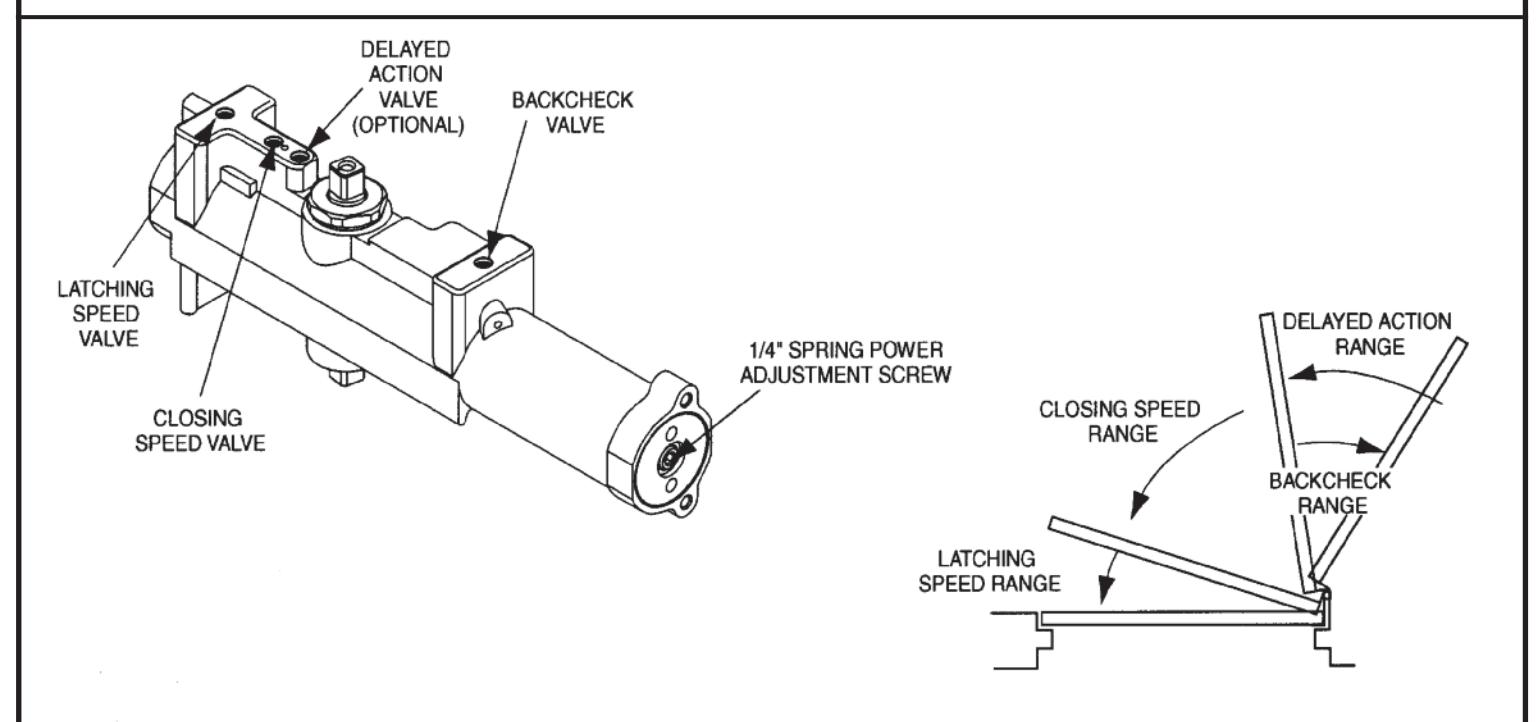

FINAL ADJUSTMENT AND REGULATING PROCEDURE

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

Α

REGULATING DOOR SPEED AND LATCHING SPEED AS NEEDED.

USE HEX SOCKET (1/8" ALLEN) WRENCH AND TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.

FASTER (+)

SLOWER

В

REGULATING BACKCHECK

TO REGULATE THE INTENSITY OF BACKCHECK ACTION TURN VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE CHECKING.

CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE BACKCHECK AS A DOOR STOP.

ALWAYS USE A DOOR STOP TO STOP THE DOOR.

C

FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE

TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT

D

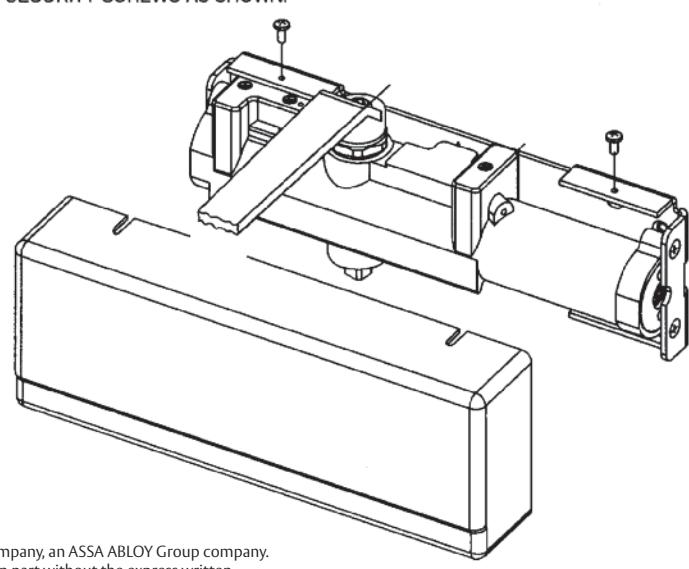

INSTALL METAL COVER WITH TWO SECURITY SCREWS AS SHOWN.

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7293B

ASSA ABLOY, the global leader in door opening solutions

USING MORTISE NUTS WITH SARGENT DOOR CLOSER

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

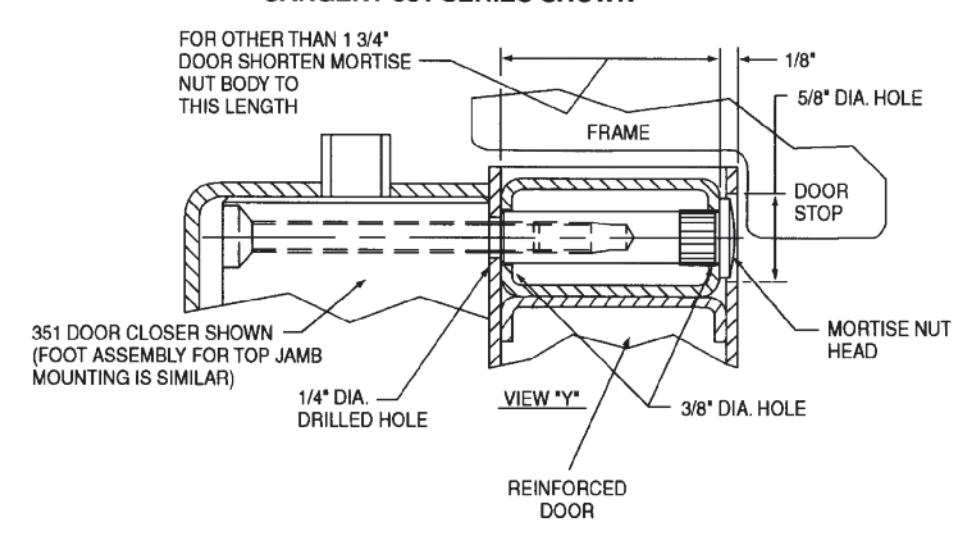

SARGENT 351 SERIES SHOWN

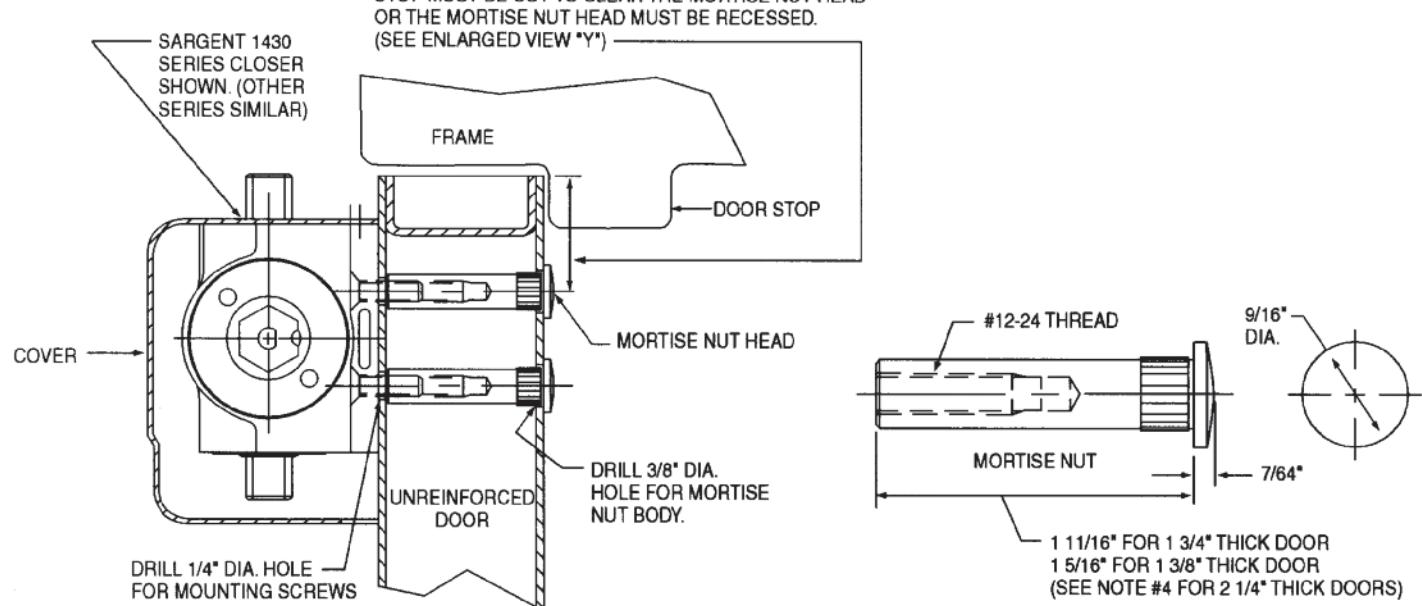

SEE NOTE #1 BELOW FOR DIMENSION INFORMATION. IF A DIMENSION LESS THAN 7/8" IS USED. THE DOOR STOP MUST BE CUT TO CLEAR THE MORTISE NUT HEAD OR THE MORTISE NUT HEAD MUST BE RECESSED.

• SEE INSTRUCTIONS OR DATA SHEET PACKED WITH DOOR CLOSER FOR DIMENSIONS LOCATING THE CLOSER BODY AND FOOT ON DOOR AND FRAME.
• 2. MORTISE NUT SHOWN IS DESIGNED FOR AN UNREINFORCED METAL DOOR.
• 3. FOR TOP JAMB AND CORNER BRACKET APPLICATIONS: THE DOOR CLOSER FOOT WILL BE ATTACHED TO THE DOOR IN A MANNER SIMILAR TO THAT SHOWN FOR MOUNTING THE CLOSER BODY.
• 4. FOR DOORS 2 1/4" THICK: MORTISE NUT SHOWN FOR 1 3/4" THICK DOORS WILL BE FURNISHED ALONG WITH APPROPRIATE LENGTH THRU-BOLTS. DOOR CONSTRUCTION MUST PROVIDE A BRIDGE TYPE REINFORCEMENT TO PREVENT THE DOOR RAIL FROM COLLAPSING WHEN THRU-BOLTS ARE TIGHTENED.
