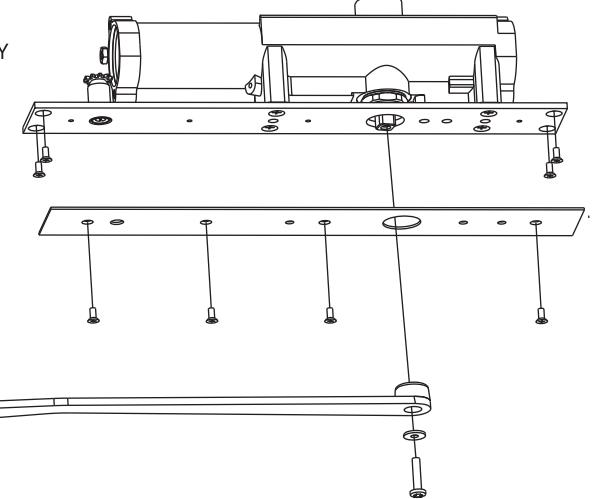

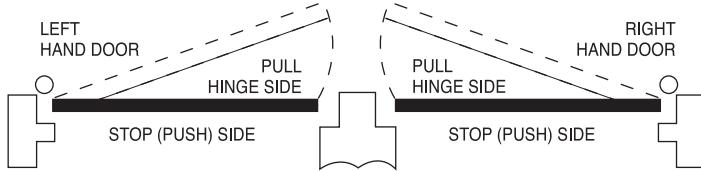

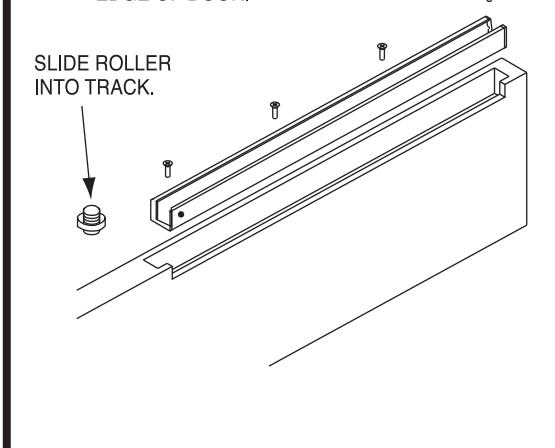

INSTRUCTIONS FOR INSTALLING SARGENT 268 POWERGLIDE SERIES OVERHEAD CONCEALED DOOR CLOSER

268 NON-SIZED ADJUSTABLE SIZES 2 THROUGH 5

For assistance contact SARGENT at 800-727-5477 or www.sargentlock.com

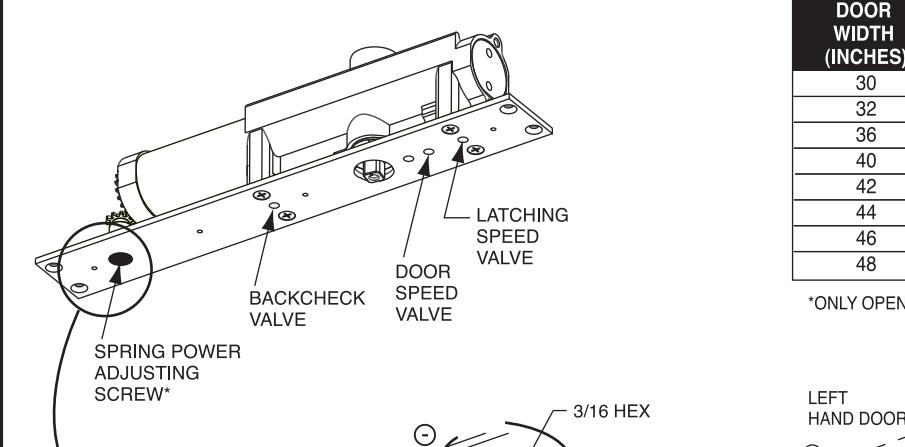

DOOR WIDTH (INCHES)	APPROXIMATE DOOR WEIGHT (POUNDS)	NUMBER OF TURNS OF SPRING ADJUSTING NUT
30	110
32	115	FACTORY SET
36	130
40	150
42	155	1-5 CW
44	165
46	170	7-12 CW
48	180

Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

FINAL ADJUSTMENT AND REGULATING PROCEDURE

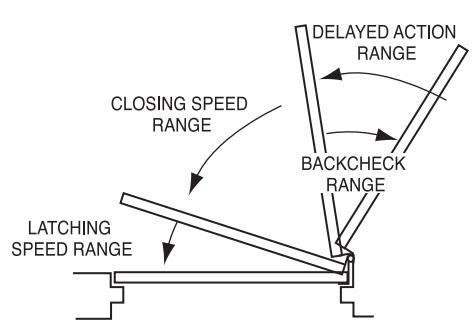

REGULATING DOOR SPEED AND LATCHING SPEED

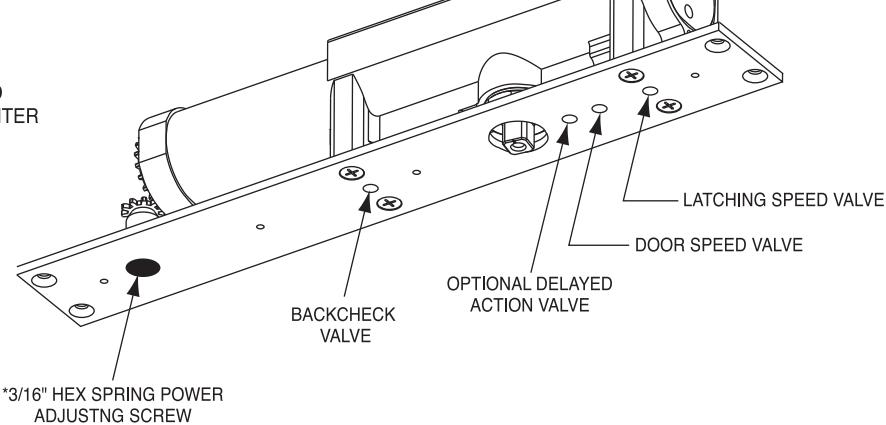

USE 1/8" ALLEN WRENCH AND TURN VALVES CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.

REGULATING BACKCHECK

THE INTENSITY OF BACKCHECK ACTION IS REGULATED BY A VALVE, TURN CLOCKWISE TO INCREASE OR COUNTER CLOCKWISETO DECREASE CHECKING.

CAUTION: SET VALVE FOR A SLIGHT CUSHIONING EFFECT IT IS DAMAGING TO CLOSER IF THE CHECKING ACTION IS TOO ABRUPT.BACKCHECK SHOULD NEVER BE USED IN LIEU OF A DOOR STOP.

FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE

"DELAYED ACTION" PROVIDES SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE

TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT

*TO ADJUST SPRING POWER ONLY OPEN DOOR FEW INCHES AND USE CHART FROM PAGE 1.

OPTIONS

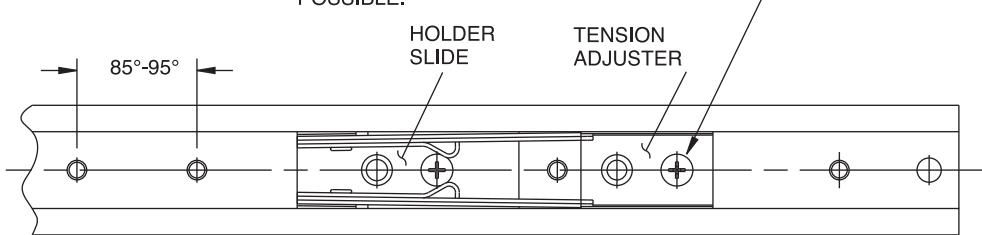

FOR MODELS HAVING "PHT" HOLDER ARMS

THE HOLDER DEVICE IS SET FOR 95° DOOR HOLDING POSITION AT THE FACTORY AND THE HOLDER TENSION IS SET AT THE LIGHTEST OF THE THREE SETTINGS.

TO INCREASE HOLDING TENSION REMOVE MOUNTING SCREW AND MOVE TENSION ADJUSTER TOWARD HOLDER SLIDE BY USING EITHER OF THE TWO HOLE LOCATIONS. TWO POSITIONS OF TENSION ARE POSSIBLE.

FOR MODELS WITH BUMPER

BUMPER ASSISTS BACKCHECK IN CUSHIONING THE OPENING FOR DOOR, IT IS NOT INTENDED TO REPLACE AN AUXILIARY DOOR STOP.

TO CHANGE BUMPER STOP LOCATION—REMOVE MOUNTING SCREW AND RELOCATE BUMPER STOP AT DESIRED POSITION.
