1431 (OD, ODB, HD, HDB ) DOUBLE EGRESS PULL SIDE TRACK INSTALLATION INSTRUCTIONS

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE

For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

NOTE: AN AUXILIARY DOOR STOP IS REQUIRED

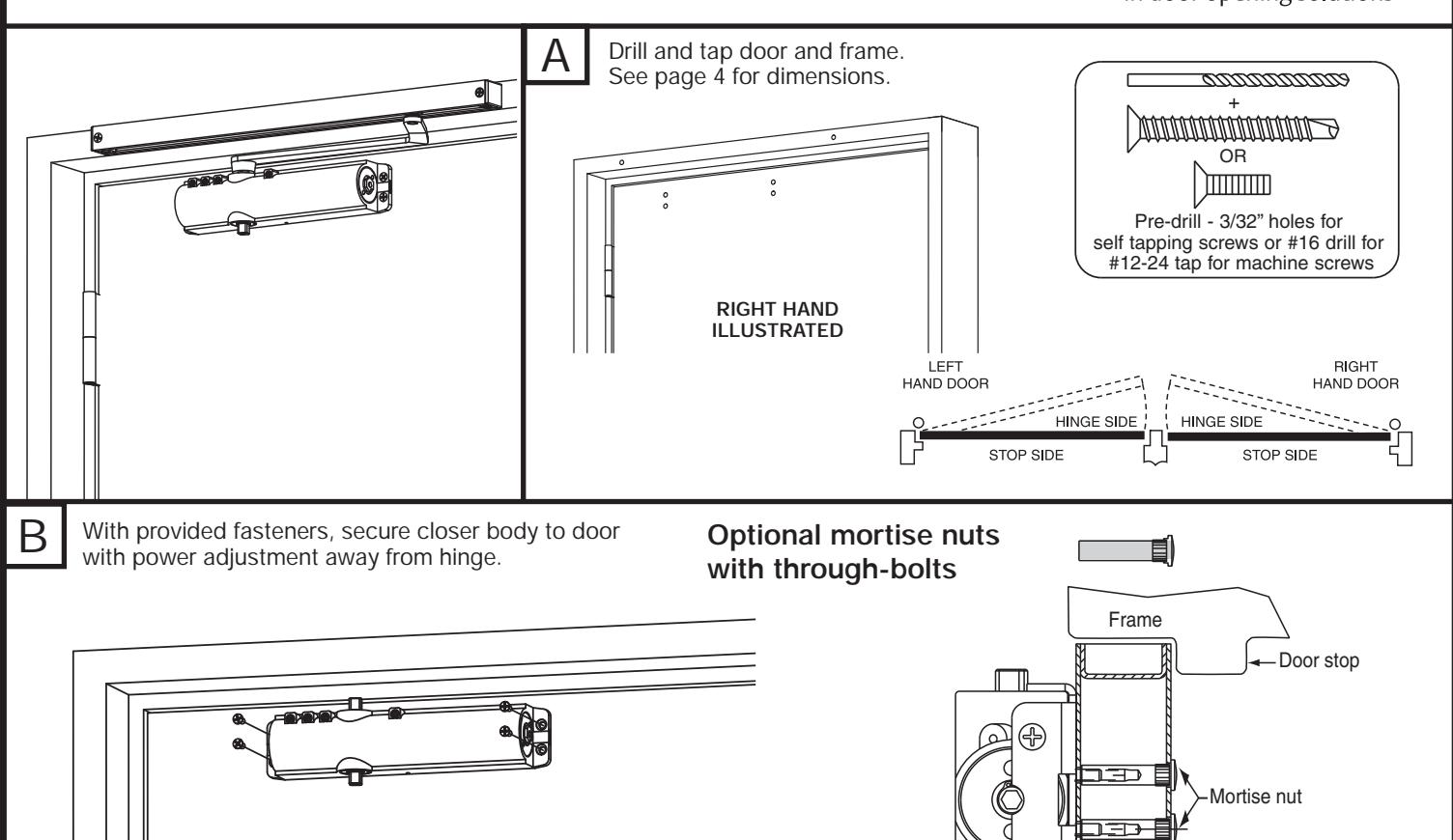

Unreinforced door

Hole for mortise nut body.

Drill 3/8" dia.

Drill 1/4" dia. hole

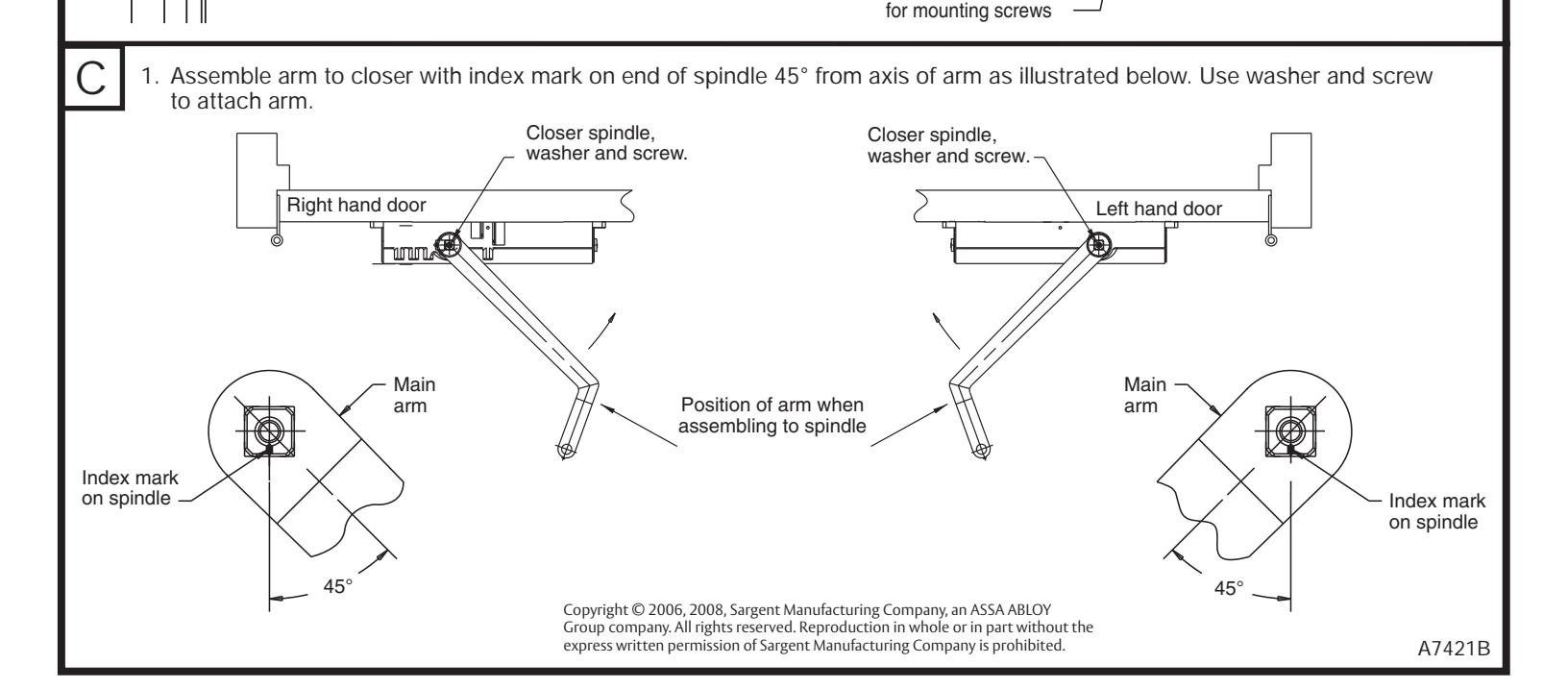

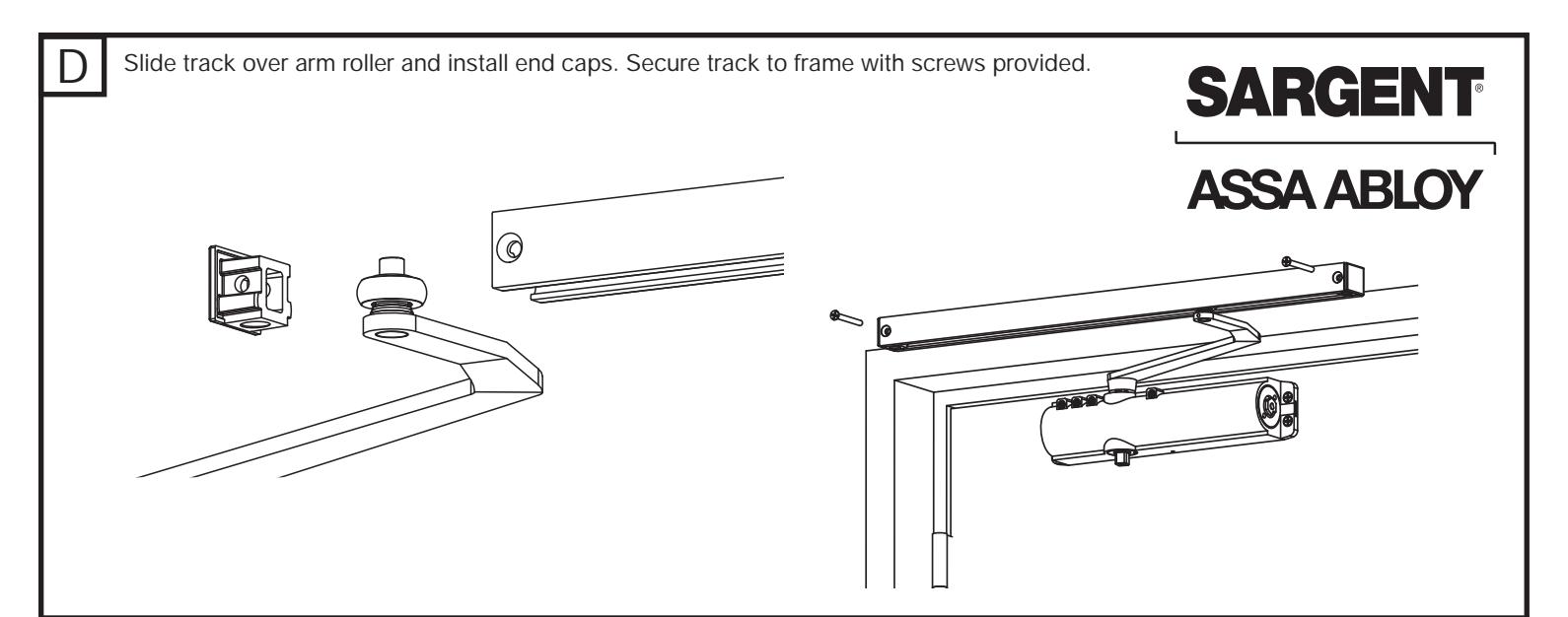

FINAL ADJUSTMENT AND REGULATING PROCEDURES

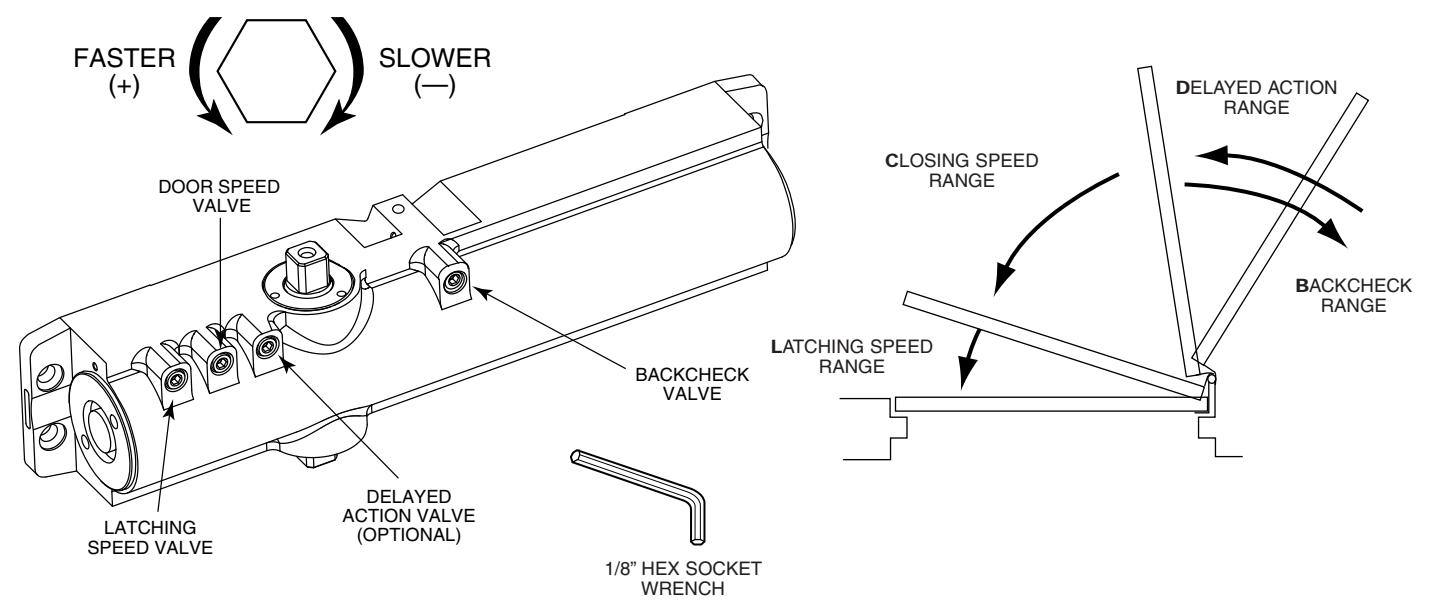

Regulate door speed, latching speed and backcheck. Recommended closing time greater than 6 seconds. If backcheck is required, adjust for slight cushioning effect. *Auxiliary door stop required. Use 1/8" hex wrench and adjust valves as needed.

^* If adjustments are ineffective, check indexing as shown in step 3 and check templating

Adjust power to minimum required to reliably close and latch door

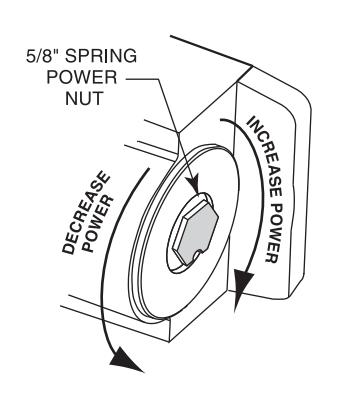

NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT
DOOR WIDTH (INCHES)	ADJUSTMENTS
24-30	Turn nut 1-3 🔍
30-36	Factory Set
36-42	Turn nut 1-3
42-48	4-6

Adjusting door to close due to high draft conditions may exceed ADA standards. Consult local ordinances when fire doors are involved.

ASSA ABLOY, the global leader in door opening solutions

FINAL ADJUSTMENT AND REGULATING PROCEDURES

G

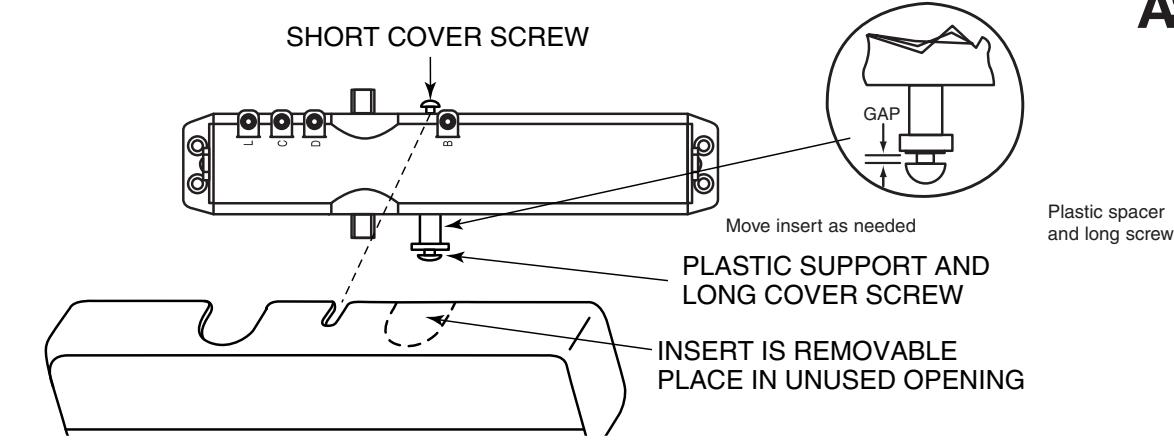

Install cover as shown

ASSA ABLOY

Adjustments for "B" and "H" option

"B" option

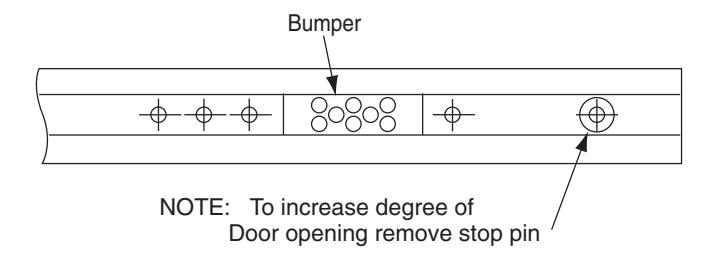

Bumper assists backcheck in cushioning the opening for door. It is not intended to replace an auxiliary door stop. To change bumper stop location: Remove mounting screw and relocate bumper stop at desired position

To change bumper stop location — remove mounting Screw and relocate bumper stop at desired position.

"H" option

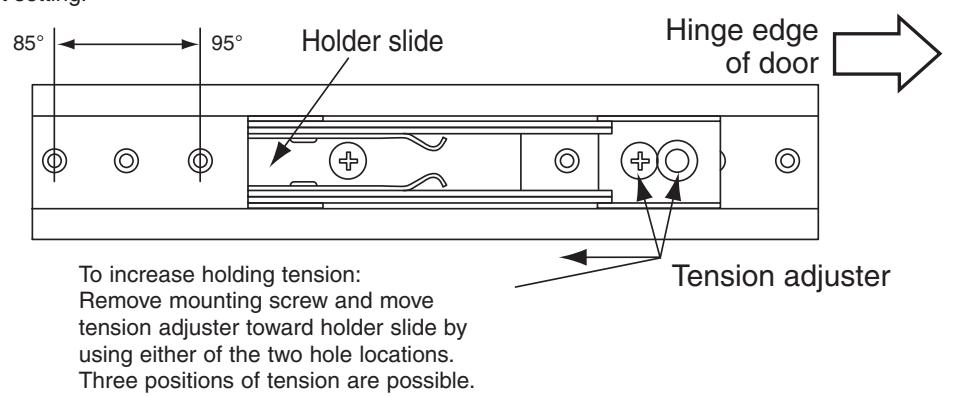

The holder device is set for 95° door holding position at the factory. Tension is set at the lightest setting.

85. 10 120	160.€	0.021	Н	HOLDER ARM
$\backslash bigvee$	160.⊖	120.	OD	REGULAR ARM
HOLD OPEN	WITHOUT BUMPER	WITH BUMPER	7	DESCRIPTION ARM
RANGE OF	MAXIMUM DOOR OPENING RANGE		אפע דיפנ	DESCRIPTION

3/16*-2 FACE OF DOOR 5/16. DOOR TOP RAIL REQUIRED

5/8*

FRAME

NOTES:

• RIGHT HAND DOOR SHOWN, LEFT HAND DOOR OPPOSITE. 12 GAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES. THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGRS. TO OPEN DOOR 120° REMOVE BUMPER STOP. IF DOOR AND FRAME CONDITION PERMIT. SPACE REQUIRED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN SHOWN
• USE DATA SHEET A7168 FOR DETAILS.

E EGRESS APMS (OD/HI	DATA SHEET: 1430 SERIES TRACK TYPE APPLICATION	SARCENT MFC. COMPANY
) TEMPLET NO. A7419 A	JAN 00	HER HAVEN, COMM. 06511
