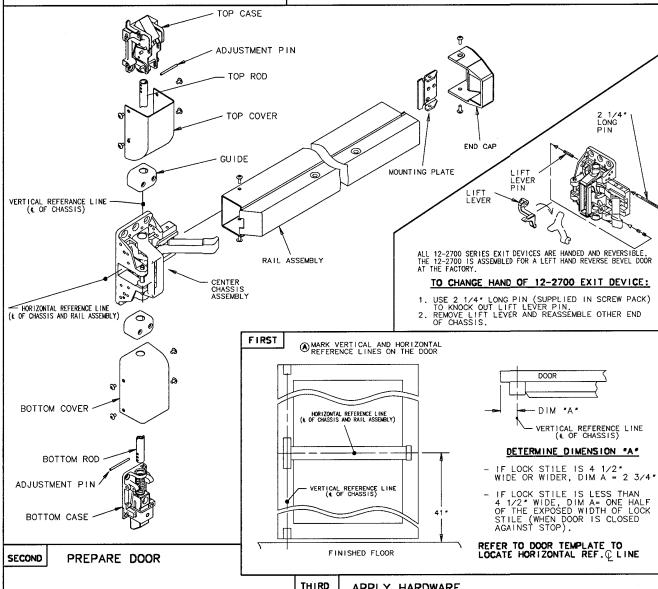

INSTRUCTIONS FOR INSTALLING SARGENT® 12-2700 SERIES FIRE RATED VERTICAL ROD EXIT DEVICE US PATENT No 268003

CAUTION!

BEFORE STARTING: - DOOR SHOULD BE FITTED AND HUNG: - CHECK BOX LABEL FOR HAND & SIZE OF EXIT DEVICE.

AVAILABLE STOCK LENGTHS:

LENGTH "E" = 32" DOOR, NO CUT REQUIRED, CAN BE CUT TO FIT DOORS DOWN TO 24" WIDE. LENGTH "F" - 36" DOOR, NO CUT REQUIRED. CAN BE CUT TO FIT DOORS DOWN TO 30" WIDE.

I FNOTH "G" - 48" DOOR. NO CUT REQUIRED. CAN BE CUT TO FIT DOORS DOWN TO 36" WIDE.

IMPORTANT:

OF THE DOOR.

1, FOR RIM CYLINDER APPLICATIONS: INSTALL CYLINDER TAIL WASHER TO CYLINDER TAIL PIECE. SEE STEP THREE FOR DETAILS.

2, SURFACE OF THE DOOR WHERE EXIT DEVICE

CYLINDER TAIL WASHER

REVERSE BEVEL

IS TO BE APPLIED, MUST BE FLUSH CLEAR AWAY ANY RAISED PROJECTIONS TO ALLOW EXIT DEVICE TO REST THIS EXIT DEVICE IS HANDED ON FLAT SURFACE

RIGHT HAND

TAPE TEMPLATE ON THE INSIDE OF THE DOOR ALONG REFERENCE LINES WITH SUPPLIED TAPE. LINES WITH SUPPLIED TAPE. HOW ALLOW THE THE THE THE THE THE THE THE THE THE

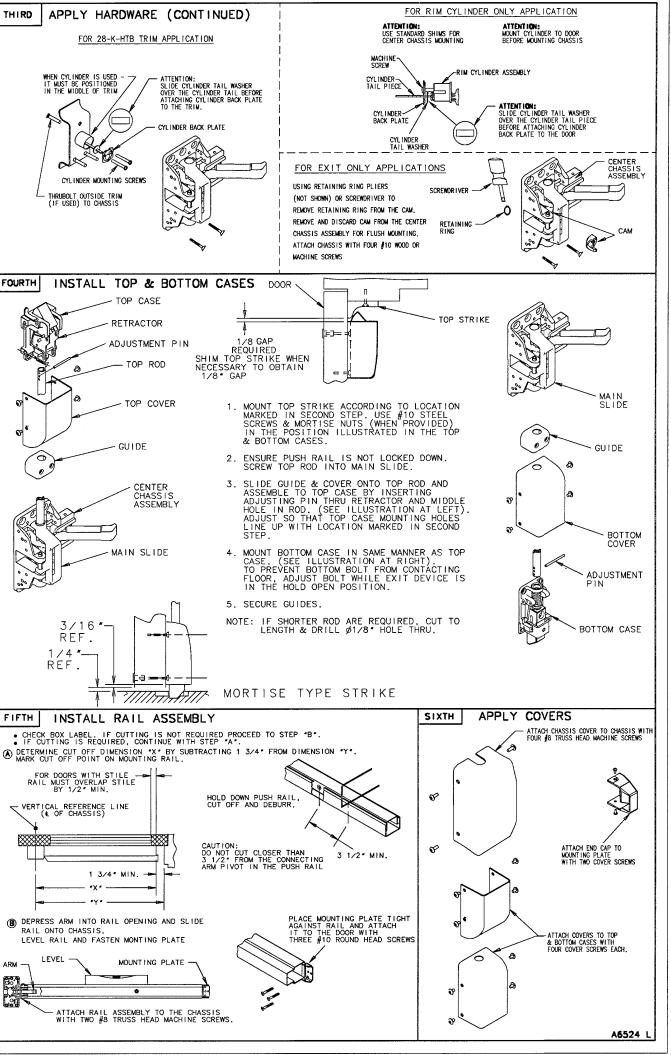

APPLY HARDWARE

FOR LEVER TRIM APPLICATIONS

SEE SEPARATE INSTRUCTION SHEET. PACKED WITH TRIM

A6524 I
