Installation Instructions for 1130 Series Door Closers (Hold Open Arm Models)
Open the original PDF document
View PDF1130-HU Series Non-Handed Door Closer
Arm Model 1131-HU
Installation Instructions
Hold Open arm model, adjustable size 1-6 (&)
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65warnings.ca.gov.
READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
SARGENT
ASSA ABLOY

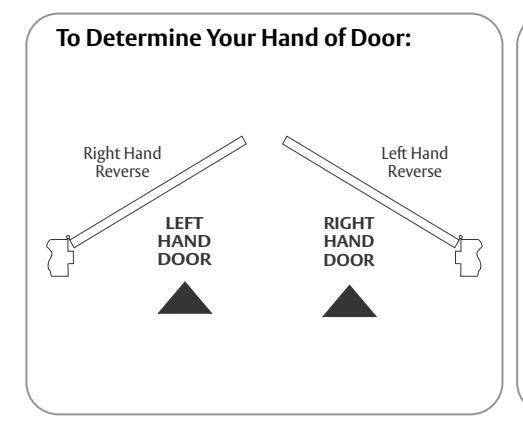

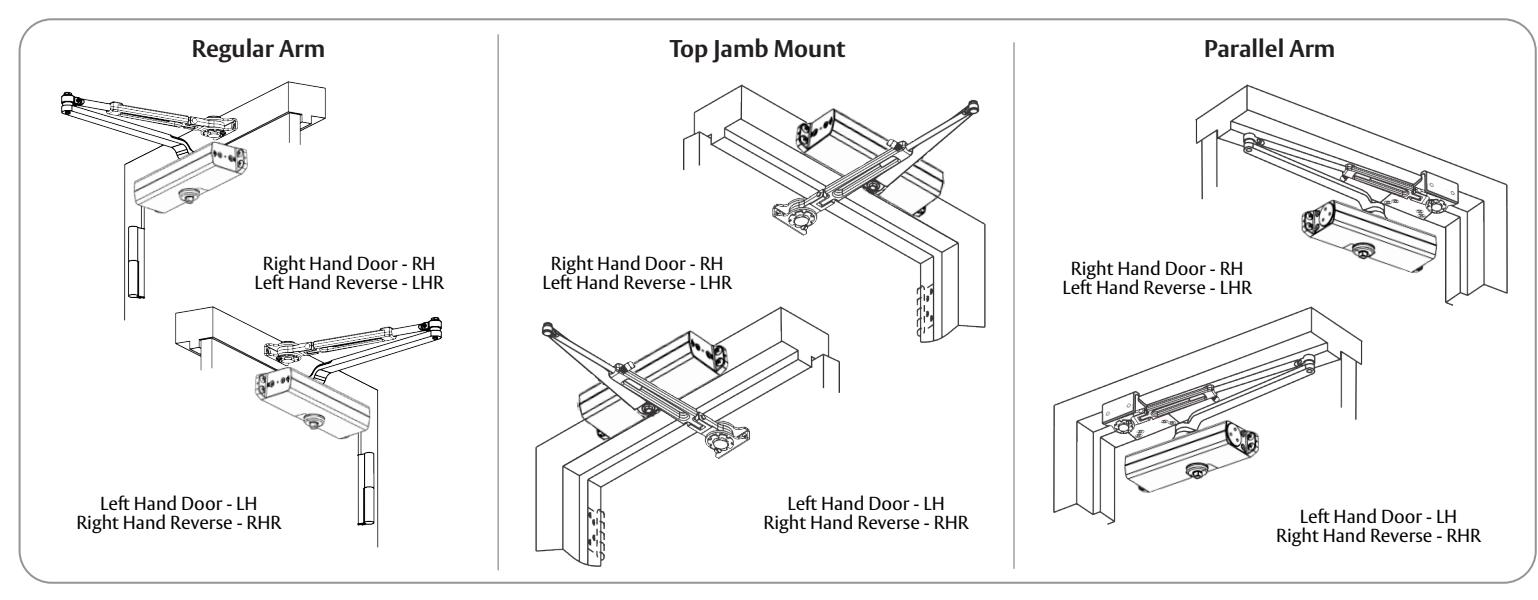

ATTENTION:
An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.
- For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
- Doors should be hung on ball bearing or anti-friction hinges.
- A separate door stop is recommended.
1130-HU Series Hold Open Closer
- Always consult door/frame manufacturer for fastener compatibility.
- Door and frame must be properly reinforced.
- Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
- These door closers should NOT be installed on exposed side (weather side) of exterior doors.
- Dimensions are given in inches (millimeters).

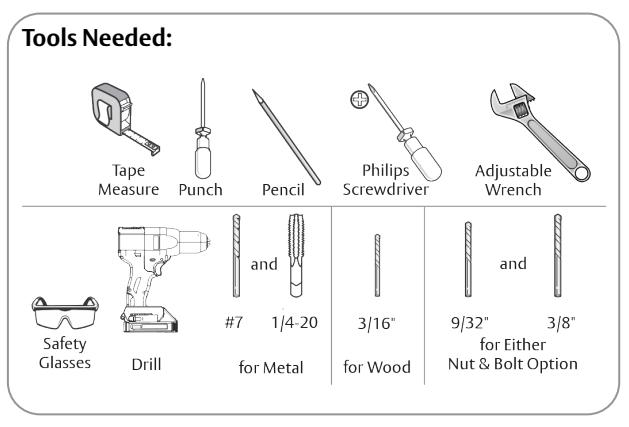

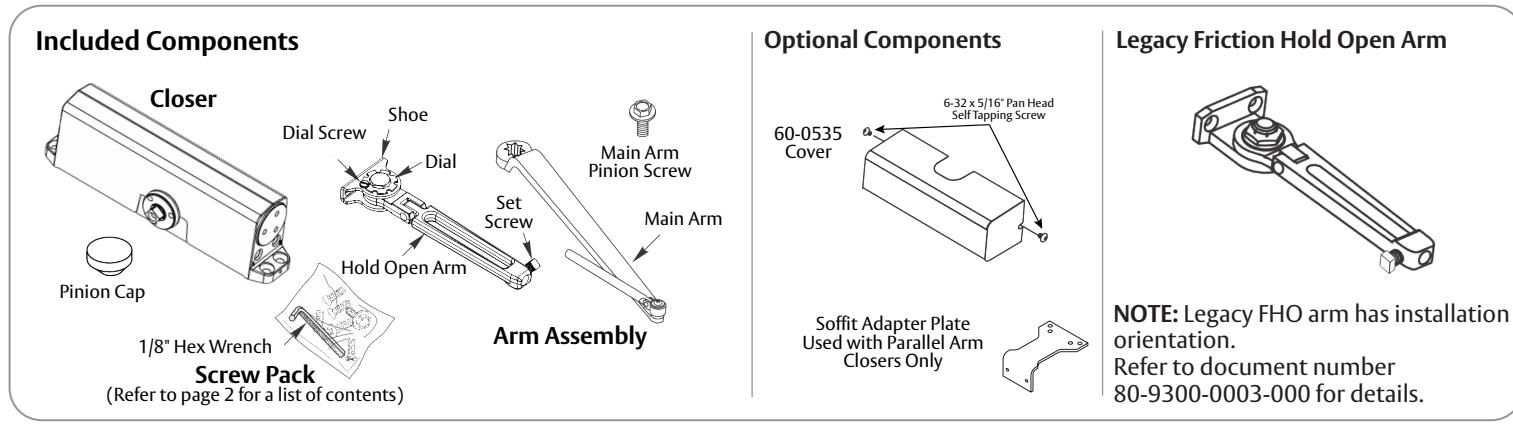

Supplied Hardware
| Mounting Hardware | Door or Frame | Drill | |||
|---|---|---|---|---|---|
| Closer, Holder Shoe, Holder, PA Bracket: 1/4-14 x 1-1/2 Oval Flat Head Self Drilling. Screw | Wood/Metal | 3/16" (4.8mm) for wood | |||
| Closer, Holder Shoe, Holder, PA Bracket: 1/4-20 x 3/4 Oval Flat Head Mach. Screw | Metal |
Drill #7 (.201 dia. or 5.1mm)
Tap 1/4-20 |
|||
| H/O Shoe to Holder, PA Bracket: 1/4-20 x 1/2 Oval Flat Head Mach. Screw | All | N/A | |||
| Closer: Sleeve Nut and Bolt (SNB) (optional) | Hollow Metal |
9/32" (7.0mm) thru
3/8" (9.5mm) door face opposite to closer |
|||
|
with 1/4-20 x 3/4 Oval Flat Head Mach. Screw
(recommended) |
Aluminum or Wood | 3/8" (9.5mm) thru | |||
| Decrees and interest of the second |
Closer:
Thru Bolt and Grommet Nut (TBGN) (optional) |
All |
9/32" (7.0mm) thru
3/8" (9.5mm) dia. x 3/8" (9.5mm) deep, door face opposite to closer |
||

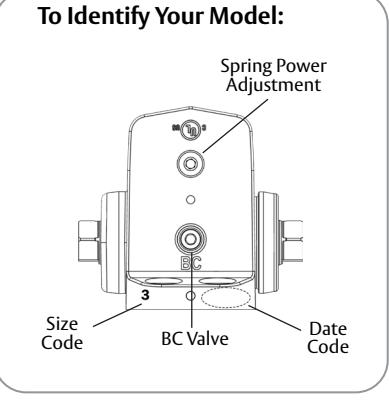

Closer Adjustments

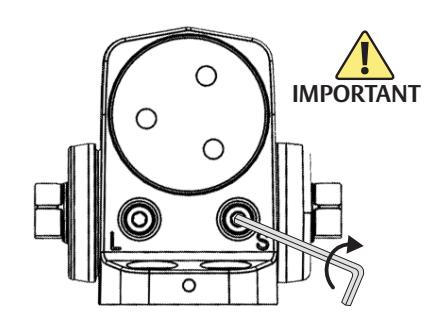

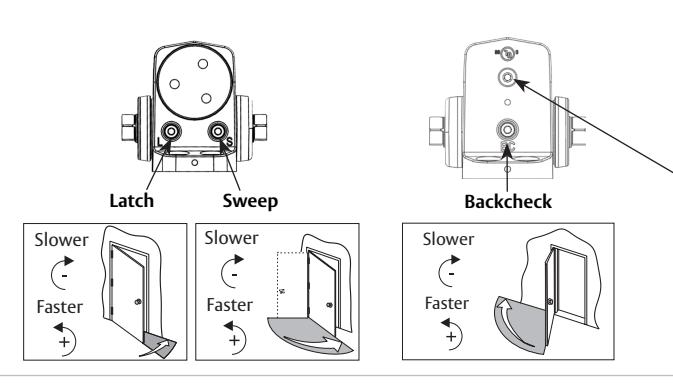

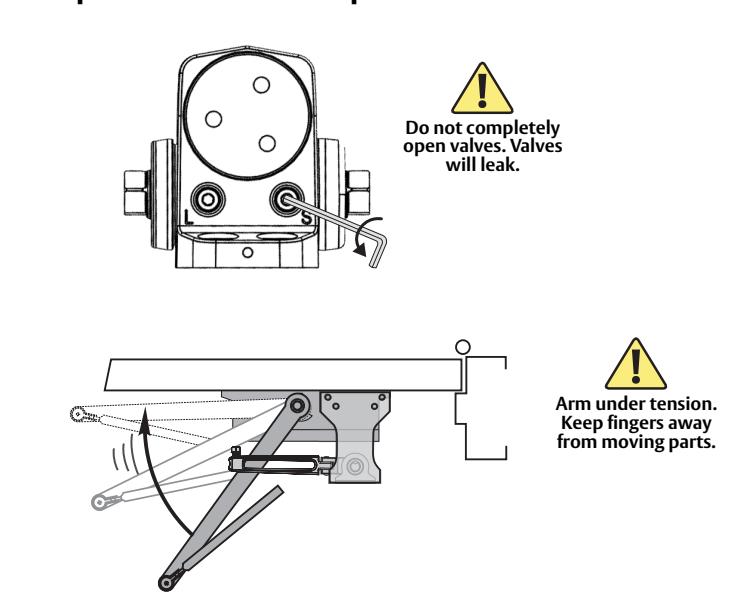

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve. Door must be open to adjust spring closing power. Refer to the chart.
Use of a power drill will void the Warranty.
| Spring Closing Power | Number of Turns Required | |||||||
|---|---|---|---|---|---|---|---|---|
| ır | Type of | Maximum Door Size | ||||||
| Door | Installation | * |
34"
(0.85M) |
36"
(0.90M) |
40"
(1.00M) |
44"
(1.10M) |
48"
(1.20M) |
|
| 1131 | Interior |
Regular Arm
Top Jamb |
Full 360° Turns | 2 | 4 | 6 | 10 | 12 |
| Parallel Arm | 3 | 5 | 8 | 11 | 14 | |||
| Exterior |
Regular Arm
Top Jamb |
3 | 5 | 8 | 11 | 14 | ||
| Parallel Arm | 5 | 8 | 11 | 16 | 19 | |||
| *30 Full (360°) turns maximum available == turns as shipped | ||||||||

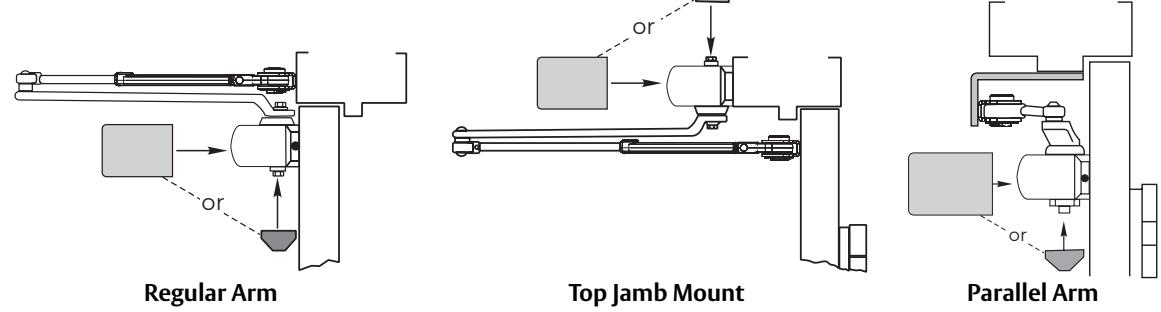

Pinion Cap or Cover
Do not over tighten cap or cover screws.
1130-HU Regular Arm Installation (Right Hand Shown)

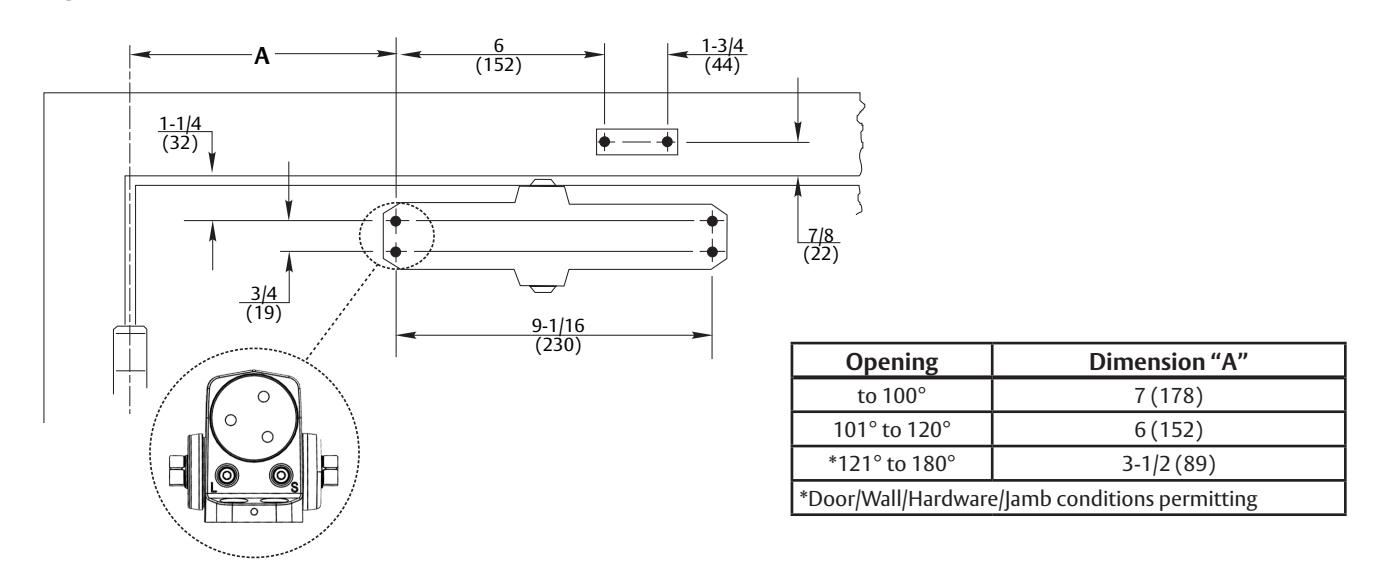

1. Prepare door and frame.

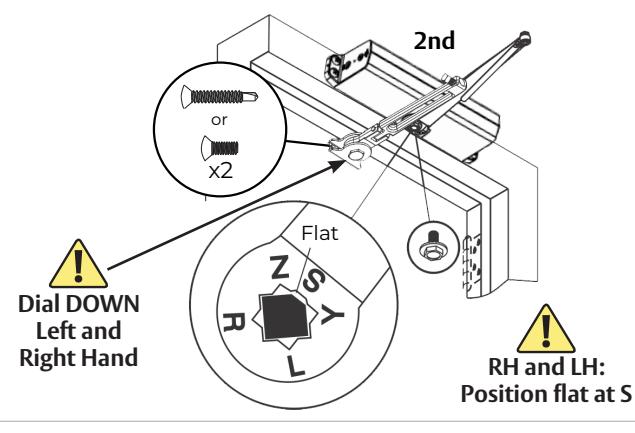

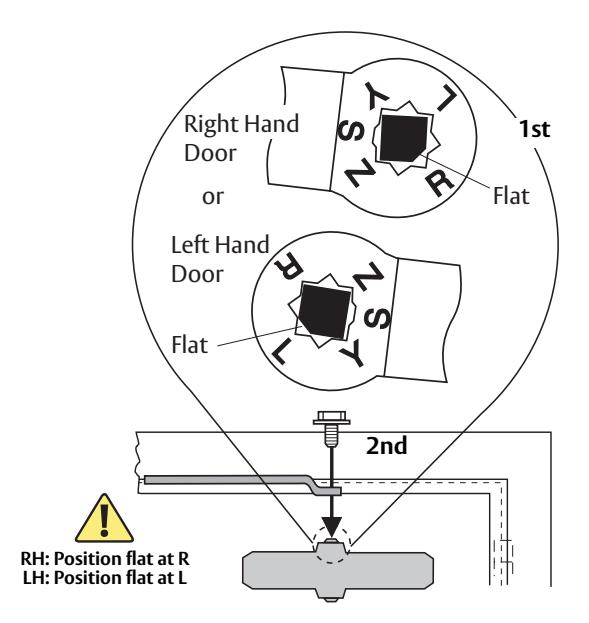

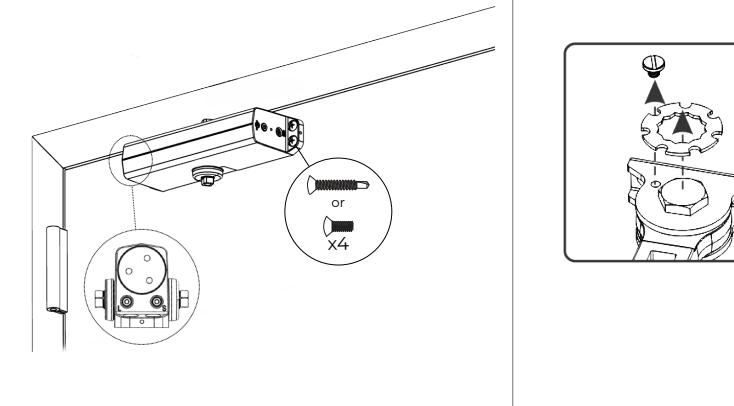

2. Mount closer to door.

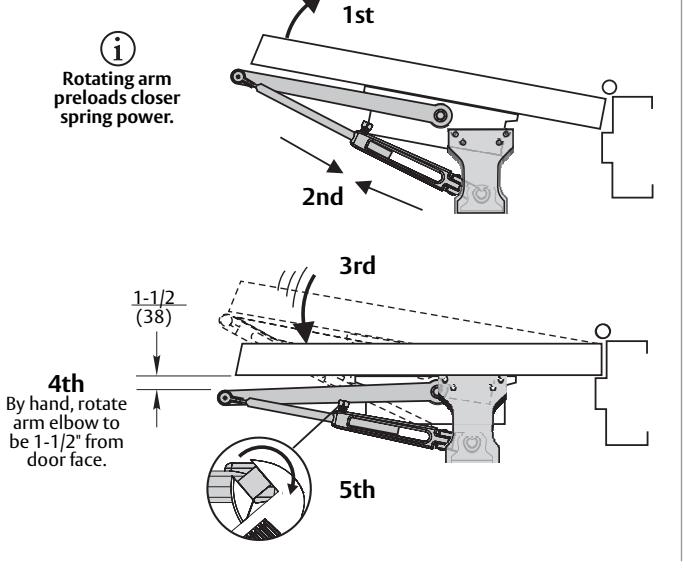

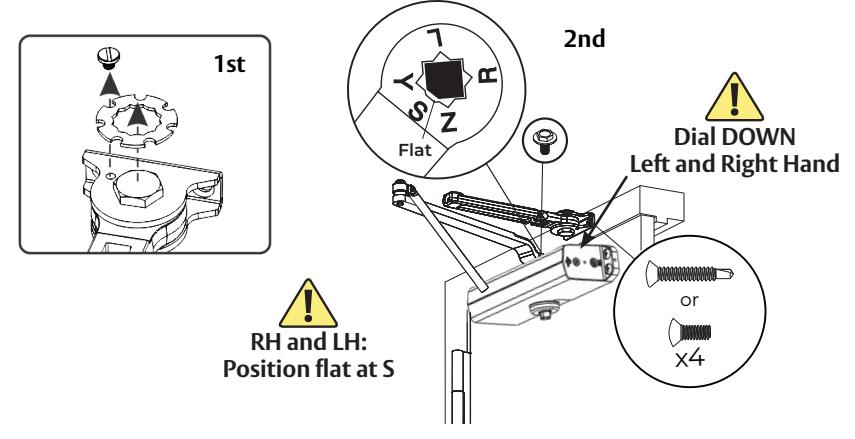

5. Set Hold Open.
Keep door open in position until dial screw secures dial.
The 1130-HU Hold Open Closer - Regular Arm has now been installed.
Go to page 2 for closer adjustments and decorative cap or cover installation.

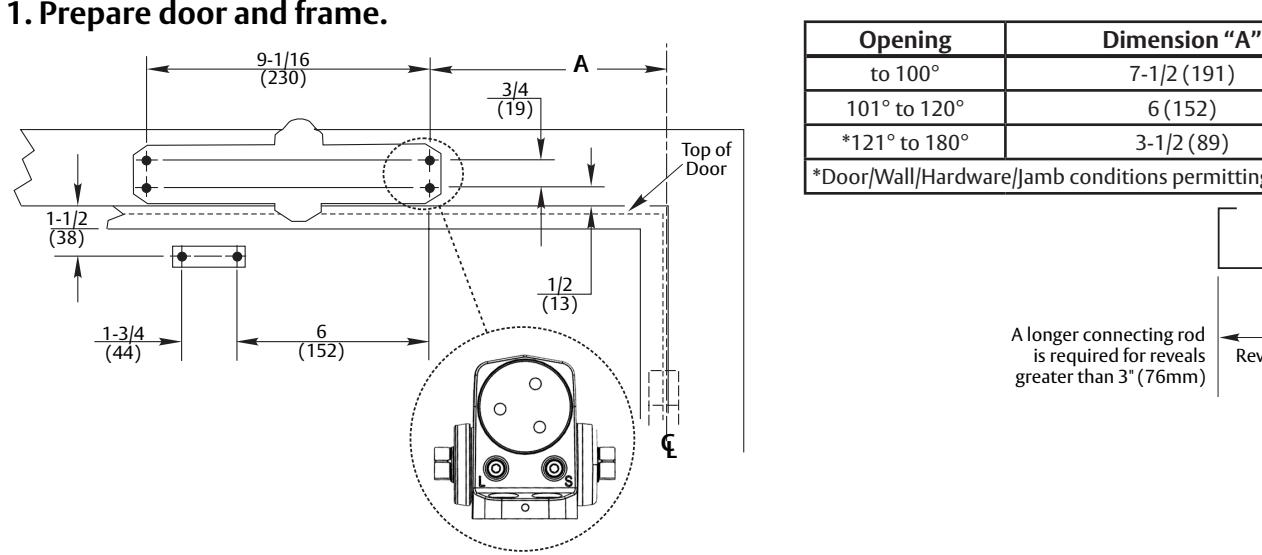

1130-HU Top Jamb Arm Installation (Right Hand Shown)
| to 100° | 7-1/2 (191) | |||
| 101° to 120° | 6 (152) | |||
| *121° to 180° | 3-1/2 (89) | |||
| *Door/Wall/Hardware/Jamb conditions permitting | ||||

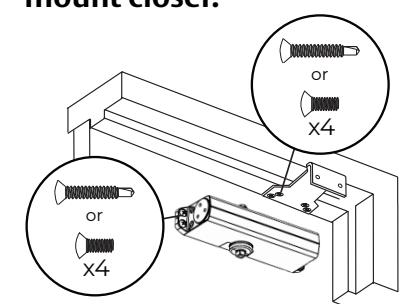

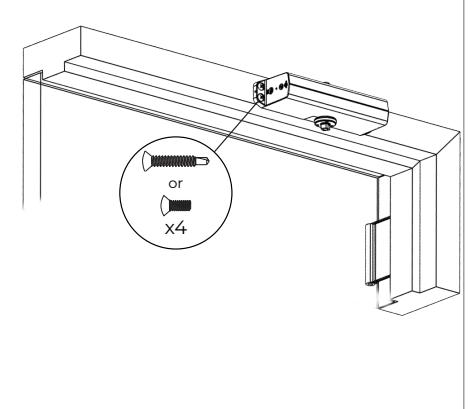

2. Mount closer to frame.

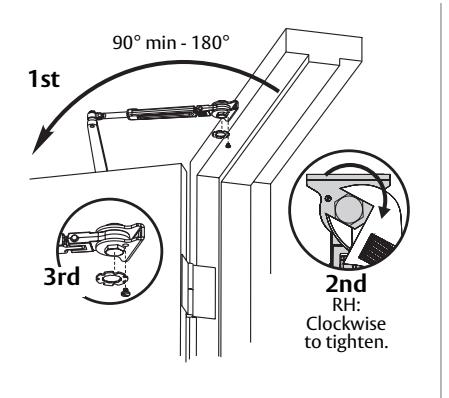

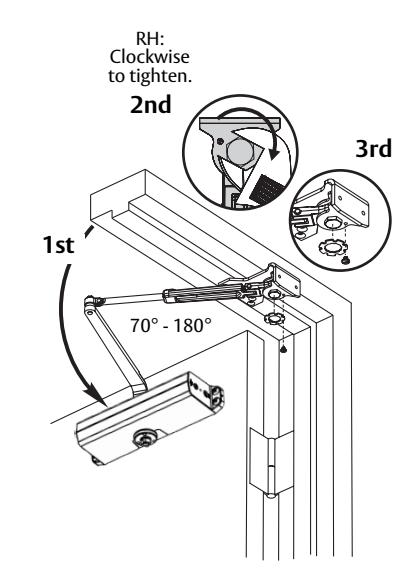

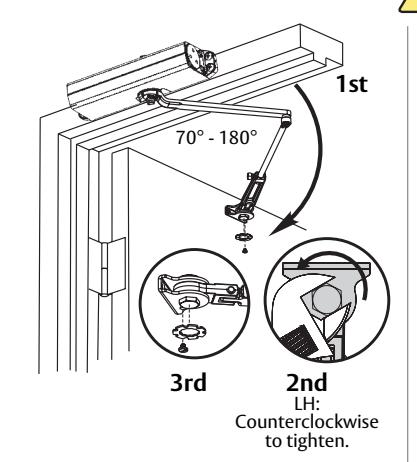

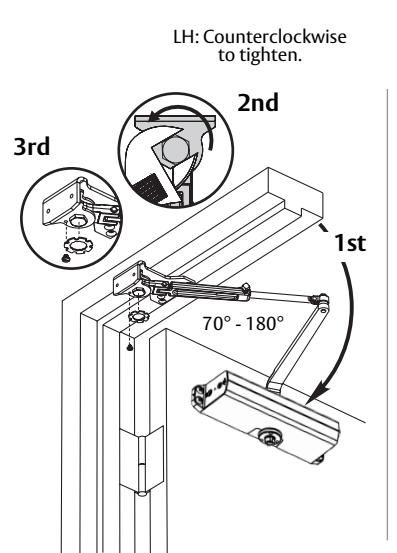

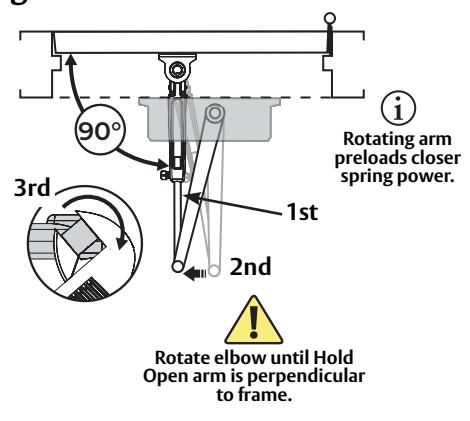

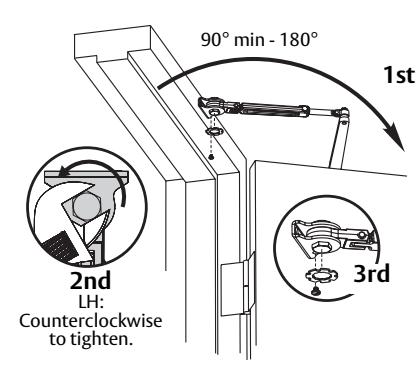

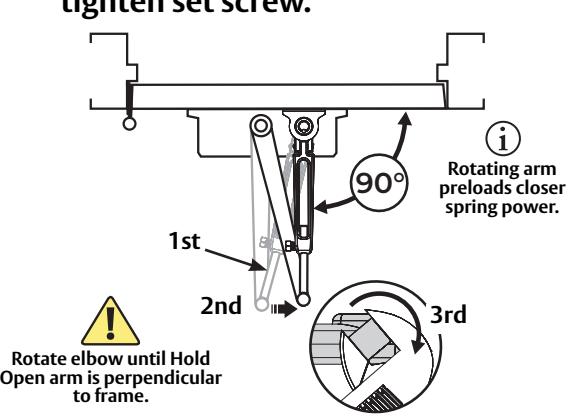

4. Connect arms, preload spring, and tighten set screw.

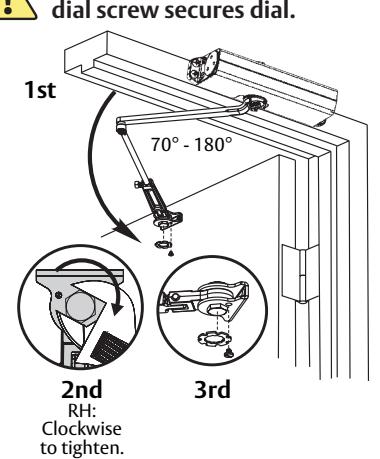

5. Set Hold Open.
Keep door open in position until
The 1130-HU Hold Open Closer - Top Jamb Mount has now been installed.
Go to page 2 for closer adjustments and decorative cap or cover installation.
1130-HU Parallel Arm Installation (Right Hand Shown)
1. Prepare door and frame.
|
Door
Opening |
Dimension
"A" |
Dimension
"B" |
||
|---|---|---|---|---|

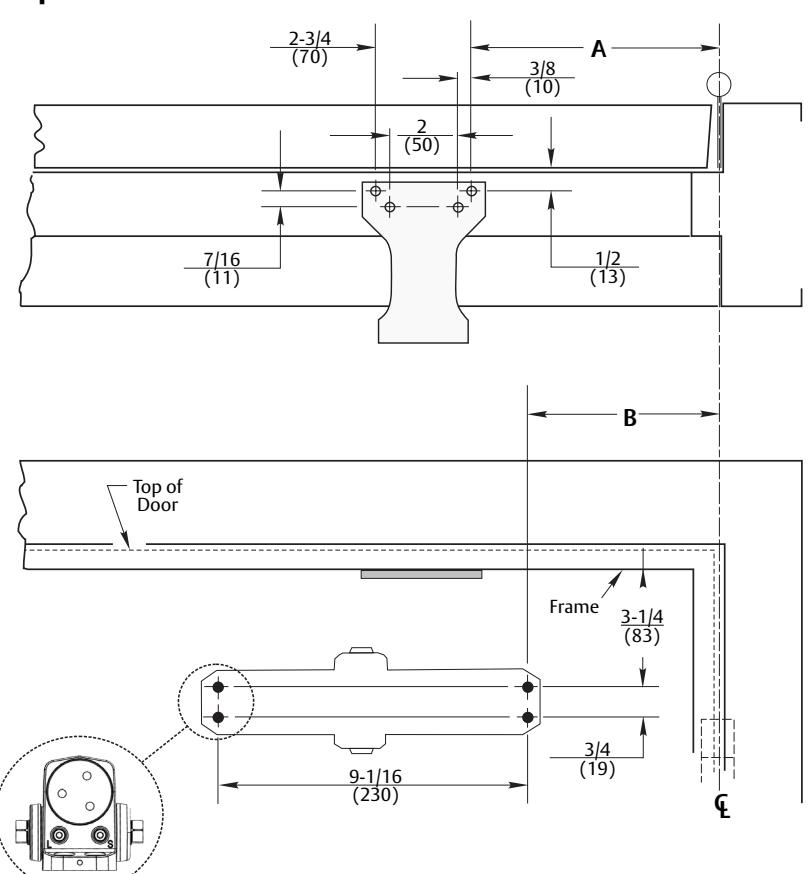

| to 100° | 9-1/4 (235) | 7-5/8 (194) | ||
| 101° to 130° | 7-3/4 (197) | 6-1/8 (156) | ||
| *131° to 180° | 5-3/4 (146) | 4-1/8 (105) | ||
| *Door/Wall/Hardware/Jamb conditions permitting | ||||
2. Close latch and sweep valves.

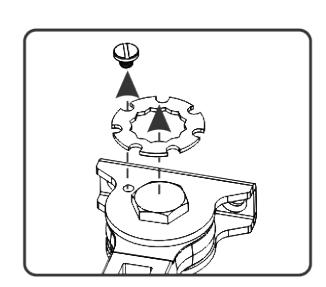

3. Remove dial from Hold Open arm.

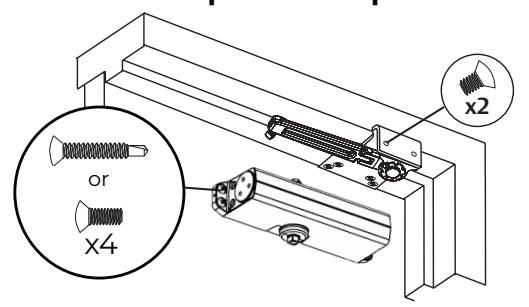

4. Install soffit plate and mount closer.
5. Install Hold Open arm to plate.
6. Place main arm on closer spindle and rotate.
The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.
1130-HU Parallel Arm Installation (Right Hand Shown) cont.

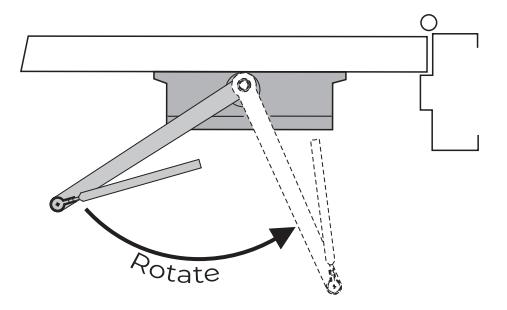

7. Remove arm and attach as shown.
8. Open latch and sweep valves.
9. Connect arms, preload spring, and tighten set screw.
10. Set Hold Open.
Keep door open in position until dial screw secures dial.
The 1130-HU Hold Open Closer - Parallel Arm Mount has now been installed.
Go to page 2 for closer adjustments and decorative cap or cover installation.
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2019, 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.sassabloydes.com/patents. Approved 2023-02-27
Attention Installer: Improper installation may result in damage to the product and void the factory warranty.
