INSTALLATION INSTRUCTIONS FOR Lever Pull Trim

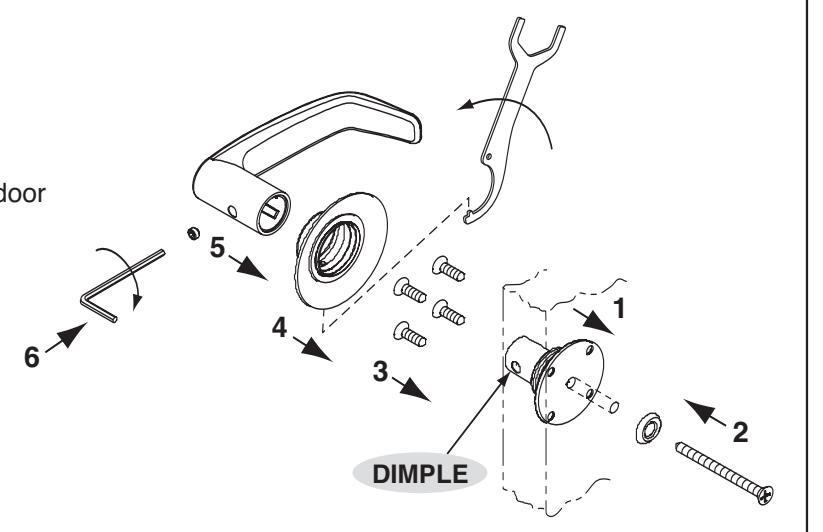

11U93 Single Lever Pull

• 1. Align mounting plate with five holes prepared in door, dimple faces edge of door
• 2. Install screw and washer from opposite side of door
• 3. Install four surface screws
• 4. Assemble rose and tighten
• 5. Assemble lever
• 6. Secure with set screw

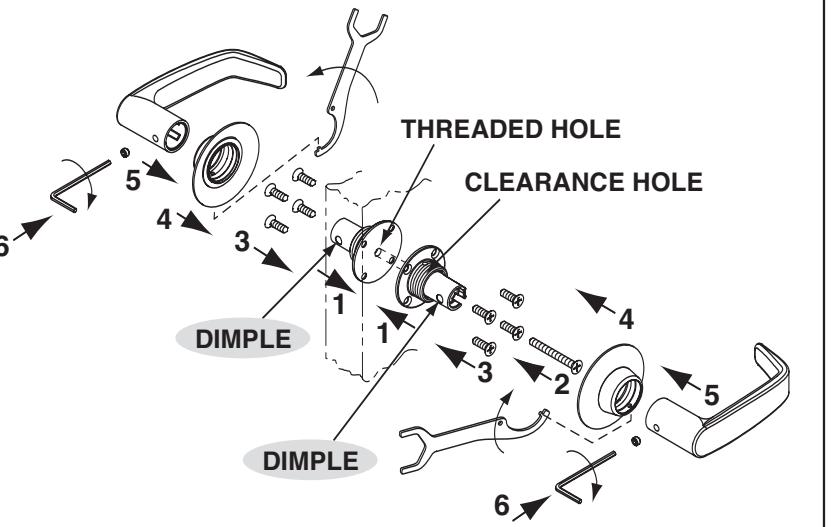

11U94 Double Lever Pull

• 1. Align both mounting flange assemblies with five holes prepared in door, dimple faces edge of door
• 2. Install long screw to secure mounting plates
• 3. Install eight surface screws
• 4. Assemble both roses and tighten
• 5. Assemble both levers
• 6. Secure with set screws

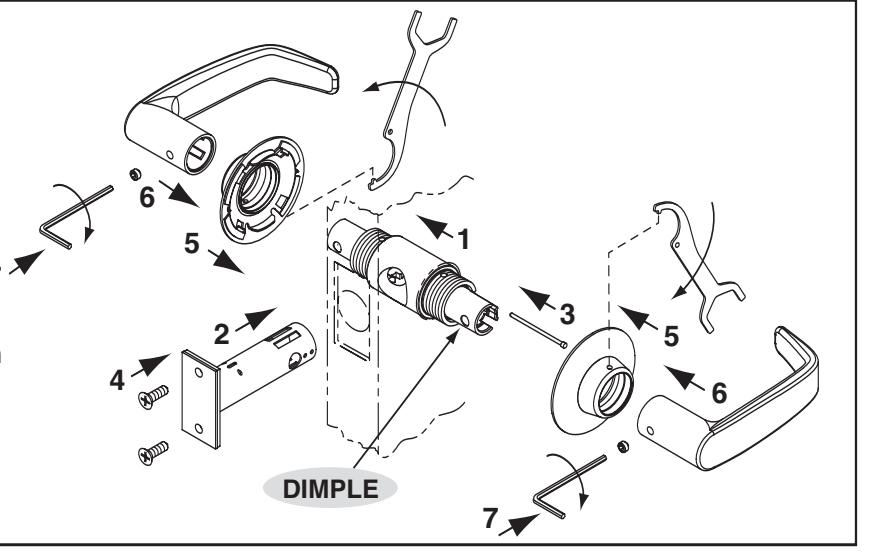

11U94-2 Double Lever Pull

• 1. Insert tube assembly into hole in door
• 2. Insert latch assembly
• 3. Push aligning pin through tube assembly and latch assembly
• 4. Secure latch assembly with two screws
• 5. Assemble both rose assemblies and tighten
• 6. Assemble both levers
• 7. Secure with set screws
