INSTALLATION INSTRUCTIONS FOR 10G70 & 10G71 Electro-Mechanical Bored Locks for 1-3/4" Doors With ElectroLynx® Connector System

For installation assistance, contact SARGENT at 800-810-WIRE(9473) or www.sargentlock.com

ElectroLynx®

As part of their promise to provide innovative, fast and effective, and higher security solutions to their customers, ASSA ABLOY Group companies offer ElectroLynx, a universal quick-connect system that simplifies the

ElectroLynx® is a registered trademark of ASSA ABLOY, Inc.

Installation Notes: 10G70, 10G71, RX-10G70, RX-10G71

• Lockbodies are available with either 12V or 24V solenoid
• Solenoids require either 12V or 24V AC transformer or a filtered and regulated power supply
• · Lockbodies have an in-line bridge rectifier
• RX- Lockbodies are handed (RH, RHR, LH, LHR)
• Doors manufactured by ASSA ABLOY Group Companies are available pre-wired with ElectroLynx
• Doors without ElectroLynx will have to be hard wired
• 10 Line solenoids are not polarity sensitive

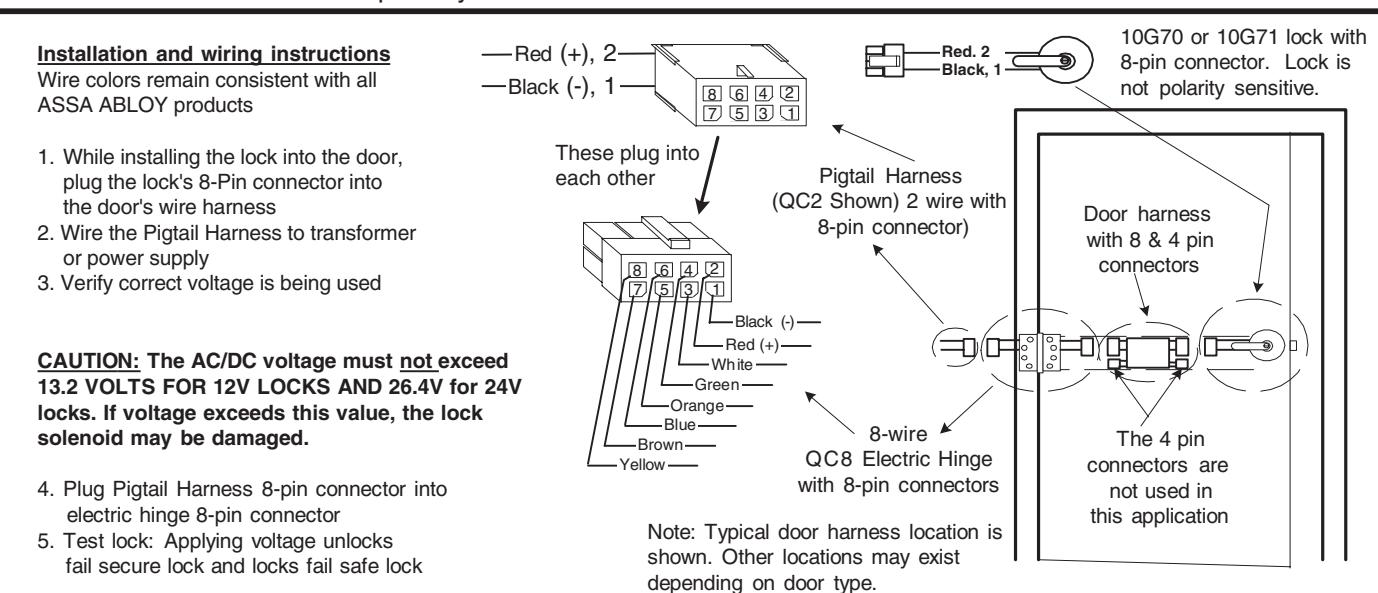

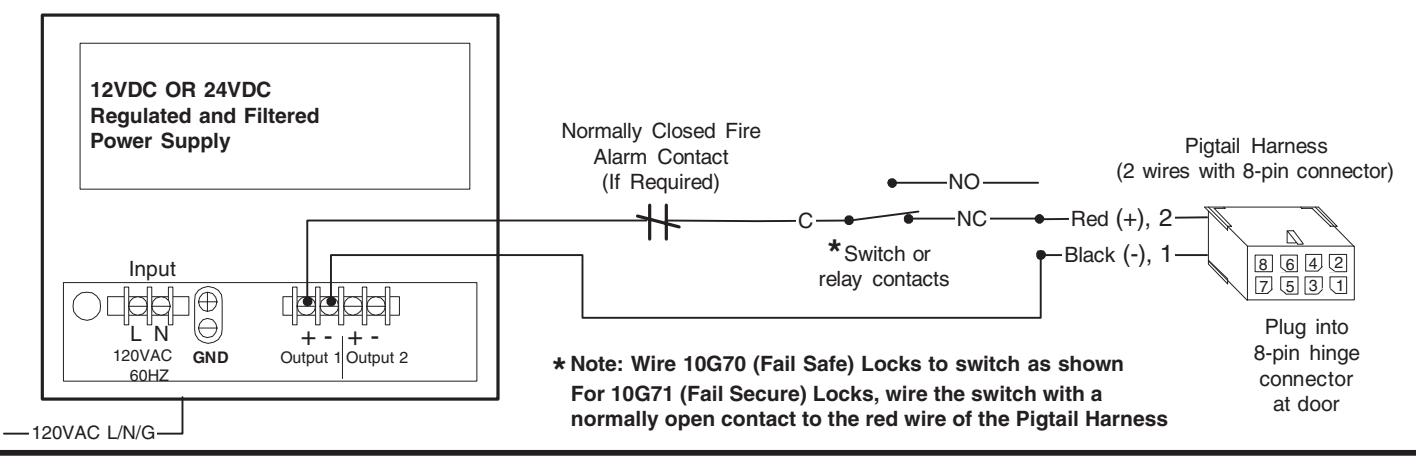

Sample wiring 10G70 Series Solenoid Locks with a 12VDC or 24VDC Regulated and Filtered Power Supply. SARGENT offers both power supplies in 12VDC and 24VDC.

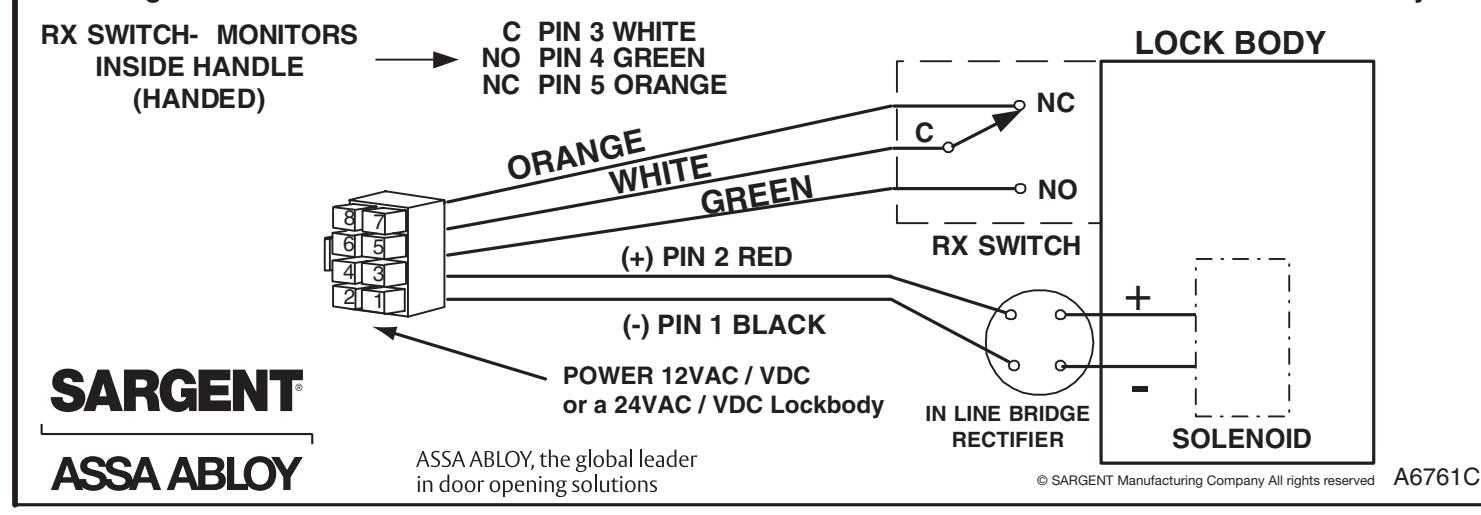

Wiring for RX-10G70/71 Series Solenoid locks. The lock is either 12VAC / VDC or a 24VAC / VDC lock body.
