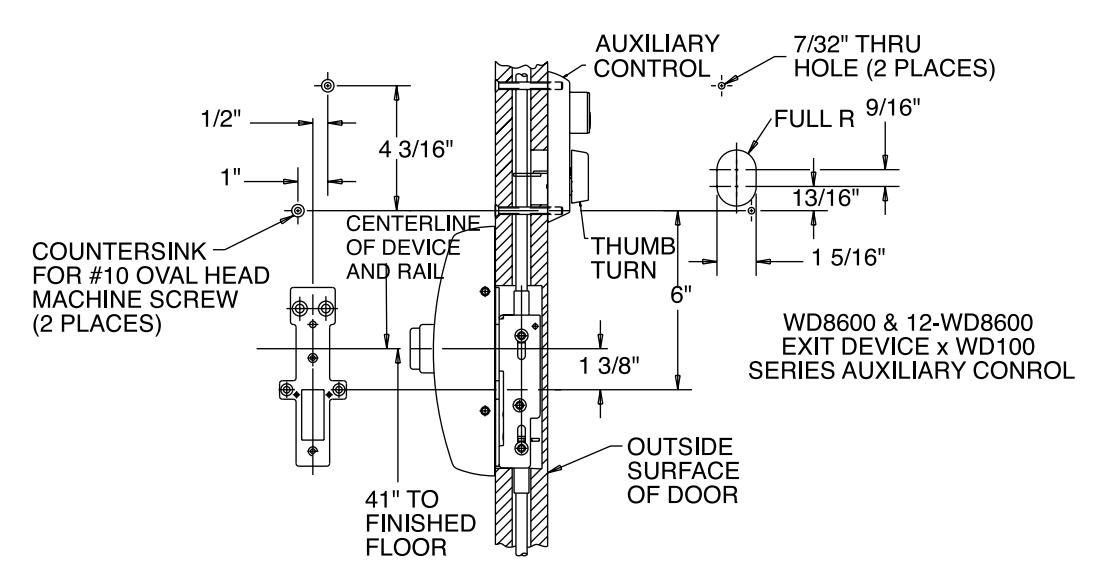

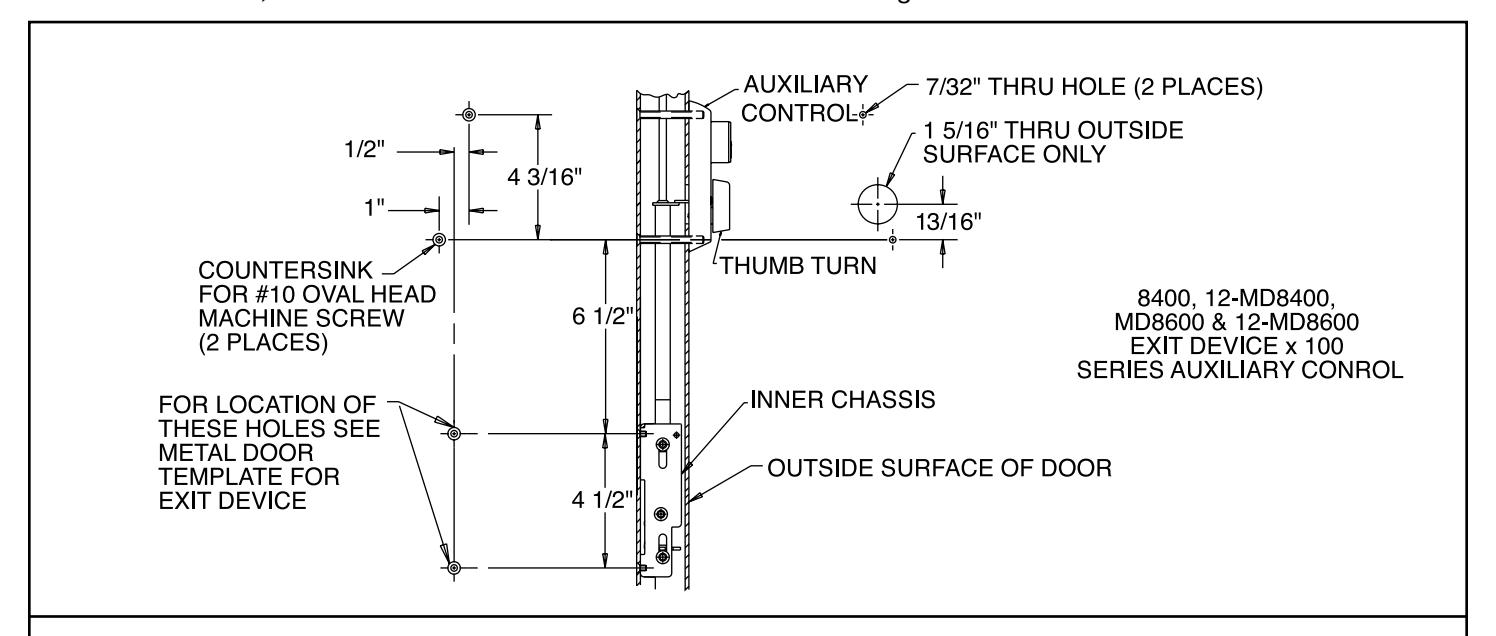

INSTALLATION INSTRUCTIONS For 106, 113, WD106 & WD113 Auxiliary Control With Concealed Vertical Rod Exit Devices

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

SARGENT

ASSA ABLOY

• 1 USED FOR SARGENT 106 & WD106 FUNCTION.
• 2 USED ON 51-06 FUNCTION 82- & 83- CYLINDERS PREFIX (OLD STYLE REMOVEABLE CORE).
• 3 USED ON SARGENT 113 & WD113 FUNCTION ALL CYLINDERS.
• 4 USE AS IS FOR 70-106,70-WD106, 72-106, 72-WD106, 73-106 AND 73-WD106 BEST CYLINDER FUNCTIONS. SCHLAGE CYLINDER SIZE #41.

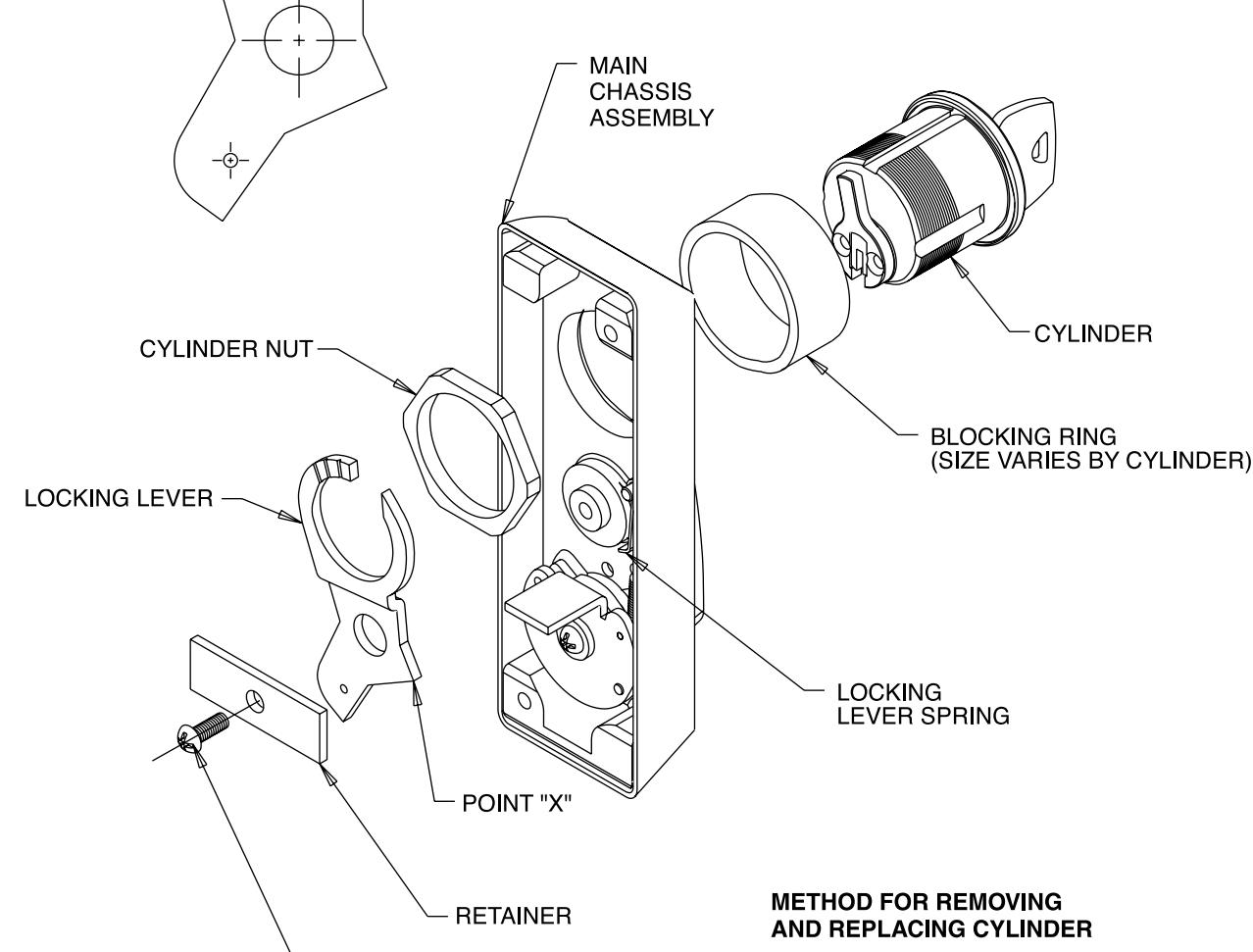

• A) UNSCREW RETAINER SCREW, REMOVE RETAINER AND LOCKING LEVER.
• B) UNSCREW CYLINDER NUT, REMOVE BLOCKING RING AND CYLINDER.
• C) REPLACE CYLINDER BY REVERSING PROCEDURES ABOVE. MAKE SURE THAT CYLINDER CAM FACES UP AND THAT LOCKING LEVER SPRING ENGAGES LOCKING LEVER AT POINT "X".

RETAINER SCREW

2
