Installation Instructions – S6303 Monitoring Options
Open the original PDF document
View PDF
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com
S6303M WIRING INSTRUCTIONS ALL OPTIONS

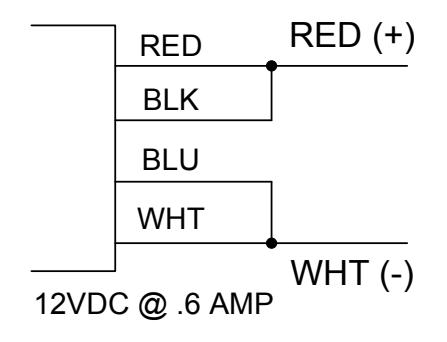

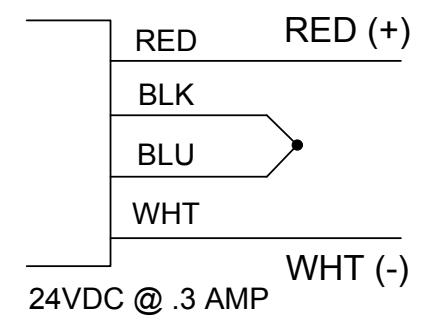

POWER
REX WHT = COM YEL = N/O ORG = N/C
DPS GRN = COM RED = N/O WHT = N/C
LS
WHT/BLK = COM ORG/BLK SECURE YEL/BLK UNSECURE = =
