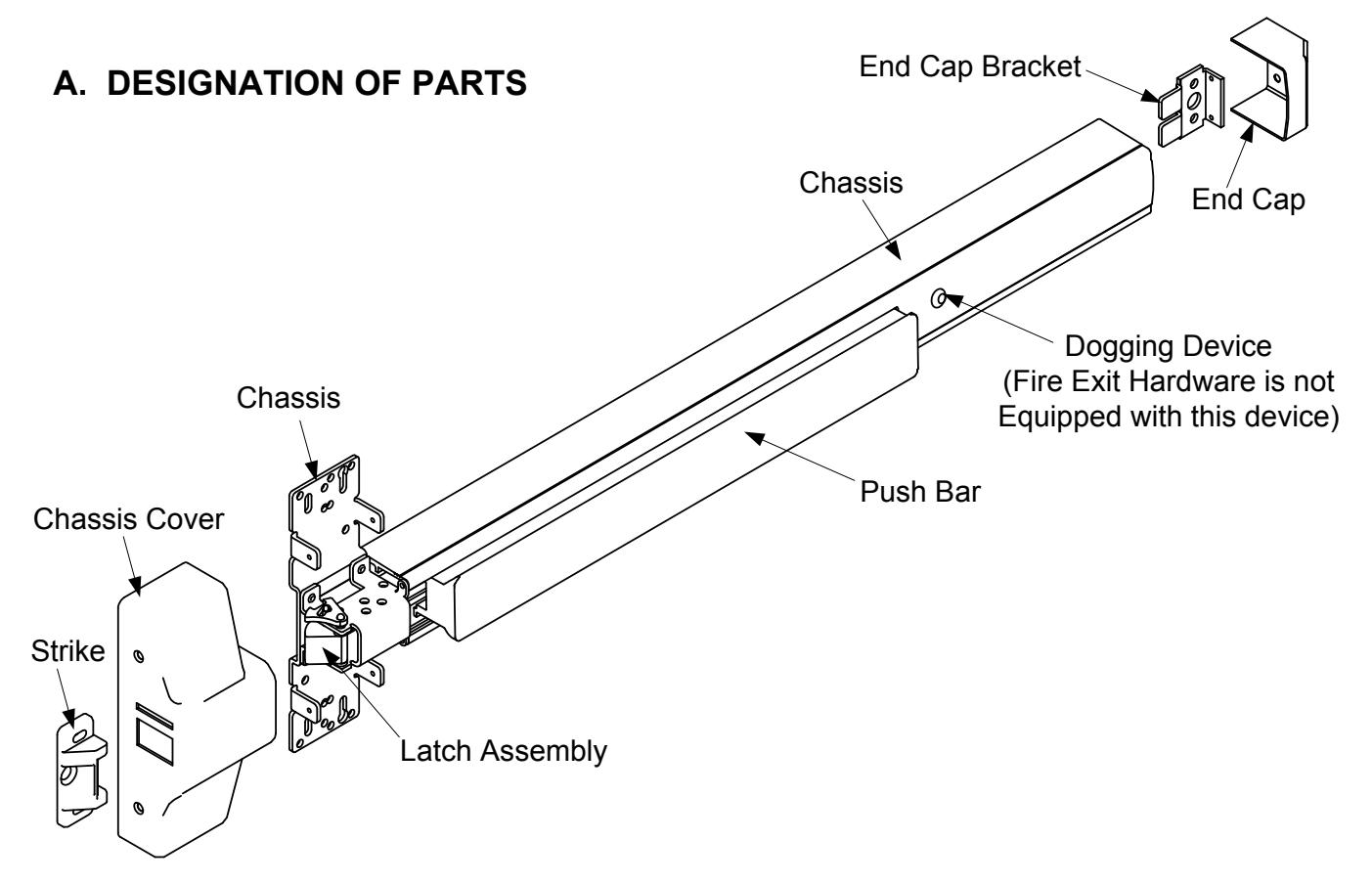

These instructions are presented a in step by step sequence.

Please read it through before installation.

Note: The dimensions of the Template are shown in inches. See attached page for the Metric Conversion Table for millimeters.

B. TYPE OF INSTALLATION

CL

2-7/16"

DOOR

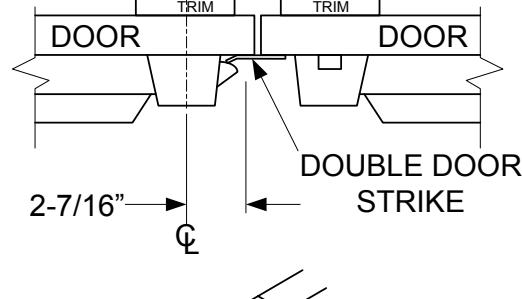

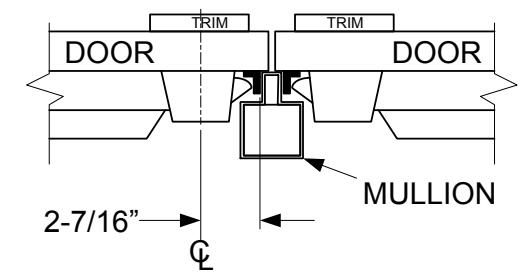

A. Single Door B. Double Door with Mullion C. Double Door without Mullion

C. MARK POSITION FOR INSTALLING

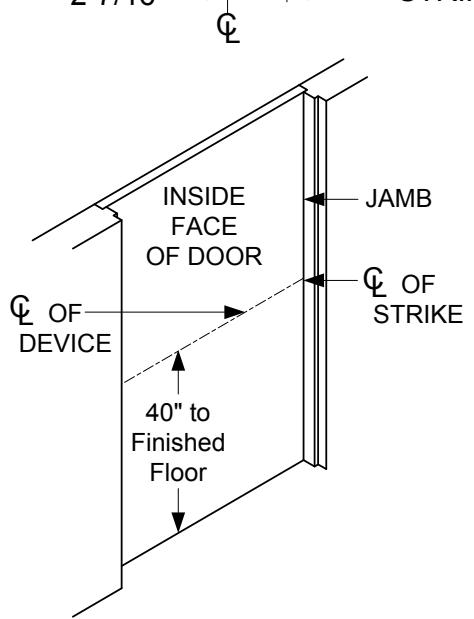

• 1. Mark the center line of device by drawing a line across the door and stop 40" above the finished floor as shown at right.
• 2. Prepare door for you specific device per supplied template.
• 3. Drill holes as marked on door and jamb or mullion.

D. INSTALL STRIKE TO FRAME

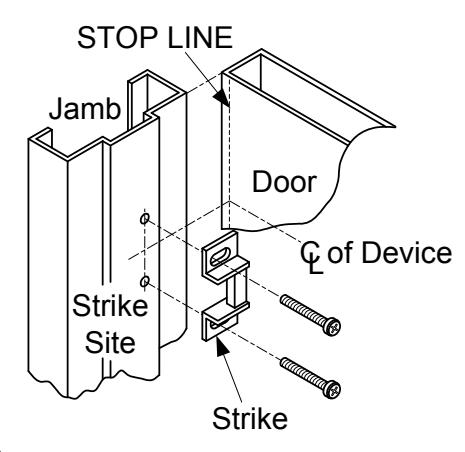

• 1. Place strike over the drilled holes, and attach it to the jamb or mullion with the supplied screws.
• 2. If installing with a vertical rod device for double doors, and additional Double Door Strike must be used in place of the regular strike provided.

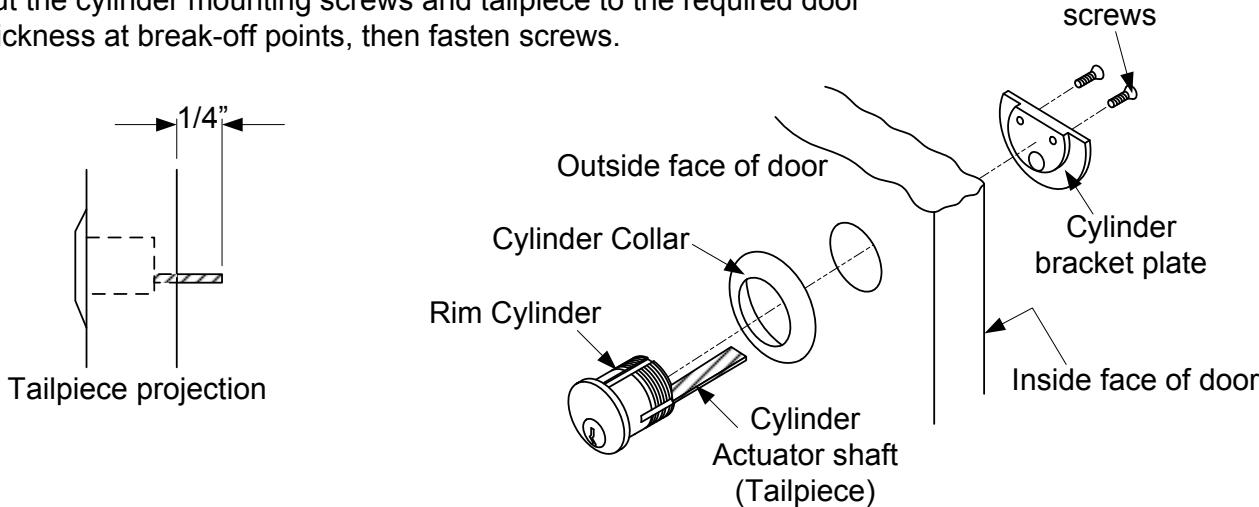

Cylinder mounting

E. IF CYLINDER IS INCLUDED WITH THE DEVICE

• 1. Drill one 1-3/16" diameter thru hole for the cylinder/bracket plate.
• 2. Insert cylinder and cylinder collar from outside of door.
• 3. Place bracket plate on inside of face of the door.
• 4. Put two cylinder mounting screws through the bracket plate and into the cylinder.

F. INSTALL OUTSIDE TRIM

Mark and drill holes for the outside trim (see trim instructions).

E. INSTALL DEVICE BODY

• 1. Remove chassis cover from latch assembly and end cap from end cap bracket.
• 2. Place the device horizontally over the drilled holes and attach with the supplied mounting screws. Bolt device chassis to trim with sexbolts (if required).

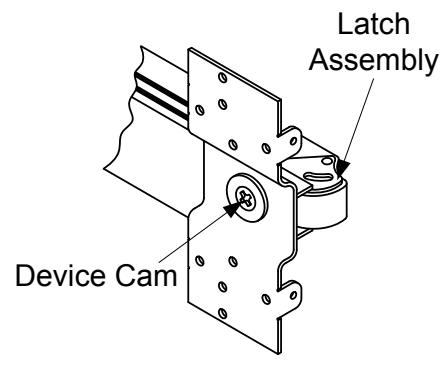

• 3. Make sure cylinder or trim actuator shaft (tailpiece) can insert into device cam concentrically (see device cam at right).

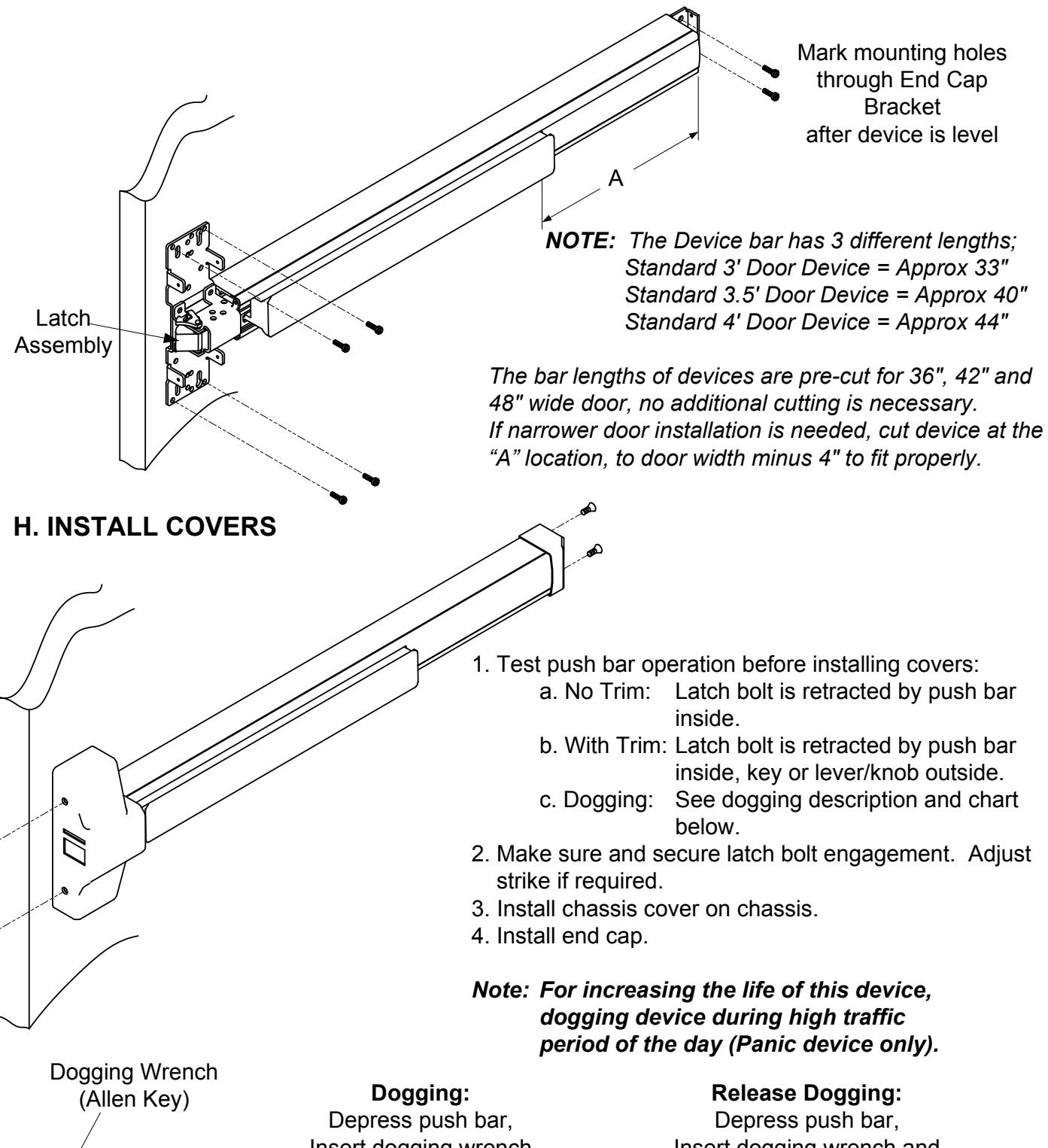

• 4. Install end cap bracket on device, then screw to door.
• 5. Tighten all screws or bolts.

Insert Trim Actuator Shaft Into device cam "+".

Insert dogging wrench and turn clockwise 35 degrees.

Depress push bar

The push bar will remain depressed and the latch will remain retracted

Insert dogging wrench and turn counter-clockwise 35 degrees.

Depress push bar

The push bar will return to up position and the latch will project to lock the door.
