INSTALLATION INSTRUCTIONS S6000-ATS ANTI-TAMPER SWITCH KIT

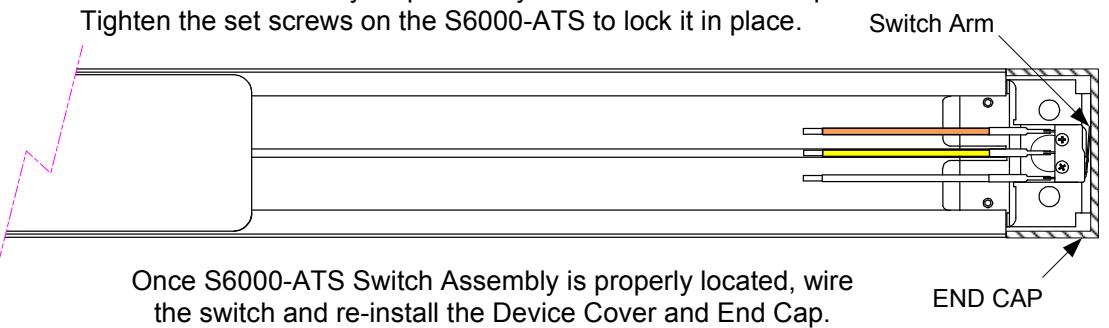

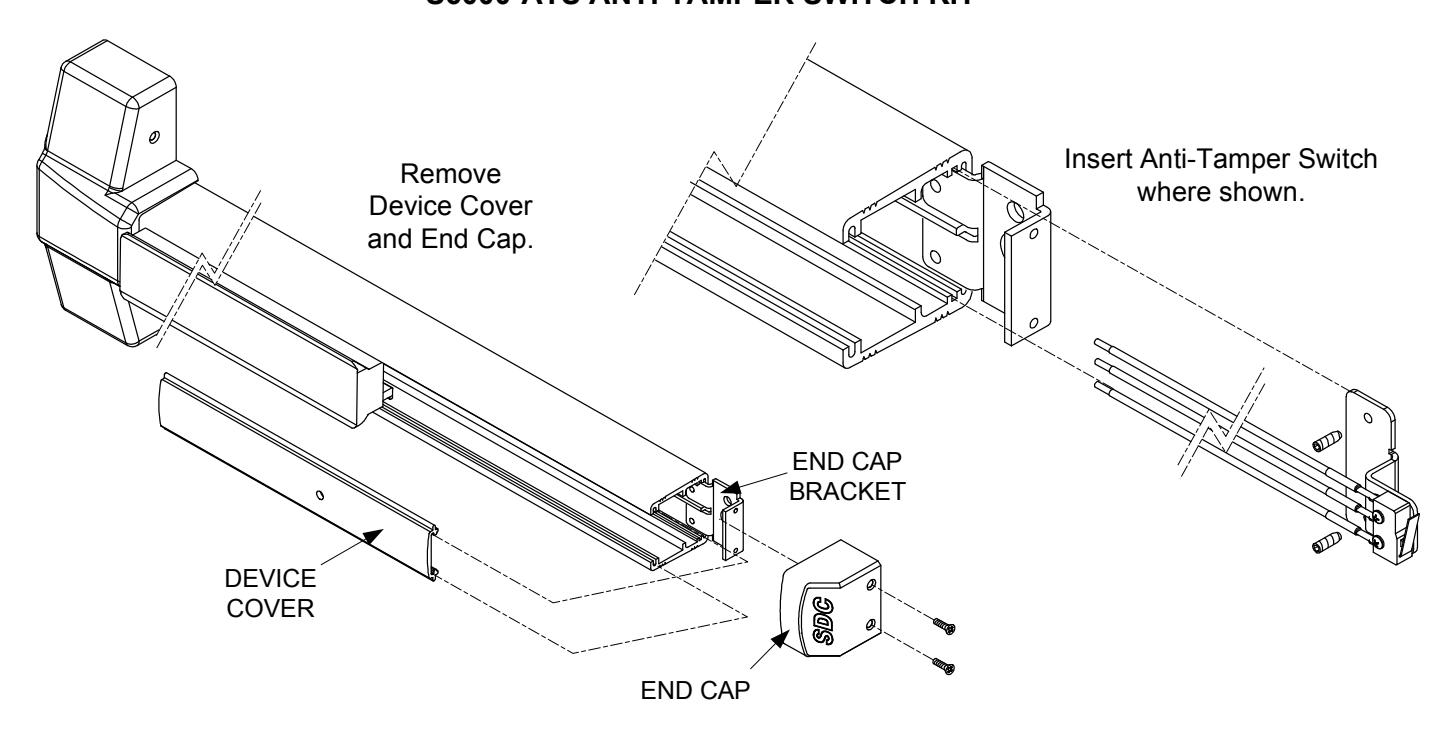

Insert the S6000-ATS Assy. into the device. Slide the End Cap over the End Cap Bracket. Position the S6000-ATS Assy so the switch arm makes contact and is activated by the inside surface of the End Cap. Hold the S6000-ATS Assy. in place as you slide out the End Cap.
Electrical Specifications:
WHT = COM YEL = N/O ORG = N/C 5AMPS @ 250V
Resistive
