APPLICATION PROCEDURE

For use with ETW2-22 and ETW6-2228 concealed electric through-wire hinges.
Steel hinges for interior use only.
Brass and stainless steel hinges for interior and exterior use.
Install Hager 430 mortar box on mortar filled frames. Failure to install mortar box will void manufacturer's warranty.

Each wire rated 50 volts AC/DC at 3.5 Amps (max.) continuous or 16 Amps (max.) pulse.
Maximum pulse width: 400 msec.
Minimum "off" time between pulses: 10 Seconds
Model ETW2-22: 2 each 22AWG wires
Model ETW6-2228: 2 each 22AWG wires & 4 each 28AWG wires

Door and frame preparation MODELS: ETW2-22 & ETW6-2228 THROUGH WIRE HINGES

Door and frame must be prepared in accordance with the appropriate hinge template.
Through wire type hinges are non-load bearing and must be mounted in the center hinge position only.
Do not attempt to disassemble hinge. Hinge must be installed assembled. If hinge is disassembled, manufacturer's warranty will be void.
Wire access holes must be free of burrs and sharp corners. Check to make sure that hinge fits freely in prep. To avoid damaging and or shortened life, do not force hinge into prep holes.

Hang the door on the top and bottom hinges first (note: these are non-electrical hinges).

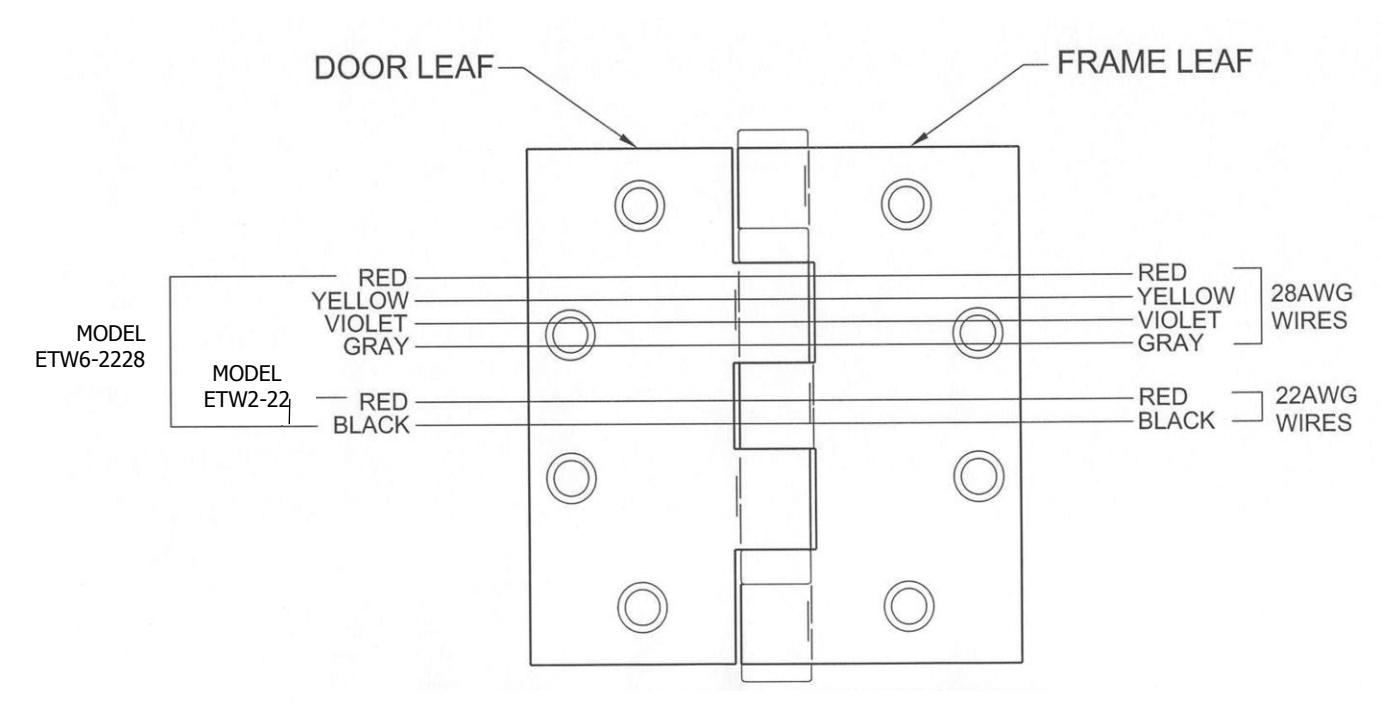

Attach wires in accordance with project wiring diagrams.
Open door to 90 or more for access to jamb preps.
Extract interior wiring through the prep holes from the door and jamb.
Terminate wire connections with appropriate crimp splices or wire nuts. Note: it is helpful to stagger terminations. This allows for easy insertion of wires through prep holes.
Do not hang hinge by wires during installation or serious damage could occur.
After all terminations are completed, carefully slide wires through prep hole making sure that wires are placed so they will not be cut or pinched as hinge is installed.
