Installation Instructions – EKE03-GKE03 Electric Trim

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS ELECTRIC TRIM EKE03/GKE03 SERIES

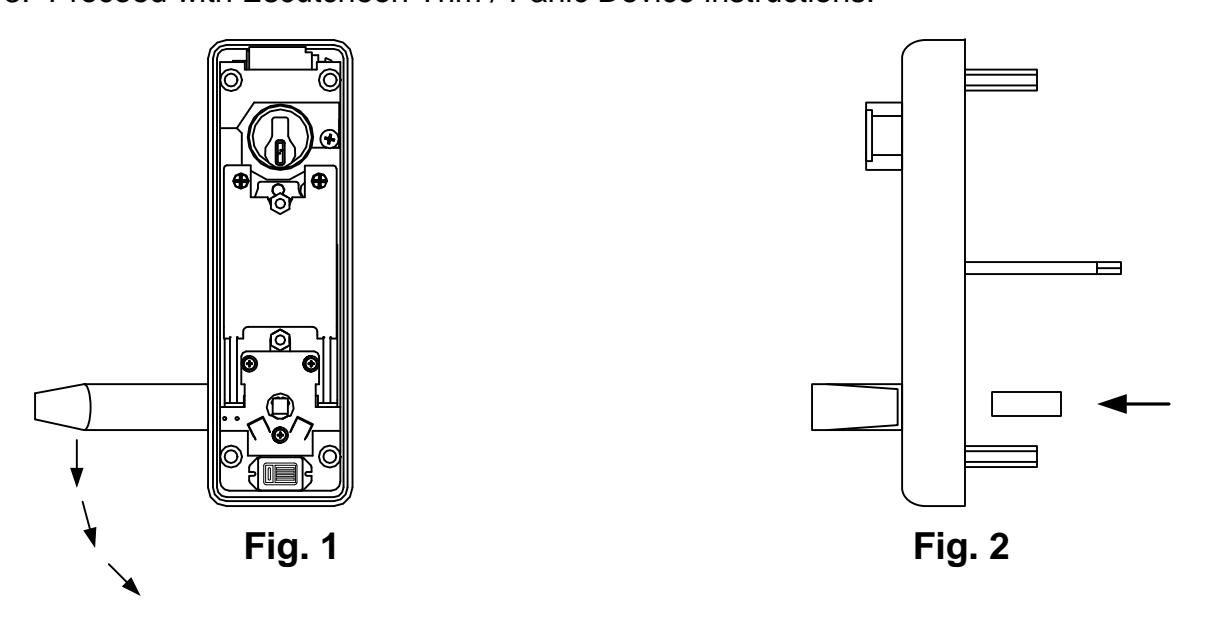

CHANGE HAND OF LEVER HANDLE

• 1. Turn lever handle to the right or left direction to meet door handing (Fig. 1).
• 2. Insert the square spindle into the hub (Fig. 2).
• 3. Proceed with Escutcheon Trim / Panic Device instructions.

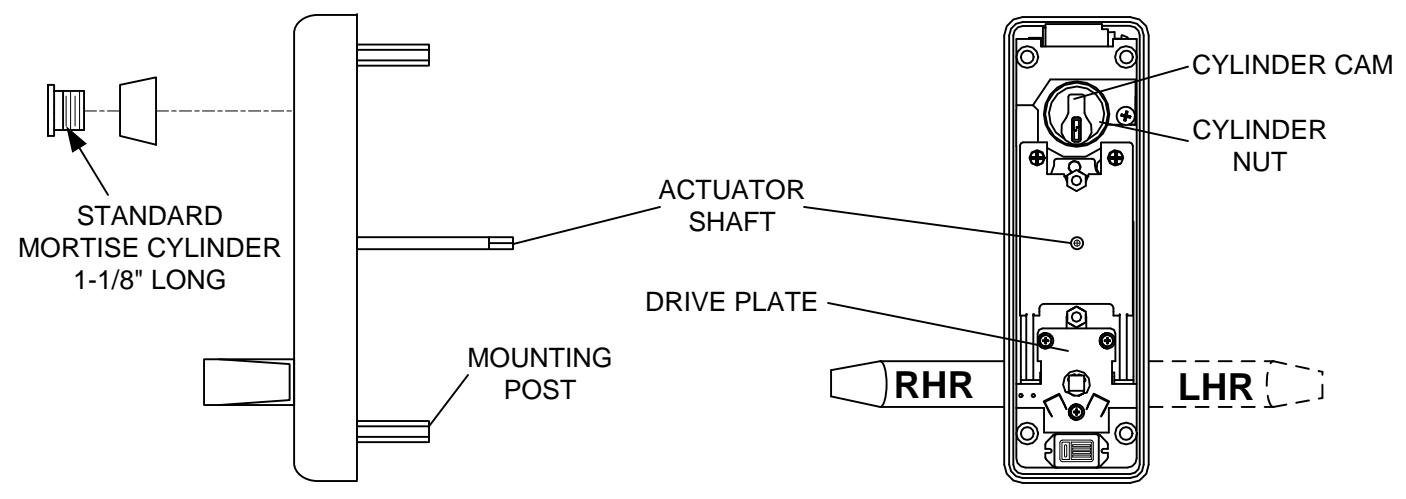

INSTALL MORTISE CYLINDER

• 1. Position collar on mortise cylinder, then push through escutcheon trim with key removed and cam in position shown.
• 2. Install cylinder nut and screw down securely.
• 3. Insert key and test with lever.

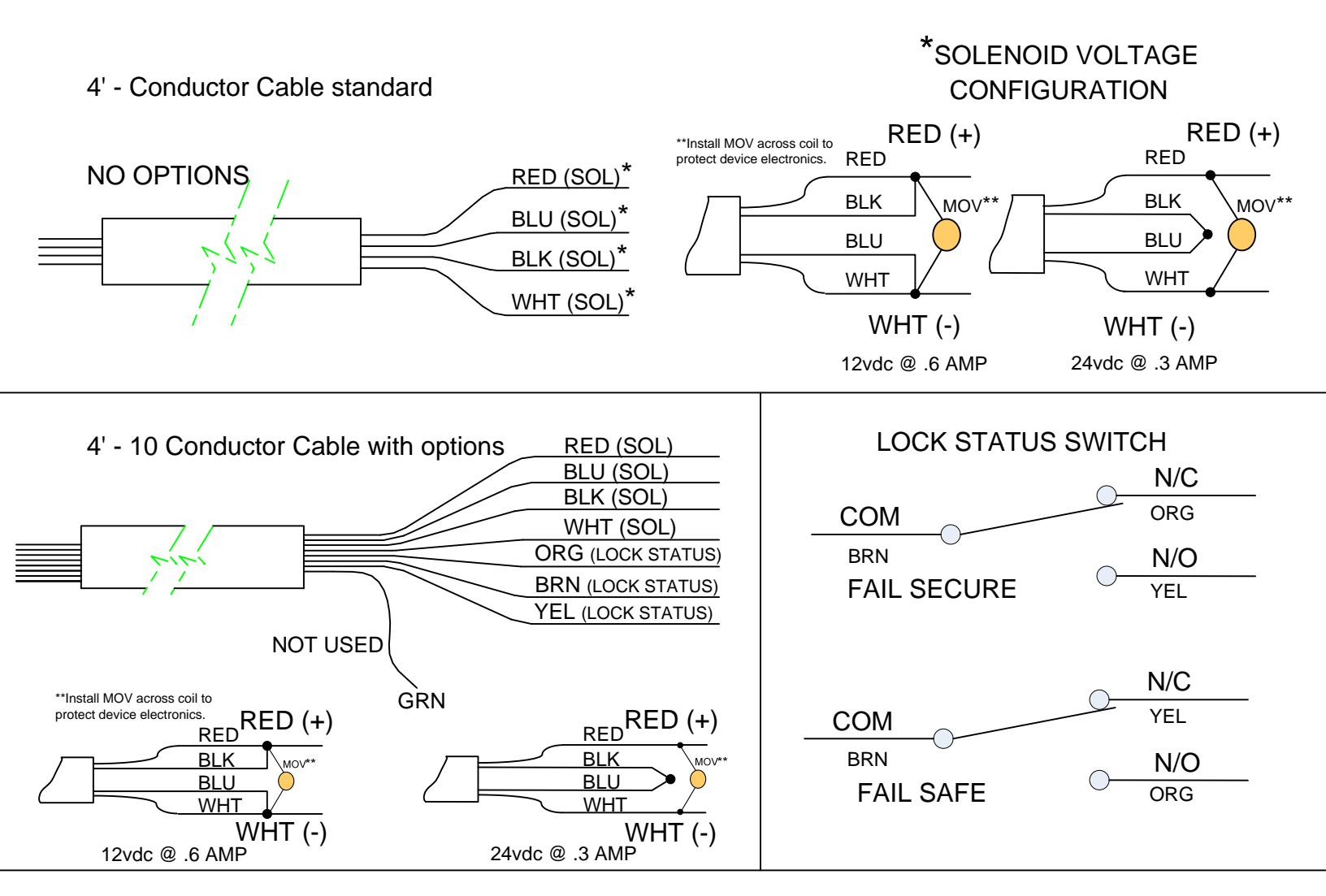

ELECTRICAL SPECIFICATIONS SOLENOID = 12VDC @ .6 AMP 24VDC @ .3AMP

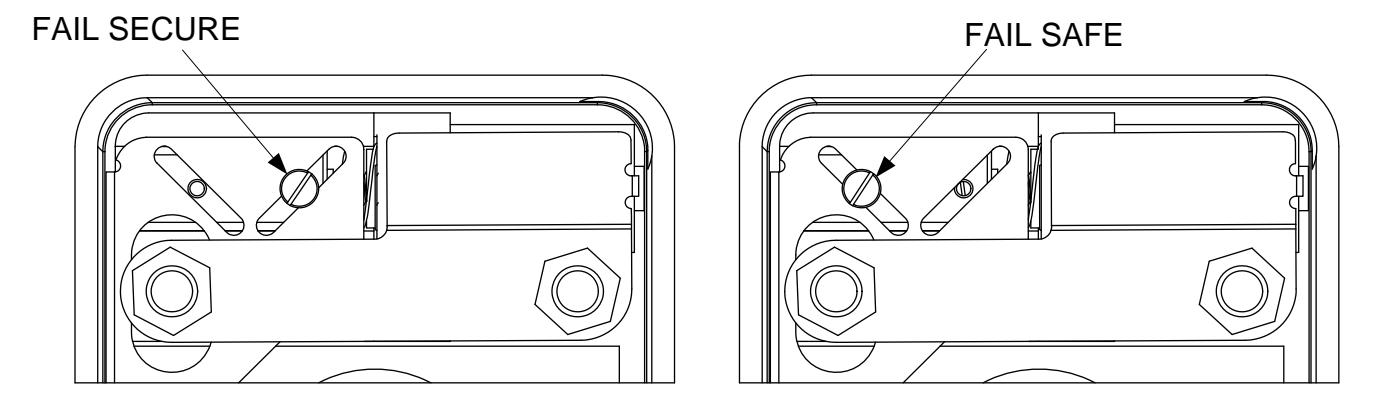

LOCKS ARE SHIPPED IN FAIL SECURE MODE. TO CHANGE TO FAIL SAFE MODE;

RUN WIRES THROUGH DOOR. FOR HOLLOW METAL DOORS RUN 1/2" CONDUIT. FOR WOOD DOORS DRILL 3/8" WIRE RACEWAY FROM HINGE SIDE THROUGH DOOR.

REMOVE THE INDICATED SCREW AND SWITCH POSITION AS SHOWN.
