View PDFInstallation Instructions for 7800/8200/9200 Mortise Lock Anti-Vandal (AV-) Pull Trim or 667 Anti-Vandal Trim Kit
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

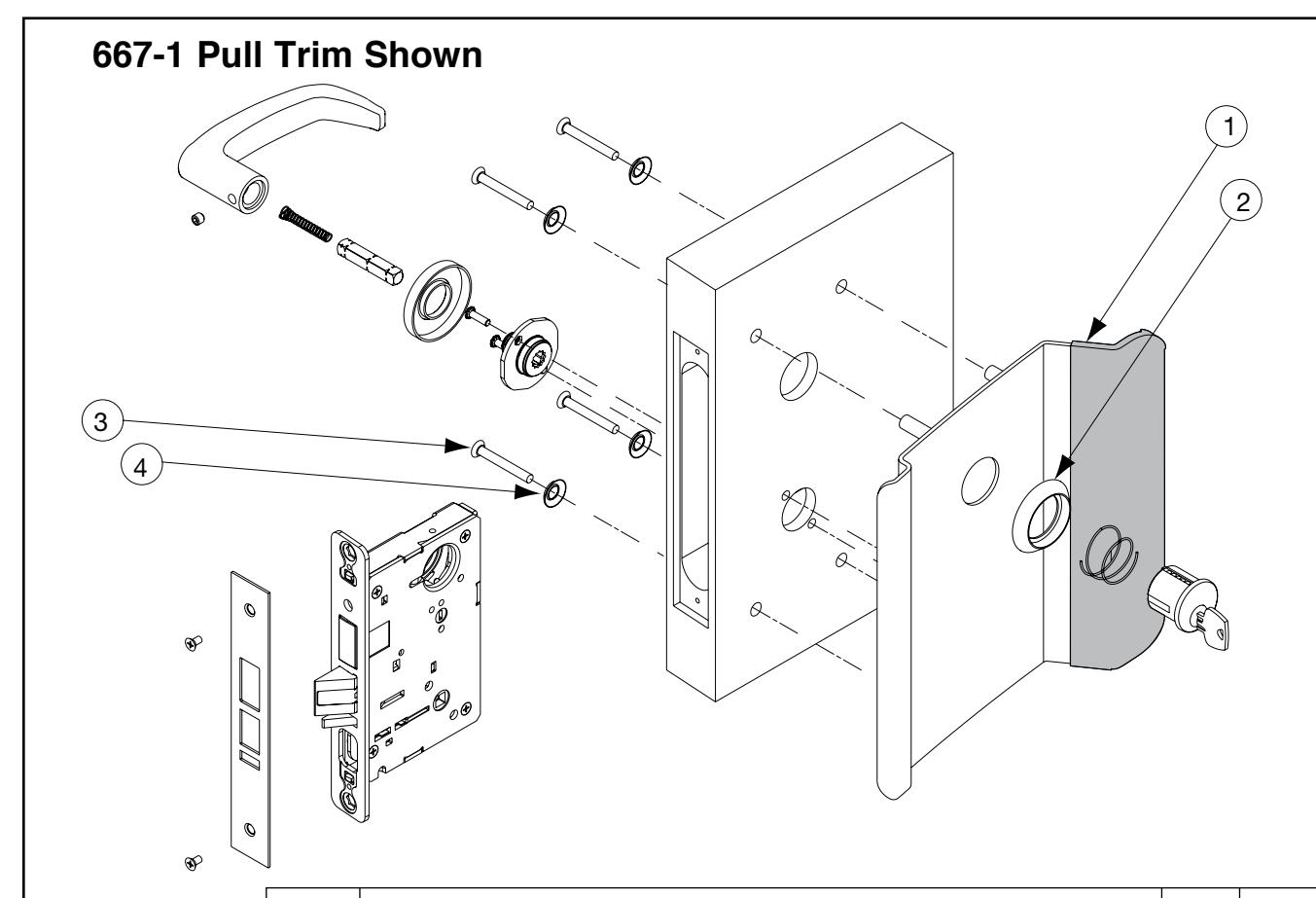

| Item | Description | Qty. | Part Number | ||
|---|---|---|---|---|---|
| 1 | Kit | Hand | Function | ||
| 667-1 | RHRB | 04, 06, 17, 28, 29, 30, 50, 51, 52, 91 & 92 | 1 | 82-4034 | |
| 667-2 | LHRB | 04, 06, 17, 28, 29, 30, 50, 51, 52, 91 & 92 | 1 | 82-4035 | |
| 667-3 | RHRB | 03, 20, 21, 23, 23, & 31 | 1 | 82-4036 | |
| 667-4 | LHRB | 03, 20, 21, 22, 23, & 31 | 1 | 82-4037 | |
| 667-5 | RHRB | Inactive Door, without lip or holes | 1 | 82-4044 | |
| 667-6 | LHRB | Inactive Door, without lip or holes | 1 | 82-4045 | |
| 2 | 1SB Cylinder Rosette Pack | 1 | 92-2071 | ||
| 3 | 1/4"-20 x 1-1/4" Metal/Machine Screw - Phillips head | 4 | 01-3454 | ||
| 4 | Cup Washer | 4 | 01-0225 | ||
For proper trim installation, prep door with instructions and templates supplied with mortise lock or template A7050 (included with AV trim).
- 1. Install lock per instructions supplied substituting AV Pull Trim for outside trim or escutcheon. Outside spindle is not used with AV Pull Trim.
- 2. Insert mounting posts through door and attach trim with four 1/4-20 machine screws and cup washers. Tighten securely.
- 3. Complete assembly of inside rose/trim, cylinder and lock front.
- 4. Check lock for correct operation before closing door.
