Installation Instructions 482A6RPH-484A6RPH HDPE ROUND PUSH PLATE SWITCH

INSTALLATION INSTRUCTIONS

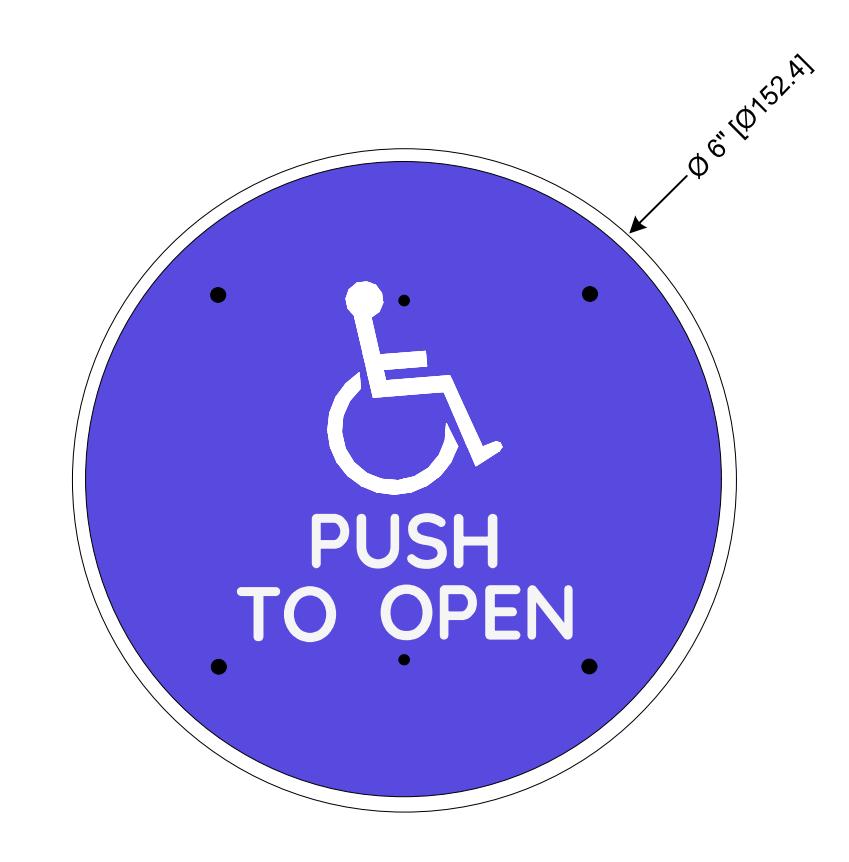

482A6RPH / 484A6RPH HDPE ROUND PUSH PLATE SWITCH ADA PUSH TO OPEN – BLUE FACE W/ WHITE INFILL 6" DIA.

Specifications

Switch mounts to a:

Single Gang electrical box or 4S box by others, or Flush mount recessed box (SDC P/N: 480-6RFB), or Round Surface mount box (SDC P/N: 480-6RSB)

Optional 6" round weather gasket (SDC P/N: 480-6G) for 480-6RFB or 480-6RSB

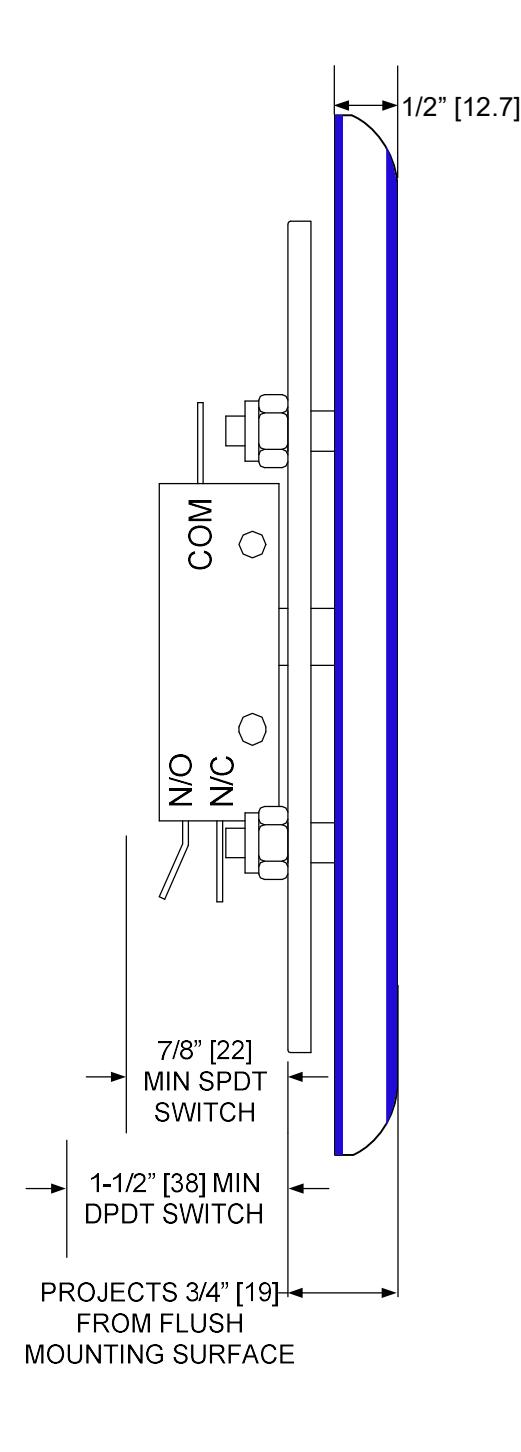

Contact Type: SPDT(482) or DPDT(484) Momentary

Contact Rating: 2 Amp @ 48VDC

15 Amp @ 125 / 250VAC

Faceplate Material: High-density Polyethylene (HDPE)

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com
