INSTALLATION INSTRUCTIONS

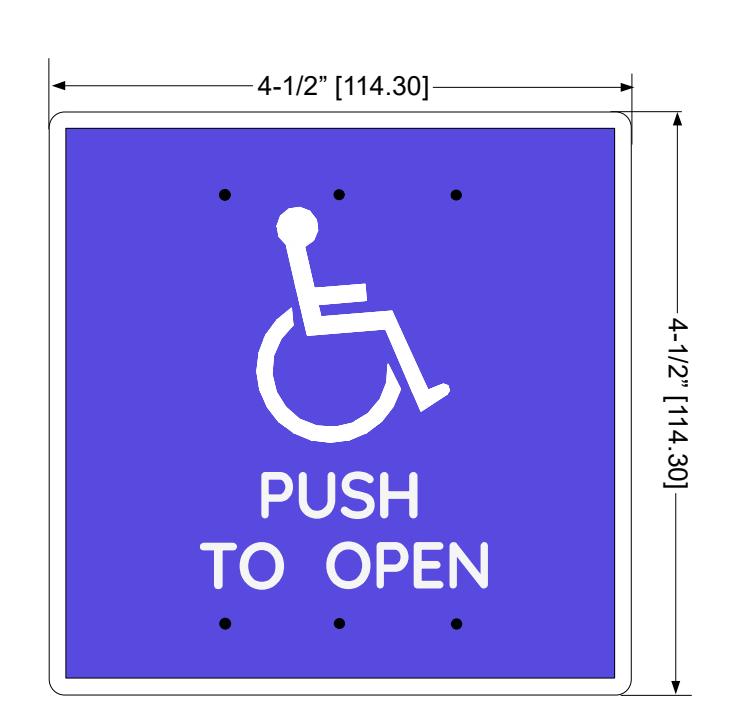

482A4SPH / 484A4SPH HDPE SQUARE PUSH PLATE SWITCH, ADA PUSH TO OPEN, BLUE FACE W/ WHITE INFILL – 4-1/2" SQ.
Specifications

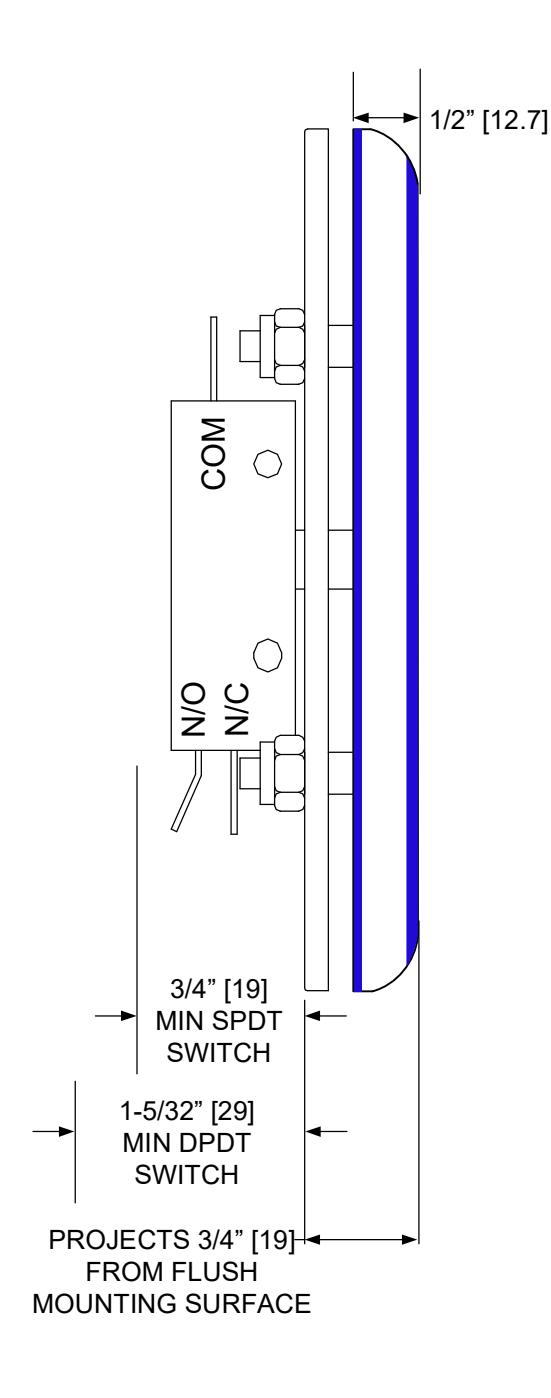

Switch mounts to a:
Single Gang or Double Gang electrical box by others, or Flush mount recessed box (SDC P/N: 480-4FB), or
Surface mount box (SDC P/N: 480-4SB)
Contact Type: SPDT(482) or DPDT(484) Momentary
Contact Rating: 2 Amp @48VDC
15 Amp @125/250VAC
Faceplate Material: High-density Polyethylene (HDPE)
