INSTALLATION INSTRUCTIONS

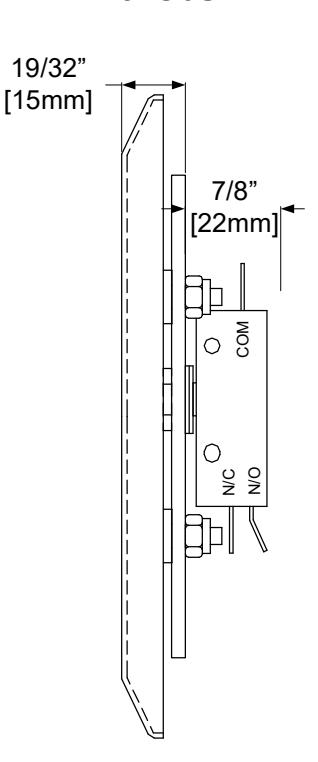

480-6 6" SQUARE PUSH PLATE SPDT SWITCH 482A6U / 482O6U

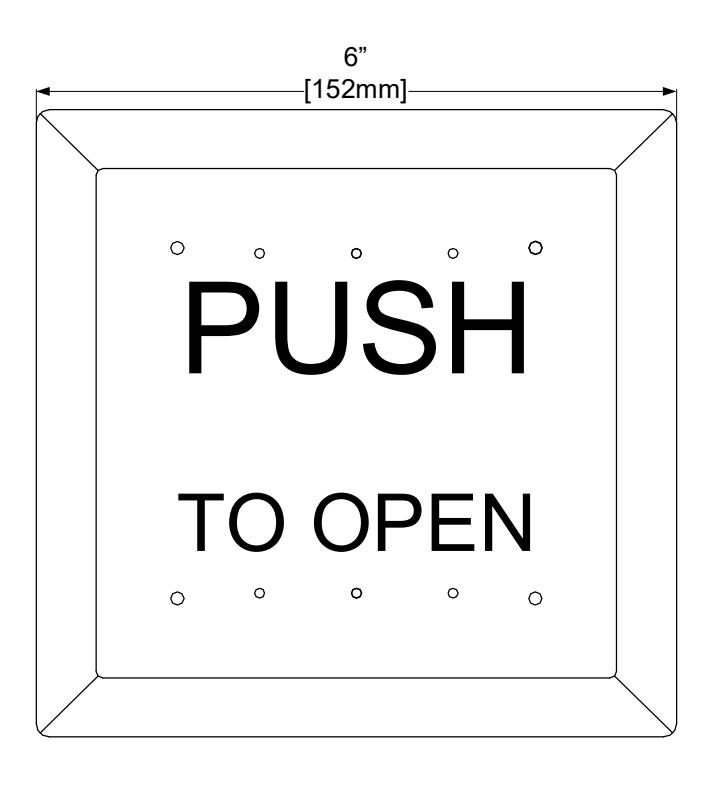

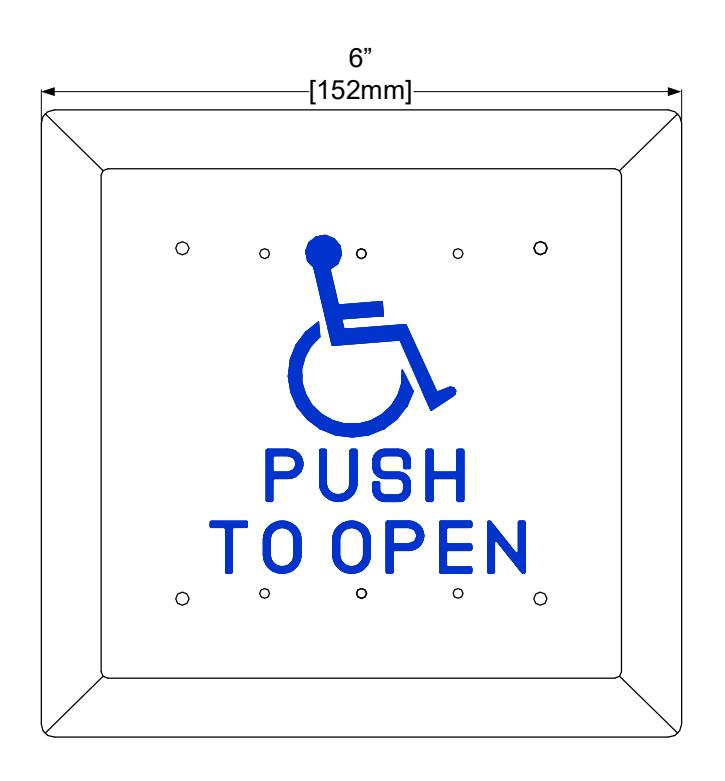

482A6U 482O6U
Specification:
Physical Size: 6"sq x 4-1/2" x 1-7/16"
Contact Type: SPDT - Momentary
Contact Rating: 2 Amp @ 48 VDC
15 Amp @ 125/250 VAC
*Switch mounts to a standard Single Gang (2" x 4") or Double Gang (4" x 4") electrical box and or a 4S box.

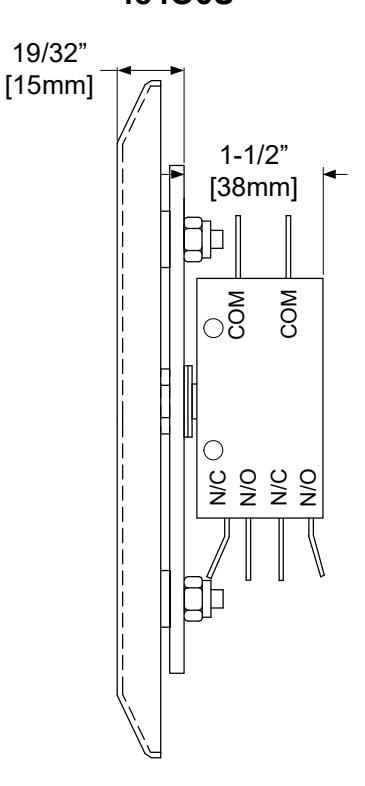

6" SQUARE PUSH PLATE DPDT SWITCH 484A6U / 484O6U

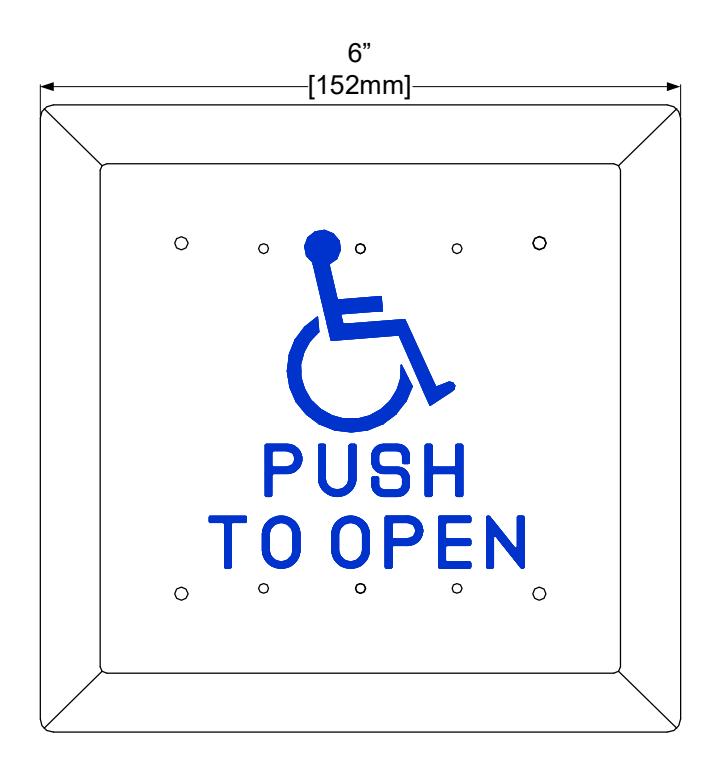

484A6U
484O6U
Physical Size: 6"sq x 4-1/2" x 2-1/16"
Contact Type: DPDT - Momentary
Contact Rating: 15 Amp @ 125/250 VAC
*Switch mounts to a standard Single Gang (2" x 4") or Double Gang (4" x 4") electrical box and or a 4S box.
