INSTALLATION INSTRUCTIONS

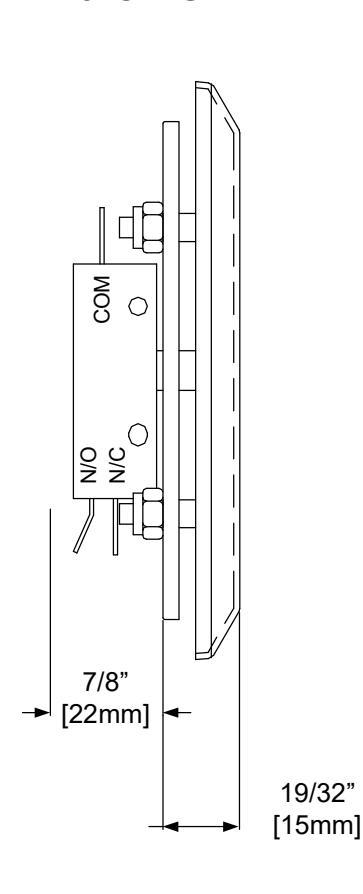

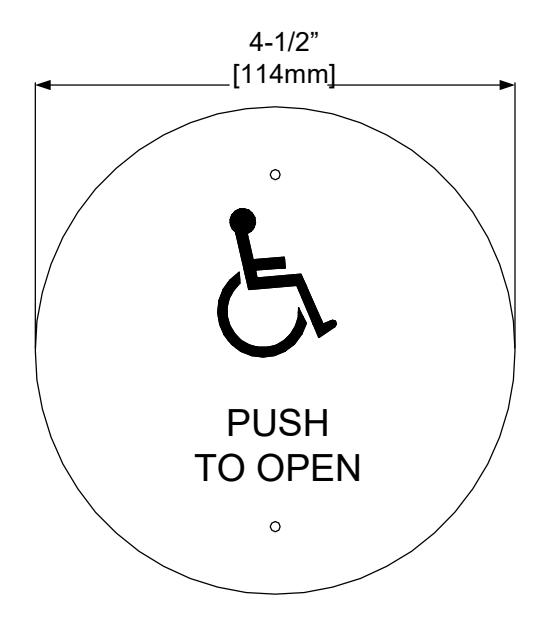

480-4R 4-1/2" ROUND PUSH PLATE SPDT SWITCH 482A4RU / 482O4RU
PUSH TO OPEN
482A4RU
48204RU
Specification:
Physical Size: 4-1/2" Dia x 1-7/16"
Contact Type: SPDT - Momentary
Contact Rating: 2 Amp @ 48 VDC
15 Amp @ 125/250 VAC
*Switch mounts to a standard Single Gang (2" x 4") electrical box.

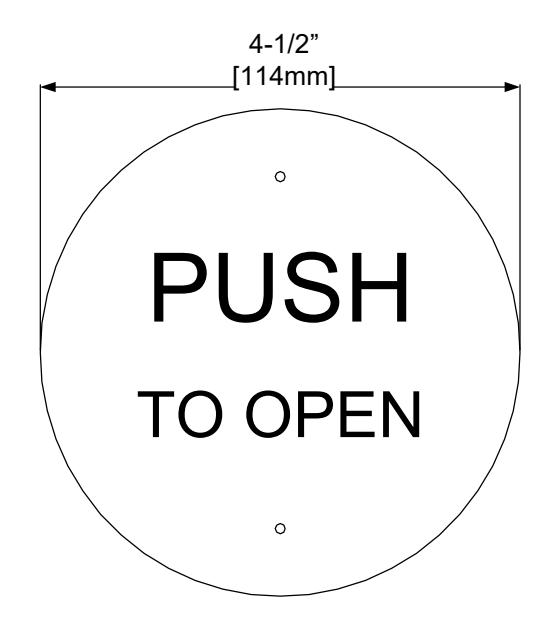

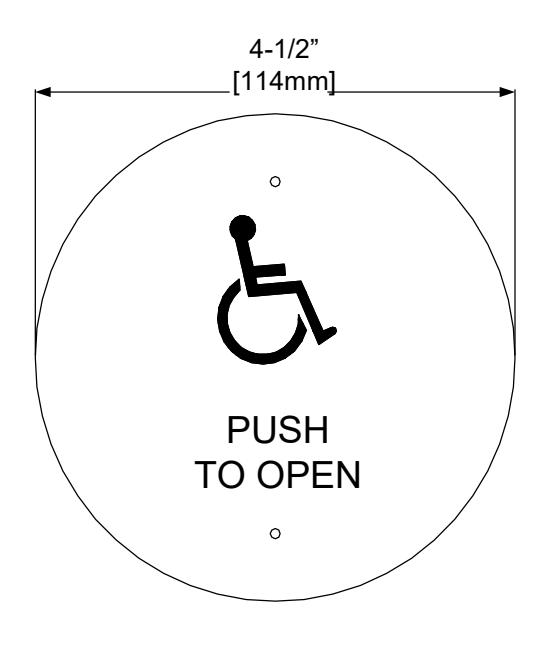

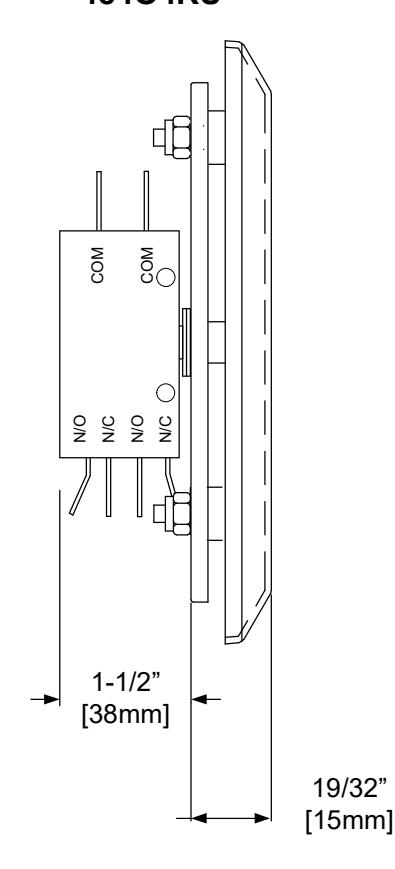

4-1/2" ROUND PUSH PLATE DPDT SWITCH 484A4RU / 484O4RU
484A4RU
48404RU
Specification:
Physical Size: 4-1/2" Dia x 2-1/16"
Contact Type: DPDT - Momentary
Contact Rating: 2 Amp @ 48 VDC
15 Amp @ 125/250 VAC
* Switch mounts to a standard Single Gang (2" x 4") electrical box.
