INSTALLATION INSTRUCTIONS

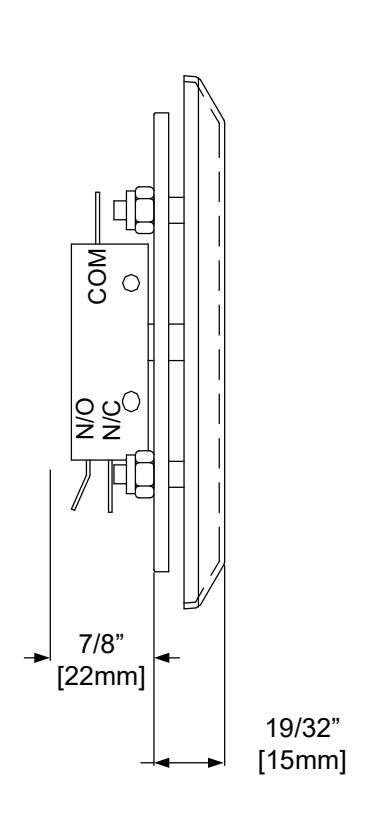

480-4 4-1/2" SQUARE PUSH PLATE SPDT SWITCH 482A4U / 482O4U

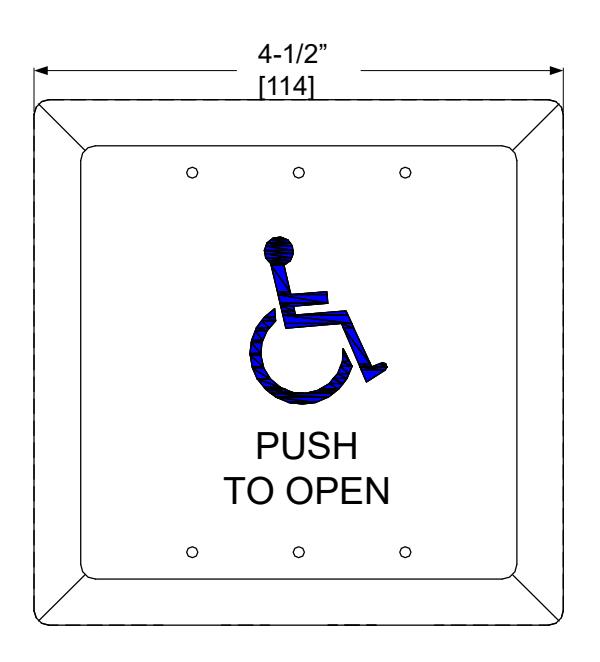

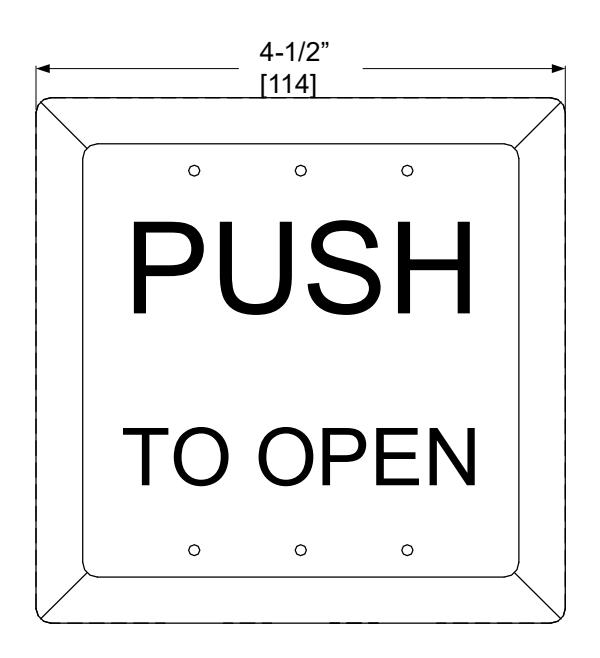

482A4U 482O4U
Specification:
Physical Size: 4-1/2"sq x 1-7/16"
Contact Type: SPDT - Momentary
Contact Rating: 2 Amp @ 48 VDC
15 Amp @ 125/250 VAC
*Switch mounts to a standard Single Gang (2" x 4") or Double Gang (4" x 4") electrical box.

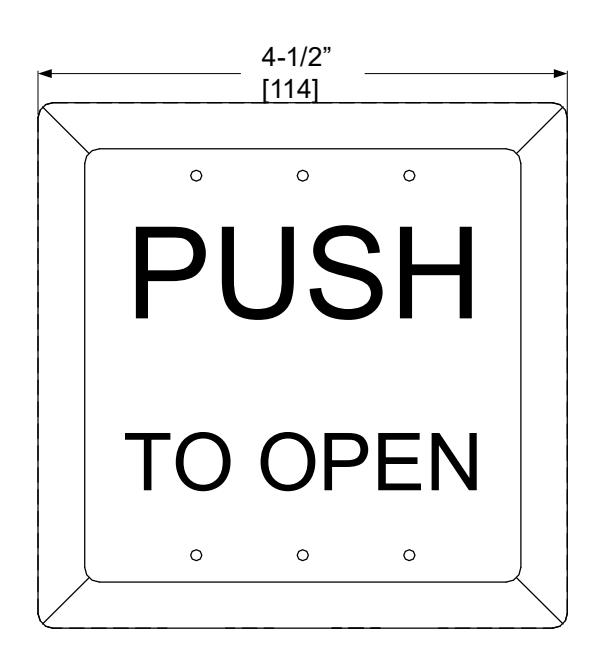

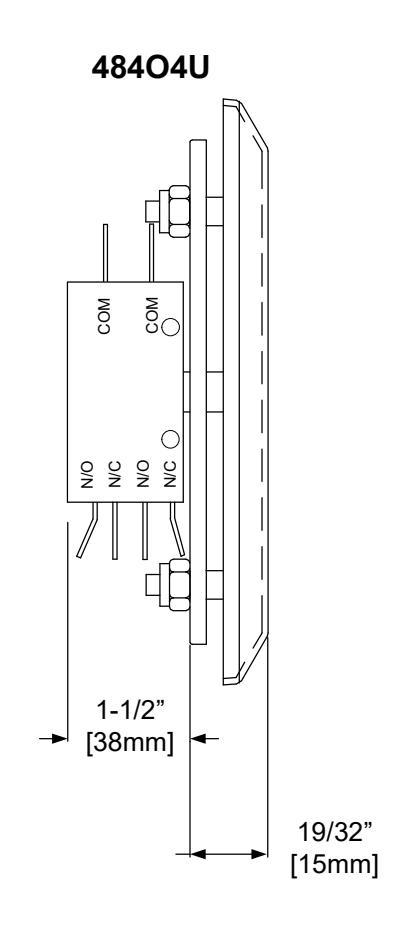

4-1/2" SQUARE PUSH PLATE DPDT SWITCH 484A4U / 484O4U

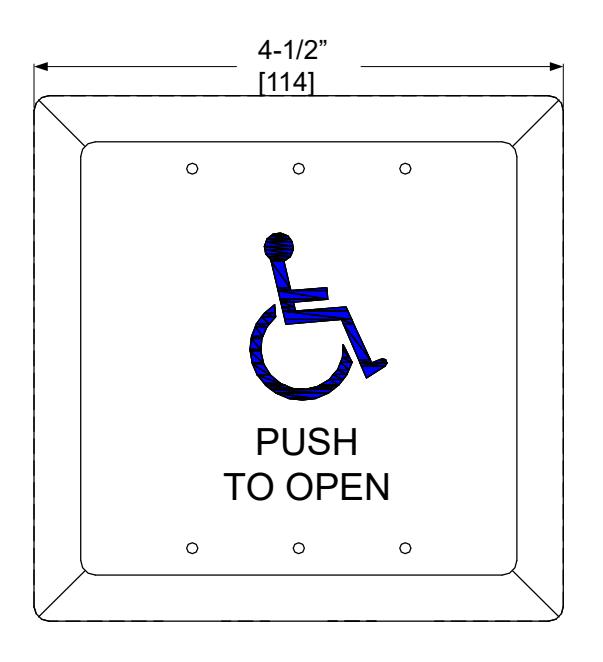

484A4U
Specification:
Physical Size: 4-1/2"sq x 2-1/16"
Contact Type: DPDT - Momentary
Contact Rating: 15 Amp @ 125/250 VAC
*Switch mounts to a standard Single Gang (2" x 4") or Double Gang (4" x 4") electrical box.
