INSTALLATION INSTRUCTIONS
480-2 SINGLE GANG PUSH PLATE SPDT SWITCH 482A2U / 482O2U

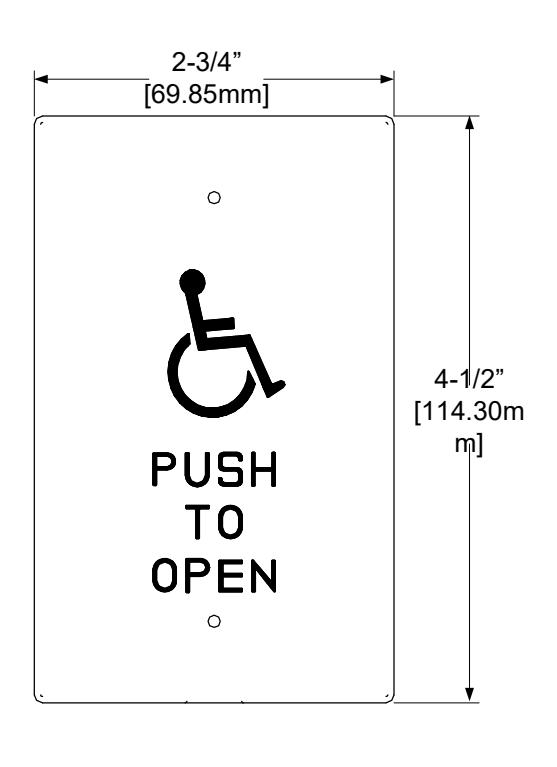

2-3/4" [69.85mm] PUSH TO OPEN O
482A2U 482O2U
Specification:
Physical Size: 2-3/4" x 4-1/2" x 1-5/16"
Contact Type: SPDT - Momentary
Contact Rating: 2 Amp @ 48 VDC
15 Amp @ 125/250 VAC
*Switch mounts to a standard Single Gang (2" x 4") electrical box.
SINGLE GANG PUSH PLATE DPDT SWITCH 484A2U / 484O2U

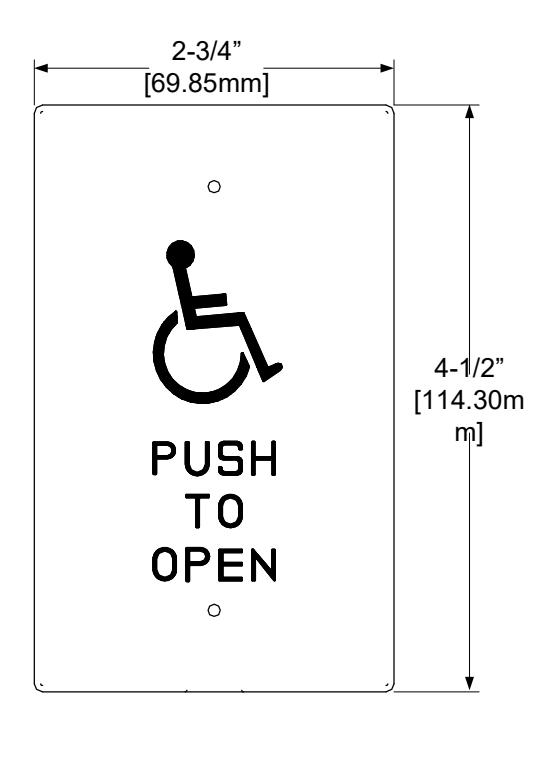

484A2U

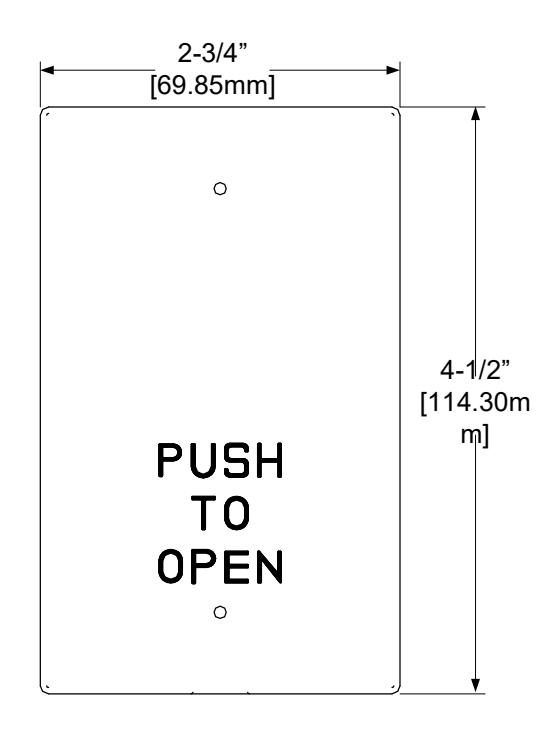

484O2U

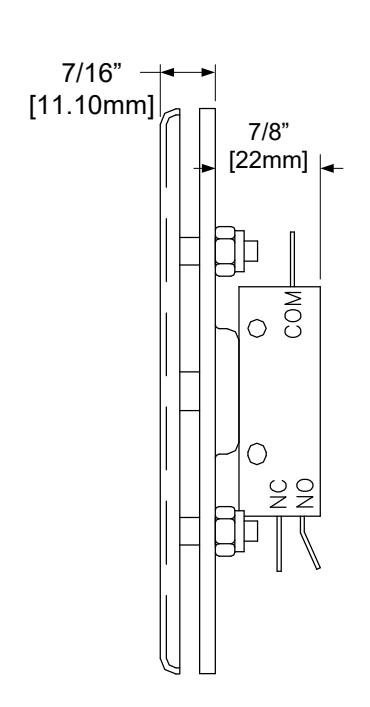

7/16"
Specification:
Physical Size: 2-3/4" x 4-1/2" x 1-15/16"
Contact Type: DPDT - Momentary
Contact Rating: 15 Amp @ 125/250 VAC
[11.10mm]
* Switch mounts to a standard Single Gang (2" x 4") electrical box.
